Create overlapping partitions of a local graph. More...

#include <Ifpack2_OverlappingPartitioner_decl.hpp>

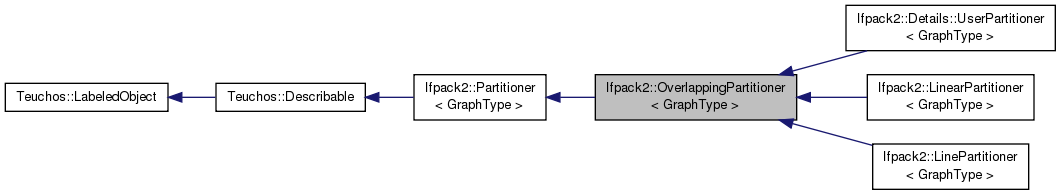

Inheritance diagram for Ifpack2::OverlappingPartitioner< GraphType >:

Public Member Functions
	OverlappingPartitioner (const Teuchos::RCP< const row_graph_type > &graph)
	Constructor. More...

virtual	~OverlappingPartitioner ()
	Destructor. More...

int	numLocalParts () const
	Number of computed local partitions. More...

int	overlappingLevel () const
	The number of levels of overlap. More...

local_ordinal_type	operator() (const local_ordinal_type MyRow) const
	Local index of the nonoverlapping partition of the given row. More...

local_ordinal_type	operator() (const local_ordinal_type i, const local_ordinal_type j) const
	Local index of the overlapping partition of the j-th vertex in partition i. More...

size_t	numRowsInPart (const local_ordinal_type Part) const
	the number of rows contained in the given partition. More...

void	rowsInPart (const local_ordinal_type Part, Teuchos::ArrayRCP< local_ordinal_type > &List) const
	Fill `List` with the local indices of the rows in the (overlapping) partition `Part`. More...

virtual Teuchos::ArrayView < const local_ordinal_type >	nonOverlappingPartition () const
	A view of the local indices of the nonoverlapping partitions of each local row. More...

virtual void	setParameters (Teuchos::ParameterList &List)
	Set all the parameters for the partitioner. More...

virtual void	setPartitionParameters (Teuchos::ParameterList &List)=0
	Set all the parameters for the partitioner. More...

virtual void	compute ()
	Computes the partitions. Returns 0 if successful. More...

virtual void	computePartitions ()=0
	Computes the partitions. Returns 0 if successful. More...

virtual void	computeOverlappingPartitions ()
	Computes the partitions. Returns 0 if successful. More...

virtual bool	isComputed () const
	Returns true if partitions have been computed successfully. More...

virtual std::ostream &	print (std::ostream &os) const
	Prints basic information on iostream. This function is used by operator<<. More...

Implementation of Teuchos::Describable
std::string	description () const
	Return a simple one-line description of this object. More...

void	describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const
	Print the object with some verbosity level to an FancyOStream object. More...

Public Member Functions inherited from Ifpack2::Partitioner< GraphType >
virtual	~Partitioner ()
	Destructor. More...

Protected Attributes
int	NumLocalParts_
	Number of local subgraphs. More...

Teuchos::Array < local_ordinal_type >	Partition_
	Mapping from local row to partition number. More...

Teuchos::Array < Teuchos::ArrayRCP < local_ordinal_type > >	Parts_
	Mapping from partition to all rows it contains. More...

Teuchos::RCP< const row_graph_type >	Graph_
	The graph to be partitioned. More...

int	OverlappingLevel_
	Level of overlap. More...

bool	IsComputed_
	If `true`, the graph has been successfully partitioned. More...

bool	verbose_
	If `true`, information are reported to stdout. More...

bool	maintainSparsity_
	If `true`, only add row to partition (block) if doing so won't add new columns to the column map. More...

Detailed Description

template<class GraphType>
class Ifpack2::OverlappingPartitioner< GraphType >

Create overlapping partitions of a local graph.

Template Parameters

GraphType Specialization of Tpetra::CrsGraph or Tpetra::RowGraph.

This class enables the extension of nonoverlapping partitions to an arbitrary amount of constant overlap. "Overlap" here refers to the overlap among the local parts, and not the overlap among the processes.

For partitions with varying overlap, use UserPartitioner, which inherits from OverlappingPartitioner.

Supported parameters are:

"partitioner: local parts" (local_ordinal_type): the number of local partitions. Default is one (one local partition, which means "do not partition locally").
"partitioner: overlap" (int): the amount of overlap between partitions. Default is zero (no overlap).

This class implements common functionality for derived classes like LinearPartitioner. Graphs given as input to any derived class must contain no singletons. Usually, this means that the graph is the graph of a Tpetra::RowMatrix that has been filtered using SingletonFilter.

Constructor & Destructor Documentation

template<class GraphType >

Ifpack2::OverlappingPartitioner< GraphType >::OverlappingPartitioner ( const Teuchos::RCP< const row_graph_type > & graph )

Constructor.

template<class GraphType >

Ifpack2::OverlappingPartitioner< GraphType >::~OverlappingPartitioner ( )

virtual

Destructor.

Member Function Documentation

template<class GraphType >

int Ifpack2::OverlappingPartitioner< GraphType >::numLocalParts ( ) const

virtual

Number of computed local partitions.

This is a (signed) int because negative values are significant. We can't use local_ordinal_type here, because that type may be either signed or unsigned.

Implements Ifpack2::Partitioner< GraphType >.

template<class GraphType >

int Ifpack2::OverlappingPartitioner< GraphType >::overlappingLevel ( ) const

virtual

The number of levels of overlap.

Implements Ifpack2::Partitioner< GraphType >.

template<class GraphType >

GraphType::local_ordinal_type Ifpack2::OverlappingPartitioner< GraphType >::operator() ( const local_ordinal_type MyRow ) const

virtual

Local index of the nonoverlapping partition of the given row.

Parameters

MyRow [in] Local index of the row.

Implements Ifpack2::Partitioner< GraphType >.

template<class GraphType >

GraphType::local_ordinal_type Ifpack2::OverlappingPartitioner< GraphType >::operator()	(	const local_ordinal_type	i,
		const local_ordinal_type	j
	)		const

virtual

Local index of the overlapping partition of the j-th vertex in partition i.

Implements Ifpack2::Partitioner< GraphType >.

template<class GraphType >

size_t Ifpack2::OverlappingPartitioner< GraphType >::numRowsInPart ( const local_ordinal_type Part ) const

virtual

the number of rows contained in the given partition.

Implements Ifpack2::Partitioner< GraphType >.

template<class GraphType >

void Ifpack2::OverlappingPartitioner< GraphType >::rowsInPart	(	const local_ordinal_type	Part,
		Teuchos::ArrayRCP< local_ordinal_type > &	List
	)		const

virtual

Fill List with the local indices of the rows in the (overlapping) partition Part.

Implements Ifpack2::Partitioner< GraphType >.

template<class GraphType >

Teuchos::ArrayView< const typename GraphType::local_ordinal_type > Ifpack2::OverlappingPartitioner< GraphType >::nonOverlappingPartition ( ) const

virtual

A view of the local indices of the nonoverlapping partitions of each local row.

Implements Ifpack2::Partitioner< GraphType >.

template<class GraphType >

void Ifpack2::OverlappingPartitioner< GraphType >::setParameters ( Teuchos::ParameterList & List )

virtual

Set all the parameters for the partitioner.

The supported parameters are:

"partitioner: overlap" (int, default = 0).
"partitioner: local parts" (int, default = 1).
"partitioner: print level" (bool, default = false).

Implements Ifpack2::Partitioner< GraphType >.

template<class GraphType >

virtual void Ifpack2::OverlappingPartitioner< GraphType >::setPartitionParameters ( Teuchos::ParameterList & List )

pure virtual

Set all the parameters for the partitioner.

This function is used by derived classes to set their own parameters. These classes should not derive SetParameters(), so that common parameters can be set just once.

Implemented in Ifpack2::Details::UserPartitioner< GraphType >, Ifpack2::LinePartitioner< GraphType, Scalar >, and Ifpack2::LinearPartitioner< GraphType >.

template<class GraphType >

void Ifpack2::OverlappingPartitioner< GraphType >::compute ( )

virtual

Computes the partitions. Returns 0 if successful.

Implements Ifpack2::Partitioner< GraphType >.

template<class GraphType >

virtual void Ifpack2::OverlappingPartitioner< GraphType >::computePartitions ( )

pure virtual

Computes the partitions. Returns 0 if successful.

Implemented in Ifpack2::Details::UserPartitioner< GraphType >, Ifpack2::LinePartitioner< GraphType, Scalar >, and Ifpack2::LinearPartitioner< GraphType >.

template<class GraphType >

void Ifpack2::OverlappingPartitioner< GraphType >::computeOverlappingPartitions ( )

virtual

Computes the partitions. Returns 0 if successful.

template<class GraphType >

bool Ifpack2::OverlappingPartitioner< GraphType >::isComputed ( ) const

virtual

Returns true if partitions have been computed successfully.

Implements Ifpack2::Partitioner< GraphType >.

template<class GraphType >

std::ostream & Ifpack2::OverlappingPartitioner< GraphType >::print ( std::ostream & os ) const

virtual

Prints basic information on iostream. This function is used by operator<<.

Implements Ifpack2::Partitioner< GraphType >.

template<class GraphType >

std::string Ifpack2::OverlappingPartitioner< GraphType >::description ( ) const

virtual

Return a simple one-line description of this object.

Reimplemented from Teuchos::Describable.

template<class GraphType >

void Ifpack2::OverlappingPartitioner< GraphType >::describe	(	Teuchos::FancyOStream &	out,
		const Teuchos::EVerbosityLevel	verbLevel = `Teuchos::Describable::verbLevel_default`
	)		const

virtual

Print the object with some verbosity level to an FancyOStream object.

Reimplemented from Teuchos::Describable.

Member Data Documentation

template<class GraphType >

int Ifpack2::OverlappingPartitioner< GraphType >::NumLocalParts_

protected

Number of local subgraphs.

This is a (signed) int because negative values are significant. We can't use local_ordinal_type here, because that type may be either signed or unsigned.

template<class GraphType >

Teuchos::Array<local_ordinal_type> Ifpack2::OverlappingPartitioner< GraphType >::Partition_

protected

Mapping from local row to partition number.

Partition_[i] contains the local index of the nonoverlapping partition to which local row i belongs. If the application has explicitly defined Parts_, then Partition_ is unused.

template<class GraphType >

Teuchos::Array<Teuchos::ArrayRCP<local_ordinal_type> > Ifpack2::OverlappingPartitioner< GraphType >::Parts_

protected

Mapping from partition to all rows it contains.

Used with 'partitioner: parts' (or 'partitioner: global ID parts') Parts_[i][j] is the local (or global) index of the j-th row contained in the (overlapping) partition i.

template<class GraphType >

Teuchos::RCP<const row_graph_type> Ifpack2::OverlappingPartitioner< GraphType >::Graph_

protected

The graph to be partitioned.

template<class GraphType >

int Ifpack2::OverlappingPartitioner< GraphType >::OverlappingLevel_

protected

Level of overlap.

template<class GraphType >

bool Ifpack2::OverlappingPartitioner< GraphType >::IsComputed_

protected

If true, the graph has been successfully partitioned.

template<class GraphType >

bool Ifpack2::OverlappingPartitioner< GraphType >::verbose_

protected

If true, information are reported to stdout.

template<class GraphType >

bool Ifpack2::OverlappingPartitioner< GraphType >::maintainSparsity_

protected

If true, only add row to partition (block) if doing so won't add new columns to the column map.

Default is false. This option should decrease computational cost of the apply, but convergence will likely degrade.
