Ifpack2::LinePartitioner< GraphType, Scalar > Class Template Reference

Ifpack2::LinePartitioner: A class to define partitions into a set of lines. More...

#include <Ifpack2_LinePartitioner_decl.hpp>

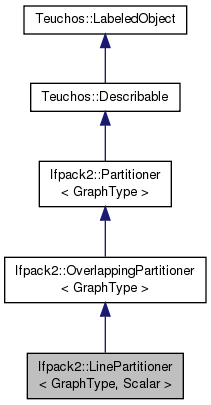

Inheritance diagram for Ifpack2::LinePartitioner< GraphType, Scalar >:
Inheritance graph
[legend]

Public Member Functions

 LinePartitioner (const Teuchos::RCP< const row_graph_type > &graph)
 Constructor. More...

virtual ~LinePartitioner ()
 Destructor. More...

void setPartitionParameters (Teuchos::ParameterList &List)
 Set the partitioner's parameters (none for linear partitioning). More...

void computePartitions ()
 Compute the partitions. More...

- Public Member Functions inherited from Ifpack2::OverlappingPartitioner< GraphType >
 OverlappingPartitioner (const Teuchos::RCP< const row_graph_type > &graph)
 Constructor. More...

virtual ~OverlappingPartitioner ()
 Destructor. More...

int numLocalParts () const
 Number of computed local partitions. More...

int overlappingLevel () const
 The number of levels of overlap. More...

local_ordinal_type operator() (const local_ordinal_type MyRow) const
 Local index of the nonoverlapping partition of the given row. More...

local_ordinal_type operator() (const local_ordinal_type i, const local_ordinal_type j) const
 Local index of the overlapping partition of the j-th vertex in partition i. More...

size_t numRowsInPart (const local_ordinal_type Part) const
 the number of rows contained in the given partition. More...

void rowsInPart (const local_ordinal_type Part, Teuchos::ArrayRCP< local_ordinal_type > &List) const
 Fill List with the local indices of the rows in the (overlapping) partition Part. More...

virtual Teuchos::ArrayView
< const local_ordinal_type >
nonOverlappingPartition () const
 A view of the local indices of the nonoverlapping partitions of each local row. More...

virtual void setParameters (Teuchos::ParameterList &List)
 Set all the parameters for the partitioner. More...

virtual void compute ()
 Computes the partitions. Returns 0 if successful. More...

virtual void computeOverlappingPartitions ()
 Computes the partitions. Returns 0 if successful. More...

virtual bool isComputed () const
 Returns true if partitions have been computed successfully. More...

virtual std::ostream & print (std::ostream &os) const
 Prints basic information on iostream. This function is used by operator<<. More...

std::string description () const
 Return a simple one-line description of this object. More...

void describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const
 Print the object with some verbosity level to an FancyOStream object. More...

- Public Member Functions inherited from Ifpack2::Partitioner< GraphType >
virtual ~Partitioner ()
 Destructor. More...


Additional Inherited Members

- Protected Attributes inherited from Ifpack2::OverlappingPartitioner< GraphType >
int NumLocalParts_
 Number of local subgraphs. More...

Teuchos::Array
< local_ordinal_type >
Partition_
 Mapping from local row to partition number. More...

Teuchos::Array
< Teuchos::ArrayRCP
< local_ordinal_type > >
Parts_
 Mapping from partition to all rows it contains. More...

Teuchos::RCP< const
row_graph_type >
Graph_
 The graph to be partitioned. More...

int OverlappingLevel_
 Level of overlap. More...

bool IsComputed_
 If true, the graph has been successfully partitioned. More...

bool verbose_
 If true, information are reported to stdout. More...

bool maintainSparsity_
 If true, only add row to partition (block) if doing so won't add new columns to the column map. More...


Detailed Description

template<class GraphType, class Scalar>
class Ifpack2::LinePartitioner< GraphType, Scalar >

Ifpack2::LinePartitioner: A class to define partitions into a set of lines.

These "line" partitions could then be used in to do block Gauss-Seidel smoothing, for instance.

The current implementation uses a local line detection inspired by the work of Mavriplis for convection-diffusion (AIAA Journal, Vol 37(10), 1999).

Here we use coordinate information to pick "close" points if they are sufficiently far away from the "far" points. We also make sure the line can never double back on itself, so that the associated sub-matrix could (in theory) be handed off to a fast triangular solver. This implementation doesn't actual do that, however.

This implementation is derived from the related routine in ML.

Supported parameters:

Template Parameters
GraphTypeSpecialization of Tpetra::RowGraph or Tpetra::CrsGraph.

Constructor & Destructor Documentation

template<class GraphType , class Scalar >
Ifpack2::LinePartitioner< GraphType, Scalar >::LinePartitioner ( const Teuchos::RCP< const row_graph_type > &  graph)

Constructor.

template<class GraphType , class Scalar >
Ifpack2::LinePartitioner< GraphType, Scalar >::~LinePartitioner ( )
virtual

Destructor.

Member Function Documentation

template<class GraphType , class Scalar >
void Ifpack2::LinePartitioner< GraphType, Scalar >::setPartitionParameters ( Teuchos::ParameterList List)
virtual

Set the partitioner's parameters (none for linear partitioning).

Implements Ifpack2::OverlappingPartitioner< GraphType >.

template<class GraphType , class Scalar >
void Ifpack2::LinePartitioner< GraphType, Scalar >::computePartitions ( )
virtual

Compute the partitions.

Implements Ifpack2::OverlappingPartitioner< GraphType >.


The documentation for this class was generated from the following files:
