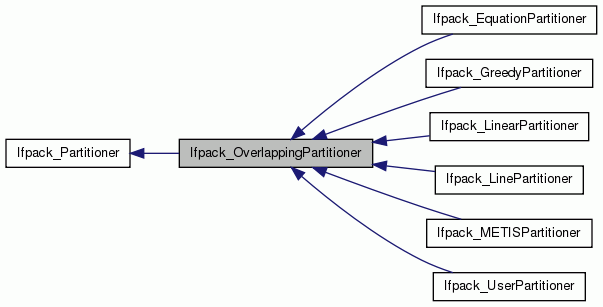

Inheritance diagram for Ifpack_OverlappingPartitioner:

Collaboration diagram for Ifpack_OverlappingPartitioner:

Public Member Functions
	Ifpack_OverlappingPartitioner (const Ifpack_Graph *Graph)
	Constructor.

virtual	~Ifpack_OverlappingPartitioner ()
	Destructor.

int	NumLocalParts () const
	Returns the number of computed local partitions.

int	OverlappingLevel () const
	Returns the overlapping level.

int	operator() (int MyRow) const
	Returns the local non-overlapping partition ID of the specified row. More...

int	operator() (int i, int j) const
	Returns the local overlapping partition ID of the j-th node in partition i.

int	NumRowsInPart (const int Part) const
	Returns the number of rows contained in specified partition.

int	RowsInPart (const int Part, int *List) const
	Copies into List the rows in the (overlapping) partition Part.

const int *	NonOverlappingPartition () const
	Returns a pointer to the integer vector containing the non-overlapping partition ID of each local row.

virtual int	SetParameters (Teuchos::ParameterList &List)
	Sets all the parameters for the partitioner. More...

virtual int	SetPartitionParameters (Teuchos::ParameterList &List)=0
	Sets all the parameters for the partitioner. More...

virtual int	Compute ()
	Computes the partitions. Returns 0 if successful.

virtual int	ComputePartitions ()=0
	Computes the partitions. Returns 0 if successful.

virtual int	ComputeOverlappingPartitions ()
	Computes the partitions. Returns 0 if successful.

bool	IsComputed ()
	Returns true if partitions have been computed successfully.

virtual std::ostream &	Print (std::ostream &os) const
	Prints basic information on iostream. This function is used by operator<<.

Public Member Functions inherited from Ifpack_Partitioner
virtual	~Ifpack_Partitioner ()
	Destructor.

Protected Member Functions
int	NumMyRows () const
	Returns the number of local rows.

int	NumMyNonzeros () const
	Returns the number of local nonzero elements.

int	NumGlobalRows () const
	Returns the number of global rows.

long long	NumGlobalRows64 () const

int	MaxNumEntries () const
	Returns the max number of local entries in a row.

const Epetra_Comm &	Comm () const
	Returns the communicator object of Graph.

Protected Attributes
int	NumLocalParts_
	Number of local subgraphs.

std::vector< int >	Partition_
	Partition_[i] contains the ID of non-overlapping part it belongs to.

std::vector< std::vector< int > >	Parts_
	Parts_[i][j] is the ID of the j-th row contained in the (overlapping)

const Ifpack_Graph *	Graph_
	Reference to the graph to be partitioned.

int	OverlappingLevel_
	Overlapping level.

bool	IsComputed_
	If `true`, the graph has been successfully partitioned.

bool	verbose_
	If `true`, information are reported on cout.

Detailed Description

Definition at line 87 of file Ifpack_OverlappingPartitioner.h.

Member Function Documentation

int Ifpack_OverlappingPartitioner::operator() ( int MyRow ) const

inlinevirtual

Returns the local non-overlapping partition ID of the specified row.

Returns the non-overlapping partition ID of the specified row.

Parameters

MyRow - (In) local row numbe

Returns: Local ID of non-overlapping partition for MyRow.

Implements Ifpack_Partitioner.

Definition at line 117 of file Ifpack_OverlappingPartitioner.h.

References NumMyRows(), and Partition_.

int Ifpack_OverlappingPartitioner::SetParameters ( Teuchos::ParameterList & List )

virtual

Sets all the parameters for the partitioner.

The supported parameters are:

"partitioner: overlap" (int, default = 0).
"partitioner: local parts" (int, default = 1).
"partitioner: print level" (int, default = 0).

Implements Ifpack_Partitioner.

Definition at line 72 of file Ifpack_OverlappingPartitioner.cpp.

References Graph_, NumLocalParts_, Ifpack_Graph::NumMyRows(), OverlappingLevel_, SetPartitionParameters(), and verbose_.

virtual int Ifpack_OverlappingPartitioner::SetPartitionParameters ( Teuchos::ParameterList & List )

pure virtual

Sets all the parameters for the partitioner.

This function is used by derived classes to set their own parameters. These classes should not derive SetParameters(), so that common parameters can be set just once.

Implemented in Ifpack_LinePartitioner, Ifpack_EquationPartitioner, Ifpack_METISPartitioner, Ifpack_UserPartitioner, Ifpack_GreedyPartitioner, and Ifpack_LinearPartitioner.

Referenced by SetParameters().

The documentation for this class was generated from the following files:
