Ifpack_Graph Class Reference

Ifpack_Graph: a pure virtual class that defines graphs for IFPACK. More...

#include <Ifpack_Graph.h>

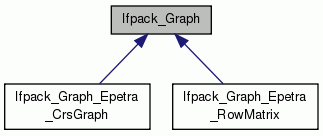

Inheritance diagram for Ifpack_Graph:

Public Member Functions
virtual	~Ifpack_Graph ()
	Destructor.
virtual int	NumMyRows () const =0
	Returns the number of local rows.
virtual int	NumMyCols () const =0
	Returns the number of local columns.
virtual int	NumGlobalRows () const =0
	Returns the number of global rows.
virtual int	NumGlobalCols () const =0
	Returns the number of global columns.
virtual long long	NumGlobalRows64 () const =0
virtual long long	NumGlobalCols64 () const =0
virtual int	MaxMyNumEntries () const =0
	Returns the maximun number of entries for row.
virtual int	NumMyNonzeros () const =0
	Returns the number of local nonzero entries.
virtual bool	Filled () const =0
	Returns true is graph is filled.
virtual int	GRID (int) const =0
	Returns the global row ID of input local row.
virtual int	GCID (int) const =0
	Returns the global column ID of input local column.
virtual long long	GRID64 (int) const =0
virtual long long	GCID64 (int) const =0
	Returns the global column ID of input local column.
virtual int	LRID (int) const =0
	Returns the local row ID of input global row.
virtual int	LCID (int) const =0
	Returns the local column ID of input global column.
virtual int	LRID (long long) const =0
	Returns the local row ID of input global row.
virtual int	LCID (long long) const =0
	Returns the local column ID of input global column.
virtual int	ExtractMyRowCopy (int MyRow, int LenOfIndices, int &NumIndices, int *Indices) const =0
	Extracts a copy of input local row.
virtual const Epetra_Comm &	Comm () const =0
	Returns the communicator object of the graph.
virtual std::ostream &	Print (std::ostream &os) const =0
	Prints basic information about the graph object.

Detailed Description

Ifpack_Graph: a pure virtual class that defines graphs for IFPACK.

Class Ifpack_Graph defines the abstract interface to use graphs in IFPACK. This class contains all the functions that are required by IFPACK classes.

Author

Marzio Sala, SNL 9214.

Date

Last modified on Nov-04.

Definition at line 67 of file Ifpack_Graph.h.

---

The documentation for this class was generated from the following file:

• Ifpack_Graph.h
