A special StatusTest for printing other status tests in a simple format. More...

#include <BelosStatusTestUserOutput.hpp>

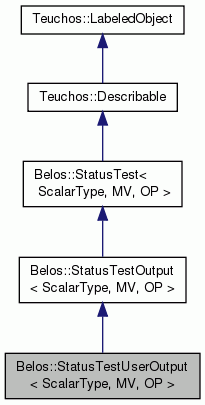

Inheritance diagram for Belos::StatusTestUserOutput< ScalarType, MV, OP >:

Private Types
typedef MultiVecTraits < ScalarType, MV >	MVT

typedef Belos::StatusTestCombo < ScalarType, MV, OP >	StatusTestCombo_t

typedef Belos::StatusTestResNorm < ScalarType, MV, OP >	StatusTestResNorm_t

typedef Belos::StatusTestMaxIters < ScalarType, MV, OP >	StatusTestMaxIters_t

Private Attributes
Teuchos::RCP< OutputManager < ScalarType > >	printer_

Teuchos::RCP< StatusTest < ScalarType, MV, OP > >	test_

Teuchos::RCP< std::map < std::string, Teuchos::RCP < StatusTest< ScalarType, MV, OP > > > >	taggedTests_

Teuchos::RCP < StatusTestMaxIters < ScalarType, MV, OP > >	iterTest_

std::vector< Teuchos::RCP < StatusTest< ScalarType, MV, OP > > >	resTestVec_
	Vector of residual status tests. More...

std::vector< std::string >	resTestNamesVec_
	Name tags for status tests. More...

std::string	solverDesc_

std::string	precondDesc_

std::vector< int >	currIdx_

StatusType	state_

bool	headerPrinted_

int	stateTest_

int	modTest_

int	lastNumIters_

int	comboType_

int	blockSize_

int	currNumRHS_

int	currLSNum_

int	numLSDgts_

int	numIterDgts_

Constructors/destructors
	StatusTestUserOutput (const Teuchos::RCP< OutputManager< ScalarType > > &printer, Teuchos::RCP< StatusTest< ScalarType, MV, OP > > test, Teuchos::RCP< std::map< std::string, Teuchos::RCP< StatusTest< ScalarType, MV, OP > > > > taggedTests, int mod=1, int printStates=Passed)
	Constructor. More...

virtual	~StatusTestUserOutput ()
	Destructor. More...

Status methods
StatusType	checkStatus (Iteration< ScalarType, MV, OP > *solver)

StatusType	getStatus () const
	Return the result of the most recent checkStatus call, or undefined if it has not been run. More...

Accessor methods
void	setOutputManager (const Teuchos::RCP< OutputManager< ScalarType > > &printer)
	Set the output manager. More...

void	setOutputFrequency (int mod)
	Set how often the child test is printed. More...

void	setChild (Teuchos::RCP< StatusTest< ScalarType, MV, OP > > test)
	Set child test, which must be a combination of a Belos::StatusTestMaxIters AND a combination of Belos::StatusTestResNorms and user-specified tests. More...

Teuchos::RCP< StatusTest < ScalarType, MV, OP > >	getChild () const
	Get child test. More...

void	setSolverDesc (const std::string &solverDesc)
	Set a short solver description for output clarity. More...

void	setPrecondDesc (const std::string &precondDesc)
	Set a short preconditioner description for output clarity. More...

Reset methods
void	reset ()
	Informs the status test that it should reset its internal configuration to the uninitialized state. More...

void	resetNumCalls ()
	Informs the outputting status test that it should reset the number of calls to zero. More...

Print methods
void	print (std::ostream &os, int indent=0) const
	Output formatted description of stopping test to output stream. More...

Additional Inherited Members
Public Member Functions inherited from Belos::StatusTestOutput< ScalarType, MV, OP >
	StatusTestOutput ()
	Default constructor. More...

	StatusTestOutput (const Teuchos::RCP< OutputManager< ScalarType > > &printer, Teuchos::RCP< StatusTest< ScalarType, MV, OP > > test, int mod=1, int printStates=Passed)
	Constructor. More...

virtual	~StatusTestOutput ()
	Destructor. More...

Public Member Functions inherited from Belos::StatusTest< ScalarType, MV, OP >
	StatusTest ()
	Constructor. More...

virtual	~StatusTest ()
	Destructor. More...

virtual void	printStatus (std::ostream &os, StatusType type) const
	Output the result of the most recent CheckStatus call. More...

Public Member Functions inherited from Teuchos::Describable
DescribableStreamManipulatorState	describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream &	operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)

virtual std::string	description () const

virtual void	describe (FancyOStream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

void	describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

virtual	~Describable ()

	LabeledObject ()

virtual	~LabeledObject ()

virtual void	setObjectLabel (const std::string &objectLabel)

virtual std::string	getObjectLabel () const

Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel	verbLevel_default

Detailed Description

template<class ScalarType, class MV, class OP>
class Belos::StatusTestUserOutput< ScalarType, MV, OP >

A special StatusTest for printing other status tests in a simple format.

Definition at line 38 of file BelosStatusTestUserOutput.hpp.

Member Typedef Documentation

template<class ScalarType , class MV , class OP >

typedef MultiVecTraits<ScalarType,MV> Belos::StatusTestUserOutput< ScalarType, MV, OP >::MVT

private

Definition at line 40 of file BelosStatusTestUserOutput.hpp.

template<class ScalarType , class MV , class OP >

typedef Belos::StatusTestCombo<ScalarType,MV,OP> Belos::StatusTestUserOutput< ScalarType, MV, OP >::StatusTestCombo_t

private

Definition at line 41 of file BelosStatusTestUserOutput.hpp.

template<class ScalarType , class MV , class OP >

typedef Belos::StatusTestResNorm<ScalarType,MV,OP> Belos::StatusTestUserOutput< ScalarType, MV, OP >::StatusTestResNorm_t

private

Definition at line 42 of file BelosStatusTestUserOutput.hpp.

template<class ScalarType , class MV , class OP >

typedef Belos::StatusTestMaxIters<ScalarType,MV,OP> Belos::StatusTestUserOutput< ScalarType, MV, OP >::StatusTestMaxIters_t

private

Definition at line 43 of file BelosStatusTestUserOutput.hpp.

Constructor & Destructor Documentation

template<class ScalarType , class MV , class OP >

Belos::StatusTestUserOutput< ScalarType, MV, OP >::StatusTestUserOutput	(	const Teuchos::RCP< OutputManager< ScalarType > > &	printer,
		Teuchos::RCP< StatusTest< ScalarType, MV, OP > >	test,
		Teuchos::RCP< std::map< std::string, Teuchos::RCP< StatusTest< ScalarType, MV, OP > > > >	taggedTests,
		int	mod = `1`,
		int	printStates = `Passed`
	)

inline

Constructor.

The StatusTestUserOutput requires an OutputManager for printing the underlying StatusTest on calls to checkStatus(), as well as an underlying StatusTest.

The last two parameters, described below, in addition to the verbosity level of the OutputManager, control when printing is called. When both the mod criterion and the printStates criterion are satisfied, the status test will be printed to the OutputManager with MsgType of StatusTestDetails.

Parameters

[in]	test	A reference-counted pointer to an object that combines Belos::StatusTestMaxIters and a set of Belos::StatusTestResNorm
[in]	mod	A positive number describes how often the output should be printed. On every call to checkStatus(), an internal counter is incremented. Printing may only occur when this counter is congruent to zero modulo `mod`. Default: 1 (attempt to print on every call to checkStatus())
[in]	printStates	A combination of StatusType values for which the output may be printed. Default: Passed (attempt to print whenever checkStatus() will return Passed)

Definition at line 64 of file BelosStatusTestUserOutput.hpp.

template<class ScalarType , class MV , class OP >

virtual Belos::StatusTestUserOutput< ScalarType, MV, OP >::~StatusTestUserOutput ( )

inlinevirtual

Destructor.

Definition at line 88 of file BelosStatusTestUserOutput.hpp.

Member Function Documentation

template<class ScalarType , class MV , class OP >

StatusType Belos::StatusTestUserOutput< ScalarType, MV, OP >::checkStatus ( Iteration< ScalarType, MV, OP > * solver )

inlinevirtual

Check and return status of underlying StatusTest.

This method calls checkStatus() on the StatusTest object passed in the constructor. If appropriate, the method will follow this call with a call to print() on the underlying object, using the OutputManager passed via the constructor with verbosity level StatusTestDetails.

The internal counter will be incremented during this call, but only after performing the tests to decide whether or not to print the underlying StatusTest. This way, the very first call to checkStatus() following initialization or reset() will enable the underlying StatusTest to be printed, regardless of the mod parameter, as the current number of calls will be zero.

If the specified Teuchos::RCP for the child class is Teuchos::null, then calling checkStatus() will result in a StatusTestError std::exception being thrown.

Returns: StatusType indicating whether the underlying test passed or failed.

Implements Belos::StatusTest< ScalarType, MV, OP >.

Definition at line 110 of file BelosStatusTestUserOutput.hpp.

template<class ScalarType , class MV , class OP >

StatusType Belos::StatusTestUserOutput< ScalarType, MV, OP >::getStatus ( ) const

inlinevirtual

Return the result of the most recent checkStatus call, or undefined if it has not been run.

Implements Belos::StatusTest< ScalarType, MV, OP >.

Definition at line 144 of file BelosStatusTestUserOutput.hpp.

template<class ScalarType , class MV , class OP >

void Belos::StatusTestUserOutput< ScalarType, MV, OP >::setOutputManager ( const Teuchos::RCP< OutputManager< ScalarType > > & printer )

inlinevirtual

Set the output manager.

Implements Belos::StatusTestOutput< ScalarType, MV, OP >.

Definition at line 155 of file BelosStatusTestUserOutput.hpp.

template<class ScalarType , class MV , class OP >

void Belos::StatusTestUserOutput< ScalarType, MV, OP >::setOutputFrequency ( int mod )

inlinevirtual

Set how often the child test is printed.

Implements Belos::StatusTestOutput< ScalarType, MV, OP >.

Definition at line 159 of file BelosStatusTestUserOutput.hpp.

template<class ScalarType , class MV , class OP >

void Belos::StatusTestUserOutput< ScalarType, MV, OP >::setChild ( Teuchos::RCP< StatusTest< ScalarType, MV, OP > > test )

inlinevirtual

Set child test, which must be a combination of a Belos::StatusTestMaxIters AND a combination of Belos::StatusTestResNorms and user-specified tests.

Note: This also resets the test status to Undefined.

Implements Belos::StatusTestOutput< ScalarType, MV, OP >.

Definition at line 165 of file BelosStatusTestUserOutput.hpp.

template<class ScalarType , class MV , class OP >

Teuchos::RCP<StatusTest<ScalarType,MV,OP> > Belos::StatusTestUserOutput< ScalarType, MV, OP >::getChild ( ) const

inlinevirtual

Get child test.

Implements Belos::StatusTestOutput< ScalarType, MV, OP >.

Definition at line 238 of file BelosStatusTestUserOutput.hpp.

template<class ScalarType , class MV , class OP >

void Belos::StatusTestUserOutput< ScalarType, MV, OP >::setSolverDesc ( const std::string & solverDesc )

inlinevirtual

Set a short solver description for output clarity.

Implements Belos::StatusTestOutput< ScalarType, MV, OP >.

Definition at line 244 of file BelosStatusTestUserOutput.hpp.

template<class ScalarType , class MV , class OP >

void Belos::StatusTestUserOutput< ScalarType, MV, OP >::setPrecondDesc ( const std::string & precondDesc )

inlinevirtual

Set a short preconditioner description for output clarity.

Implements Belos::StatusTestOutput< ScalarType, MV, OP >.

Definition at line 248 of file BelosStatusTestUserOutput.hpp.

template<class ScalarType , class MV , class OP >

void Belos::StatusTestUserOutput< ScalarType, MV, OP >::reset ( )

inlinevirtual

Informs the status test that it should reset its internal configuration to the uninitialized state.

This resets the cached state to an Undefined state and calls reset() on the underlying test. It also resets the counter for the number of calls to checkStatus().

Implements Belos::StatusTest< ScalarType, MV, OP >.

Definition at line 259 of file BelosStatusTestUserOutput.hpp.

template<class ScalarType , class MV , class OP >

void Belos::StatusTestUserOutput< ScalarType, MV, OP >::resetNumCalls ( )

inlinevirtual

Informs the outputting status test that it should reset the number of calls to zero.

Note: This outputting status test relies on the number of iterations performed, not number of times the status test has been called, so this method has no effect.

Implements Belos::StatusTestOutput< ScalarType, MV, OP >.

Definition at line 270 of file BelosStatusTestUserOutput.hpp.

template<class ScalarType , class MV , class OP >
