Belos Package Browser (Single Doxygen Collection): Belos::Iteration< ScalarType, MV, OP > Class Template Reference

Belos Package Browser (Single Doxygen Collection) Development

All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Macros Groups Pages

#include <BelosIteration.hpp>

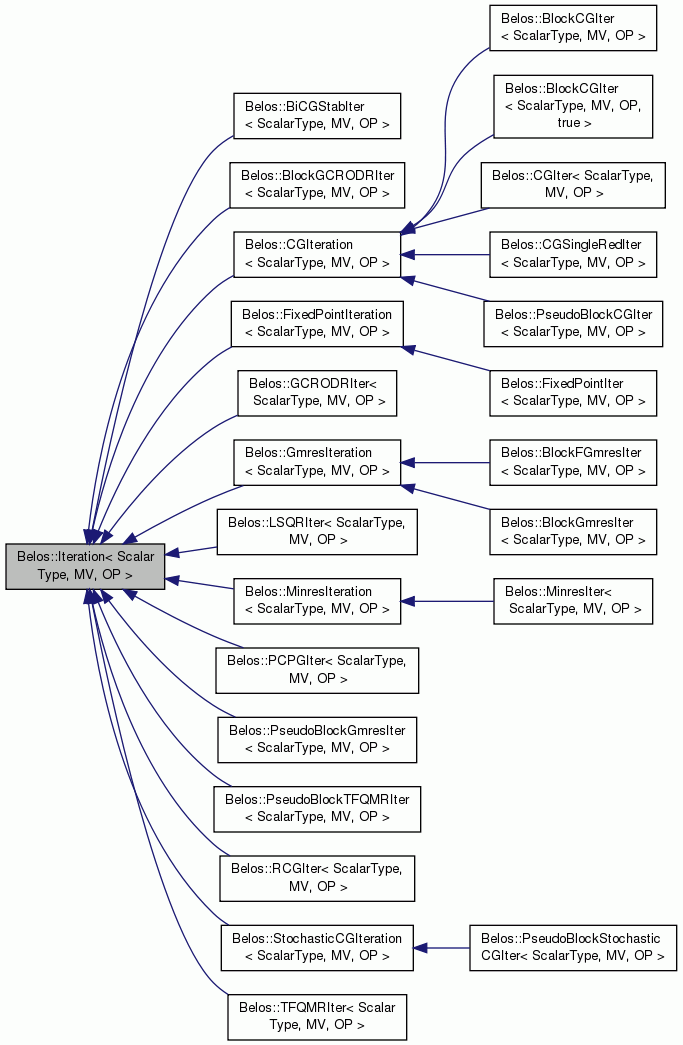

Inheritance diagram for Belos::Iteration< ScalarType, MV, OP >:

Inheritance graph

Constructors/Destructor
	Iteration ()
	Default Constructor. More...

virtual	~Iteration ()
	Destructor. More...

Solver methods
virtual void	iterate ()=0
	This method performs linear solver iterations until the status test indicates the need to stop or an error occurs (in which case, an std::exception is thrown). More...

virtual void	initialize ()=0
	Initialize the solver with the initial vectors from the linear problem or random data. More...

Status methods
virtual int	getNumIters () const =0
	Get the current iteration count. More...

virtual void	resetNumIters (int iter=0)=0
	Reset the iteration count to iter. More...

virtual Teuchos::RCP< const MV >	getNativeResiduals (std::vector< typename Teuchos::ScalarTraits< ScalarType >::magnitudeType > *norms) const =0
	Get the residuals native to the solver. More...

virtual Teuchos::RCP< MV >	getCurrentUpdate () const =0
	Get the current update to the linear system. More...

Accessor methods
virtual const LinearProblem < ScalarType, MV, OP > &	getProblem () const =0
	Get a constant reference to the linear problem. More...

virtual int	getBlockSize () const =0
	Get the blocksize to be used by the iterative solver in solving this linear problem. More...

virtual void	setBlockSize (int blockSize)=0
	Set the blocksize to be used by the iterative solver in solving this linear problem. More...

virtual bool	isInitialized ()=0
	States whether the solver has been initialized or not. More...

Detailed Description

template<class ScalarType, class MV, class OP>
class Belos::Iteration< ScalarType, MV, OP >

Definition at line 41 of file BelosIteration.hpp.

Constructor & Destructor Documentation

template<class ScalarType, class MV, class OP>

Belos::Iteration< ScalarType, MV, OP >::Iteration ( )

inline

Default Constructor.

Definition at line 49 of file BelosIteration.hpp.

template<class ScalarType, class MV, class OP>

virtual Belos::Iteration< ScalarType, MV, OP >::~Iteration ( )

inlinevirtual

Destructor.

Definition at line 52 of file BelosIteration.hpp.

Member Function Documentation

template<class ScalarType, class MV, class OP>

virtual void Belos::Iteration< ScalarType, MV, OP >::iterate ( )

pure virtual

This method performs linear solver iterations until the status test indicates the need to stop or an error occurs (in which case, an std::exception is thrown).

Implemented in Belos::BlockGCRODRIter< ScalarType, MV, OP >, Belos::GCRODRIter< ScalarType, MV, OP >, Belos::BlockCGIter< ScalarType, MV, OP, true >, Belos::PseudoBlockGmresIter< ScalarType, MV, OP >, Belos::RCGIter< ScalarType, MV, OP >, Belos::PCPGIter< ScalarType, MV, OP >, Belos::TFQMRIter< ScalarType, MV, OP >, Belos::BiCGStabIter< ScalarType, MV, OP >, Belos::PseudoBlockTFQMRIter< ScalarType, MV, OP >, Belos::MinresIter< ScalarType, MV, OP >, Belos::BlockGmresIter< ScalarType, MV, OP >, Belos::BlockFGmresIter< ScalarType, MV, OP >, Belos::PseudoBlockStochasticCGIter< ScalarType, MV, OP >, Belos::PseudoBlockCGIter< ScalarType, MV, OP >, Belos::CGIter< ScalarType, MV, OP >, Belos::CGSingleRedIter< ScalarType, MV, OP >, Belos::LSQRIter< ScalarType, MV, OP >, Belos::FixedPointIter< ScalarType, MV, OP >, and Belos::BlockCGIter< ScalarType, MV, OP, lapackSupportsScalarType >.

template<class ScalarType, class MV, class OP>

virtual void Belos::Iteration< ScalarType, MV, OP >::initialize ( )

pure virtual

Initialize the solver with the initial vectors from the linear problem or random data.

Implemented in Belos::BlockGCRODRIter< ScalarType, MV, OP >, Belos::GCRODRIter< ScalarType, MV, OP >, Belos::BlockCGIter< ScalarType, MV, OP, true >, Belos::PseudoBlockGmresIter< ScalarType, MV, OP >, Belos::RCGIter< ScalarType, MV, OP >, Belos::PCPGIter< ScalarType, MV, OP >, Belos::TFQMRIter< ScalarType, MV, OP >, Belos::BiCGStabIter< ScalarType, MV, OP >, Belos::PseudoBlockTFQMRIter< ScalarType, MV, OP >, Belos::BlockGmresIter< ScalarType, MV, OP >, Belos::BlockFGmresIter< ScalarType, MV, OP >, Belos::MinresIter< ScalarType, MV, OP >, Belos::PseudoBlockStochasticCGIter< ScalarType, MV, OP >, Belos::PseudoBlockCGIter< ScalarType, MV, OP >, Belos::CGIter< ScalarType, MV, OP >, Belos::CGSingleRedIter< ScalarType, MV, OP >, Belos::FixedPointIter< ScalarType, MV, OP >, Belos::LSQRIter< ScalarType, MV, OP >, and Belos::BlockCGIter< ScalarType, MV, OP, lapackSupportsScalarType >.

template<class ScalarType, class MV, class OP>

virtual int Belos::Iteration< ScalarType, MV, OP >::getNumIters ( ) const

pure virtual

Get the current iteration count.

Implemented in Belos::BlockGCRODRIter< ScalarType, MV, OP >, Belos::GCRODRIter< ScalarType, MV, OP >, Belos::PseudoBlockGmresIter< ScalarType, MV, OP >, Belos::BlockCGIter< ScalarType, MV, OP, true >, Belos::PCPGIter< ScalarType, MV, OP >, Belos::RCGIter< ScalarType, MV, OP >, Belos::TFQMRIter< ScalarType, MV, OP >, Belos::PseudoBlockTFQMRIter< ScalarType, MV, OP >, Belos::BiCGStabIter< ScalarType, MV, OP >, Belos::BlockFGmresIter< ScalarType, MV, OP >, Belos::BlockGmresIter< ScalarType, MV, OP >, Belos::MinresIter< ScalarType, MV, OP >, Belos::PseudoBlockStochasticCGIter< ScalarType, MV, OP >, Belos::PseudoBlockCGIter< ScalarType, MV, OP >, Belos::CGIter< ScalarType, MV, OP >, Belos::CGSingleRedIter< ScalarType, MV, OP >, Belos::LSQRIter< ScalarType, MV, OP >, Belos::FixedPointIter< ScalarType, MV, OP >, and Belos::BlockCGIter< ScalarType, MV, OP, lapackSupportsScalarType >.

template<class ScalarType, class MV, class OP>

virtual void Belos::Iteration< ScalarType, MV, OP >::resetNumIters ( int iter = 0 )

pure virtual

Reset the iteration count to iter.

Implemented in Belos::BlockGCRODRIter< ScalarType, MV, OP >, Belos::GCRODRIter< ScalarType, MV, OP >, Belos::PseudoBlockGmresIter< ScalarType, MV, OP >, Belos::BlockCGIter< ScalarType, MV, OP, true >, Belos::PCPGIter< ScalarType, MV, OP >, Belos::RCGIter< ScalarType, MV, OP >, Belos::TFQMRIter< ScalarType, MV, OP >, Belos::PseudoBlockTFQMRIter< ScalarType, MV, OP >, Belos::BiCGStabIter< ScalarType, MV, OP >, Belos::BlockFGmresIter< ScalarType, MV, OP >, Belos::BlockGmresIter< ScalarType, MV, OP >, Belos::MinresIter< ScalarType, MV, OP >, Belos::PseudoBlockStochasticCGIter< ScalarType, MV, OP >, Belos::PseudoBlockCGIter< ScalarType, MV, OP >, Belos::CGIter< ScalarType, MV, OP >, Belos::CGSingleRedIter< ScalarType, MV, OP >, Belos::LSQRIter< ScalarType, MV, OP >, Belos::FixedPointIter< ScalarType, MV, OP >, and Belos::BlockCGIter< ScalarType, MV, OP, lapackSupportsScalarType >.

template<class ScalarType, class MV, class OP>

virtual Teuchos::RCP<const MV> Belos::Iteration< ScalarType, MV, OP >::getNativeResiduals ( std::vector< typename Teuchos::ScalarTraits< ScalarType >::magnitudeType > * norms ) const

pure virtual

Get the residuals native to the solver.

Returns: A multivector with blockSize vectors containing the native residuals, else the native residual norm is returned.

template<class ScalarType, class MV, class OP>

virtual Teuchos::RCP<MV> Belos::Iteration< ScalarType, MV, OP >::getCurrentUpdate ( ) const

pure virtual

Get the current update to the linear system.

Note: Some solvers, like GMRES, do not compute updates to the solution every iteration. This method forces the computation of the current update.

Implemented in Belos::BlockGCRODRIter< ScalarType, MV, OP >, Belos::PseudoBlockGmresIter< ScalarType, MV, OP >, Belos::GCRODRIter< ScalarType, MV, OP >, Belos::BlockCGIter< ScalarType, MV, OP, true >, Belos::PCPGIter< ScalarType, MV, OP >, Belos::RCGIter< ScalarType, MV, OP >, Belos::TFQMRIter< ScalarType, MV, OP >, Belos::BiCGStabIter< ScalarType, MV, OP >, Belos::PseudoBlockTFQMRIter< ScalarType, MV, OP >, Belos::MinresIter< ScalarType, MV, OP >, Belos::BlockFGmresIter< ScalarType, MV, OP >, Belos::BlockGmresIter< ScalarType, MV, OP >, Belos::PseudoBlockStochasticCGIter< ScalarType, MV, OP >, Belos::PseudoBlockCGIter< ScalarType, MV, OP >, Belos::CGIter< ScalarType, MV, OP >, Belos::CGSingleRedIter< ScalarType, MV, OP >, Belos::LSQRIter< ScalarType, MV, OP >, Belos::FixedPointIter< ScalarType, MV, OP >, and Belos::BlockCGIter< ScalarType, MV, OP, lapackSupportsScalarType >.

template<class ScalarType, class MV, class OP>

virtual const LinearProblem<ScalarType,MV,OP>& Belos::Iteration< ScalarType, MV, OP >::getProblem ( ) const

pure virtual

Get a constant reference to the linear problem.

Implemented in Belos::PseudoBlockGmresIter< ScalarType, MV, OP >, Belos::BlockGCRODRIter< ScalarType, MV, OP >, Belos::GCRODRIter< ScalarType, MV, OP >, Belos::BlockCGIter< ScalarType, MV, OP, true >, Belos::PCPGIter< ScalarType, MV, OP >, Belos::RCGIter< ScalarType, MV, OP >, Belos::TFQMRIter< ScalarType, MV, OP >, Belos::BiCGStabIter< ScalarType, MV, OP >, Belos::PseudoBlockTFQMRIter< ScalarType, MV, OP >, Belos::BlockFGmresIter< ScalarType, MV, OP >, Belos::BlockGmresIter< ScalarType, MV, OP >, Belos::MinresIter< ScalarType, MV, OP >, Belos::PseudoBlockStochasticCGIter< ScalarType, MV, OP >, Belos::PseudoBlockCGIter< ScalarType, MV, OP >, Belos::CGIter< ScalarType, MV, OP >, Belos::CGSingleRedIter< ScalarType, MV, OP >, Belos::LSQRIter< ScalarType, MV, OP >, Belos::FixedPointIter< ScalarType, MV, OP >, and Belos::BlockCGIter< ScalarType, MV, OP, lapackSupportsScalarType >.

template<class ScalarType, class MV, class OP>

virtual int Belos::Iteration< ScalarType, MV, OP >::getBlockSize ( ) const

pure virtual

Get the blocksize to be used by the iterative solver in solving this linear problem.

Implemented in Belos::GCRODRIter< ScalarType, MV, OP >, Belos::PseudoBlockGmresIter< ScalarType, MV, OP >, Belos::BlockGCRODRIter< ScalarType, MV, OP >, Belos::BlockCGIter< ScalarType, MV, OP, true >, Belos::PCPGIter< ScalarType, MV, OP >, Belos::RCGIter< ScalarType, MV, OP >, Belos::TFQMRIter< ScalarType, MV, OP >, Belos::BiCGStabIter< ScalarType, MV, OP >, Belos::PseudoBlockTFQMRIter< ScalarType, MV, OP >, Belos::BlockFGmresIter< ScalarType, MV, OP >, Belos::BlockGmresIter< ScalarType, MV, OP >, Belos::MinresIter< ScalarType, MV, OP >, Belos::PseudoBlockStochasticCGIter< ScalarType, MV, OP >, Belos::PseudoBlockCGIter< ScalarType, MV, OP >, Belos::CGIter< ScalarType, MV, OP >, Belos::CGSingleRedIter< ScalarType, MV, OP >, Belos::LSQRIter< ScalarType, MV, OP >, Belos::FixedPointIter< ScalarType, MV, OP >, and Belos::BlockCGIter< ScalarType, MV, OP, lapackSupportsScalarType >.

template<class ScalarType, class MV, class OP>

virtual void Belos::Iteration< ScalarType, MV, OP >::setBlockSize ( int blockSize )

pure virtual

Set the blocksize to be used by the iterative solver in solving this linear problem.

Implemented in Belos::BlockGCRODRIter< ScalarType, MV, OP >, Belos::GCRODRIter< ScalarType, MV, OP >, Belos::PseudoBlockGmresIter< ScalarType, MV, OP >, Belos::PCPGIter< ScalarType, MV, OP >, Belos::BlockCGIter< ScalarType, MV, OP, true >, Belos::RCGIter< ScalarType, MV, OP >, Belos::TFQMRIter< ScalarType, MV, OP >, Belos::BiCGStabIter< ScalarType, MV, OP >, Belos::PseudoBlockTFQMRIter< ScalarType, MV, OP >, Belos::BlockFGmresIter< ScalarType, MV, OP >, Belos::BlockGmresIter< ScalarType, MV, OP >, Belos::MinresIter< ScalarType, MV, OP >, Belos::PseudoBlockStochasticCGIter< ScalarType, MV, OP >, Belos::PseudoBlockCGIter< ScalarType, MV, OP >, Belos::CGIter< ScalarType, MV, OP >, Belos::LSQRIter< ScalarType, MV, OP >, Belos::CGSingleRedIter< ScalarType, MV, OP >, Belos::FixedPointIter< ScalarType, MV, OP >, and Belos::BlockCGIter< ScalarType, MV, OP, lapackSupportsScalarType >.

template<class ScalarType, class MV, class OP>

virtual bool Belos::Iteration< ScalarType, MV, OP >::isInitialized ( )

pure virtual

States whether the solver has been initialized or not.

Implemented in Belos::GCRODRIter< ScalarType, MV, OP >, Belos::PseudoBlockGmresIter< ScalarType, MV, OP >, Belos::PCPGIter< ScalarType, MV, OP >, Belos::BlockCGIter< ScalarType, MV, OP, true >, Belos::RCGIter< ScalarType, MV, OP >, Belos::BlockGCRODRIter< ScalarType, MV, OP >, Belos::BlockFGmresIter< ScalarType, MV, OP >, Belos::BlockGmresIter< ScalarType, MV, OP >, Belos::TFQMRIter< ScalarType, MV, OP >, Belos::BiCGStabIter< ScalarType, MV, OP >, Belos::PseudoBlockTFQMRIter< ScalarType, MV, OP >, Belos::MinresIter< ScalarType, MV, OP >, Belos::PseudoBlockStochasticCGIter< ScalarType, MV, OP >, Belos::PseudoBlockCGIter< ScalarType, MV, OP >, Belos::CGIter< ScalarType, MV, OP >, Belos::LSQRIter< ScalarType, MV, OP >, Belos::CGSingleRedIter< ScalarType, MV, OP >, Belos::FixedPointIter< ScalarType, MV, OP >, and Belos::BlockCGIter< ScalarType, MV, OP, lapackSupportsScalarType >.

The documentation for this class was generated from the following file:

BelosIteration.hpp
