Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP > Class Template Reference

Interface to standard and "pseudoblock" GMRES. More...

#include <BelosPseudoBlockGmresSolMgr.hpp>

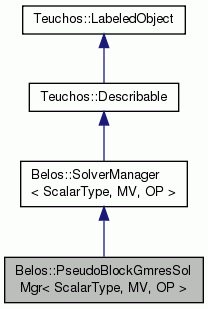

Inheritance diagram for Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >:
Inheritance graph
[legend]

Private Types

typedef MultiVecTraits
< ScalarType, MV > 		MVT

typedef OperatorTraits
< ScalarType, MV, OP > 		OPT

typedef Teuchos::ScalarTraits
< ScalarType > 		SCT

typedef Teuchos::ScalarTraits
< ScalarType >::magnitudeType 		MagnitudeType

typedef Teuchos::ScalarTraits
< MagnitudeType > 		MT


Private Attributes

Teuchos::RCP< LinearProblem
< ScalarType, MV, OP > > 		problem_
 The current linear problem to solve. More...

Teuchos::RCP< OutputManager
< ScalarType > > 		printer_

Teuchos::RCP< std::ostream > outputStream_

Teuchos::RCP< StatusTest
< ScalarType, MV, OP > > 		userConvStatusTest_

Teuchos::RCP< StatusTest
< ScalarType, MV, OP > > 		debugStatusTest_

Teuchos::RCP< StatusTest
< ScalarType, MV, OP > > 		sTest_

Teuchos::RCP
< StatusTestMaxIters
< ScalarType, MV, OP > > 		maxIterTest_

Teuchos::RCP< StatusTest
< ScalarType, MV, OP > > 		convTest_

Teuchos::RCP
< StatusTestResNorm
< ScalarType, MV, OP > > 		impConvTest_

Teuchos::RCP
< StatusTestResNorm
< ScalarType, MV, OP > > 		expConvTest_

Teuchos::RCP< StatusTestOutput
< ScalarType, MV, OP > > 		outputTest_

StatusTestCombo< ScalarType,
MV, OP >::ComboType 		comboType_

Teuchos::RCP< std::map
< std::string, Teuchos::RCP
< StatusTest< ScalarType, MV,
OP > > > > 		taggedTests_

Teuchos::RCP< MatOrthoManager
< ScalarType, MV, OP > > 		ortho_

Teuchos::RCP
< Teuchos::ParameterList > 		params_

MagnitudeType convtol_

MagnitudeType orthoKappa_

MagnitudeType achievedTol_

int maxRestarts_

int maxIters_

int numIters_

int blockSize_

int numBlocks_

int verbosity_

int outputStyle_

int outputFreq_

int defQuorum_

bool showMaxResNormOnly_

std::string orthoType_

std::string impResScale_

std::string expResScale_

MagnitudeType resScaleFactor_

std::string label_

Teuchos::RCP< Teuchos::Time > timerSolve_

bool isSet_

bool isSTSet_

bool expResTest_

bool loaDetected_


Static Private Attributes

static constexpr int maxRestarts_default_ = 20

static constexpr int maxIters_default_ = 1000

static constexpr bool showMaxResNormOnly_default_ = false

static constexpr int blockSize_default_ = 1

static constexpr int numBlocks_default_ = 300

static constexpr int verbosity_default_ = Belos::Errors

static constexpr int outputStyle_default_ = Belos::General

static constexpr int outputFreq_default_ = -1

static constexpr int defQuorum_default_ = 1

static constexpr const char * impResScale_default_ = "Norm of Preconditioned Initial Residual"

static constexpr const char * expResScale_default_ = "Norm of Initial Residual"

static constexpr const char * label_default_ = "Belos"

static constexpr const char * orthoType_default_ = "ICGS"


PseudoBlockGmresSolMgr Exceptions

bool checkStatusTest ()
 Check current status tests against current linear problem. More...


Constructors and destructor

 PseudoBlockGmresSolMgr ()
 Empty constructor. More...

 PseudoBlockGmresSolMgr (const Teuchos::RCP< LinearProblem< ScalarType, MV, OP > > &problem, const Teuchos::RCP< Teuchos::ParameterList > &pl)
 Constructor that takes the problem to solve, and a list of solver options. More...

virtual ~PseudoBlockGmresSolMgr ()
 Destructor. More...

Teuchos::RCP< SolverManager
< ScalarType, MV, OP > > 		clone () const override
 clone for Inverted Injection (DII) More...


Accessor methods

const LinearProblem
< ScalarType, MV, OP > & 		getProblem () const override
 Return a reference to the linear problem being solved by this solver manager. More...

Teuchos::RCP< const
Teuchos::ParameterList > 		getValidParameters () const override
 A list of valid default parameters for this solver. More...

Teuchos::RCP< const
Teuchos::ParameterList > 		getCurrentParameters () const override
 The current parameters for this solver. More...

Teuchos::Array< Teuchos::RCP
< Teuchos::Time > > 		getTimers () const
 Return the timers for this object. More...

MagnitudeType achievedTol () const override
 Tolerance achieved by the last solve() invocation. More...

int getNumIters () const override
 Iteration count for the most recent call to solve(). More...

bool isLOADetected () const override
 Whether a "loss of accuracy" was detected during the last solve(). More...

const StatusTestResNorm
< ScalarType, MV, OP > * 		getResidualStatusTest () const
 Return the residual status test. More...


Set methods

void setProblem (const Teuchos::RCP< LinearProblem< ScalarType, MV, OP > > &problem) override
 Set the linear problem to solve. More...

void setParameters (const Teuchos::RCP< Teuchos::ParameterList > &params) override
 Set the parameters the solver manager should use to solve the linear problem. More...

virtual void setUserConvStatusTest (const Teuchos::RCP< StatusTest< ScalarType, MV, OP > > &userConvStatusTest, const typename StatusTestCombo< ScalarType, MV, OP >::ComboType &comboType=StatusTestCombo< ScalarType, MV, OP >::SEQ) override
 Set a custom status test. More...

void setDebugStatusTest (const Teuchos::RCP< StatusTest< ScalarType, MV, OP > > &debugStatusTest) override
 Set a debug status test that will be checked at the same time as the top-level status test. More...


Reset methods

void reset (const ResetType type) override
 Performs a reset of the solver manager specified by the ResetType. This informs the solver manager that the solver should prepare for the next call to solve by resetting certain elements of the iterative solver strategy. More...


Solver application methods

ReturnType solve () override
 This method performs possibly repeated calls to the underlying linear solver's iterate() routine until the problem has been solved (as decided by the solver manager) or the solver manager decides to quit. More...


Overridden from Teuchos::Describable

void describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const override
 Print the object with the given verbosity level to a FancyOStream. More...

std::string description () const override
 Return a one-line description of this object. More...


Additional Inherited Members

- Public Member Functions inherited from Belos::SolverManager< ScalarType, MV, OP >
 SolverManager ()
 Empty constructor. More...

virtual ~SolverManager ()
 Destructor. More...

- Public Member Functions inherited from Teuchos::Describable
DescribableStreamManipulatorState describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream & operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)

void describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

virtual ~Describable ()

 LabeledObject ()

virtual ~LabeledObject ()

virtual void setObjectLabel (const std::string &objectLabel)

virtual std::string getObjectLabel () const

- Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel verbLevel_default


Detailed Description

template<class ScalarType, class MV, class OP>
class Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >

Interface to standard and "pseudoblock" GMRES.

Author
Heidi Thornquist, Chris Baker, and Teri Barth

This class provides an interface to the following iterative solvers:

If you are a new Belos user and just want standard GMRES, use this class. If you want Flexible GMRES, use BlockGmresSolMgr with the appropriate option set.

"Pseudoblock" GMRES is a way to improve performance when solving systems with multiple right-hand sides, without changing the convergence characteristics. It is equivalent in terms of convergence to running a separate instance of (standard) GMRES for each right-hand side, but should often be faster. When solving for multiple right-hand sides, "Block GMRES" (as implemented by BlockGmresSolMgr) is a different algorithm with different convergence characteristics than Pseudoblock GMRES.

Definition at line 91 of file BelosPseudoBlockGmresSolMgr.hpp.

Member Typedef Documentation

template<class ScalarType , class MV , class OP >
typedef MultiVecTraits<ScalarType,MV> Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::MVT
private

Definition at line 94 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
typedef OperatorTraits<ScalarType,MV,OP> Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::OPT
private

Definition at line 95 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
typedef Teuchos::ScalarTraits<ScalarType> Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::SCT
private

Definition at line 96 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
typedef Teuchos::ScalarTraits<ScalarType>::magnitudeType Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::MagnitudeType
private

Definition at line 97 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
typedef Teuchos::ScalarTraits<MagnitudeType> Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::MT
private

Definition at line 98 of file BelosPseudoBlockGmresSolMgr.hpp.

Constructor & Destructor Documentation

template<class ScalarType , class MV , class OP >
Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::PseudoBlockGmresSolMgr ( )

Empty constructor.

This constructor takes no arguments. It sets default solver parameters, which you may change by calling setParameters(). Before you may call solve(), you must first give the solver a linear problem to solve, by calling setProblem().

Definition at line 497 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::PseudoBlockGmresSolMgr ( const Teuchos::RCP< LinearProblem< ScalarType, MV, OP > > &  problem,
const Teuchos::RCP< Teuchos::ParameterList > &  pl
)

Constructor that takes the problem to solve, and a list of solver options.

Parameters
problem[in/out] The linear problem to be solved.
pl[in/out] A list of solver options.

Belos' solvers accept many different options. You may accept their default values, or set any of them yourself. We will explain the options by category.

The following options govern the number of iterations and restarts:

  • "Num Blocks" (int): The restart length. The number of vectors (or blocks, in the case of multiple right-hand sides) allocated for the Krylov basis. Its default value is 300.
  • "Maximum Iterations" (int): The maximum number of iterations the solver is allowed to perform. This does not include computing the initial residual, but it does include iterations before and after any restarts. Its default value is 1000.
  • "Maximum Restarts" (int): The maximum number of restarts. This does not include the first "Num Blocks" iterations (before the first restart). Its default value is 20.

We do not currently perform any sanity checks for these options. This may affect you if you set some of them but let others keep their default values. For example, if you set "Num Blocks" to 2 and "Maximum Iterations" to 100, but don't set "Maximum Restarts", you will only get 40 = 20*2 total iterations, rather than 100. Thus, if you set one of these parameters, you should always set them all.

When solving with multiple right-hand sides, the "Block Size" (int) parameter controls the number of right-hand sides for which the solver solves at once. This setting controls both performance and total memory use. Doubling it (approximately) doubles the total amount of memory used by the solver, but might make the solves faster by reducing synchronization overhead and improving memory bandwidth utilization. The gain from increasing this tends to level off quickly. Making this setting too large may actually hurt performance.

These options govern convergence and the numerical algorithm:

  • "Convergence Tolerance" (MagnitudeType): The level that residual norms must reach in order for the solver to stop iterating.
  • "Implicit Residual Scaling" (std::string): How to scale the implicit residual norm. The default is the norm of the preconditioned initial residual.
  • "Explicit Residual Scaling" (std::string): How to scale the explicit residual norm. The default is the norm of the (unpreconditioned) initial residual.
  • "Deflation Quorum" (int): When solving with multiple right-hand sides: the number of right-hand sides that must have converged to the given tolerance, before the solver will consider all the systems converged. If -1, then the solver will require that all the right-hand sides have converged before declaring all the systems converged. This must be no bigger than the "Block Size" parameter.
  • "Orthogonalization" (std::string): The desired orthogonalization method. Currently accepted values are "DGKS", "ICGS", "IMGS", and optionally "TSQR" (depending on build settings). Please refer to Belos' documentation for more details.

For an explanation of "implicit" vs. "explicit" residuals, please see the documentation of isLOADetected(). The difference matters if using left preconditioning. Otherwise, it is not so important to most users.

The residual scaling parameters ("Implicit Residual Scaling" and "Explicit Residual Scaling") accept the following values:

  • "Norm of Initial Residual"
  • "Norm of Preconditioned Initial Residual"
  • "Norm of RHS" (RHS stands for "right-hand side")
  • "None" (no scaling factor)

GMRES always uses the 2 norm (square root of sum of squares of magnitudes of entries) to measure convergence.

Belos' solvers let users control intermediate "status" output. This output tells you the current iteration and the values of current convergence criteria. The following parameters control output. The default values are fine for users who only care about the final result and don't want to see status output.

  • "Verbosity": a sum of MsgType enum values specifying the verbosity. Default: Belos::Errors.
  • "Output Frequency" (int): How often (in terms of number of iterations) to print intermediate status output. The default (-1) means not to print intermediate status output at all.
  • "Output Style" (OutputType): The style of output. Accepted values are General and Brief. Default: General.
  • "Output Stream" (Teuchos::RCP<std::ostream>): A pointer to an output stream to which the solver will write status output. The default is a pointer to std::cout. Currently, if Trilinos was built with MPI support, only the MPI process with rank 0 in MPI_COMM_WORLD will print to this output stream.
  • "Show Maximum Residual Norm Only": When solving for multiple right-hand sides, this controls whether output shows residual norms for all the right-hand sides, or just the current maximum residual norm over all right-hand sides.
    Parameters
    pl[in] ParameterList with construction information

Definition at line 527 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
virtual Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::~PseudoBlockGmresSolMgr ( )
inlinevirtual

Destructor.

Definition at line 228 of file BelosPseudoBlockGmresSolMgr.hpp.

Member Function Documentation

template<class ScalarType , class MV , class OP >
Teuchos::RCP<SolverManager<ScalarType, MV, OP> > Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::clone ( ) const
inlineoverridevirtual

clone for Inverted Injection (DII)

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 231 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
const LinearProblem<ScalarType,MV,OP>& Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::getProblem ( ) const
inlineoverridevirtual

Return a reference to the linear problem being solved by this solver manager.

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 239 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
Teuchos::RCP< const Teuchos::ParameterList > Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::getValidParameters ( ) const
overridevirtual

A list of valid default parameters for this solver.

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 985 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
Teuchos::RCP<const Teuchos::ParameterList> Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::getCurrentParameters ( ) const
inlineoverridevirtual

The current parameters for this solver.

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 247 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
Teuchos::Array<Teuchos::RCP<Teuchos::Time> > Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::getTimers ( ) const
inline

Return the timers for this object.

The timers are ordered as follows:

Definition at line 254 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
MagnitudeType Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::achievedTol ( ) const
inlineoverridevirtual

Tolerance achieved by the last solve() invocation.

This is the maximum over all right-hand sides' achieved convergence tolerances, and is set whether or not the solve actually managed to achieve the desired convergence tolerance.

Warning
This result may not be meaningful if there was a loss of accuracy during the solve. You should first call isLOADetected() to check for a loss of accuracy during the last solve.

Reimplemented from Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 268 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
int Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::getNumIters ( ) const
inlineoverridevirtual

Iteration count for the most recent call to solve().

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 273 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
bool Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::isLOADetected ( ) const
inlineoverridevirtual

Whether a "loss of accuracy" was detected during the last solve().

This solver uses two different residual norms to predict convergence: "implicit" (also called "native") and "explicit" (also called "exact," not to be confused with "exact arithmetic"). The "implicit" residuals are computed by the solver via a recurrence relation (the Arnoldi relation, in the case of GMRES). The "explicit" residuals are computed directly as $B - A X_k$. Implicit residuals are much cheaper to compute, since they are available almost "for free" from the recurrence relation. In contrast, computing exact residuals requires computing the current approximate solution $X_k$, applying the global operator $A$ to $X_k$, and then computing the norm of the resulting vector(s) via a global reduction. Thus, GMRES favors using the cheaper implicit residuals to predict convergence. Users typically want convergence with respect to explicit residuals, though.

Implicit and explicit residuals may differ due to rounding error. However, the difference between implicit and explicit residuals matters most when using a left (or split) preconditioner. In that case, the implicit residuals are those of the left-preconditioned problem $M_L^{-1} A X = M_L^{-1} B$ instead of the original problem $A X = B$. The implicit residual norms may thus differ significantly from the explicit residual norms, even if one could compute without rounding error.

When using a left preconditioner, this solver tries to detect if the implicit residuals have converged but the explicit residuals have not. In that case, it will reduce the convergence tolerance and iterate a little while longer to attempt to reduce the explicit residual norm. However, if that doesn't work, it declares a "loss of accuracy" for the affected right-hand side(s), and stops iterating on them. (Not all right-hand sides may have experienced a loss of accuracy.) Thus, the affected right-hand sides may or may not have converged to the desired residual norm tolerance. Calling this method tells you whether a "loss of accuracy" (LOA) occurred during the last solve() invocation.

When not using a left preconditioner, this solver will iterate until both the implicit and explicit residuals converge. (It does not start testing the explicit residuals until the implicit residuals have converged. This avoids whenever possible the cost of computing explicit residuals.) Implicit and explicit residuals may differ due to rounding error, even though they are identical when no rounding error occurs. In this case, the algorithm does not report a "loss of accuracy," since it continues iterating until the explicit residuals converge.

Note
Calling solve() again resets the flag that reports whether a loss of accuracy was detected. Thus, you should call this method immediately after calling solve().

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 332 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
const StatusTestResNorm<ScalarType,MV,OP>* Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::getResidualStatusTest ( ) const
inline

Return the residual status test.

Definition at line 336 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
void Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::setProblem ( const Teuchos::RCP< LinearProblem< ScalarType, MV, OP > > &  problem)
inlineoverridevirtual

Set the linear problem to solve.

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 343 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
void Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::setParameters ( const Teuchos::RCP< Teuchos::ParameterList > &  params)
overridevirtual

Set the parameters the solver manager should use to solve the linear problem.

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 567 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
void Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::setUserConvStatusTest ( const Teuchos::RCP< StatusTest< ScalarType, MV, OP > > &  userConvStatusTest,
const typename StatusTestCombo< ScalarType, MV, OP >::ComboType &  comboType = StatusTestCombo<ScalarType,MV,OP>::SEQ
)
overridevirtual

Set a custom status test.

A custom status test is not required. If you decide to set one, the current implementation will apply it sequentially (short-circuiting OR, like the || operator in C++) after Pseudoblock GMRES' standard convergence test.

Reimplemented from Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 963 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
void Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::setDebugStatusTest ( const Teuchos::RCP< StatusTest< ScalarType, MV, OP > > &  debugStatusTest)
overridevirtual

Set a debug status test that will be checked at the same time as the top-level status test.

Reimplemented from Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 974 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
void Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::reset ( const ResetType  type)
inlineoverridevirtual

Performs a reset of the solver manager specified by the ResetType. This informs the solver manager that the solver should prepare for the next call to solve by resetting certain elements of the iterative solver strategy.

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 373 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
ReturnType Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::solve ( )
overridevirtual

This method performs possibly repeated calls to the underlying linear solver's iterate() routine until the problem has been solved (as decided by the solver manager) or the solver manager decides to quit.

This method calls PseudoBlockGmresIter::iterate(), which will return either because a specially constructed status test evaluates to Passed or an std::exception is thrown.

A return from PseudoBlockGmresIter::iterate() signifies one of the following scenarios:

  • the maximum number of restarts has been exceeded. In this scenario, the current solutions to the linear system will be placed in the linear problem and return Unconverged.
  • global convergence has been met. In this case, the current solutions to the linear system will be placed in the linear problem and the solver manager will return Converged
Returns
ReturnType specifying:
  • Converged: the linear problem was solved to the specification required by the solver manager.
  • Unconverged: the linear problem was not solved to the specification desired by the solver manager.

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 1161 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
void Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::describe ( Teuchos::FancyOStream &  out,
const Teuchos::EVerbosityLevel  verbLevel = Teuchos::Describable::verbLevel_default
) const
overridevirtual

Print the object with the given verbosity level to a FancyOStream.

Parameters
out[out] Output stream to which to print.
verbLevel[in] Verbosity level. The default verbosity (verbLevel=Teuchos::VERB_DEFAULT) is Teuchos::VERB_LOW.

Reimplemented from Teuchos::Describable.

Definition at line 1593 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
std::string Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::description ( ) const
overridevirtual

Return a one-line description of this object.

Reimplemented from Teuchos::Describable.

Definition at line 1573 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
bool Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::checkStatusTest ( )
private

Check current status tests against current linear problem.

(Re)create all the status tests, based on the current solve parameters and the current linear problem to solve. This is necessary whenever the linear problem is set or changed via setProblem(), because the residual norm test to use depends on whether or not the (new) linear problem defines a left preconditioner. Furthermore, include the user's custom convergence test if they set one via setUserConvStatusTest().

Returns
False if we were able to (re)create all the status tests correctly, else true. The solve() routine may call this method. If it does, it checks the return value.

Definition at line 1049 of file BelosPseudoBlockGmresSolMgr.hpp.

Member Data Documentation

template<class ScalarType , class MV , class OP >
Teuchos::RCP<LinearProblem<ScalarType,MV,OP> > Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::problem_
private

The current linear problem to solve.

Definition at line 438 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
Teuchos::RCP<OutputManager<ScalarType> > Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::printer_
private

Definition at line 441 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
Teuchos::RCP<std::ostream> Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::outputStream_
private

Definition at line 442 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
Teuchos::RCP<StatusTest<ScalarType,MV,OP> > Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::userConvStatusTest_
private

Definition at line 445 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
Teuchos::RCP<StatusTest<ScalarType,MV,OP> > Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::debugStatusTest_
private

Definition at line 446 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
Teuchos::RCP<StatusTest<ScalarType,MV,OP> > Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::sTest_
private

Definition at line 447 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
Teuchos::RCP<StatusTestMaxIters<ScalarType,MV,OP> > Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::maxIterTest_
private

Definition at line 448 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
Teuchos::RCP<StatusTest<ScalarType,MV,OP> > Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::convTest_
private

Definition at line 449 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
Teuchos::RCP<StatusTestResNorm<ScalarType,MV,OP> > Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::impConvTest_
private

Definition at line 450 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
Teuchos::RCP<StatusTestResNorm<ScalarType,MV,OP> > Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::expConvTest_
private

Definition at line 450 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
Teuchos::RCP<StatusTestOutput<ScalarType,MV,OP> > Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::outputTest_
private

Definition at line 451 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
StatusTestCombo<ScalarType,MV,OP>::ComboType Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::comboType_
private

Definition at line 452 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
Teuchos::RCP<std::map<std::string, Teuchos::RCP<StatusTest<ScalarType, MV, OP> > > > Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::taggedTests_
private

Definition at line 453 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
Teuchos::RCP<MatOrthoManager<ScalarType,MV,OP> > Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::ortho_
private

Definition at line 456 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
Teuchos::RCP<Teuchos::ParameterList> Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::params_
private

Definition at line 459 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
constexpr int Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::maxRestarts_default_ = 20
staticprivate

Definition at line 462 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
constexpr int Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::maxIters_default_ = 1000
staticprivate

Definition at line 463 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
constexpr bool Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::showMaxResNormOnly_default_ = false
staticprivate

Definition at line 464 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
constexpr int Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::blockSize_default_ = 1
staticprivate

Definition at line 465 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
constexpr int Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::numBlocks_default_ = 300
staticprivate

Definition at line 466 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
constexpr int Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::verbosity_default_ = Belos::Errors
staticprivate

Definition at line 467 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
constexpr int Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::outputStyle_default_ = Belos::General
staticprivate

Definition at line 468 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
constexpr int Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::outputFreq_default_ = -1
staticprivate

Definition at line 469 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
constexpr int Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::defQuorum_default_ = 1
staticprivate

Definition at line 470 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
constexpr const char* Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::impResScale_default_ = "Norm of Preconditioned Initial Residual"
staticprivate

Definition at line 471 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
constexpr const char* Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::expResScale_default_ = "Norm of Initial Residual"
staticprivate

Definition at line 472 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
constexpr const char* Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::label_default_ = "Belos"
staticprivate

Definition at line 473 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
constexpr const char* Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::orthoType_default_ = "ICGS"
staticprivate

Definition at line 474 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
MagnitudeType Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::convtol_
private

Definition at line 477 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
MagnitudeType Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::orthoKappa_
private

Definition at line 477 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
MagnitudeType Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::achievedTol_
private

Definition at line 477 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
int Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::maxRestarts_
private

Definition at line 478 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
int Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::maxIters_
private

Definition at line 478 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
int Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::numIters_
private

Definition at line 478 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
int Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::blockSize_
private

Definition at line 479 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
int Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::numBlocks_
private

Definition at line 479 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
int Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::verbosity_
private

Definition at line 479 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
int Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::outputStyle_
private

Definition at line 479 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
int Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::outputFreq_
private

Definition at line 479 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
int Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::defQuorum_
private

Definition at line 479 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
bool Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::showMaxResNormOnly_
private

Definition at line 480 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
std::string Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::orthoType_
private

Definition at line 481 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
std::string Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::impResScale_
private

Definition at line 482 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
std::string Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::expResScale_
private

Definition at line 482 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
MagnitudeType Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::resScaleFactor_
private

Definition at line 483 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
std::string Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::label_
private

Definition at line 486 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
Teuchos::RCP<Teuchos::Time> Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::timerSolve_
private

Definition at line 487 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
bool Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::isSet_
private

Definition at line 490 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
bool Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::isSTSet_
private

Definition at line 490 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
bool Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::expResTest_
private

Definition at line 490 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
bool Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::loaDetected_
private

Definition at line 491 of file BelosPseudoBlockGmresSolMgr.hpp.

The documentation for this class was generated from the following file:
Generated on Thu Nov 21 2024 09:25:14 for Belos Package Browser (Single Doxygen Collection) by   doxygen 1.8.5
