Concrete LinearOpBase subclass that creates an implicit LinearOpBase object using the inverse action of a LinearOpWithSolveBase object. More...

#include <Thyra_DefaultInverseLinearOp_decl.hpp>

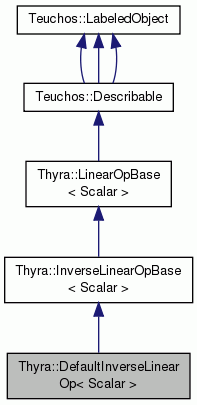

Inheritance diagram for Thyra::DefaultInverseLinearOp< Scalar >:

[legend]

Related Functions
(Note that these are not member functions.)
template<class Scalar >
RCP< LinearOpBase< Scalar > >	nonconstInverse (const RCP< LinearOpWithSolveBase< Scalar > > &A, const Ptr< const SolveCriteria< Scalar > > &fwdSolveCriteria=Teuchos::null, const EThrowOnSolveFailure throwOnFwdSolveFailure=THROW_ON_SOLVE_FAILURE, const Ptr< const SolveCriteria< Scalar > > &adjSolveCriteria=Teuchos::null, const EThrowOnSolveFailure throwOnAdjSolveFailure=THROW_ON_SOLVE_FAILURE)
	Form a non-const implicit inverse operator `M = inv(A)`. More...

template<class Scalar >
RCP< LinearOpBase< Scalar > >	inverse (const RCP< const LinearOpWithSolveBase< Scalar > > &A, const Ptr< const SolveCriteria< Scalar > > &fwdSolveCriteria=Teuchos::null, const EThrowOnSolveFailure throwOnFwdSolveFailure=THROW_ON_SOLVE_FAILURE, const Ptr< const SolveCriteria< Scalar > > &adjSolveCriteria=Teuchos::null, const EThrowOnSolveFailure throwOnAdjSolveFailure=THROW_ON_SOLVE_FAILURE)
	Form a const implicit inverse operator `M = inv(A)`. More...

Related Functions inherited from Thyra::LinearOpBase< Scalar >
template<class Scalar >
bool	isFullyUninitialized (const LinearOpBase< Scalar > &M)
	Determines if a linear operator is in the "Fully Uninitialized" state or not. More...

template<class Scalar >
bool	isPartiallyInitialized (const LinearOpBase< Scalar > &M)
	Determines if a linear operator is in the "Partially Initialized" state or not. More...

template<class Scalar >
bool	isFullyInitialized (const LinearOpBase< Scalar > &M)
	Determines if a linear operator is in the "Fully Initialized" state or not. More...

template<class Scalar >
bool	opSupported (const LinearOpBase< Scalar > &M, EOpTransp M_trans)
	Determines if an operation is supported for a single scalar type. More...

template<class Scalar >
void	apply (const LinearOpBase< Scalar > &M, const EOpTransp M_trans, const MultiVectorBase< Scalar > &X, const Ptr< MultiVectorBase< Scalar > > &Y, const Scalar alpha=static_cast< Scalar >(1.0), const Scalar beta=static_cast< Scalar >(0.0))
	Non-member function call for `M.apply(...)`. More...

void	apply (const LinearOpBase< double > &M, const EOpTransp M_trans, const MultiVectorBase< double > &X, const Ptr< MultiVectorBase< double > > &Y, const double alpha=1.0, const double beta=0.0)
	Calls `apply<double>(...)`. More...

Constructors/initializers/accessors
	DefaultInverseLinearOp ()
	Constructs to uninitialized (see postconditions for `uninitialize()`). More...

	DefaultInverseLinearOp (const RCP< LinearOpWithSolveBase< Scalar > > &lows, const SolveCriteria< Scalar > fwdSolveCriteria=NULL, const EThrowOnSolveFailure throwOnFwdSolveFailure=THROW_ON_SOLVE_FAILURE, const SolveCriteria< Scalar > adjSolveCriteria=NULL, const EThrowOnSolveFailure throwOnAdjSolveFailure=THROW_ON_SOLVE_FAILURE)

	DefaultInverseLinearOp (const RCP< const LinearOpWithSolveBase< Scalar > > &lows, const SolveCriteria< Scalar > fwdSolveCriteria=NULL, const EThrowOnSolveFailure throwOnFwdSolveFailure=THROW_ON_SOLVE_FAILURE, const SolveCriteria< Scalar > adjSolveCriteria=NULL, const EThrowOnSolveFailure throwOnAdjSolveFailure=THROW_ON_SOLVE_FAILURE)

void	initialize (const RCP< LinearOpWithSolveBase< Scalar > > &lows, const SolveCriteria< Scalar > fwdSolveCriteria=NULL, const EThrowOnSolveFailure throwOnFwdSolveFailure=THROW_ON_SOLVE_FAILURE, const SolveCriteria< Scalar > adjSolveCriteria=NULL, const EThrowOnSolveFailure throwOnAdjSolveFailure=THROW_ON_SOLVE_FAILURE)
	Initialize given a non-const `LinearOpWithSolveBase` object and an optional `.` More...

void	initialize (const RCP< const LinearOpWithSolveBase< Scalar > > &lows, const SolveCriteria< Scalar > fwdSolveCriteria=NULL, const EThrowOnSolveFailure throwOnFwdSolveFailure=THROW_ON_SOLVE_FAILURE, const SolveCriteria< Scalar > adjSolveCriteria=NULL, const EThrowOnSolveFailure throwOnAdjSolveFailure=THROW_ON_SOLVE_FAILURE)
	Initialize given a non-const `LinearOpWithSolveBase` object and an optional `.` More...

void	uninitialize ()
	Set to uninitialized. More...

Overridden from InverseLinearOpBase
bool	isLowsConst () const

RCP< LinearOpWithSolveBase < Scalar > >	getNonconstLows ()

RCP< const LinearOpWithSolveBase< Scalar > >	getLows () const

Overridden from LinearOpBase
RCP< const VectorSpaceBase < Scalar > >	range () const
	Returns `this->getLows()->domain() if <t>this->getLows().get()!=NULL` and returns `Teuchos::null` otherwise. More...

RCP< const VectorSpaceBase < Scalar > >	domain () const
	Returns `this->getLows()->range() if <t>this->getLows().get()!=NULL` and returns `Teuchos::null` otherwise. More...

RCP< const LinearOpBase< Scalar > >	clone () const

bool	opSupportedImpl (EOpTransp M_trans) const
	Returns `true` only if all constituent operators support `M_trans`. More...

void	applyImpl (const EOpTransp M_trans, const MultiVectorBase< Scalar > &X, const Ptr< MultiVectorBase< Scalar > > &Y, const Scalar alpha, const Scalar beta) const

Overridden from Teuchos::Describable
std::string	description () const

void	describe (FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel) const

Additional Inherited Members
Public Member Functions inherited from Thyra::LinearOpBase< Scalar >
bool	opSupported (EOpTransp M_trans) const
	Return if the `M_trans` operation of `apply()` is supported or not. More...

void	apply (const EOpTransp M_trans, const MultiVectorBase< Scalar > &X, const Ptr< MultiVectorBase< Scalar > > &Y, const Scalar alpha, const Scalar beta) const
	Apply the linear operator to a multi-vector : `Y = alphaop(M)X + beta*Y`. More...

Protected Member Functions inherited from Thyra::LinearOpBase< Scalar >

Detailed Description

template<class Scalar>
class Thyra::DefaultInverseLinearOp< Scalar >

Concrete LinearOpBase subclass that creates an implicit LinearOpBase object using the inverse action of a LinearOpWithSolveBase object.

This class represents an implicit inverse linear operator:

M = inv(A)

where A is any LinearOpWithSolveBase object. Specifically, the solve(...) function A is used to implement this->apply() and the solveTranspose(...) function A is used to implement this->applyTranspose().

SolveCriteria objects can be associated with A to define the solve criterion for calling the A.solve(...,fwdSolveCriteria) and A.solveTranspose(...,adjSolveCriteria).

Definition at line 54 of file Thyra_DefaultInverseLinearOp_decl.hpp.

Constructor & Destructor Documentation

template<class Scalar >

Thyra::DefaultInverseLinearOp< Scalar >::DefaultInverseLinearOp ( )

Constructs to uninitialized (see postconditions for uninitialize()).

Definition at line 27 of file Thyra_DefaultInverseLinearOp_def.hpp.

template<class Scalar >

Thyra::DefaultInverseLinearOp< Scalar >::DefaultInverseLinearOp	(	const RCP< LinearOpWithSolveBase< Scalar > > &	lows,
		const SolveCriteria< Scalar > *	fwdSolveCriteria = `NULL`,
		const EThrowOnSolveFailure	throwOnFwdSolveFailure = `THROW_ON_SOLVE_FAILURE`,
		const SolveCriteria< Scalar > *	adjSolveCriteria = `NULL`,
		const EThrowOnSolveFailure	throwOnAdjSolveFailure = `THROW_ON_SOLVE_FAILURE`
	)

Calls initialize().

Definition at line 32 of file Thyra_DefaultInverseLinearOp_def.hpp.

template<class Scalar >

Thyra::DefaultInverseLinearOp< Scalar >::DefaultInverseLinearOp	(	const RCP< const LinearOpWithSolveBase< Scalar > > &	lows,
		const SolveCriteria< Scalar > *	fwdSolveCriteria = `NULL`,
		const EThrowOnSolveFailure	throwOnFwdSolveFailure = `THROW_ON_SOLVE_FAILURE`,
		const SolveCriteria< Scalar > *	adjSolveCriteria = `NULL`,
		const EThrowOnSolveFailure	throwOnAdjSolveFailure = `THROW_ON_SOLVE_FAILURE`
	)

Calls initialize().

Rather than calling this constructor directly, consider using the non-member helper functions described here.

Definition at line 48 of file Thyra_DefaultInverseLinearOp_def.hpp.

Member Function Documentation

template<class Scalar >

void Thyra::DefaultInverseLinearOp< Scalar >::initialize	(	const RCP< LinearOpWithSolveBase< Scalar > > &	lows,
		const SolveCriteria< Scalar > *	fwdSolveCriteria = `NULL`,
		const EThrowOnSolveFailure	throwOnFwdSolveFailure = `THROW_ON_SOLVE_FAILURE`,
		const SolveCriteria< Scalar > *	adjSolveCriteria = `NULL`,
		const EThrowOnSolveFailure	throwOnAdjSolveFailure = `THROW_ON_SOLVE_FAILURE`
	)

Initialize given a non-const LinearOpWithSolveBase object and an optional .

Parameters

lows	[in] The `LinearOpWithSolveBase` object that will `solve(...)` and/or `solveTranspose(...)` will be called on. Note that `this` may give up non-const views of `lows` so that `*lows` may be changed through clients of this object.
fwdSolveCriteria	[in] The criteria used to call `lows->solve(...)`. If `fwdSolveCriteria==NULL` then the default solve criteria built into `lows will be used. If fwdSolveCriteria!=NULL then fwdSolveCriteria will be copied internally. Warning! If shallow copy is used by any parameters in fwdSolveCriteria->extraParameter these these parameters will be "remembered" by *this.`
adjSolveCriteria	`[in] The criteria used to call lows->solveTranspose(...). If adjSolveCriteria==NULL then the default solve criteria built into lows will be used. If adjSolveCriteria!=NULL then adjSolveCriteria will be copied internally. Warning! If shallow copy is used by any parameters in adjSolveCriteria->extraParameter these these parameters will be "remembered" by *this.`

Preconditions:

lows.get() != NULL

Postconditions:




this->domain().get() == lows->range().get()

this->range().get() == lows->domain().get()



Definition at line 64 of file Thyra_DefaultInverseLinearOp_def.hpp.

template<class Scalar >

void Thyra::DefaultInverseLinearOp< Scalar >::initialize	(	const RCP< const LinearOpWithSolveBase< Scalar > > &	lows,
		const SolveCriteria< Scalar > *	fwdSolveCriteria = `NULL`,
		const EThrowOnSolveFailure	throwOnFwdSolveFailure = `THROW_ON_SOLVE_FAILURE`,
		const SolveCriteria< Scalar > *	adjSolveCriteria = `NULL`,
		const EThrowOnSolveFailure	throwOnAdjSolveFailure = `THROW_ON_SOLVE_FAILURE`
	)

Initialize given a non-const LinearOpWithSolveBase object and an optional .

Parameters

lows	[in] The `LinearOpWithSolveBase` object that will `solve(...)` and/or `solveTranspose(...)` will be called on. Note that `this` may give up non-const views of `lows` so that `*lows` may be changed through clients of this object.
fwdSolveCriteria	[in] The criteria used to call `lows->solve(...)`. If `fwdSolveCriteria==NULL` then the default solve criteria built into `lows will be used. If fwdSolveCriteria!=NULL then fwdSolveCriteria will be copied internally. Warning! If shallow copy is used by any parameters in fwdSolveCriteria->extraParameter these these parameters will be "remembered" by *this.`
adjSolveCriteria	`[in] The criteria used to call lows->solveTranspose(...). If adjSolveCriteria==NULL then the default solve criteria built into lows will be used. If adjSolveCriteria!=NULL then adjSolveCriteria will be copied internally. Warning! If shallow copy is used by any parameters in adjSolveCriteria->extraParameter these these parameters will be "remembered" by *this.`

Preconditions:

lows.get() != NULL

Postconditions:




this->domain().get() == lows->range().get()

this->range().get() == lows->domain().get()



Definition at line 80 of file Thyra_DefaultInverseLinearOp_def.hpp.

template<class Scalar >

void Thyra::DefaultInverseLinearOp< Scalar >::uninitialize ( )

Set to uninitialized.

Postconditions:

this->getLows().get()==NULL
this->range().get()==NULL
this->domain().get()==NULL

Definition at line 96 of file Thyra_DefaultInverseLinearOp_def.hpp.

template<class Scalar >

bool Thyra::DefaultInverseLinearOp< Scalar >::isLowsConst ( ) const

virtual

Implements Thyra::InverseLinearOpBase< Scalar >.

Definition at line 108 of file Thyra_DefaultInverseLinearOp_def.hpp.

template<class Scalar >

Teuchos::RCP< LinearOpWithSolveBase< Scalar > > Thyra::DefaultInverseLinearOp< Scalar >::getNonconstLows ( )

virtual

Implements Thyra::InverseLinearOpBase< Scalar >.

Definition at line 116 of file Thyra_DefaultInverseLinearOp_def.hpp.

template<class Scalar >

Teuchos::RCP< const LinearOpWithSolveBase< Scalar > > Thyra::DefaultInverseLinearOp< Scalar >::getLows ( ) const

virtual

Implements Thyra::InverseLinearOpBase< Scalar >.

Definition at line 124 of file Thyra_DefaultInverseLinearOp_def.hpp.

template<class Scalar >

Teuchos::RCP< const VectorSpaceBase< Scalar > > Thyra::DefaultInverseLinearOp< Scalar >::range ( ) const

virtual

Returns this->getLows()->domain() if <t>this->getLows().get()!=NULL and returns Teuchos::null otherwise.

Implements Thyra::LinearOpBase< Scalar >.

Definition at line 135 of file Thyra_DefaultInverseLinearOp_def.hpp.

template<class Scalar >

Teuchos::RCP< const VectorSpaceBase< Scalar > > Thyra::DefaultInverseLinearOp< Scalar >::domain ( ) const

virtual

Returns this->getLows()->range() if <t>this->getLows().get()!=NULL and returns Teuchos::null otherwise.

Implements Thyra::LinearOpBase< Scalar >.

Definition at line 144 of file Thyra_DefaultInverseLinearOp_def.hpp.

template<class Scalar >

Teuchos::RCP< const LinearOpBase< Scalar > > Thyra::DefaultInverseLinearOp< Scalar >::clone ( ) const

virtual

Reimplemented from Thyra::LinearOpBase< Scalar >.

Definition at line 153 of file Thyra_DefaultInverseLinearOp_def.hpp.

template<class Scalar >

std::string Thyra::DefaultInverseLinearOp< Scalar >::description ( ) const

virtual

Reimplemented from Teuchos::Describable.

Definition at line 163 of file Thyra_DefaultInverseLinearOp_def.hpp.

template<class Scalar >

void Thyra::DefaultInverseLinearOp< Scalar >::describe	(	FancyOStream &	out,
		const Teuchos::EVerbosityLevel	verbLevel
	)		const

Definition at line 178 of file Thyra_DefaultInverseLinearOp_def.hpp.

template<class Scalar >

bool Thyra::DefaultInverseLinearOp< Scalar >::opSupportedImpl ( EOpTransp M_trans ) const

protectedvirtual

Returns true only if all constituent operators support M_trans.

Implements Thyra::LinearOpBase< Scalar >.

Definition at line 223 of file Thyra_DefaultInverseLinearOp_def.hpp.

template<class Scalar >

void Thyra::DefaultInverseLinearOp< Scalar >::applyImpl	(	const EOpTransp	M_trans,
		const MultiVectorBase< Scalar > &	X,
		const Ptr< MultiVectorBase< Scalar > > &	Y,
		const Scalar	alpha,
		const Scalar	beta
	)		const

protectedvirtual

Implements Thyra::LinearOpBase< Scalar >.

Definition at line 233 of file Thyra_DefaultInverseLinearOp_def.hpp.

Friends And Related Function Documentation

template<class Scalar >

RCP< LinearOpBase< Scalar > > nonconstInverse	(	const RCP< LinearOpWithSolveBase< Scalar > > &	A,
		const Ptr< const SolveCriteria< Scalar > > &	fwdSolveCriteria = `Teuchos::null`,
		const EThrowOnSolveFailure	throwOnFwdSolveFailure = `THROW_ON_SOLVE_FAILURE`,
		const Ptr< const SolveCriteria< Scalar > > &	adjSolveCriteria = `Teuchos::null`,
		const EThrowOnSolveFailure	throwOnAdjSolveFailure = `THROW_ON_SOLVE_FAILURE`
	)

template<class Scalar >

RCP< LinearOpBase< Scalar > > inverse	(	const RCP< const LinearOpWithSolveBase< Scalar > > &	A,
		const Ptr< const SolveCriteria< Scalar > > &	fwdSolveCriteria = `Teuchos::null`,
		const EThrowOnSolveFailure	throwOnFwdSolveFailure = `THROW_ON_SOLVE_FAILURE`,
		const Ptr< const SolveCriteria< Scalar > > &	adjSolveCriteria = `Teuchos::null`,
		const EThrowOnSolveFailure	throwOnAdjSolveFailure = `THROW_ON_SOLVE_FAILURE`
	)
