Nonlinear solver based on a line search (i.e., damping) More...

#include <NOX_Multiphysics_Solver_FixedPointBased.H>

Inheritance diagram for NOX::Multiphysics::Solver::FixedPointBased:

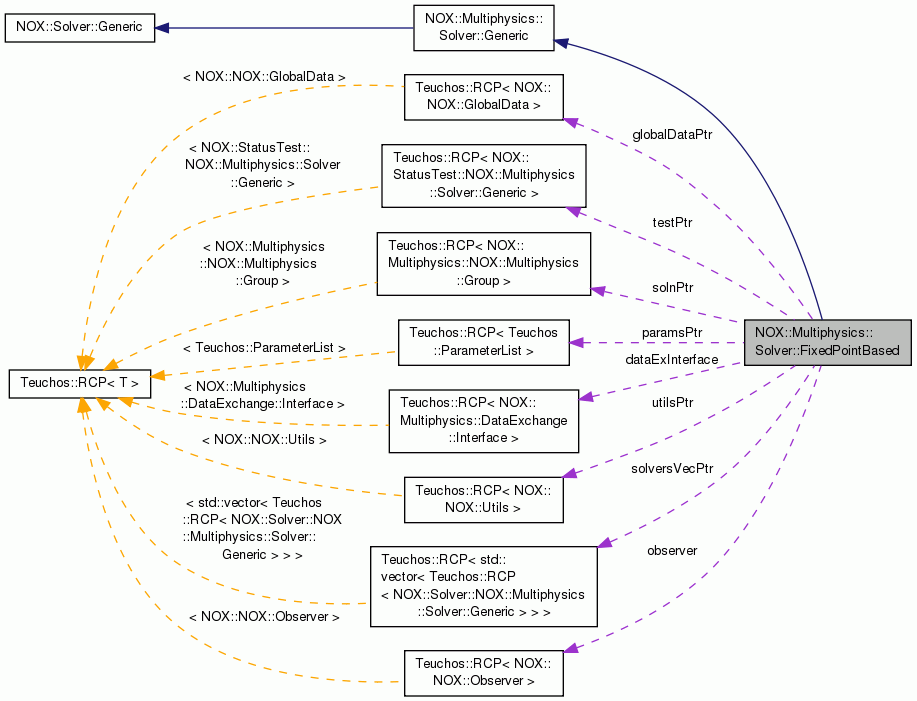

Collaboration diagram for NOX::Multiphysics::Solver::FixedPointBased:

Public Types
enum	SOLVE_TYPE { JACOBI, SEIDEL }

Public Member Functions
	FixedPointBased (const Teuchos::RCP< std::vector< Teuchos::RCP< NOX::Solver::Generic > > > &solvers, const Teuchos::RCP< NOX::Multiphysics::DataExchange::Interface > &interface, const Teuchos::RCP< NOX::StatusTest::Generic > &tests, const Teuchos::RCP< Teuchos::ParameterList > &params)
	Constructor. More...

virtual	~FixedPointBased ()
	Destructor.

virtual bool	reset (const Teuchos::RCP< std::vector< Teuchos::RCP< NOX::Solver::Generic > > > &solvers, const Teuchos::RCP< NOX::Multiphysics::DataExchange::Interface > &interface, const Teuchos::RCP< NOX::StatusTest::Generic > &tests, const Teuchos::RCP< Teuchos::ParameterList > &params)
	Reset the nonlinear solver for a new solve. More...

virtual void	reset (const NOX::Abstract::Vector &initialGuess, const Teuchos::RCP< NOX::StatusTest::Generic > &tests)
	Resets the solver, sets a new status test, and sets a new initial guess.

virtual void	reset (const NOX::Abstract::Vector &initialGuess)
	Resets the solver and sets a new initial guess.

virtual void	reset ()
	reset methods inherited from NOX::Solver::Generic are needed here to avoid hiding this overloaded virtual method

virtual NOX::StatusTest::StatusType	getStatus () const
	Returns the current status of the solver.

virtual NOX::StatusTest::StatusType	step ()
	Do one nonlinear step in the iteration sequence and return status.

virtual NOX::StatusTest::StatusType	solve ()
	Solve the nonlinear problem and return final status. More...

virtual const NOX::Abstract::Group &	getSolutionGroup () const
	Return a reference to the current solution group.

virtual const NOX::Abstract::Group &	getPreviousSolutionGroup () const
	Return a reference to the previous solution group.

virtual int	getNumIterations () const
	Get number of iterations.

virtual const Teuchos::ParameterList &	getList () const
	Return a reference to the solver parameters.

virtual Teuchos::RCP< const NOX::Abstract::Group >	getSolutionGroupPtr () const
	Return a RCP to the solution group.

virtual Teuchos::RCP< const NOX::Abstract::Group >	getPreviousSolutionGroupPtr () const
	Return a RCP to the previous solution group.

virtual Teuchos::RCP< const Teuchos::ParameterList >	getListPtr () const
	Return a RCP to the solver parameters.

virtual Teuchos::RCP< const NOX::SolverStats >	getSolverStatistics () const
	Return a RCP to the solver statistics.

Public Member Functions inherited from NOX::Multiphysics::Solver::Generic
	Generic ()
	Constructor (does nothing)

virtual	~Generic ()
	Destructor (does nothing)

Public Member Functions inherited from NOX::Solver::Generic
	Generic ()
	Constructor (does nothing)

Protected Member Functions
virtual void	init ()
	Print out initialization information and calcuate the RHS.

virtual void	printUpdate ()
	Prints the current iteration information.

Protected Attributes
SOLVE_TYPE	solveType
	Type of fixed-point solve to perform.

Teuchos::RCP< std::vector < Teuchos::RCP < NOX::Solver::Generic > > >	solversVecPtr
	Pointer to the container of solvers for each problem to be coupled.

Teuchos::RCP < NOX::Multiphysics::DataExchange::Interface >	dataExInterface
	Pointer to the callback interface needed to echange data among solvers.

Teuchos::RCP< NOX::GlobalData >	globalDataPtr
	Pointer to the global data object.

Teuchos::RCP< NOX::Utils >	utilsPtr
	Utils.

Teuchos::RCP < NOX::Multiphysics::Group >	solnPtr
	Current solution.

Teuchos::RCP < NOX::StatusTest::Generic >	testPtr
	Stopping test.

Teuchos::RCP < Teuchos::ParameterList >	paramsPtr
	Input parameters.

int	nIter
	Number of nonlinear iterations.

NOX::StatusTest::StatusType	status
	Status of nonlinear solver.

NOX::StatusTest::CheckType	checkType
	Type of check to use for status tests. See NOX::StatusTest for more details.

Teuchos::RCP< NOX::Observer >	observer
	Pointer to a user defined NOX::Observer object.

Detailed Description

Nonlinear solver based on a line search (i.e., damping)

Solves $F(x)=0$ using an iterative line-search-based method.

Each iteration, the solver does the following.

Compute a search direction via a NOX::Direction method
Compute a step length $\lambda$ and update as $x_{\rm new} = x_{\rm old} + \lambda d$ via a NOX::LineSearch method.

The iterations progress until the status tests (see NOX::StatusTest) determine either failure or convergence.

Note: To support several line searches and status tests, this version of the solver has a getStepSize() function that returns $\lambda$ .

Input Parameters

The following parameter list entries are valid for this solver:

"Line Search" - Sublist of the line search parameters, passed to the NOX::LineSearch::Manager constructor. Defaults to an empty list.
"Direction" - Sublist of the direction parameters, passed to the NOX::Direction::Manager constructor. Defaults to an empty list.
"Solver Options" - Sublist of general solver options.
- "User Defined Pre/Post Operator" is supported. See NOX::Parameter::PrePostOperator for more details.

Output Parameters

Every time solve() is called, a sublist for output parameters called "Output" will be created and contain the following parameters.

"Output":

"Nonlinear Iterations" - Number of nonlinear iterations
"2-Norm of Residual" - Two-norm of final residual

Author: Tammy Kolda (SNL 8950), Roger Pawlowski (SNL 9233)

Constructor & Destructor Documentation

NOX::Multiphysics::Solver::FixedPointBased::FixedPointBased	(	const Teuchos::RCP< std::vector< Teuchos::RCP< NOX::Solver::Generic > > > &	solvers,
		const Teuchos::RCP< NOX::Multiphysics::DataExchange::Interface > &	interface,
		const Teuchos::RCP< NOX::StatusTest::Generic > &	tests,
		const Teuchos::RCP< Teuchos::ParameterList > &	params
	)

Constructor.

See reset(NOX::Abstract::Group&, NOX::StatusTest::Generic&, Teuchos::ParameterList&) for description

References init(), observer, paramsPtr, NOX::Solver::parseObserver(), rcp(), Teuchos::ParameterList::sublist(), and NOX::Solver::validateSolverOptionsSublist().

Member Function Documentation

bool NOX::Multiphysics::Solver::FixedPointBased::reset	(	const Teuchos::RCP< std::vector< Teuchos::RCP< NOX::Solver::Generic > > > &	solvers,
		const Teuchos::RCP< NOX::Multiphysics::DataExchange::Interface > &	interface,
		const Teuchos::RCP< NOX::StatusTest::Generic > &	tests,
		const Teuchos::RCP< Teuchos::ParameterList > &	params
	)

virtual

Reset the nonlinear solver for a new solve.

Parameters

tests	Status tests to check for convergence or failure. These tests will be modified by the solver.
params	List of parameters. These parameters will be modified by the solver.

Note: All the objects passed to reset() will be modified.; The group object will be cloned via NOX::Abstract::Group::clone(), and the vectors within will also be individually cloned via NOX::Abstract::Vector::clone().

Warning: If the contents of grp, tests, or params are modified by the calling program after calling reset(), then the behavior of iterate() and solve() are completely undefined. To remedy this, call reset() again with the modified objects.

Implements NOX::Multiphysics::Solver::Generic.

References NOX::Solver::parseObserver(), Teuchos::rcp(), Teuchos::ParameterList::sublist(), and NOX::Solver::validateSolverOptionsSublist().

NOX::StatusTest::StatusType NOX::Multiphysics::Solver::FixedPointBased::solve ( )

virtual

Solve the nonlinear problem and return final status.

By "solve", we call iterate() until the NOX::StatusTest value is either NOX::StatusTest::Converged or NOX::StatusTest::Failed.

Implements NOX::Solver::Generic.

References Teuchos::ParameterList::set(), Teuchos::ParameterList::sublist(), and NOX::StatusTest::Unconverged.

The documentation for this class was generated from the following files:

NOX_Multiphysics_Solver_FixedPointBased.H
NOX_Multiphysics_Solver_FixedPointBased.C
