Tempus::StepperOperatorSplitModifierXBase< Scalar > Class Template Referenceabstract

Base ModifierX for StepperOperatorSplit. More...

#include <Tempus_StepperOperatorSplitModifierXBase.hpp>

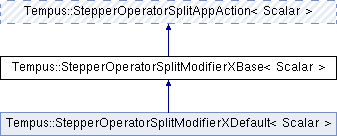

Inheritance diagram for Tempus::StepperOperatorSplitModifierXBase< Scalar >:
Tempus::StepperOperatorSplitAppAction< Scalar > Tempus::StepperOperatorSplitModifierXDefault< Scalar >

Public Types

enum  MODIFIER_TYPE { X_BEGIN_STEP, X_BEFORE_STEPPER, X_AFTER_STEPPER, XDOT_END_STEP }
 Indicates the location of application action (see algorithm). More...

- Public Types inherited from Tempus::StepperOperatorSplitAppAction< Scalar >
enum  ACTION_LOCATION { BEGIN_STEP, BEFORE_STEPPER, AFTER_STEPPER, END_STEP }


Public Member Functions

virtual void modify (Teuchos::RCP< Thyra::VectorBase< Scalar > >, const Scalar, const Scalar, const MODIFIER_TYPE modType)=0
 Modify solution based on the MODIFIER_TYPE. More...

- Public Member Functions inherited from Tempus::StepperOperatorSplitAppAction< Scalar >
 StepperOperatorSplitAppAction ()
 Constructor. More...

virtual ~StepperOperatorSplitAppAction ()
 Destructor. More...


Private Member Functions

void execute (Teuchos::RCP< SolutionHistory< Scalar > > sh, Teuchos::RCP< StepperOperatorSplit< Scalar > > stepper, const typename StepperOperatorSplitAppAction< Scalar >::ACTION_LOCATION actLoc)
 Execute application action for OperatorSplit Stepper. More...


Detailed Description

template<class Scalar>
class Tempus::StepperOperatorSplitModifierXBase< Scalar >

Base ModifierX for StepperOperatorSplit.

This class provides a means to modify just the solution values (i.e., $x$ and $dot{x}$), and nothing else, but time and timestep are also provided.

Users deriving from this class can access and change the solution during the timestep (e.g., limiting the solution for monoticity). It is expected that the user knows what changes are allowable without affecting the Stepper correctness, performance, accuracy and stability (i.e., USER BEWARE!!).

Definition at line 34 of file Tempus_StepperOperatorSplitModifierXBase.hpp.

Member Enumeration Documentation

template<class Scalar>
enum Tempus::StepperOperatorSplitModifierXBase::MODIFIER_TYPE

Indicates the location of application action (see algorithm).

Enumerator
X_BEGIN_STEP

Modify $x$ at the beginning of the step.

X_BEFORE_STEPPER

Modify $x$ before the implicit solve.

X_AFTER_STEPPER
XDOT_END_STEP

Modify $\dot{x}$ at the end of the step.

Definition at line 101 of file Tempus_StepperOperatorSplitModifierXBase.hpp.

Member Function Documentation

template<class Scalar>
void Tempus::StepperOperatorSplitModifierXBase< Scalar >::execute ( Teuchos::RCP< SolutionHistory< Scalar > >  sh,
Teuchos::RCP< StepperOperatorSplit< Scalar > >  stepper,
const typename StepperOperatorSplitAppAction< Scalar >::ACTION_LOCATION  actLoc
)
inlineprivatevirtual

Execute application action for OperatorSplit Stepper.

Implements Tempus::StepperOperatorSplitAppAction< Scalar >.

Definition at line 52 of file Tempus_StepperOperatorSplitModifierXBase.hpp.

template<class Scalar>
virtual void Tempus::StepperOperatorSplitModifierXBase< Scalar >::modify ( Teuchos::RCP< Thyra::VectorBase< Scalar > >  ,
const Scalar  ,
const Scalar  ,
const MODIFIER_TYPE  modType
)
pure virtual

Modify solution based on the MODIFIER_TYPE.

The documentation for this class was generated from the following file:
