Tempus::StepperNewmarkExplicitAForm< Scalar > Class Template Reference

Newmark Explicit time stepper. More...

#include <Tempus_StepperNewmarkExplicitAForm_decl.hpp>

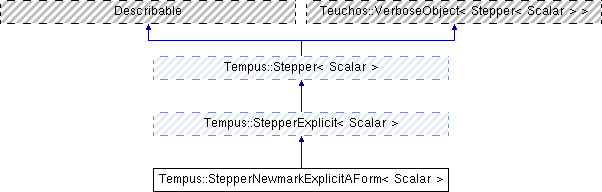

Inheritance diagram for Tempus::StepperNewmarkExplicitAForm< Scalar >:
Tempus::StepperExplicit< Scalar > Tempus::Stepper< Scalar >

Public Member Functions

 StepperNewmarkExplicitAForm ()
 Default constructor. More...

 StepperNewmarkExplicitAForm (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &appModel, const Teuchos::RCP< StepperObserver< Scalar > > &obs, bool useFSAL, std::string ICConsistency, bool ICConsistencyCheck, Scalar gamma)
 Constructor. More...

Teuchos::RCP< const
Teuchos::ParameterList > 		getValidParameters () const

void predictVelocity (Thyra::VectorBase< Scalar > &vPred, const Thyra::VectorBase< Scalar > &v, const Thyra::VectorBase< Scalar > &a, const Scalar dt) const

void predictDisplacement (Thyra::VectorBase< Scalar > &dPred, const Thyra::VectorBase< Scalar > &d, const Thyra::VectorBase< Scalar > &v, const Thyra::VectorBase< Scalar > &a, const Scalar dt) const

void correctVelocity (Thyra::VectorBase< Scalar > &v, const Thyra::VectorBase< Scalar > &vPred, const Thyra::VectorBase< Scalar > &a, const Scalar dt) const

void setGamma (Scalar gamma)

bool getUseFSALDefault () const

std::string getICConsistencyDefault () const

Basic stepper methods
virtual void setObserver (Teuchos::RCP< StepperObserver< Scalar > >=Teuchos::null)
 Set Observer. More...

virtual Teuchos::RCP
< StepperObserver< Scalar > > 		getObserver () const
 Get Observer. More...

virtual void initialize ()
 Initialize during construction and after changing input parameters. More...

virtual void setInitialConditions (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory)
 Set the initial conditions and make them consistent. More...

virtual void takeStep (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory)
 Take the specified timestep, dt, and return true if successful. More...

virtual Teuchos::RCP
< Tempus::StepperState< Scalar > > 		getDefaultStepperState ()
 Get a default (initial) StepperState. More...

virtual Scalar getOrder () const

virtual Scalar getOrderMin () const

virtual Scalar getOrderMax () const

virtual Scalar getInitTimeStep (const Teuchos::RCP< SolutionHistory< Scalar > > &) const

virtual bool isExplicit () const

virtual bool isImplicit () const

virtual bool isExplicitImplicit () const

virtual bool isOneStepMethod () const

virtual bool isMultiStepMethod () const

virtual OrderODE getOrderODE () const

Overridden from Teuchos::Describable
virtual void describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel) const

- Public Member Functions inherited from Tempus::StepperExplicit< Scalar >
virtual void setModel (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &appModel)

virtual void setNonConstModel (const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &appModel)

virtual Teuchos::RCP< const
Thyra::ModelEvaluator< Scalar > > 		getModel ()

virtual void setSolver (Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > solver=Teuchos::null)
 Set solver. More...

virtual Teuchos::RCP
< Thyra::NonlinearSolverBase
< Scalar > > 		getSolver () const
 Get solver. More...

virtual void setInitialGuess (Teuchos::RCP< const Thyra::VectorBase< Scalar > >)
 Pass initial guess to Newton solver (only relevant for implicit solvers) More...

virtual void setStepperX (Teuchos::RCP< Thyra::VectorBase< Scalar > > x)
 Set x for Stepper storage. More...

virtual void setStepperXDot (Teuchos::RCP< Thyra::VectorBase< Scalar > > xDot)
 Set xDot for Stepper storage. More...

virtual void setStepperXDotDot (Teuchos::RCP< Thyra::VectorBase< Scalar > > xDotDot)
 Set x for Stepper storage. More...

virtual Teuchos::RCP
< Thyra::VectorBase< Scalar > > 		getStepperX (Teuchos::RCP< SolutionState< Scalar > > state)
 Get x from SolutionState or Stepper storage. More...

virtual Teuchos::RCP
< Thyra::VectorBase< Scalar > > 		getStepperXDot (Teuchos::RCP< SolutionState< Scalar > > state)
 Get xDot from SolutionState or Stepper storage. More...

virtual Teuchos::RCP
< Thyra::VectorBase< Scalar > > 		getStepperXDotDot (Teuchos::RCP< SolutionState< Scalar > > state)
 Get xDotDot from SolutionState or Stepper storage. More...

virtual void evaluateExplicitODE (Teuchos::RCP< Thyra::VectorBase< Scalar > > xDot, Teuchos::RCP< const Thyra::VectorBase< Scalar > > x, const Scalar time, const Teuchos::RCP< ExplicitODEParameters< Scalar > > &p)
 Evaluate xDot = f(x,t). More...

virtual void evaluateExplicitODE (Teuchos::RCP< Thyra::VectorBase< Scalar > > xDotDot, Teuchos::RCP< const Thyra::VectorBase< Scalar > > x, Teuchos::RCP< const Thyra::VectorBase< Scalar > > xDot, const Scalar time, const Teuchos::RCP< ExplicitODEParameters< Scalar > > &p)
 Evaluate xDotDot = f(x, xDot, t). More...

- Public Member Functions inherited from Tempus::Stepper< Scalar >
void setStepperType (std::string s)

std::string getStepperType () const

void setUseFSAL (bool a)

bool getUseFSAL () const

void setICConsistency (std::string s)

std::string getICConsistency () const

void setICConsistencyCheck (bool c)

bool getICConsistencyCheck () const

virtual bool getICConsistencyCheckDefault () const

virtual std::string description () const

virtual void createSubSteppers (std::vector< Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > >)


Protected Attributes

Scalar gammaDefault_

Scalar gamma_

- Protected Attributes inherited from Tempus::StepperExplicit< Scalar >
Teuchos::RCP< const
Thyra::ModelEvaluator< Scalar > > 		appModel_
 Explicit ODE ModelEvaluator. More...

Thyra::ModelEvaluatorBase::InArgs
< Scalar > 		inArgs_

Thyra::ModelEvaluatorBase::OutArgs
< Scalar > 		outArgs_

Teuchos::RCP< StepperObserver
< Scalar > > 		stepperObserver_

Teuchos::RCP
< Thyra::VectorBase< Scalar > > 		stepperX_

Teuchos::RCP
< Thyra::VectorBase< Scalar > > 		stepperXDot_

Teuchos::RCP
< Thyra::VectorBase< Scalar > > 		stepperXDotDot_


Detailed Description

template<class Scalar>
class Tempus::StepperNewmarkExplicitAForm< Scalar >

Newmark Explicit time stepper.

This is the specific case of the more general Newmark time stepper where this stepper is explicit ( $\beta = 0$) (i.e., no solver used).

The governing equation is solved by this stepper is

\[ \mathbf{M}\, \ddot{\mathbf{x}} + \mathbf{C}\, \dot{\mathbf{x}} + \mathbf{K}\, \mathbf{x} = \mathbf{F}(t) \]

For the A-form (i.e., solving for the acceleration, $\mathbf{a} = \ddot{\mathbf{x}}$), we have the following explicit ODE

\[ \mathbf{a} = -\mathbf{M}^{-1}\left[ \mathbf{C}\, \mathbf{v} + \mathbf{K}\, \mathbf{d} - \mathbf{F}(t) \right] = \bar{\mathbf{f}}(\mathbf{d}, \mathbf{v}, t) \]

where $\mathbf{v} = \dot{\mathbf{x}}$ and $\mathbf{d} = \mathbf{x}$.

Algorithm The algorithm for the Newmark explicit A-form is

  • if ( !useFSAL )
    • $\mathbf{a}^{n-1} = \bar{\mathbf{f}}(\mathbf{d}^{n-1}, \mathbf{v}^{n-1}, t^{n-1})$
  • $\mathbf{d}^{\ast} = \mathbf{d}^{n-1} + \Delta t \mathbf{v}^{n-1} + \Delta t^2 \mathbf{a}^{n-1} / 2$
  • $\mathbf{v}^{\ast} = \mathbf{v}^{n-1} + \Delta t (1-\gamma) \mathbf{a}^{n-1}$
  • $\mathbf{a}^{\ast} = \bar{\mathbf{f}}(\mathbf{d}^{\ast}, \mathbf{v}^{\ast}, t^{n-1})$
  • $\mathbf{d}^n = \mathbf{d}^{\ast}$
  • $\mathbf{v}^n = \mathbf{v}^{\ast} + \Delta t \gamma \mathbf{a}^{\ast}$
  • if ( useFSAL )
    • $\mathbf{a}^n = \bar{\mathbf{f}}(\mathbf{d}^n, \mathbf{v}^n, t^n)$

The default for Forward Euler is to use FSAL (useFSAL=true).

Definition at line 58 of file Tempus_StepperNewmarkExplicitAForm_decl.hpp.

Constructor & Destructor Documentation

template<class Scalar >
Tempus::StepperNewmarkExplicitAForm< Scalar >::StepperNewmarkExplicitAForm ( )

Default constructor.

Definition at line 61 of file Tempus_StepperNewmarkExplicitAForm_impl.hpp.

template<class Scalar >
Tempus::StepperNewmarkExplicitAForm< Scalar >::StepperNewmarkExplicitAForm ( const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &  appModel,
const Teuchos::RCP< StepperObserver< Scalar > > &  obs,
bool  useFSAL,
std::string  ICConsistency,
bool  ICConsistencyCheck,
Scalar  gamma
)

Constructor.

Definition at line 74 of file Tempus_StepperNewmarkExplicitAForm_impl.hpp.

Member Function Documentation

template<class Scalar >
void Tempus::StepperNewmarkExplicitAForm< Scalar >::correctVelocity ( Thyra::VectorBase< Scalar > &  v,
const Thyra::VectorBase< Scalar > &  vPred,
const Thyra::VectorBase< Scalar > &  a,
const Scalar  dt
) const

Definition at line 50 of file Tempus_StepperNewmarkExplicitAForm_impl.hpp.

template<class Scalar >
void Tempus::StepperNewmarkExplicitAForm< Scalar >::describe ( Teuchos::FancyOStream &  out,
const Teuchos::EVerbosityLevel  verbLevel
) const
virtual

Definition at line 327 of file Tempus_StepperNewmarkExplicitAForm_impl.hpp.

template<class Scalar >
Teuchos::RCP< Tempus::StepperState< Scalar > > Tempus::StepperNewmarkExplicitAForm< Scalar >::getDefaultStepperState ( )
virtual

Get a default (initial) StepperState.

Provide a StepperState to the SolutionState. This Stepper does not have any special state data, so just provide the base class StepperState with the Stepper description. This can be checked to ensure that the input StepperState can be used by this Stepper.

Implements Tempus::Stepper< Scalar >.

Definition at line 318 of file Tempus_StepperNewmarkExplicitAForm_impl.hpp.

template<class Scalar >
std::string Tempus::StepperNewmarkExplicitAForm< Scalar >::getICConsistencyDefault ( ) const
inlinevirtual

Reimplemented from Tempus::Stepper< Scalar >.

Definition at line 155 of file Tempus_StepperNewmarkExplicitAForm_decl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperNewmarkExplicitAForm< Scalar >::getInitTimeStep ( const Teuchos::RCP< SolutionHistory< Scalar > > &  ) const
inlinevirtual

Reimplemented from Tempus::StepperExplicit< Scalar >.

Definition at line 106 of file Tempus_StepperNewmarkExplicitAForm_decl.hpp.

template<class Scalar >
virtual Teuchos::RCP<StepperObserver<Scalar> > Tempus::StepperNewmarkExplicitAForm< Scalar >::getObserver ( ) const
inlinevirtual

Get Observer.

Implements Tempus::Stepper< Scalar >.

Definition at line 84 of file Tempus_StepperNewmarkExplicitAForm_decl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperNewmarkExplicitAForm< Scalar >::getOrder ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 100 of file Tempus_StepperNewmarkExplicitAForm_decl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperNewmarkExplicitAForm< Scalar >::getOrderMax ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 105 of file Tempus_StepperNewmarkExplicitAForm_decl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperNewmarkExplicitAForm< Scalar >::getOrderMin ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 104 of file Tempus_StepperNewmarkExplicitAForm_decl.hpp.

template<class Scalar >
virtual OrderODE Tempus::StepperNewmarkExplicitAForm< Scalar >::getOrderODE ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 117 of file Tempus_StepperNewmarkExplicitAForm_decl.hpp.

template<class Scalar >
bool Tempus::StepperNewmarkExplicitAForm< Scalar >::getUseFSALDefault ( ) const
inlinevirtual

Reimplemented from Tempus::Stepper< Scalar >.

Definition at line 154 of file Tempus_StepperNewmarkExplicitAForm_decl.hpp.

template<class Scalar >
Teuchos::RCP< const Teuchos::ParameterList > Tempus::StepperNewmarkExplicitAForm< Scalar >::getValidParameters ( ) const
virtual

Implements Tempus::Stepper< Scalar >.

Definition at line 338 of file Tempus_StepperNewmarkExplicitAForm_impl.hpp.

template<class Scalar >
void Tempus::StepperNewmarkExplicitAForm< Scalar >::initialize ( )
virtual

Initialize during construction and after changing input parameters.

Implements Tempus::Stepper< Scalar >.

Definition at line 101 of file Tempus_StepperNewmarkExplicitAForm_impl.hpp.

template<class Scalar >
virtual bool Tempus::StepperNewmarkExplicitAForm< Scalar >::isExplicit ( ) const
inlinevirtual

Reimplemented from Tempus::StepperExplicit< Scalar >.

Definition at line 110 of file Tempus_StepperNewmarkExplicitAForm_decl.hpp.

template<class Scalar >
virtual bool Tempus::StepperNewmarkExplicitAForm< Scalar >::isExplicitImplicit ( ) const
inlinevirtual

Reimplemented from Tempus::StepperExplicit< Scalar >.

Definition at line 112 of file Tempus_StepperNewmarkExplicitAForm_decl.hpp.

template<class Scalar >
virtual bool Tempus::StepperNewmarkExplicitAForm< Scalar >::isImplicit ( ) const
inlinevirtual

Reimplemented from Tempus::StepperExplicit< Scalar >.

Definition at line 111 of file Tempus_StepperNewmarkExplicitAForm_decl.hpp.

template<class Scalar >
virtual bool Tempus::StepperNewmarkExplicitAForm< Scalar >::isMultiStepMethod ( ) const
inlinevirtual

Reimplemented from Tempus::StepperExplicit< Scalar >.

Definition at line 115 of file Tempus_StepperNewmarkExplicitAForm_decl.hpp.

template<class Scalar >
virtual bool Tempus::StepperNewmarkExplicitAForm< Scalar >::isOneStepMethod ( ) const
inlinevirtual

Reimplemented from Tempus::StepperExplicit< Scalar >.

Definition at line 114 of file Tempus_StepperNewmarkExplicitAForm_decl.hpp.

template<class Scalar >
void Tempus::StepperNewmarkExplicitAForm< Scalar >::predictDisplacement ( Thyra::VectorBase< Scalar > &  dPred,
const Thyra::VectorBase< Scalar > &  d,
const Thyra::VectorBase< Scalar > &  v,
const Thyra::VectorBase< Scalar > &  a,
const Scalar  dt
) const

Definition at line 33 of file Tempus_StepperNewmarkExplicitAForm_impl.hpp.

template<class Scalar >
void Tempus::StepperNewmarkExplicitAForm< Scalar >::predictVelocity ( Thyra::VectorBase< Scalar > &  vPred,
const Thyra::VectorBase< Scalar > &  v,
const Thyra::VectorBase< Scalar > &  a,
const Scalar  dt
) const

Definition at line 22 of file Tempus_StepperNewmarkExplicitAForm_impl.hpp.

template<class Scalar >
void Tempus::StepperNewmarkExplicitAForm< Scalar >::setGamma ( Scalar  gamma)
inline

Definition at line 144 of file Tempus_StepperNewmarkExplicitAForm_decl.hpp.

template<class Scalar >
void Tempus::StepperNewmarkExplicitAForm< Scalar >::setInitialConditions ( const Teuchos::RCP< SolutionHistory< Scalar > > &  solutionHistory)
virtual

Set the initial conditions and make them consistent.

Reimplemented from Tempus::StepperExplicit< Scalar >.

Definition at line 110 of file Tempus_StepperNewmarkExplicitAForm_impl.hpp.

template<class Scalar >
virtual void Tempus::StepperNewmarkExplicitAForm< Scalar >::setObserver ( Teuchos::RCP< StepperObserver< Scalar > >  obs = Teuchos::null)
inlinevirtual

Set Observer.

Implements Tempus::Stepper< Scalar >.

Definition at line 81 of file Tempus_StepperNewmarkExplicitAForm_decl.hpp.

template<class Scalar >
void Tempus::StepperNewmarkExplicitAForm< Scalar >::takeStep ( const Teuchos::RCP< SolutionHistory< Scalar > > &  solutionHistory)
virtual

Take the specified timestep, dt, and return true if successful.

Implements Tempus::Stepper< Scalar >.

Definition at line 238 of file Tempus_StepperNewmarkExplicitAForm_impl.hpp.

Member Data Documentation

template<class Scalar >
Scalar Tempus::StepperNewmarkExplicitAForm< Scalar >::gamma_
protected

Definition at line 160 of file Tempus_StepperNewmarkExplicitAForm_decl.hpp.

template<class Scalar >
Scalar Tempus::StepperNewmarkExplicitAForm< Scalar >::gammaDefault_
protected

Definition at line 159 of file Tempus_StepperNewmarkExplicitAForm_decl.hpp.

The documentation for this class was generated from the following files:
