Tempus::StepperEDIRK_TrapezoidalRule< Scalar > Class Template Reference

RK Trapezoidal Rule (A.K.A. RK Crank-Nicolson) More...

#include <Tempus_StepperRKButcherTableau.hpp>

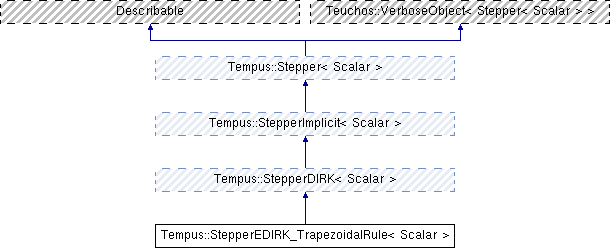

Inheritance diagram for Tempus::StepperEDIRK_TrapezoidalRule< Scalar >:
Tempus::StepperDIRK< Scalar > Tempus::StepperImplicit< Scalar > Tempus::Stepper< Scalar >

Public Member Functions

 StepperEDIRK_TrapezoidalRule ()

 StepperEDIRK_TrapezoidalRule (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &appModel, const Teuchos::RCP< StepperRKObserverComposite< Scalar > > &obs, const Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > &solver, bool useFSAL, std::string ICConsistency, bool ICConsistencyCheck, bool useEmbedded, bool zeroInitialGuess)

std::string getDescription () const

virtual bool getICConsistencyCheckDefault () const

Teuchos::RCP< const
Teuchos::ParameterList >
getValidParameters () const

- Public Member Functions inherited from Tempus::StepperDIRK< Scalar >
virtual Scalar getAlpha (const Scalar dt) const
 Return alpha = d(xDot)/dx. More...

virtual Scalar getBeta (const Scalar) const
 Return beta = d(x)/dx. More...

virtual void setObserver (Teuchos::RCP< StepperObserver< Scalar > > obs=Teuchos::null)
 Set Observer. More...

virtual Teuchos::RCP< const
RKButcherTableau< Scalar > >
getTableau ()

virtual Teuchos::RCP
< StepperObserver< Scalar > >
getObserver () const
 Get Observer. More...

virtual void initialize ()
 Initialize during construction and after changing input parameters. More...

virtual void setInitialConditions (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory)
 Set the initial conditions and make them consistent. More...

virtual void setResetInitialGuess (bool reset_guess)
 Set parameter so that the initial guess is reset at the beginning of each timestep. More...

virtual bool getResetInitialGuess () const

virtual void takeStep (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory)
 Take the specified timestep, dt, and return true if successful. More...

virtual Teuchos::RCP
< Tempus::StepperState< Scalar > >
getDefaultStepperState ()
 Get a default (initial) StepperState. More...

virtual Scalar getOrder () const

virtual Scalar getOrderMin () const

virtual Scalar getOrderMax () const

virtual bool isExplicit () const

virtual bool isImplicit () const

virtual bool isExplicitImplicit () const

virtual bool isOneStepMethod () const

virtual bool isMultiStepMethod () const

virtual OrderODE getOrderODE () const

void getValidParametersBasicDIRK (Teuchos::RCP< Teuchos::ParameterList > pl) const

virtual void describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel) const

virtual void setUseEmbedded (bool a)
 Use embedded if avialable. More...

virtual bool getUseEmbedded () const

virtual bool getUseEmbeddedDefault () const

- Public Member Functions inherited from Tempus::StepperImplicit< Scalar >
virtual void setModel (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &appModel)

virtual void setNonConstModel (const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &appModel)

virtual Teuchos::RCP< const
Thyra::ModelEvaluator< Scalar > >
getModel ()

virtual Teuchos::RCP< const
WrapperModelEvaluator< Scalar > >
getWrapperModel ()

virtual void setSolver (Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > solver=Teuchos::null)
 Set solver. More...

virtual Teuchos::RCP
< Thyra::NonlinearSolverBase
< Scalar > >
getSolver () const
 Get solver. More...

const Thyra::SolveStatus< Scalar > solveImplicitODE (const Teuchos::RCP< Thyra::VectorBase< Scalar > > &x)
 Solve problem using x in-place. (Needs to be deprecated!) More...

const Thyra::SolveStatus< Scalar > solveImplicitODE (const Teuchos::RCP< Thyra::VectorBase< Scalar > > &x, const Teuchos::RCP< Thyra::VectorBase< Scalar > > &xDot, const Scalar time, const Teuchos::RCP< ImplicitODEParameters< Scalar > > &p)
 Solve implicit ODE, f(x, xDot, t, p) = 0. More...

void evaluateImplicitODE (Teuchos::RCP< Thyra::VectorBase< Scalar > > &f, const Teuchos::RCP< Thyra::VectorBase< Scalar > > &x, const Teuchos::RCP< Thyra::VectorBase< Scalar > > &xDot, const Scalar time, const Teuchos::RCP< ImplicitODEParameters< Scalar > > &p)
 Evaluate implicit ODE residual, f(x, xDot, t, p). More...

virtual void setInitialGuess (Teuchos::RCP< const Thyra::VectorBase< Scalar > > initial_guess)
 Pass initial guess to Newton solver (only relevant for implicit solvers) More...

virtual void setZeroInitialGuess (bool zIG)
 Set parameter so that the initial guess is set to zero (=True) or use last timestep (=False). More...

virtual bool getZeroInitialGuess () const

virtual Scalar getInitTimeStep (const Teuchos::RCP< SolutionHistory< Scalar > > &) const

virtual void setStepperXDot (Teuchos::RCP< Thyra::VectorBase< Scalar > > xDot)
 Set xDot for Stepper storage. More...

virtual Teuchos::RCP
< Thyra::VectorBase< Scalar > >
getStepperXDot (Teuchos::RCP< SolutionState< Scalar > > state)
 Get xDot from SolutionState or Stepper storage. More...

virtual Teuchos::RCP
< Thyra::VectorBase< Scalar > >
getStepperXDotDot (Teuchos::RCP< SolutionState< Scalar > > state)
 Get xDotDot from SolutionState or Stepper storage. More...

- Public Member Functions inherited from Tempus::Stepper< Scalar >
void setStepperType (std::string s)

std::string getStepperType () const

void setUseFSAL (bool a)

bool getUseFSAL () const

virtual bool getUseFSALDefault () const

void setICConsistency (std::string s)

std::string getICConsistency () const

virtual std::string getICConsistencyDefault () const

void setICConsistencyCheck (bool c)

bool getICConsistencyCheck () const

virtual std::string description () const

virtual void createSubSteppers (std::vector< Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > >)


Protected Member Functions

void setupTableau ()

- Protected Member Functions inherited from Tempus::StepperDIRK< Scalar >
virtual void setupDefault ()
 Default setup for constructor. More...

virtual void setup (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &wrapperModel, const Teuchos::RCP< StepperRKObserver< Scalar > > &obs, const Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > &solver, bool useFSAL, std::string ICConsistency, bool ICConsistencyCheck, bool useEmbedded, bool zeroInitialGuess)
 Setup for constructor. More...


Additional Inherited Members

- Protected Attributes inherited from Tempus::StepperDIRK< Scalar >
Teuchos::RCP< RKButcherTableau
< Scalar > >
tableau_

std::vector< Teuchos::RCP
< Thyra::VectorBase< Scalar > > >
stageXDot_

Teuchos::RCP
< Thyra::VectorBase< Scalar > >
stageX_

Teuchos::RCP
< Thyra::VectorBase< Scalar > >
xTilde_

Teuchos::RCP
< StepperRKObserverComposite
< Scalar > >
stepperObserver_

bool useEmbedded_

Teuchos::RCP
< Thyra::VectorBase< Scalar > >
ee_

Teuchos::RCP
< Thyra::VectorBase< Scalar > >
abs_u0

Teuchos::RCP
< Thyra::VectorBase< Scalar > >
abs_u

Teuchos::RCP
< Thyra::VectorBase< Scalar > >
sc

bool resetGuess_ = true

- Protected Attributes inherited from Tempus::StepperImplicit< Scalar >
Teuchos::RCP
< WrapperModelEvaluator
< Scalar > >
wrapperModel_

Teuchos::RCP
< Thyra::NonlinearSolverBase
< Scalar > >
solver_

Teuchos::RCP< const
Thyra::VectorBase< Scalar > >
initial_guess_

bool zeroInitialGuess_

Teuchos::RCP< StepperObserver
< Scalar > >
stepperObserver_

Teuchos::RCP
< Thyra::VectorBase< Scalar > >
stepperXDot_

Teuchos::RCP
< Thyra::VectorBase< Scalar > >
stepperXDotDot_


Detailed Description

template<class Scalar>
class Tempus::StepperEDIRK_TrapezoidalRule< Scalar >

RK Trapezoidal Rule (A.K.A. RK Crank-Nicolson)

The tableau (order=3) is

\[ \begin{array}{c|c} c & A \\ \hline & b^T \end{array} \;\;\;\;\mbox{ where }\;\;\;\; \begin{array}{c|cc} 0 & 0 & \\ 1 & 1/2 & 1/2 \\ \hline & 1/2 & 1/2 \end{array} \]

It is second-order accurate and A-stable.

Reference: Computer Methods for ODEs and DAEs, U. M. Ascher and L. R. Petzold, p. 113.

Definition at line 2148 of file Tempus_StepperRKButcherTableau.hpp.

Constructor & Destructor Documentation

template<class Scalar >
Tempus::StepperEDIRK_TrapezoidalRule< Scalar >::StepperEDIRK_TrapezoidalRule ( )
inline

Definition at line 2152 of file Tempus_StepperRKButcherTableau.hpp.

template<class Scalar >
Tempus::StepperEDIRK_TrapezoidalRule< Scalar >::StepperEDIRK_TrapezoidalRule ( const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &  appModel,
const Teuchos::RCP< StepperRKObserverComposite< Scalar > > &  obs,
const Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > &  solver,
bool  useFSAL,
std::string  ICConsistency,
bool  ICConsistencyCheck,
bool  useEmbedded,
bool  zeroInitialGuess
)
inline

Definition at line 2159 of file Tempus_StepperRKButcherTableau.hpp.

Member Function Documentation

template<class Scalar >
std::string Tempus::StepperEDIRK_TrapezoidalRule< Scalar >::getDescription ( ) const
inlinevirtual
template<class Scalar >
virtual bool Tempus::StepperEDIRK_TrapezoidalRule< Scalar >::getICConsistencyCheckDefault ( ) const
inlinevirtual

Reimplemented from Tempus::Stepper< Scalar >.

Definition at line 2187 of file Tempus_StepperRKButcherTableau.hpp.

template<class Scalar >
Teuchos::RCP<const Teuchos::ParameterList> Tempus::StepperEDIRK_TrapezoidalRule< Scalar >::getValidParameters ( ) const
inlinevirtual

Reimplemented from Tempus::StepperDIRK< Scalar >.

Definition at line 2190 of file Tempus_StepperRKButcherTableau.hpp.

template<class Scalar >
void Tempus::StepperEDIRK_TrapezoidalRule< Scalar >::setupTableau ( )
inlineprotectedvirtual

The documentation for this class was generated from the following file:
