Tempus::StepperBDF2< Scalar > Class Template Reference

BDF2 (Backward-Difference-Formula-2) time stepper. More...

#include <Tempus_StepperBDF2_decl.hpp>

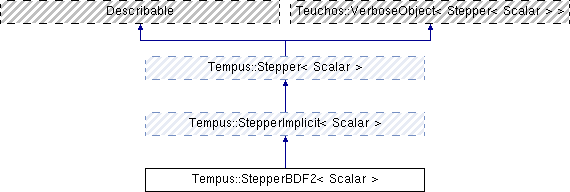

Inheritance diagram for Tempus::StepperBDF2< Scalar >:
Tempus::StepperImplicit< Scalar > Tempus::Stepper< Scalar >

Public Member Functions

 StepperBDF2 ()
 Default constructor. More...

 StepperBDF2 (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &appModel, const Teuchos::RCP< StepperObserver< Scalar > > &obs, const Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > &solver, const Teuchos::RCP< Stepper< Scalar > > &startUpStepper, bool useFSAL, std::string ICConsistency, bool ICConsistencyCheck, bool zeroInitialGuess)
 Constructor. More...

virtual Scalar getAlpha (const Scalar dt) const
 Return alpha = d(xDot)/dx. More...

virtual Scalar getAlpha (const Scalar dt, const Scalar dtOld) const

virtual Scalar getBeta (const Scalar) const
 Return beta = d(x)/dx. More...

virtual void computeStartUp (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory)
 Compute the first time step given the supplied startup stepper. More...

virtual bool getICConsistencyCheckDefault () const

Teuchos::RCP< const
Teuchos::ParameterList > 		getValidParameters () const

Basic stepper methods
virtual void setObserver (Teuchos::RCP< StepperObserver< Scalar > > obs=Teuchos::null)
 Set Observer. More...

virtual Teuchos::RCP
< StepperObserver< Scalar > > 		getObserver () const
 Get Observer. More...

void setStartUpStepper (std::string startupStepperType="DIRK 1 Stage Theta Method")
 Set the stepper to use in first step. More...

void setStartUpStepper (Teuchos::RCP< Stepper< Scalar > > startupStepper)
 Set the start up stepper. More...

virtual void initialize ()
 Initialize during construction and after changing input parameters. More...

virtual void setInitialConditions (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory)
 Set the initial conditions and make them consistent. More...

virtual void takeStep (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory)
 Take the specified timestep, dt, and return true if successful. More...

virtual Teuchos::RCP
< Tempus::StepperState< Scalar > > 		getDefaultStepperState ()
 Get a default (initial) StepperState. More...

virtual Scalar getOrder () const

virtual Scalar getOrderMin () const

virtual Scalar getOrderMax () const

virtual bool isExplicit () const

virtual bool isImplicit () const

virtual bool isExplicitImplicit () const

virtual bool isOneStepMethod () const

virtual bool isMultiStepMethod () const

virtual OrderODE getOrderODE () const

Overridden from Teuchos::Describable
virtual void describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel) const

- Public Member Functions inherited from Tempus::StepperImplicit< Scalar >
virtual void setModel (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &appModel)

virtual void setNonConstModel (const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &appModel)

virtual Teuchos::RCP< const
Thyra::ModelEvaluator< Scalar > > 		getModel ()

virtual Teuchos::RCP< const
WrapperModelEvaluator< Scalar > > 		getWrapperModel ()

virtual void setSolver (Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > solver=Teuchos::null)
 Set solver. More...

virtual Teuchos::RCP
< Thyra::NonlinearSolverBase
< Scalar > > 		getSolver () const
 Get solver. More...

const Thyra::SolveStatus< Scalar > solveImplicitODE (const Teuchos::RCP< Thyra::VectorBase< Scalar > > &x)
 Solve problem using x in-place. (Needs to be deprecated!) More...

const Thyra::SolveStatus< Scalar > solveImplicitODE (const Teuchos::RCP< Thyra::VectorBase< Scalar > > &x, const Teuchos::RCP< Thyra::VectorBase< Scalar > > &xDot, const Scalar time, const Teuchos::RCP< ImplicitODEParameters< Scalar > > &p)
 Solve implicit ODE, f(x, xDot, t, p) = 0. More...

void evaluateImplicitODE (Teuchos::RCP< Thyra::VectorBase< Scalar > > &f, const Teuchos::RCP< Thyra::VectorBase< Scalar > > &x, const Teuchos::RCP< Thyra::VectorBase< Scalar > > &xDot, const Scalar time, const Teuchos::RCP< ImplicitODEParameters< Scalar > > &p)
 Evaluate implicit ODE residual, f(x, xDot, t, p). More...

virtual void setInitialGuess (Teuchos::RCP< const Thyra::VectorBase< Scalar > > initial_guess)
 Pass initial guess to Newton solver (only relevant for implicit solvers) More...

virtual void setZeroInitialGuess (bool zIG)
 Set parameter so that the initial guess is set to zero (=True) or use last timestep (=False). More...

virtual bool getZeroInitialGuess () const

virtual Scalar getInitTimeStep (const Teuchos::RCP< SolutionHistory< Scalar > > &) const

virtual void setStepperXDot (Teuchos::RCP< Thyra::VectorBase< Scalar > > xDot)
 Set xDot for Stepper storage. More...

virtual Teuchos::RCP
< Thyra::VectorBase< Scalar > > 		getStepperXDot (Teuchos::RCP< SolutionState< Scalar > > state)
 Get xDot from SolutionState or Stepper storage. More...

virtual Teuchos::RCP
< Thyra::VectorBase< Scalar > > 		getStepperXDotDot (Teuchos::RCP< SolutionState< Scalar > > state)
 Get xDotDot from SolutionState or Stepper storage. More...

- Public Member Functions inherited from Tempus::Stepper< Scalar >
void setStepperType (std::string s)

std::string getStepperType () const

void setUseFSAL (bool a)

bool getUseFSAL () const

virtual bool getUseFSALDefault () const

void setICConsistency (std::string s)

std::string getICConsistency () const

virtual std::string getICConsistencyDefault () const

void setICConsistencyCheck (bool c)

bool getICConsistencyCheck () const

virtual std::string description () const

virtual void createSubSteppers (std::vector< Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > >)


Private Attributes

Teuchos::RCP< Stepper< Scalar > > startUpStepper_

Teuchos::RCP
< StepperObserverComposite
< Scalar > > 		stepperObserver_

Teuchos::RCP
< StepperBDF2Observer< Scalar > > 		stepperBDF2Observer_

Scalar order_


Additional Inherited Members

- Protected Attributes inherited from Tempus::StepperImplicit< Scalar >
Teuchos::RCP
< WrapperModelEvaluator
< Scalar > > 		wrapperModel_

Teuchos::RCP
< Thyra::NonlinearSolverBase
< Scalar > > 		solver_

Teuchos::RCP< const
Thyra::VectorBase< Scalar > > 		initial_guess_

bool zeroInitialGuess_

Teuchos::RCP< StepperObserver
< Scalar > > 		stepperObserver_

Teuchos::RCP
< Thyra::VectorBase< Scalar > > 		stepperXDot_

Teuchos::RCP
< Thyra::VectorBase< Scalar > > 		stepperXDotDot_


Detailed Description

template<class Scalar>
class Tempus::StepperBDF2< Scalar >

BDF2 (Backward-Difference-Formula-2) time stepper.

For the implicit ODE system, $f(\dot{x},x,t) = 0$, the solution, $\dot{x}$ and $x$, is determined using a solver (e.g., a non-linear solver, like NOX). This stepper allows for a variable time-step, $\Delta t$. It is a 2-step method.

Algorithm

  • For $n=0$, set the initial condition, $x_0$.
  • For $n=1$, use a one-step startup stepper, e.g., Backward Euler or RK4. The default startup stepper is 'IRK 1 Stage Theta Method' which second order.
  • For $n>1$, solve for $x_n$ via $ f\left(x_n, \dot{x}_n, t_n\right) = 0$ where $ \dot{x}_{n} = \frac{2\tau_n + \tau_{n-1}}{\tau_n + \tau_{n-1}} \left[ \frac{x_n-x_{n-1}}{\tau_n}\right] - \frac{\tau_n}{\tau_n + \tau_{n-1}} \left[ \frac{x_{n-1}-x_{n-2}}{\tau_{n-1}}\right], $ and $\Delta t_n = \tau_n = t_n - t_{n-1}$.
  • $\dot{x}_n \leftarrow \dot{x}_{n} = \frac{2\tau_n + \tau_{n-1}}{\tau_n + \tau_{n-1}} \left[ \frac{x_n-x_{n-1}}{\tau_n}\right] - \frac{\tau_n}{\tau_n + \tau_{n-1}} \left[ \frac{x_{n-1}-x_{n-2}}{\tau_{n-1}}\right], $

The First-Step-As-Last (FSAL) principle is not needed BDF2. The default is to set useFSAL=false, however useFSAL=true will also work but have no affect (i.e., no-op).

Definition at line 51 of file Tempus_StepperBDF2_decl.hpp.

Constructor & Destructor Documentation

template<class Scalar >
Tempus::StepperBDF2< Scalar >::StepperBDF2 ( )

Default constructor.

Definition at line 26 of file Tempus_StepperBDF2_impl.hpp.

template<class Scalar >
Tempus::StepperBDF2< Scalar >::StepperBDF2 ( const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &  appModel,
const Teuchos::RCP< StepperObserver< Scalar > > &  obs,
const Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > &  solver,
const Teuchos::RCP< Stepper< Scalar > > &  startUpStepper,
bool  useFSAL,
std::string  ICConsistency,
bool  ICConsistencyCheck,
bool  zeroInitialGuess
)

Constructor.

Constructs a fully initialized stepper.

Definition at line 39 of file Tempus_StepperBDF2_impl.hpp.

Member Function Documentation

template<class Scalar >
void Tempus::StepperBDF2< Scalar >::computeStartUp ( const Teuchos::RCP< SolutionHistory< Scalar > > &  solutionHistory)
virtual

Compute the first time step given the supplied startup stepper.

Definition at line 231 of file Tempus_StepperBDF2_impl.hpp.

template<class Scalar >
void Tempus::StepperBDF2< Scalar >::describe ( Teuchos::FancyOStream &  out,
const Teuchos::EVerbosityLevel  verbLevel
) const
virtual

Definition at line 263 of file Tempus_StepperBDF2_impl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperBDF2< Scalar >::getAlpha ( const Scalar  dt) const
inlinevirtual

Return alpha = d(xDot)/dx.

Implements Tempus::StepperImplicit< Scalar >.

Definition at line 117 of file Tempus_StepperBDF2_decl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperBDF2< Scalar >::getAlpha ( const Scalar  dt,
const Scalar  dtOld
) const
inlinevirtual

Definition at line 118 of file Tempus_StepperBDF2_decl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperBDF2< Scalar >::getBeta ( const Scalar  ) const
inlinevirtual

Return beta = d(x)/dx.

Implements Tempus::StepperImplicit< Scalar >.

Definition at line 121 of file Tempus_StepperBDF2_decl.hpp.

template<class Scalar >
Teuchos::RCP< Tempus::StepperState< Scalar > > Tempus::StepperBDF2< Scalar >::getDefaultStepperState ( )
virtual

Get a default (initial) StepperState.

Provide a StepperState to the SolutionState. This Stepper does not have any special state data, so just provide the base class StepperState with the Stepper description. This can be checked to ensure that the input StepperState can be used by this Stepper.

Implements Tempus::Stepper< Scalar >.

Definition at line 254 of file Tempus_StepperBDF2_impl.hpp.

template<class Scalar >
virtual bool Tempus::StepperBDF2< Scalar >::getICConsistencyCheckDefault ( ) const
inlinevirtual

Reimplemented from Tempus::Stepper< Scalar >.

Definition at line 127 of file Tempus_StepperBDF2_decl.hpp.

template<class Scalar >
virtual Teuchos::RCP<StepperObserver<Scalar> > Tempus::StepperBDF2< Scalar >::getObserver ( ) const
inlinevirtual

Get Observer.

Implements Tempus::Stepper< Scalar >.

Definition at line 81 of file Tempus_StepperBDF2_decl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperBDF2< Scalar >::getOrder ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 102 of file Tempus_StepperBDF2_decl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperBDF2< Scalar >::getOrderMax ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 104 of file Tempus_StepperBDF2_decl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperBDF2< Scalar >::getOrderMin ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 103 of file Tempus_StepperBDF2_decl.hpp.

template<class Scalar >
virtual OrderODE Tempus::StepperBDF2< Scalar >::getOrderODE ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 113 of file Tempus_StepperBDF2_decl.hpp.

template<class Scalar >
Teuchos::RCP< const Teuchos::ParameterList > Tempus::StepperBDF2< Scalar >::getValidParameters ( ) const
virtual

Implements Tempus::Stepper< Scalar >.

Definition at line 274 of file Tempus_StepperBDF2_impl.hpp.

template<class Scalar >
void Tempus::StepperBDF2< Scalar >::initialize ( )
virtual

Initialize during construction and after changing input parameters.

Implements Tempus::Stepper< Scalar >.

Definition at line 119 of file Tempus_StepperBDF2_impl.hpp.

template<class Scalar >
virtual bool Tempus::StepperBDF2< Scalar >::isExplicit ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 106 of file Tempus_StepperBDF2_decl.hpp.

template<class Scalar >
virtual bool Tempus::StepperBDF2< Scalar >::isExplicitImplicit ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 108 of file Tempus_StepperBDF2_decl.hpp.

template<class Scalar >
virtual bool Tempus::StepperBDF2< Scalar >::isImplicit ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 107 of file Tempus_StepperBDF2_decl.hpp.

template<class Scalar >
virtual bool Tempus::StepperBDF2< Scalar >::isMultiStepMethod ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 111 of file Tempus_StepperBDF2_decl.hpp.

template<class Scalar >
virtual bool Tempus::StepperBDF2< Scalar >::isOneStepMethod ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 110 of file Tempus_StepperBDF2_decl.hpp.

template<class Scalar >
void Tempus::StepperBDF2< Scalar >::setInitialConditions ( const Teuchos::RCP< SolutionHistory< Scalar > > &  solutionHistory)
virtual

Set the initial conditions and make them consistent.

Reimplemented from Tempus::StepperImplicit< Scalar >.

Definition at line 132 of file Tempus_StepperBDF2_impl.hpp.

template<class Scalar >
void Tempus::StepperBDF2< Scalar >::setObserver ( Teuchos::RCP< StepperObserver< Scalar > >  obs = Teuchos::null)
virtual

Set Observer.

Implements Tempus::Stepper< Scalar >.

Definition at line 101 of file Tempus_StepperBDF2_impl.hpp.

template<class Scalar >
void Tempus::StepperBDF2< Scalar >::setStartUpStepper ( std::string  startupStepperType = "DIRK 1 Stage Theta Method")

Set the stepper to use in first step.

Set the startup stepper to a default stepper.

Definition at line 70 of file Tempus_StepperBDF2_impl.hpp.

template<class Scalar >
void Tempus::StepperBDF2< Scalar >::setStartUpStepper ( Teuchos::RCP< Stepper< Scalar > >  startupStepper)

Set the start up stepper.

Definition at line 86 of file Tempus_StepperBDF2_impl.hpp.

template<class Scalar >
void Tempus::StepperBDF2< Scalar >::takeStep ( const Teuchos::RCP< SolutionHistory< Scalar > > &  solutionHistory)
virtual

Take the specified timestep, dt, and return true if successful.

Implements Tempus::Stepper< Scalar >.

Definition at line 157 of file Tempus_StepperBDF2_impl.hpp.

Member Data Documentation

template<class Scalar >
Scalar Tempus::StepperBDF2< Scalar >::order_
private

Definition at line 141 of file Tempus_StepperBDF2_decl.hpp.

template<class Scalar >
Teuchos::RCP<Stepper<Scalar> > Tempus::StepperBDF2< Scalar >::startUpStepper_
private

Definition at line 138 of file Tempus_StepperBDF2_decl.hpp.

template<class Scalar >
Teuchos::RCP<StepperBDF2Observer<Scalar> > Tempus::StepperBDF2< Scalar >::stepperBDF2Observer_
private

Definition at line 140 of file Tempus_StepperBDF2_decl.hpp.

template<class Scalar >
Teuchos::RCP<StepperObserverComposite<Scalar> > Tempus::StepperBDF2< Scalar >::stepperObserver_
private

Definition at line 139 of file Tempus_StepperBDF2_decl.hpp.

The documentation for this class was generated from the following files:
