This class represents a mesh. More...

#include <Zoltan2_PamgenMeshAdapter.hpp>

Inheritance diagram for Zoltan2::PamgenMeshAdapter< User >:

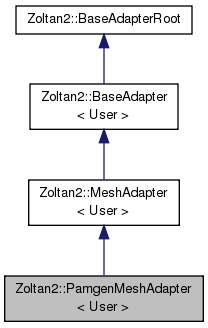

Collaboration diagram for Zoltan2::PamgenMeshAdapter< User >:

Public Types
typedef InputTraits< User > ::scalar_t	scalar_t

typedef InputTraits< User >::lno_t	lno_t

typedef InputTraits< User >::gno_t	gno_t

typedef InputTraits< User > ::offset_t	offset_t

typedef InputTraits< User >::part_t	part_t

typedef InputTraits< User >::node_t	node_t

typedef User	user_t

typedef std::map< gno_t, gno_t >	MapType

Public Types inherited from Zoltan2::BaseAdapter< User >
typedef InputTraits< User >::lno_t	lno_t

typedef InputTraits< User >::gno_t	gno_t

typedef InputTraits< User > ::scalar_t	scalar_t

typedef InputTraits< User >::part_t	part_t

typedef InputTraits< User > ::offset_t	offset_t

Public Member Functions
	PamgenMeshAdapter (const Comm< int > &comm, std::string typestr="region", int nEntWgts=0)
	Constructor for mesh with identifiers but no coordinates or edges. More...

void	setWeightIsDegree (int idx)
	Specify an index for which the weight should be the degree of the entity idx Zoltan2 will use the entity's degree as the entity weight for index `idx`. More...

void	print (int)

bool	areEntityIDsUnique (MeshEntityType etype) const
	Provide a pointer to the entity topology types. More...

size_t	getLocalNumOf (MeshEntityType etype) const
	Returns the global number of mesh entities of MeshEntityType. More...

void	getIDsViewOf (MeshEntityType etype, const gno_t *&Ids) const
	Provide a pointer to this process' identifiers. More...

void	getTopologyViewOf (MeshEntityType etype, enum EntityTopologyType const *&Types) const
	Provide a pointer to the entity topology types. More...

void	getWeightsViewOf (MeshEntityType etype, const scalar_t *&weights, int &stride, int idx=0) const
	Provide a pointer to one of the number of this process' optional entity weights. More...

int	getDimension () const
	Return dimension of the entity coordinates, if any. More...

void	getCoordinatesViewOf (MeshEntityType etype, const scalar_t *&coords, int &stride, int dim) const
	Provide a pointer to one dimension of entity coordinates. More...

bool	availAdjs (MeshEntityType source, MeshEntityType target) const
	Returns whether a first adjacency combination is available. More...

size_t	getLocalNumAdjs (MeshEntityType source, MeshEntityType target) const
	Returns the number of first adjacencies on this process. More...

void	getAdjsView (MeshEntityType source, MeshEntityType target, const offset_t &offsets, const gno_t &adjacencyIds) const
	Sets pointers to this process' mesh first adjacencies. More...

bool	avail2ndAdjs (MeshEntityType sourcetarget, MeshEntityType through) const
	Returns whether a second adjacency combination is available. If combination is not available in the MeshAdapter, Zoltan2 will compute them, using A^T A, where A is matrix of first adjacencies. More...

size_t	getLocalNum2ndAdjs (MeshEntityType sourcetarget, MeshEntityType through) const
	if avail2ndAdjs(), returns the number of second adjacencies on this process. More...

void	get2ndAdjsView (MeshEntityType sourcetarget, MeshEntityType through, const offset_t &offsets, const gno_t &adjacencyIds) const
	if avail2ndAdjs(), set pointers to this process' second adjacencies More...

bool	useDegreeAsWeightOf (MeshEntityType etype, int idx) const
	Optional method allowing the idx-th weight of entity type etype to be set as the number of neighbors (the degree) of the entity Default is false; user can change in his MeshAdapter implementation. More...

Public Member Functions inherited from Zoltan2::MeshAdapter< User >
enum BaseAdapterType	adapterType () const
	Returns the type of adapter. More...

virtual	~MeshAdapter ()
	Destructor. More...

	MeshAdapter ()

virtual int	getNumWeightsPerOf (MeshEntityType etype) const
	Return the number of weights per entity. More...

virtual int	getNumWeightsPer2ndAdj (MeshEntityType sourcetarget, MeshEntityType through) const
	Returns the number (0 or greater) of weights per second adjacency. Note: second-adjacency weights may be used only if avail2ndAdjs(). More...

virtual void	get2ndAdjWeightsView (MeshEntityType sourcetarget, MeshEntityType through, const scalar_t *&weights, int &stride, int idx) const
	Provide a pointer to the second adjacency weights, if any. Note: second-adjacency weights may be used only if avail2ndAdjs(). More...

enum MeshEntityType	getPrimaryEntityType () const
	Returns the entity to be partitioned, ordered, colored, etc. More...

enum MeshEntityType	getAdjacencyEntityType () const
	Returns the entity that describes adjacencies between the entities to be partitioned, ordered, colored, etc. That is, a primaryEntityType that contains an adjacencyEntityType are adjacent. More...

enum MeshEntityType	getSecondAdjacencyEntityType () const
	Returns the entity that describes second adjacencies between the entities to be partitioned, ordered, colored, etc. That is, two primaryEntityType that share a secondAdjacencyEntityType are adjacent. More...

void	setEntityTypes (std::string ptypestr, std::string atypestr, std::string satypestr)
	Sets the primary, adjacency, and second adjacency entity types. Called by algorithm based on parameter values in parameter list from application. Also sets primaryEntityType, adjacencyEntityType, and secondAdjacencyEntityType to something reasonable: primaryEntityType not adjacencyEntityType or secondAdjacencyEntityType. More...

size_t	getLocalNumIDs () const
	Returns the number of objects on this process. More...

void	getIDsView (const gno_t *&Ids) const
	Provide a pointer to this process' identifiers. More...

int	getNumWeightsPerID () const
	Returns the number of weights per object. Number of weights per object should be zero or greater. If zero, then it is assumed that all objects are equally weighted. Default is zero weights per ID. More...

void	getWeightsView (const scalar_t *&wgt, int &stride, int idx=0) const
	Provide pointer to a weight array with stride. More...

void	getCoordinatesView (const scalar_t *&coords, int &stride, int coordDim) const

bool	useDegreeAsWeight (int idx) const

Public Member Functions inherited from Zoltan2::BaseAdapter< User >
virtual	~BaseAdapter ()
	Destructor. More...

virtual void	getIDsKokkosView (Kokkos::View< gno_t * > &) const
	Provide a pointer to this process' identifiers. More...

virtual void	getWeightsKokkosView (Kokkos::View< scalar_t * > &, int=0) const
	Provide pointer to a weight View. More...

void	getPartsView (const part_t *&inputPart) const
	Provide pointer to an array containing the input part assignment for each ID. The input part information may be used for re-partitioning to reduce data movement, or for mapping parts to processes. Adapters may return NULL for this pointer (the default behavior); if NULL is returned, algorithms will assume the rank. More...

template<typename Adapter >
void	applyPartitioningSolution (const User &in, User *&out, const PartitioningSolution< Adapter > &solution) const
	Apply a PartitioningSolution to an input. More...

Public Member Functions inherited from Zoltan2::BaseAdapterRoot
virtual	~BaseAdapterRoot ()

Additional Inherited Members
Protected Member Functions inherited from Zoltan2::BaseAdapter< User >
void	generateWeightFileOnly (const char *fileprefix, const Teuchos::Comm< int > &comm) const

Detailed Description

template<typename User>
class Zoltan2::PamgenMeshAdapter< User >

This class represents a mesh.

A mesh can be a collection of global Identifiers and their associated weights, if any.

The user supplies the identifiers and weights by way of pointers to arrays.

The template parameter (User) is a C++ class type which provides the actual data types with which the Zoltan2 library will be compiled, through a Traits mechanism. User may be the actual class used by application to represent coordinates, or it may be the empty helper class BasicUserTypes with which a Zoltan2 user can easily supply the data types for the library.

The scalar_t type, representing use data such as matrix values, is used by Zoltan2 for weights, coordinates, part sizes and quality metrics. Some User types (like Tpetra::CrsMatrix) have an inherent scalar type, and some (like Tpetra::CrsGraph) do not. For such objects, the scalar type is set by Zoltan2 to float. If you wish to change it to double, set the second template parameter to double.

Definition at line 91 of file Zoltan2_PamgenMeshAdapter.hpp.

Member Typedef Documentation

template<typename User >

typedef InputTraits<User>::scalar_t Zoltan2::PamgenMeshAdapter< User >::scalar_t

Definition at line 95 of file Zoltan2_PamgenMeshAdapter.hpp.

template<typename User >

typedef InputTraits<User>::lno_t Zoltan2::PamgenMeshAdapter< User >::lno_t

Definition at line 96 of file Zoltan2_PamgenMeshAdapter.hpp.

template<typename User >

typedef InputTraits<User>::gno_t Zoltan2::PamgenMeshAdapter< User >::gno_t

Definition at line 97 of file Zoltan2_PamgenMeshAdapter.hpp.

template<typename User >

typedef InputTraits<User>::offset_t Zoltan2::PamgenMeshAdapter< User >::offset_t

Definition at line 98 of file Zoltan2_PamgenMeshAdapter.hpp.

template<typename User >

typedef InputTraits<User>::part_t Zoltan2::PamgenMeshAdapter< User >::part_t

Definition at line 99 of file Zoltan2_PamgenMeshAdapter.hpp.

template<typename User >

typedef InputTraits<User>::node_t Zoltan2::PamgenMeshAdapter< User >::node_t

Definition at line 100 of file Zoltan2_PamgenMeshAdapter.hpp.

template<typename User >

typedef User Zoltan2::PamgenMeshAdapter< User >::user_t

Definition at line 101 of file Zoltan2_PamgenMeshAdapter.hpp.

template<typename User >

typedef std::map<gno_t, gno_t> Zoltan2::PamgenMeshAdapter< User >::MapType

Definition at line 102 of file Zoltan2_PamgenMeshAdapter.hpp.

Constructor & Destructor Documentation

template<typename User >

Zoltan2::PamgenMeshAdapter< User >::PamgenMeshAdapter	(	const Comm< int > &	comm,
		std::string	typestr = `"region"`,
		int	nEntWgts = `0`
	)

Constructor for mesh with identifiers but no coordinates or edges.

Parameters

etype is the mesh entity type of the identifiers

The values pointed to the arguments must remain valid for the lifetime of this InputAdapter.

Definition at line 352 of file Zoltan2_PamgenMeshAdapter.hpp.

Member Function Documentation

template<typename User >

void Zoltan2::PamgenMeshAdapter< User >::setWeightIsDegree ( int idx )

Specify an index for which the weight should be the degree of the entity idx Zoltan2 will use the entity's degree as the entity weight for index idx.

Definition at line 897 of file Zoltan2_PamgenMeshAdapter.hpp.

template<typename User >

void Zoltan2::PamgenMeshAdapter< User >::print ( int me )

Definition at line 907 of file Zoltan2_PamgenMeshAdapter.hpp.

template<typename User >

bool Zoltan2::PamgenMeshAdapter< User >::areEntityIDsUnique ( MeshEntityType etype ) const

inlinevirtual

Provide a pointer to the entity topology types.

Parameters

Types will on return point to the list of entity topology types for this process.

Reimplemented from Zoltan2::MeshAdapter< User >.

Definition at line 129 of file Zoltan2_PamgenMeshAdapter.hpp.

template<typename User >

size_t Zoltan2::PamgenMeshAdapter< User >::getLocalNumOf ( MeshEntityType etype ) const

inlinevirtual

Returns the global number of mesh entities of MeshEntityType.

Returns the number of mesh entities on this process.

Implements Zoltan2::MeshAdapter< User >.

Definition at line 133 of file Zoltan2_PamgenMeshAdapter.hpp.

template<typename User >

void Zoltan2::PamgenMeshAdapter< User >::getIDsViewOf	(	MeshEntityType	etype,
		const gno_t *&	Ids
	)		const

inlinevirtual

Provide a pointer to this process' identifiers.

Parameters

Ids	will on return point to the list of the global Ids for this process.

Implements Zoltan2::MeshAdapter< User >.

Definition at line 147 of file Zoltan2_PamgenMeshAdapter.hpp.

template<typename User >

void Zoltan2::PamgenMeshAdapter< User >::getTopologyViewOf	(	MeshEntityType	etype,
		enum EntityTopologyType const *&	Types
	)		const

inlinevirtual

Provide a pointer to the entity topology types.

Parameters

Types will on return point to the list of entity topology types for this process.

Reimplemented from Zoltan2::MeshAdapter< User >.

Definition at line 161 of file Zoltan2_PamgenMeshAdapter.hpp.

template<typename User >

void Zoltan2::PamgenMeshAdapter< User >::getWeightsViewOf	(	MeshEntityType	etype,
		const scalar_t *&	weights,
		int &	stride,
		int	idx = `0`
	)		const

inlinevirtual

Provide a pointer to one of the number of this process' optional entity weights.

Parameters

weights	on return will contain a list of the weights for the number specified.
stride	on return will indicate the stride of the weights list.

The k'th weight is located at weights[stride*k].

Parameters

idx	is a value ranging from zero to one less than getNumWeightsPerEntityID()

Reimplemented from Zoltan2::MeshAdapter< User >.

Definition at line 175 of file Zoltan2_PamgenMeshAdapter.hpp.

template<typename User >

int Zoltan2::PamgenMeshAdapter< User >::getDimension ( ) const

inlinevirtual

Return dimension of the entity coordinates, if any.

Some algorithms can partition mesh entities using geometric coordinate information

Some algorithms can use geometric entity coordinate information if it is present.

Reimplemented from Zoltan2::MeshAdapter< User >.

Definition at line 182 of file Zoltan2_PamgenMeshAdapter.hpp.

template<typename User >

void Zoltan2::PamgenMeshAdapter< User >::getCoordinatesViewOf	(	MeshEntityType	etype,
		const scalar_t *&	coords,
		int &	stride,
		int	coordDim
	)		const

inlinevirtual

Provide a pointer to one dimension of entity coordinates.

Parameters

coords	points to a list of coordinate values for the dimension.
stride	describes the layout of the coordinate values in the coords list. If stride is one, then the ith coordinate value is coords[i], but if stride is two, then the ith coordinate value is coords[2*i].
coordDim	is a value from 0 to one less than getEntityCoordinateDimension() specifying which dimension is being provided in the coords list.

Reimplemented from Zoltan2::MeshAdapter< User >.

Definition at line 184 of file Zoltan2_PamgenMeshAdapter.hpp.

template<typename User >

bool Zoltan2::PamgenMeshAdapter< User >::availAdjs	(	MeshEntityType	source,
		MeshEntityType	target
	)		const

inlinevirtual

Returns whether a first adjacency combination is available.

Reimplemented from Zoltan2::MeshAdapter< User >.

Definition at line 215 of file Zoltan2_PamgenMeshAdapter.hpp.

template<typename User >

size_t Zoltan2::PamgenMeshAdapter< User >::getLocalNumAdjs	(	MeshEntityType	source,
		MeshEntityType	target
	)		const

inlinevirtual

Returns the number of first adjacencies on this process.

Reimplemented from Zoltan2::MeshAdapter< User >.

Definition at line 226 of file Zoltan2_PamgenMeshAdapter.hpp.

template<typename User >

void Zoltan2::PamgenMeshAdapter< User >::getAdjsView	(	MeshEntityType	source,
		MeshEntityType	target,
		const offset_t *&	offsets,
		const gno_t *&	adjacencyIds
	)		const

inlinevirtual

Sets pointers to this process' mesh first adjacencies.

Parameters

source
offsets	is an array of size getLocalNumOf() + 1. The first adjacency Ids for Ids[i] (returned in getIDsViewOf()) begin at adjacencyIds[offsets[i]]. The last element of offsets is the size of the adjacencyIds array.
adjacencyIds	on return will point to the global first adjacency Ids for each entity.

Reimplemented from Zoltan2::MeshAdapter< User >.

Definition at line 241 of file Zoltan2_PamgenMeshAdapter.hpp.

template<typename User >

bool Zoltan2::PamgenMeshAdapter< User >::avail2ndAdjs	(	MeshEntityType	sourcetarget,
		MeshEntityType	through
	)		const

inlinevirtual

Returns whether a second adjacency combination is available. If combination is not available in the MeshAdapter, Zoltan2 will compute them, using A^T A, where A is matrix of first adjacencies.

Reimplemented from Zoltan2::MeshAdapter< User >.

Definition at line 264 of file Zoltan2_PamgenMeshAdapter.hpp.

template<typename User >

size_t Zoltan2::PamgenMeshAdapter< User >::getLocalNum2ndAdjs	(	MeshEntityType	sourcetarget,
		MeshEntityType	through
	)		const

inlinevirtual

if avail2ndAdjs(), returns the number of second adjacencies on this process.

Reimplemented from Zoltan2::MeshAdapter< User >.

Definition at line 277 of file Zoltan2_PamgenMeshAdapter.hpp.

template<typename User >

void Zoltan2::PamgenMeshAdapter< User >::get2ndAdjsView	(	MeshEntityType	sourcetarget,
		MeshEntityType	through,
		const offset_t *&	offsets,
		const gno_t *&	adjacencyIds
	)		const

inlinevirtual

if avail2ndAdjs(), set pointers to this process' second adjacencies

Parameters

sourcetarget
offsets	is an array of size getLocalNumOf() + 1. The second adjacency Ids for Ids[i] (returned in getIDsViewOf()) begin at adjacencyIds[offsets[i]]. The last element of offsets is the size of the adjacencyIds array.
adjacencyIds	on return will point to the global second adjacency Ids for each entity.

Reimplemented from Zoltan2::MeshAdapter< User >.

Definition at line 295 of file Zoltan2_PamgenMeshAdapter.hpp.

template<typename User >

bool Zoltan2::PamgenMeshAdapter< User >::useDegreeAsWeightOf	(	MeshEntityType	etype,
		int	idx
	)		const

inlinevirtual

Optional method allowing the idx-th weight of entity type etype to be set as the number of neighbors (the degree) of the entity Default is false; user can change in his MeshAdapter implementation.

Reimplemented from Zoltan2::MeshAdapter< User >.

Definition at line 316 of file Zoltan2_PamgenMeshAdapter.hpp.

The documentation for this class was generated from the following file:

Zoltan2_PamgenMeshAdapter.hpp

Public Types

Public Member Functions

Additional Inherited Members

Detailed Description

template<typename User> class Zoltan2::PamgenMeshAdapter< User >

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

template<typename User>
class Zoltan2::PamgenMeshAdapter< User >
