A class that computes and returns quality metrics. More...

#include <Zoltan2_EvaluateMapping.hpp>

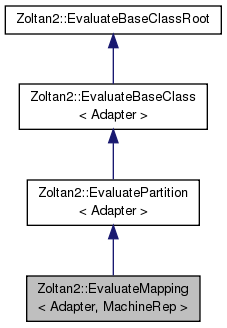

Inheritance diagram for Zoltan2::EvaluateMapping< Adapter, MachineRep >:

Collaboration diagram for Zoltan2::EvaluateMapping< Adapter, MachineRep >:

Public Member Functions
	EvaluateMapping (const Adapter ia, ParameterList p, const RCP< const Comm< int > > &ucomm_, const MappingSolution< Adapter > soln, const MachineRep machine_, const RCP< const GraphModel< typename Adapter::base_adapter_t > > &graphModel=Teuchos::null)
	Constructor where communicator is Teuchos default. More...

virtual	~EvaluateMapping ()

Public Member Functions inherited from Zoltan2::EvaluatePartition< Adapter >
virtual	~EvaluatePartition ()

	EvaluatePartition (const Adapter ia, ParameterList p, const PartitioningSolution< Adapter > *soln, const RCP< const GraphModel< typename Adapter::base_adapter_t > > &graphModel=Teuchos::null)
	Constructor where communicator is Teuchos default. More...

	EvaluatePartition (const Adapter ia, ParameterList p, const RCP< const Comm< int > > &problemComm, const PartitioningSolution< Adapter > *soln, const RCP< const GraphModel< typename Adapter::base_adapter_t > > &graphModel=Teuchos::null)
	Constructor where Teuchos communicator is specified. More...

ArrayView< RCP < base_metric_type > >	getAllMetricsOfType (std::string metricType) const
	Return the metric list for types matching the given metric type. More...

scalar_t	getObjectCountImbalance () const
	Return the object count imbalance. More...

scalar_t	getNormedImbalance () const
	Return the object normed weight imbalance. Normed imbalance is only valid if there is at least 2 elements - the second one is the normed imbalance. If we have weights (which start at the second element) the spec is to have this return that element. More...

scalar_t	getWeightImbalance (int weightIndex) const
	Return the imbalance for the requested weight. More...

scalar_t	getMaxEdgeCut () const
	Return the max cut for the requested weight. More...

scalar_t	getMaxWeightEdgeCut (int weightIndex) const
	getMaxWeightEdgeCuts weighted for the specified index More...

scalar_t	getTotalEdgeCut () const
	getTotalEdgeCut More...

scalar_t	getTotalWeightEdgeCut (int weightIndex) const
	getTotalWeightEdgeCut weighted for the specified index More...

scalar_t	getTotalMessages () const
	getTotalMessages More...

scalar_t	getMaxMessages () const
	getMaxMessages More...

void	printMetrics (std::ostream &os) const
	Print all metrics. More...

Public Member Functions inherited from Zoltan2::EvaluateBaseClassRoot
virtual	~EvaluateBaseClassRoot ()

Protected Member Functions
virtual void	calculate_graph_metrics (const RCP< const Environment > &_env, const RCP< const Comm< int > > &_problemComm, const RCP< const GraphModel< typename Adapter::base_adapter_t > > &_graph, const ArrayView< const typename Adapter::part_t > &_partArray, typename Adapter::part_t &_numGlobalParts, ArrayRCP< RCP< BaseClassMetrics< typename Adapter::scalar_t > > > &_metricsBase, ArrayRCP< typename Adapter::scalar_t > &_globalSums)

Protected Member Functions inherited from Zoltan2::EvaluatePartition< Adapter >
void	sharedConstructor (const Adapter ia, ParameterList p, const RCP< const Comm< int > > &problemComm, const PartitioningSolution< Adapter > *soln, const RCP< const GraphModel< typename Adapter::base_adapter_t > > &graphModel)

	EvaluatePartition (const Adapter ia, ParameterList p, const RCP< const Comm< int > > &problemComm, const PartitioningSolution< Adapter > *soln, bool force_evaluate, const RCP< const GraphModel< typename Adapter::base_adapter_t > > &graphModel=Teuchos::null)
	Constructor where communicator is Teuchos default, and takes another parameter whether to evaluate metrics within the constructor or not. More...

Detailed Description

template<typename Adapter, typename MachineRep = MachineRepresentation<typename Adapter::scalar_t, typename Adapter::part_t>>
class Zoltan2::EvaluateMapping< Adapter, MachineRep >

A class that computes and returns quality metrics.

Todo:

For some problems it will be necessary to build the Model again in order to compute metrics. For now we don't have any problems like that.

write a unit test for this class

Definition at line 114 of file Zoltan2_EvaluateMapping.hpp.

Constructor & Destructor Documentation

template<typename Adapter , typename MachineRep = MachineRepresentation<typename Adapter::scalar_t, typename Adapter::part_t>>

Zoltan2::EvaluateMapping< Adapter, MachineRep >::EvaluateMapping	(	const Adapter *	ia,
		ParameterList *	p,
		const RCP< const Comm< int > > &	ucomm_,
		const MappingSolution< Adapter > *	soln,
		const MachineRep *	machine_,
		const RCP< const GraphModel< typename Adapter::base_adapter_t > > &	graphModel = `Teuchos::null`
	)

inline

Constructor where communicator is Teuchos default.

Parameters

ia	the problem input adapter
p	the parameter list
soln	the solution
graphModel	the graph model The constructor does global communication to compute the metrics. The rest of the methods are local.

Definition at line 128 of file Zoltan2_EvaluateMapping.hpp.

template<typename Adapter , typename MachineRep = MachineRepresentation<typename Adapter::scalar_t, typename Adapter::part_t>>

virtual Zoltan2::EvaluateMapping< Adapter, MachineRep >::~EvaluateMapping ( )

inlinevirtual

Definition at line 140 of file Zoltan2_EvaluateMapping.hpp.

Member Function Documentation

template<typename Adapter , typename MachineRep = MachineRepresentation<typename Adapter::scalar_t, typename Adapter::part_t>>

virtual void Zoltan2::EvaluateMapping< Adapter, MachineRep >::calculate_graph_metrics	(	const RCP< const Environment > &	_env,
		const RCP< const Comm< int > > &	_problemComm,
		const RCP< const GraphModel< typename Adapter::base_adapter_t > > &	_graph,
		const ArrayView< const typename Adapter::part_t > &	_partArray,
		typename Adapter::part_t &	_numGlobalParts,
		ArrayRCP< RCP< BaseClassMetrics< typename Adapter::scalar_t > > > &	_metricsBase,
		ArrayRCP< typename Adapter::scalar_t > &	_globalSums
	)

inlineprotectedvirtual

Reimplemented from Zoltan2::EvaluatePartition< Adapter >.

Definition at line 143 of file Zoltan2_EvaluateMapping.hpp.

The documentation for this class was generated from the following file:

Zoltan2_EvaluateMapping.hpp
