BasicVectorAdapter represents a vector (plus optional weights) supplied by the user as pointers to strided arrays. More...

#include <Zoltan2_BasicVectorAdapter.hpp>

Inheritance diagram for Zoltan2::BasicVectorAdapter< User >:

[legend]

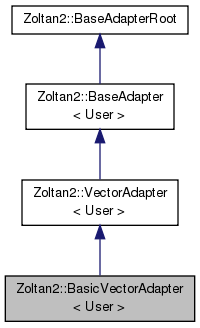

Collaboration diagram for Zoltan2::BasicVectorAdapter< User >:

[legend]

Public Member Functions
	BasicVectorAdapter (lno_t numIds, const gno_t ids, const scalar_t entries, int entryStride=1, bool usewgts=false, const scalar_t *wgts=NULL, int wgtStride=1)
	Constructor for one vector with (optionally) one weight. More...

	BasicVectorAdapter (lno_t numIds, const gno_t ids, std::vector< const scalar_t > &entries, std::vector< int > &entryStride, std::vector< const scalar_t * > &weights, std::vector< int > &weightStrides)
	Constructor for multivector (a set of vectors sharing the same global numbering and data distribution across processes). More...

	BasicVectorAdapter (lno_t numIds, const gno_t ids, const scalar_t x, const scalar_t y, const scalar_t z, int xStride=1, int yStride=1, int zStride=1, bool usewgts=false, const scalar_t *wgts=NULL, int wgtStride=1)
	A simple constructor for coordinate-based problems with dimension 1, 2 or 3 and (optionally) one weight per coordinate. More...

	~BasicVectorAdapter ()

size_t	getLocalNumIDs () const
	Returns the number of objects on this process. More...

void	getIDsView (const gno_t *&ids) const
	Provide a pointer to this process' identifiers. More...

int	getNumWeightsPerID () const
	Returns the number of weights per object. Number of weights per object should be zero or greater. If zero, then it is assumed that all objects are equally weighted. Default is zero weights per ID. More...

void	getWeightsView (const scalar_t *&weights, int &stride, int idx) const

int	getNumEntriesPerID () const
	Return the number of vectors. More...

void	getEntriesView (const scalar_t *&entries, int &stride, int idx=0) const

Public Member Functions inherited from Zoltan2::VectorAdapter< User >
virtual	~VectorAdapter ()
	Destructor. More...

enum BaseAdapterType	adapterType () const
	Returns the type of adapter. More...

virtual void	getEntriesView (const scalar_t *&elements, int &stride, int idx=0) const =0
	Provide a pointer to the elements of the specified vector. More...

void	generateFiles (const char *fileprefix, const Teuchos::Comm< int > &comm) const
	Write files that can be used as input to Zoltan or Zoltan2 driver Creates chaco-formatted input files for coordinates and weights that can be used as input for Zoltan or Zoltan2 drivers. This routine is SERIAL and can be quite slow. It is meant as a debugging tool only, to allow Zoltan developers to replicate performance that applications are seeing using the applicatios' input. More...

int	getDimension () const

void	getCoordinatesView (const scalar_t *&elements, int &stride, int idx=0) const

Public Member Functions inherited from Zoltan2::BaseAdapter< User >
virtual	~BaseAdapter ()
	Destructor. More...

virtual void	getIDsKokkosView (Kokkos::View< gno_t * > &) const
	Provide a pointer to this process' identifiers. More...

virtual void	getWeightsView (const scalar_t *&wgt, int &stride, int idx=0) const
	Provide pointer to a weight array with stride. More...

virtual void	getWeightsKokkosView (Kokkos::View< scalar_t * > &, int=0) const
	Provide pointer to a weight View. More...

void	getPartsView (const part_t *&inputPart) const
	Provide pointer to an array containing the input part assignment for each ID. The input part information may be used for re-partitioning to reduce data movement, or for mapping parts to processes. Adapters may return NULL for this pointer (the default behavior); if NULL is returned, algorithms will assume the rank. More...

template<typename Adapter >
void	applyPartitioningSolution (const User &in, User *&out, const PartitioningSolution< Adapter > &solution) const
	Apply a PartitioningSolution to an input. More...

Public Member Functions inherited from Zoltan2::BaseAdapterRoot
virtual	~BaseAdapterRoot ()

Additional Inherited Members
Public Types inherited from Zoltan2::BaseAdapter< User >
typedef InputTraits< User >::lno_t	lno_t

typedef InputTraits< User >::gno_t	gno_t

typedef InputTraits< User > ::scalar_t	scalar_t

typedef InputTraits< User >::part_t	part_t

typedef InputTraits< User > ::offset_t	offset_t

Protected Member Functions inherited from Zoltan2::BaseAdapter< User >
void	generateWeightFileOnly (const char *fileprefix, const Teuchos::Comm< int > &comm) const

Detailed Description

template<typename User>
class Zoltan2::BasicVectorAdapter< User >

BasicVectorAdapter represents a vector (plus optional weights) supplied by the user as pointers to strided arrays.

BasicVectorAdapter may be a single vector or multivector (set of corresponding vectors with the same global identifiers and distribution across processes). A constructor specifically for use of BasicVectorAdapter to represent geometric coordinates is also provided.

Data types:

scalar_t is the data type for weights and vector entry values.
lno_t is the integral data type used by Zoltan2 for local indices and local counts.
gno_t is the data type used by the application for global Ids; must be a Teuchos Ordinal. (Teuchos Ordinals are those data types for which traits are defined in Trilinos/packages/teuchos/src/Teuchos_OrdinalTraits.hpp.)
node_t is a Kokkos CPU Node type. If you don't use Kokkos, you can ignore this data type.

The template parameter (User) is a C++ class type which provides the actual data types with which the Zoltan2 library will be compiled, through a Traits mechanism. User may be the actual class used by application to represent a vector, or it may be the empty helper class BasicUserTypes with which a Zoltan2 user can easily supply the data types for the library.

Examples:: rcb_C.cpp.

Definition at line 81 of file Zoltan2_BasicVectorAdapter.hpp.

Constructor & Destructor Documentation

template<typename User>

Zoltan2::BasicVectorAdapter< User >::BasicVectorAdapter	(	lno_t	numIds,
		const gno_t *	ids,
		const scalar_t *	entries,
		int	entryStride = `1`,
		bool	usewgts = `false`,
		const scalar_t *	wgts = `NULL`,
		int	wgtStride = `1`
	)

inline

Constructor for one vector with (optionally) one weight.

Parameters

numIds	the local length of the vector
ids	pointer to the global ids of the local vector entries
entries	pointer to the entries corresponding to the ids
entryStride	the k'th entry is at entries[kentryStride] and entries is of length at least `numIds entryStride`.
usewgts	flag indicating whether weights are provided on any process
wgts	the number of weights per vector entry
wgtStride	the weight for the k'th entry is at wgts[kwgtStride] and wgts is of length at least `numIds wgtStride`. The values pointed to the arguments must remain valid for the lifetime of this Adapter.

Definition at line 112 of file Zoltan2_BasicVectorAdapter.hpp.

template<typename User>

Zoltan2::BasicVectorAdapter< User >::BasicVectorAdapter	(	lno_t	numIds,
		const gno_t *	ids,
		std::vector< const scalar_t * > &	entries,
		std::vector< int > &	entryStride,
		std::vector< const scalar_t * > &	weights,
		std::vector< int > &	weightStrides
	)

inline

Constructor for multivector (a set of vectors sharing the same global numbering and data distribution across processes).

Parameters

numIds	the local length of each vector
ids	a pointer to the global ids of the local vector entries
entries	a std::vector of pointers to the vector entries corresponding to the `numIds` ids. The number of vectors assumed to be `entries.size()`.
entryStride	The strides for `entries`. The vector entry for vector `n` for `ids`[k] should be found at `entries[n][entryStride[n] * k]`. If `entryStride.size()` is zero, it is assumed all strides are one.
weights	a list of pointers to arrays of weights. The number of weights per vector entry is assumed to be `weights.size()`.
weightStrides	a list of strides for the `weights`. The weight for weight index `n` for `ids`[k] should be found at `weights[n][weightStrides[n] * k]`. If `weightStrides.size()` is zero, it is assumed all strides are one.

The values pointed to the arguments must remain valid for the lifetime of this Adapter.

Definition at line 160 of file Zoltan2_BasicVectorAdapter.hpp.

template<typename User>

Zoltan2::BasicVectorAdapter< User >::BasicVectorAdapter	(	lno_t	numIds,
		const gno_t *	ids,
		const scalar_t *	x,
		const scalar_t *	y,
		const scalar_t *	z,
		int	xStride = `1`,
		int	yStride = `1`,
		int	zStride = `1`,
		bool	usewgts = `false`,
		const scalar_t *	wgts = `NULL`,
		int	wgtStride = `1`
	)

inline

A simple constructor for coordinate-based problems with dimension 1, 2 or 3 and (optionally) one weight per coordinate.

Parameters

numIds	The number of local coordinates.
ids	The global identifiers for the coordinates.
x	A pointer to the x-dimension coordinates.
y	A pointer to the y-dimension coordinates, if any.
z	A pointer to the z-dimension coordinates, if any.
xStride	The stride for the `x` array. The coordinate for point `ids`[n] should be found at `x[xStride * n]`. Default = 1.
yStride	The stride for the `y` array. The coordinate for point `ids`[n] should be found at `y[yStride * n]`. Default = 1.
zStride	The stride for the `z` array. The coordinate for point `ids`[n] should be found at `z[zStride * n]`. Default = 1.
usewgts	flag indicating whether weights are provided on any process.
wgts	the number of weights per vector entry
wgtStride	the weight for the k'th coordinate is at wgts[kwgtStride] and wgts is of length at least `numIds wgtStride`.

The values pointed to the arguments must remain valid for the lifetime of this Adapter.

Definition at line 196 of file Zoltan2_BasicVectorAdapter.hpp.

template<typename User>

Zoltan2::BasicVectorAdapter< User >::~BasicVectorAdapter ( )

inline

Definition at line 231 of file Zoltan2_BasicVectorAdapter.hpp.

Member Function Documentation

template<typename User>

size_t Zoltan2::BasicVectorAdapter< User >::getLocalNumIDs ( ) const

inlinevirtual

Returns the number of objects on this process.

Objects may be coordinates, graph vertices, matrix rows, etc. They are the objects to be partitioned, ordered, or colored.

Implements Zoltan2::BaseAdapterRoot.

Definition at line 237 of file Zoltan2_BasicVectorAdapter.hpp.

template<typename User>

void Zoltan2::BasicVectorAdapter< User >::getIDsView ( const gno_t *& ids ) const

inlinevirtual

Provide a pointer to this process' identifiers.

Parameters

ids	will on return point to the list of the global Ids for this process.

Reimplemented from Zoltan2::BaseAdapter< User >.

Definition at line 239 of file Zoltan2_BasicVectorAdapter.hpp.

template<typename User>

int Zoltan2::BasicVectorAdapter< User >::getNumWeightsPerID ( ) const

inlinevirtual

Returns the number of weights per object. Number of weights per object should be zero or greater. If zero, then it is assumed that all objects are equally weighted. Default is zero weights per ID.

Reimplemented from Zoltan2::BaseAdapterRoot.

Definition at line 241 of file Zoltan2_BasicVectorAdapter.hpp.

template<typename User>
