Zoltan2::APFMeshAdapter< User > Class Template Reference

#include <Zoltan2_APFMeshAdapter.hpp>

Inheritance diagram for Zoltan2::APFMeshAdapter< User >:
Inheritance graph
[legend]

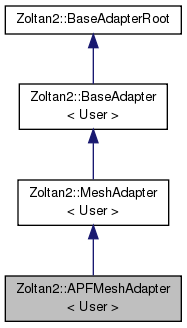

Collaboration diagram for Zoltan2::APFMeshAdapter< User >:
Collaboration graph
[legend]

Public Member Functions

 APFMeshAdapter (const Comm< int > &comm, apf::Mesh *m, std::string primary, std::string adjacency, bool needSecondAdj=false)

- Public Member Functions inherited from Zoltan2::MeshAdapter< User >
enum BaseAdapterType adapterType () const
 Returns the type of adapter. More...

virtual ~MeshAdapter ()
 Destructor. More...

 MeshAdapter ()

virtual bool areEntityIDsUnique (MeshEntityType etype) const
 Provide a pointer to the entity topology types. More...

virtual size_t getLocalNumOf (MeshEntityType etype) const =0
 Returns the global number of mesh entities of MeshEntityType. More...

virtual void getIDsViewOf (MeshEntityType etype, gno_t const *&Ids) const =0
 Provide a pointer to this process' identifiers. More...

virtual void getTopologyViewOf (MeshEntityType etype, enum EntityTopologyType const *&Types) const
 Provide a pointer to the entity topology types. More...

virtual int getNumWeightsPerOf (MeshEntityType etype) const
 Return the number of weights per entity. More...

virtual void getWeightsViewOf (MeshEntityType etype, const scalar_t *&weights, int &stride, int idx=0) const
 Provide a pointer to one of the number of this process' optional entity weights. More...

virtual int getDimension () const
 Return dimension of the entity coordinates, if any. More...

virtual void getCoordinatesViewOf (MeshEntityType etype, const scalar_t *&coords, int &stride, int coordDim) const
 Provide a pointer to one dimension of entity coordinates. More...

virtual bool availAdjs (MeshEntityType source, MeshEntityType target) const
 Returns whether a first adjacency combination is available. More...

virtual size_t getLocalNumAdjs (MeshEntityType source, MeshEntityType target) const
 Returns the number of first adjacencies on this process. More...

virtual void getAdjsView (MeshEntityType source, MeshEntityType target, const offset_t *&offsets, const gno_t *&adjacencyIds) const
 Sets pointers to this process' mesh first adjacencies. More...

virtual bool avail2ndAdjs (MeshEntityType sourcetarget, MeshEntityType through) const
 Returns whether a second adjacency combination is available. If combination is not available in the MeshAdapter, Zoltan2 will compute them, using A^T A, where A is matrix of first adjacencies. More...

virtual size_t getLocalNum2ndAdjs (MeshEntityType sourcetarget, MeshEntityType through) const
 if avail2ndAdjs(), returns the number of second adjacencies on this process. More...

virtual void get2ndAdjsView (MeshEntityType sourcetarget, MeshEntityType through, const offset_t *&offsets, const gno_t *&adjacencyIds) const
 if avail2ndAdjs(), set pointers to this process' second adjacencies More...

virtual int getNumWeightsPer2ndAdj (MeshEntityType sourcetarget, MeshEntityType through) const
 Returns the number (0 or greater) of weights per second adjacency. Note: second-adjacency weights may be used only if avail2ndAdjs(). More...

virtual void get2ndAdjWeightsView (MeshEntityType sourcetarget, MeshEntityType through, const scalar_t *&weights, int &stride, int idx) const
 Provide a pointer to the second adjacency weights, if any. Note: second-adjacency weights may be used only if avail2ndAdjs(). More...

enum MeshEntityType getPrimaryEntityType () const
 Returns the entity to be partitioned, ordered, colored, etc. More...

enum MeshEntityType getAdjacencyEntityType () const
 Returns the entity that describes adjacencies between the entities to be partitioned, ordered, colored, etc. That is, a primaryEntityType that contains an adjacencyEntityType are adjacent. More...

enum MeshEntityType getSecondAdjacencyEntityType () const
 Returns the entity that describes second adjacencies between the entities to be partitioned, ordered, colored, etc. That is, two primaryEntityType that share a secondAdjacencyEntityType are adjacent. More...

void setEntityTypes (std::string ptypestr, std::string atypestr, std::string satypestr)
 Sets the primary, adjacency, and second adjacency entity types. Called by algorithm based on parameter values in parameter list from application. Also sets primaryEntityType, adjacencyEntityType, and secondAdjacencyEntityType to something reasonable: primaryEntityType not adjacencyEntityType or secondAdjacencyEntityType. More...

virtual bool useDegreeAsWeightOf (MeshEntityType etype, int idx) const
 Optional method allowing the idx-th weight of entity type etype to be set as the number of neighbors (the degree) of the entity Default is false; user can change in his MeshAdapter implementation. More...

size_t getLocalNumIDs () const
 Returns the number of objects on this process. More...

void getIDsView (const gno_t *&Ids) const
 Provide a pointer to this process' identifiers. More...

int getNumWeightsPerID () const
 Returns the number of weights per object. Number of weights per object should be zero or greater. If zero, then it is assumed that all objects are equally weighted. Default is zero weights per ID. More...

void getWeightsView (const scalar_t *&wgt, int &stride, int idx=0) const
 Provide pointer to a weight array with stride. More...

void getCoordinatesView (const scalar_t *&coords, int &stride, int coordDim) const

bool useDegreeAsWeight (int idx) const

- Public Member Functions inherited from Zoltan2::BaseAdapter< User >
virtual ~BaseAdapter ()
 Destructor. More...

virtual void getIDsKokkosView (Kokkos::View< gno_t * > &) const
 Provide a pointer to this process' identifiers. More...

virtual void getWeightsKokkosView (Kokkos::View< scalar_t * > &, int=0) const
 Provide pointer to a weight View. More...

void getPartsView (const part_t *&inputPart) const
 Provide pointer to an array containing the input part assignment for each ID. The input part information may be used for re-partitioning to reduce data movement, or for mapping parts to processes. Adapters may return NULL for this pointer (the default behavior); if NULL is returned, algorithms will assume the rank. More...

template<typename Adapter >
void applyPartitioningSolution (const User &in, User *&out, const PartitioningSolution< Adapter > &solution) const
 Apply a PartitioningSolution to an input. More...

- Public Member Functions inherited from Zoltan2::BaseAdapterRoot
virtual ~BaseAdapterRoot ()


Additional Inherited Members

- Public Types inherited from Zoltan2::BaseAdapter< User >
typedef InputTraits< User >::lno_t lno_t

typedef InputTraits< User >::gno_t gno_t

typedef InputTraits< User >
::scalar_t
scalar_t

typedef InputTraits< User >::part_t part_t

typedef InputTraits< User >
::offset_t
offset_t

- Protected Member Functions inherited from Zoltan2::BaseAdapter< User >
void generateWeightFileOnly (const char *fileprefix, const Teuchos::Comm< int > &comm) const


Detailed Description

template<typename User>
class Zoltan2::APFMeshAdapter< User >

Definition at line 68 of file Zoltan2_APFMeshAdapter.hpp.

Constructor & Destructor Documentation

template<typename User>
Zoltan2::APFMeshAdapter< User >::APFMeshAdapter ( const Comm< int > &  comm,
apf::Mesh *  m,
std::string  primary,
std::string  adjacency,
bool  needSecondAdj = false
)
inline

Definition at line 73 of file Zoltan2_APFMeshAdapter.hpp.


The documentation for this class was generated from the following file:
