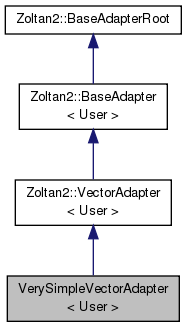

Inheritance diagram for VerySimpleVectorAdapter< User >:

Collaboration diagram for VerySimpleVectorAdapter< User >:

Public Types
typedef Zoltan2::VectorAdapter < User >::lno_t	lno_t

typedef Zoltan2::VectorAdapter < User >::gno_t	gno_t

typedef Zoltan2::VectorAdapter < User >::scalar_t	scalar_t

typedef Zoltan2::VectorAdapter < User >::part_t	part_t

Public Types inherited from Zoltan2::BaseAdapter< User >
typedef InputTraits< User >::lno_t	lno_t

typedef InputTraits< User >::gno_t	gno_t

typedef InputTraits< User > ::scalar_t	scalar_t

typedef InputTraits< User >::part_t	part_t

typedef InputTraits< User > ::offset_t	offset_t

Public Member Functions
	VerySimpleVectorAdapter (const Teuchos::Comm< int > &comm_, int nPartsPerRow_, int lowestPartNum_, bool useInputParts_=false)

void	print (std::string hi)

bool	adapterUsesInputParts ()

int	adapterNPartsPerRow ()

int	adapterLowestPartNum ()

size_t	getLocalNumIDs () const
	Returns the number of objects on this process. More...

void	getIDsView (const gno_t *&Ids) const

int	getNumEntriesPerID () const
	Return the number of vectors. More...

void	getEntriesView (const scalar_t *&Coords, int &Stride, int Idx) const

void	getPartsView (const part_t *&InputPart) const

Public Member Functions inherited from Zoltan2::VectorAdapter< User >
virtual	~VectorAdapter ()
	Destructor. More...

enum BaseAdapterType	adapterType () const
	Returns the type of adapter. More...

virtual void	getEntriesView (const scalar_t *&elements, int &stride, int idx=0) const =0
	Provide a pointer to the elements of the specified vector. More...

void	generateFiles (const char *fileprefix, const Teuchos::Comm< int > &comm) const
	Write files that can be used as input to Zoltan or Zoltan2 driver Creates chaco-formatted input files for coordinates and weights that can be used as input for Zoltan or Zoltan2 drivers. This routine is SERIAL and can be quite slow. It is meant as a debugging tool only, to allow Zoltan developers to replicate performance that applications are seeing using the applicatios' input. More...

int	getDimension () const

void	getCoordinatesView (const scalar_t *&elements, int &stride, int idx=0) const

Public Member Functions inherited from Zoltan2::BaseAdapter< User >
virtual	~BaseAdapter ()
	Destructor. More...

virtual void	getIDsView (const gno_t *&ids) const
	Provide a pointer to this process' identifiers. More...

virtual void	getIDsKokkosView (Kokkos::View< gno_t * > &) const
	Provide a pointer to this process' identifiers. More...

virtual void	getWeightsView (const scalar_t *&wgt, int &stride, int idx=0) const
	Provide pointer to a weight array with stride. More...

virtual void	getWeightsKokkosView (Kokkos::View< scalar_t * > &, int=0) const
	Provide pointer to a weight View. More...

void	getPartsView (const part_t *&inputPart) const
	Provide pointer to an array containing the input part assignment for each ID. The input part information may be used for re-partitioning to reduce data movement, or for mapping parts to processes. Adapters may return NULL for this pointer (the default behavior); if NULL is returned, algorithms will assume the rank. More...

template<typename Adapter >
void	applyPartitioningSolution (const User &in, User *&out, const PartitioningSolution< Adapter > &solution) const
	Apply a PartitioningSolution to an input. More...

Public Member Functions inherited from Zoltan2::BaseAdapterRoot
virtual	~BaseAdapterRoot ()

virtual int	getNumWeightsPerID () const
	Returns the number of weights per object. Number of weights per object should be zero or greater. If zero, then it is assumed that all objects are equally weighted. Default is zero weights per ID. More...

Static Public Attributes
static const int	nCoordDim = 2

static const int	nCoordPerRank = 6

Additional Inherited Members
Protected Member Functions inherited from Zoltan2::BaseAdapter< User >
void	generateWeightFileOnly (const char *fileprefix, const Teuchos::Comm< int > &comm) const

Detailed Description

template<typename User>
class VerySimpleVectorAdapter< User >

Definition at line 62 of file Mapping.cpp.

Member Typedef Documentation

template<typename User >

typedef Zoltan2::VectorAdapter<User>::lno_t VerySimpleVectorAdapter< User >::lno_t

Definition at line 69 of file Mapping.cpp.

template<typename User >

typedef Zoltan2::VectorAdapter<User>::gno_t VerySimpleVectorAdapter< User >::gno_t

Definition at line 70 of file Mapping.cpp.

template<typename User >

typedef Zoltan2::VectorAdapter<User>::scalar_t VerySimpleVectorAdapter< User >::scalar_t

Definition at line 71 of file Mapping.cpp.

template<typename User >

typedef Zoltan2::VectorAdapter<User>::part_t VerySimpleVectorAdapter< User >::part_t

Definition at line 72 of file Mapping.cpp.

Constructor & Destructor Documentation

template<typename User >

VerySimpleVectorAdapter< User >::VerySimpleVectorAdapter	(	const Teuchos::Comm< int > &	comm_,
		int	nPartsPerRow_,
		int	lowestPartNum_,
		bool	useInputParts_ = `false`
	)

inline

Definition at line 79 of file Mapping.cpp.

Member Function Documentation

template<typename User >

void VerySimpleVectorAdapter< User >::print ( std::string hi )

inline

Definition at line 106 of file Mapping.cpp.

template<typename User >

bool VerySimpleVectorAdapter< User >::adapterUsesInputParts ( )

inline

Definition at line 144 of file Mapping.cpp.

template<typename User >

int VerySimpleVectorAdapter< User >::adapterNPartsPerRow ( )

inline

Definition at line 145 of file Mapping.cpp.

template<typename User >

int VerySimpleVectorAdapter< User >::adapterLowestPartNum ( )

inline

Definition at line 146 of file Mapping.cpp.

template<typename User >

size_t VerySimpleVectorAdapter< User >::getLocalNumIDs ( ) const

inlinevirtual

Returns the number of objects on this process.

Objects may be coordinates, graph vertices, matrix rows, etc. They are the objects to be partitioned, ordered, or colored.

Implements Zoltan2::BaseAdapterRoot.

Definition at line 149 of file Mapping.cpp.

template<typename User >

void VerySimpleVectorAdapter< User >::getIDsView ( const gno_t *& Ids ) const

inline

Definition at line 150 of file Mapping.cpp.

template<typename User >

int VerySimpleVectorAdapter< User >::getNumEntriesPerID ( ) const

inlinevirtual

Return the number of vectors.

Implements Zoltan2::VectorAdapter< User >.

Definition at line 152 of file Mapping.cpp.

template<typename User >

void VerySimpleVectorAdapter< User >::getEntriesView	(	const scalar_t *&	Coords,
		int &	Stride,
		int	Idx
	)		const

inline

Definition at line 153 of file Mapping.cpp.

template<typename User >

void VerySimpleVectorAdapter< User >::getPartsView ( const part_t *& InputPart ) const

inline

Definition at line 159 of file Mapping.cpp.

Member Data Documentation

template<typename User >

const int VerySimpleVectorAdapter< User >::nCoordDim = 2

static

Definition at line 75 of file Mapping.cpp.

template<typename User >

const int VerySimpleVectorAdapter< User >::nCoordPerRank = 6

static

Definition at line 76 of file Mapping.cpp.

The documentation for this class was generated from the following file:

Mapping.cpp
