Private Attributes | List of all members
Xpetra::TpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node > Class Template Reference

#include <Xpetra_TpetraOperator.hpp>

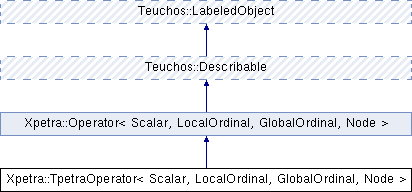

Inheritance diagram for Xpetra::TpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >:
Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node > Teuchos::Describable Teuchos::LabeledObject

Private Attributes

RCP< Tpetra::Operator< Scalar,
LocalOrdinal, GlobalOrdinal,
Node > >
op_
 The Tpetra::Operator which this class wraps. More...

virtual Teuchos::RCP< const
Map< LocalOrdinal,
GlobalOrdinal, Node > >
getDomainMap () const
 The Map associated with the domain of this operator, which must be compatible with X.getMap(). More...

virtual Teuchos::RCP< const
Map< LocalOrdinal,
GlobalOrdinal, Node > >
getRangeMap () const
 The Map associated with the range of this operator, which must be compatible with Y.getMap(). More...

virtual void apply (const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &X, MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &Y, Teuchos::ETransp mode=Teuchos::NO_TRANS, Scalar alpha=Teuchos::ScalarTraits< Scalar >::one(), Scalar beta=Teuchos::ScalarTraits< Scalar >::zero()) const
 Computes the operator-multivector application. More...

virtual bool hasTransposeApply () const
 Whether this operator supports applying the transpose or conjugate transpose. More...


Overridden from Teuchos::Describable

std::string description () const
 A simple one-line description of this object. More...

void describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const
 Print the object with the given verbosity level to a FancyOStream. More...


Xpetra specific

 TpetraOperator (const Teuchos::RCP< Tpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node > > &op)
 TpetraOperator constructor to wrap a Tpetra::Operator object. More...


Additional Inherited Members

- Public Types inherited from Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >
typedef Scalar scalar_type
 The type of the entries of the input and output multivectors. More...

typedef LocalOrdinal local_ordinal_type
 The local index type. More...

typedef GlobalOrdinal global_ordinal_type
 The global index type. More...

typedef Node node_type
 The Kokkos Node type. More...

- Public Member Functions inherited from Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >
virtual ~Operator ()

virtual void removeEmptyProcessesInPlace (const RCP< const Map > &)

virtual void apply (const MultiVector &X, MultiVector &Y, Teuchos::ETransp mode=Teuchos::NO_TRANS, Scalar alpha=Teuchos::ScalarTraits< Scalar >::one(), Scalar beta=Teuchos::ScalarTraits< Scalar >::zero()) const =0
 Computes the operator-multivector application. More...

- Public Member Functions inherited from Teuchos::Describable
void describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

virtual ~Describable ()

 LabeledObject ()

virtual ~LabeledObject ()

virtual void setObjectLabel (const std::string &objectLabel)

virtual std::string getObjectLabel () const

DescribableStreamManipulatorState describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream & operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)

- Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel verbLevel_default


Detailed Description

template<class Scalar = Operator<>::scalar_type, class LocalOrdinal = typename Operator<Scalar>::local_ordinal_type, class GlobalOrdinal = typename Operator<Scalar, LocalOrdinal>::global_ordinal_type, class Node = typename Operator<Scalar, LocalOrdinal, GlobalOrdinal>::node_type>
class Xpetra::TpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >

Definition at line 67 of file Xpetra_TpetraOperator.hpp.

Constructor & Destructor Documentation

template<class Scalar = Operator<>::scalar_type, class LocalOrdinal = typename Operator<Scalar>::local_ordinal_type, class GlobalOrdinal = typename Operator<Scalar, LocalOrdinal>::global_ordinal_type, class Node = typename Operator<Scalar, LocalOrdinal, GlobalOrdinal>::node_type>
Xpetra::TpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::TpetraOperator ( const Teuchos::RCP< Tpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node > > &  op)
inline

TpetraOperator constructor to wrap a Tpetra::Operator object.

Definition at line 122 of file Xpetra_TpetraOperator.hpp.

Member Function Documentation

template<class Scalar = Operator<>::scalar_type, class LocalOrdinal = typename Operator<Scalar>::local_ordinal_type, class GlobalOrdinal = typename Operator<Scalar, LocalOrdinal>::global_ordinal_type, class Node = typename Operator<Scalar, LocalOrdinal, GlobalOrdinal>::node_type>
virtual Teuchos::RCP<const Map<LocalOrdinal,GlobalOrdinal,Node> > Xpetra::TpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getDomainMap ( ) const
inlinevirtual

The Map associated with the domain of this operator, which must be compatible with X.getMap().

Implements Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 72 of file Xpetra_TpetraOperator.hpp.

template<class Scalar = Operator<>::scalar_type, class LocalOrdinal = typename Operator<Scalar>::local_ordinal_type, class GlobalOrdinal = typename Operator<Scalar, LocalOrdinal>::global_ordinal_type, class Node = typename Operator<Scalar, LocalOrdinal, GlobalOrdinal>::node_type>
virtual Teuchos::RCP<const Map<LocalOrdinal,GlobalOrdinal,Node> > Xpetra::TpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getRangeMap ( ) const
inlinevirtual

The Map associated with the range of this operator, which must be compatible with Y.getMap().

Implements Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 78 of file Xpetra_TpetraOperator.hpp.

template<class Scalar = Operator<>::scalar_type, class LocalOrdinal = typename Operator<Scalar>::local_ordinal_type, class GlobalOrdinal = typename Operator<Scalar, LocalOrdinal>::global_ordinal_type, class Node = typename Operator<Scalar, LocalOrdinal, GlobalOrdinal>::node_type>
virtual void Xpetra::TpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::apply ( const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &  X,
MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &  Y,
Teuchos::ETransp  mode = Teuchos::NO_TRANS,
Scalar  alpha = Teuchos::ScalarTraits<Scalar>::one(),
Scalar  beta = Teuchos::ScalarTraits<Scalar>::zero()
) const
inlinevirtual

Computes the operator-multivector application.

Loosely, performs $Y = \alpha \cdot A^{\textrm{mode}} \cdot X + \beta \cdot Y$. However, the details of operation vary according to the values of alpha and beta. Specifically

  • if beta == 0, apply() must overwrite Y, so that any values in Y (including NaNs) are ignored.
  • if alpha == 0, apply() may short-circuit the operator, so that any values in X (including NaNs) are ignored.

Definition at line 90 of file Xpetra_TpetraOperator.hpp.

template<class Scalar = Operator<>::scalar_type, class LocalOrdinal = typename Operator<Scalar>::local_ordinal_type, class GlobalOrdinal = typename Operator<Scalar, LocalOrdinal>::global_ordinal_type, class Node = typename Operator<Scalar, LocalOrdinal, GlobalOrdinal>::node_type>
virtual bool Xpetra::TpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::hasTransposeApply ( ) const
inlinevirtual

Whether this operator supports applying the transpose or conjugate transpose.

Reimplemented from Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 99 of file Xpetra_TpetraOperator.hpp.

template<class Scalar = Operator<>::scalar_type, class LocalOrdinal = typename Operator<Scalar>::local_ordinal_type, class GlobalOrdinal = typename Operator<Scalar, LocalOrdinal>::global_ordinal_type, class Node = typename Operator<Scalar, LocalOrdinal, GlobalOrdinal>::node_type>
std::string Xpetra::TpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::description ( ) const
inlinevirtual

A simple one-line description of this object.

Reimplemented from Teuchos::Describable.

Definition at line 109 of file Xpetra_TpetraOperator.hpp.

template<class Scalar = Operator<>::scalar_type, class LocalOrdinal = typename Operator<Scalar>::local_ordinal_type, class GlobalOrdinal = typename Operator<Scalar, LocalOrdinal>::global_ordinal_type, class Node = typename Operator<Scalar, LocalOrdinal, GlobalOrdinal>::node_type>
void Xpetra::TpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::describe ( Teuchos::FancyOStream out,
const Teuchos::EVerbosityLevel  verbLevel = Teuchos::Describable::verbLevel_default
) const
inlinevirtual

Print the object with the given verbosity level to a FancyOStream.

Reimplemented from Teuchos::Describable.

Definition at line 112 of file Xpetra_TpetraOperator.hpp.

Member Data Documentation

template<class Scalar = Operator<>::scalar_type, class LocalOrdinal = typename Operator<Scalar>::local_ordinal_type, class GlobalOrdinal = typename Operator<Scalar, LocalOrdinal>::global_ordinal_type, class Node = typename Operator<Scalar, LocalOrdinal, GlobalOrdinal>::node_type>
RCP< Tpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node> > Xpetra::TpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::op_
private

The Tpetra::Operator which this class wraps.

Definition at line 128 of file Xpetra_TpetraOperator.hpp.


The documentation for this class was generated from the following file:
