All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Macros Groups Pages
Public Types | List of all members
Xpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node > Class Template Referenceabstract

#include <Xpetra_RowGraph.hpp>

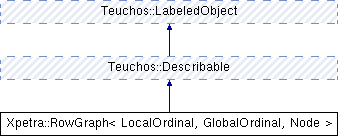

Inheritance diagram for Xpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >:
Teuchos::Describable Teuchos::LabeledObject

Public Types

typedef LocalOrdinal local_ordinal_type

typedef GlobalOrdinal global_ordinal_type

typedef Node node_type


Constructor/Destructor Methods

virtual ~RowGraph ()
 Destructor. More...


Graph Query Methods

virtual const Teuchos::RCP
< const Teuchos::Comm< int > >
getComm () const =0
 Returns the communicator. More...

virtual const Teuchos::RCP
< const Map< LocalOrdinal,
GlobalOrdinal, Node > >
getRowMap () const =0
 Returns the Map that describes the row distribution in this graph. More...

virtual const Teuchos::RCP
< const Map< LocalOrdinal,
GlobalOrdinal, Node > >
getColMap () const =0
 Returns the Map that describes the column distribution in this graph. More...

virtual const Teuchos::RCP
< const Map< LocalOrdinal,
GlobalOrdinal, Node > >
getDomainMap () const =0
 Returns the Map associated with the domain of this graph. More...

virtual const Teuchos::RCP
< const Map< LocalOrdinal,
GlobalOrdinal, Node > >
getRangeMap () const =0
 Returns the Map associated with the domain of this graph. More...

virtual Teuchos::RCP< const
Import< LocalOrdinal,
GlobalOrdinal, Node > >
getImporter () const =0
 Returns the importer associated with this graph. More...

virtual Teuchos::RCP< const
Export< LocalOrdinal,
GlobalOrdinal, Node > >
getExporter () const =0
 Returns the exporter associated with this graph. More...

virtual global_size_t getGlobalNumRows () const =0
 Returns the number of global rows in the graph. More...

virtual global_size_t getGlobalNumCols () const =0
 Returns the number of global columns in the graph. More...

virtual size_t getNodeNumRows () const =0
 Returns the number of rows owned on the calling node. More...

virtual size_t getNodeNumCols () const =0
 Returns the number of columns connected to the locally owned rows of this graph. More...

virtual GlobalOrdinal getIndexBase () const =0
 Returns the index base for global indices for this graph. More...

virtual global_size_t getGlobalNumEntries () const =0
 Returns the global number of entries in the graph. More...

virtual size_t getNodeNumEntries () const =0
 Returns the local number of entries in the graph. More...

virtual size_t getNumEntriesInGlobalRow (GlobalOrdinal globalRow) const =0
 Returns the current number of entries on this node in the specified global row. More...

virtual size_t getNumEntriesInLocalRow (LocalOrdinal localRow) const =0
 Returns the current number of entries on this node in the specified local row. More...

virtual size_t getGlobalMaxNumRowEntries () const =0
 Returns the maximum number of entries across all rows/columns on all nodes. More...

virtual size_t getNodeMaxNumRowEntries () const =0
 Returns the maximum number of entries across all rows/columns on this node. More...

virtual bool hasColMap () const =0
 Indicates whether the graph has a well-defined column map. More...

virtual bool isLocallyIndexed () const =0
 If graph indices are in the local range, this function returns true. Otherwise, this function returns false. */. More...

virtual bool isGloballyIndexed () const =0
 If graph indices are in the global range, this function returns true. Otherwise, this function returns false. */. More...

virtual bool isFillComplete () const =0
 Returns true if fillComplete() has been called. More...


Extraction Methods

virtual void getGlobalRowCopy (GlobalOrdinal GlobalRow, const Teuchos::ArrayView< GlobalOrdinal > &Indices, size_t &NumIndices) const =0
 Extract a list of entries in a specified global row of the graph. Put into pre-allocated storage. More...

virtual void getLocalRowCopy (LocalOrdinal LocalRow, const Teuchos::ArrayView< LocalOrdinal > &Indices, size_t &NumIndices) const =0
 Extract a list of entries in a specified local row of the graph. Put into storage allocated by calling routine. More...


Additional Inherited Members

- Public Member Functions inherited from Teuchos::Describable
virtual std::string description () const

virtual void describe (FancyOStream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

void describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

virtual ~Describable ()

 LabeledObject ()

virtual ~LabeledObject ()

virtual void setObjectLabel (const std::string &objectLabel)

virtual std::string getObjectLabel () const

DescribableStreamManipulatorState describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream & operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)

- Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel verbLevel_default


Detailed Description

template<class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>
class Xpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >

Definition at line 63 of file Xpetra_RowGraph.hpp.

Member Typedef Documentation

template<class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>
typedef LocalOrdinal Xpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >::local_ordinal_type

Definition at line 67 of file Xpetra_RowGraph.hpp.

template<class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>
typedef GlobalOrdinal Xpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >::global_ordinal_type

Definition at line 68 of file Xpetra_RowGraph.hpp.

template<class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>
typedef Node Xpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >::node_type

Definition at line 69 of file Xpetra_RowGraph.hpp.

Constructor & Destructor Documentation

template<class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>
virtual Xpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >::~RowGraph ( )
inlinevirtual

Destructor.

Definition at line 75 of file Xpetra_RowGraph.hpp.

Member Function Documentation

template<class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>
virtual const Teuchos::RCP< const Teuchos::Comm< int > > Xpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >::getComm ( ) const
pure virtual

Returns the communicator.

template<class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>
virtual const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > Xpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >::getRowMap ( ) const
pure virtual

Returns the Map that describes the row distribution in this graph.

template<class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>
virtual const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > Xpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >::getColMap ( ) const
pure virtual

Returns the Map that describes the column distribution in this graph.

template<class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>
virtual const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > Xpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >::getDomainMap ( ) const
pure virtual

Returns the Map associated with the domain of this graph.

template<class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>
virtual const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > Xpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >::getRangeMap ( ) const
pure virtual

Returns the Map associated with the domain of this graph.

template<class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>
virtual Teuchos::RCP< const Import< LocalOrdinal, GlobalOrdinal, Node > > Xpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >::getImporter ( ) const
pure virtual

Returns the importer associated with this graph.

template<class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>
virtual Teuchos::RCP< const Export< LocalOrdinal, GlobalOrdinal, Node > > Xpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >::getExporter ( ) const
pure virtual

Returns the exporter associated with this graph.

template<class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>
virtual global_size_t Xpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >::getGlobalNumRows ( ) const
pure virtual

Returns the number of global rows in the graph.

template<class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>
virtual global_size_t Xpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >::getGlobalNumCols ( ) const
pure virtual

Returns the number of global columns in the graph.

template<class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>
virtual size_t Xpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >::getNodeNumRows ( ) const
pure virtual

Returns the number of rows owned on the calling node.

template<class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>
virtual size_t Xpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >::getNodeNumCols ( ) const
pure virtual

Returns the number of columns connected to the locally owned rows of this graph.

template<class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>
virtual GlobalOrdinal Xpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >::getIndexBase ( ) const
pure virtual

Returns the index base for global indices for this graph.

template<class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>
virtual global_size_t Xpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >::getGlobalNumEntries ( ) const
pure virtual

Returns the global number of entries in the graph.

template<class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>
virtual size_t Xpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >::getNodeNumEntries ( ) const
pure virtual

Returns the local number of entries in the graph.

template<class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>
virtual size_t Xpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >::getNumEntriesInGlobalRow ( GlobalOrdinal  globalRow) const
pure virtual

Returns the current number of entries on this node in the specified global row.

template<class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>
virtual size_t Xpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >::getNumEntriesInLocalRow ( LocalOrdinal  localRow) const
pure virtual

Returns the current number of entries on this node in the specified local row.

template<class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>
virtual size_t Xpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >::getGlobalMaxNumRowEntries ( ) const
pure virtual

Returns the maximum number of entries across all rows/columns on all nodes.

template<class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>
virtual size_t Xpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >::getNodeMaxNumRowEntries ( ) const
pure virtual

Returns the maximum number of entries across all rows/columns on this node.

template<class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>
virtual bool Xpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >::hasColMap ( ) const
pure virtual

Indicates whether the graph has a well-defined column map.

template<class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>
virtual bool Xpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >::isLocallyIndexed ( ) const
pure virtual

If graph indices are in the local range, this function returns true. Otherwise, this function returns false. */.

template<class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>
virtual bool Xpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >::isGloballyIndexed ( ) const
pure virtual

If graph indices are in the global range, this function returns true. Otherwise, this function returns false. */.

template<class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>
virtual bool Xpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >::isFillComplete ( ) const
pure virtual

Returns true if fillComplete() has been called.

template<class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>
virtual void Xpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >::getGlobalRowCopy ( GlobalOrdinal  GlobalRow,
const Teuchos::ArrayView< GlobalOrdinal > &  Indices,
size_t &  NumIndices
) const
pure virtual

Extract a list of entries in a specified global row of the graph. Put into pre-allocated storage.

template<class LocalOrdinal = Map<>::local_ordinal_type, class GlobalOrdinal = typename Map<LocalOrdinal>::global_ordinal_type, class Node = typename Map<LocalOrdinal, GlobalOrdinal>::node_type>
virtual void Xpetra::RowGraph< LocalOrdinal, GlobalOrdinal, Node >::getLocalRowCopy ( LocalOrdinal  LocalRow,
const Teuchos::ArrayView< LocalOrdinal > &  Indices,
size_t &  NumIndices
) const
pure virtual

Extract a list of entries in a specified local row of the graph. Put into storage allocated by calling routine.


The documentation for this class was generated from the following file:
