Private Types | Private Attributes | List of all members
Xpetra::EpetraOperator< EpetraGlobalOrdinal, Node > Class Template Reference

#include <Xpetra_EpetraOperator.hpp>

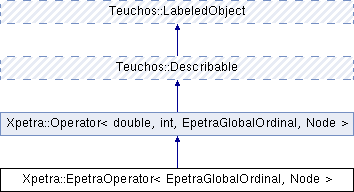

Inheritance diagram for Xpetra::EpetraOperator< EpetraGlobalOrdinal, Node >:
Xpetra::Operator< double, int, EpetraGlobalOrdinal, Node > Teuchos::Describable Teuchos::LabeledObject

Private Types

typedef double Scalar

typedef int LocalOrdinal

typedef EpetraGlobalOrdinal GlobalOrdinal


Private Attributes

RCP< Epetra_Operatorop_
 The Tpetra::Operator which this class wraps. More...

virtual Teuchos::RCP< const
Map< LocalOrdinal,
GlobalOrdinal, Node > >
getDomainMap () const
 The Map associated with the domain of this operator, which must be compatible with X.getMap(). More...

virtual Teuchos::RCP< const
Map< LocalOrdinal,
GlobalOrdinal, Node > >
getRangeMap () const
 The Map associated with the range of this operator, which must be compatible with Y.getMap(). More...

virtual void apply (const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &X, MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &Y, Teuchos::ETransp mode=Teuchos::NO_TRANS, Scalar alpha=Teuchos::ScalarTraits< Scalar >::one(), Scalar beta=Teuchos::ScalarTraits< Scalar >::zero()) const
 Computes the operator-multivector application. More...

virtual bool hasTransposeApply () const
 Whether this operator supports applying the transpose or conjugate transpose. More...


Overridden from Teuchos::Describable

std::string description () const
 A simple one-line description of this object. More...

void describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const
 Print the object with the given verbosity level to a FancyOStream. More...


Xpetra specific

 EpetraOperator (const Teuchos::RCP< Epetra_Operator > &op)
 EpetraOperator constructor to wrap a Epetra_Operator object. More...


Additional Inherited Members

- Public Types inherited from Xpetra::Operator< double, int, EpetraGlobalOrdinal, Node >
typedef double scalar_type
 The type of the entries of the input and output multivectors. More...

typedef int local_ordinal_type
 The local index type. More...

typedef EpetraGlobalOrdinal global_ordinal_type
 The global index type. More...

typedef Node node_type
 The Kokkos Node type. More...

- Public Member Functions inherited from Xpetra::Operator< double, int, EpetraGlobalOrdinal, Node >
virtual ~Operator ()

virtual void removeEmptyProcessesInPlace (const RCP< const Map > &)

- Public Member Functions inherited from Teuchos::Describable
void describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

virtual ~Describable ()

 LabeledObject ()

virtual ~LabeledObject ()

virtual void setObjectLabel (const std::string &objectLabel)

virtual std::string getObjectLabel () const

DescribableStreamManipulatorState describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream & operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)

- Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel verbLevel_default


Detailed Description

template<class EpetraGlobalOrdinal, class Node>
class Xpetra::EpetraOperator< EpetraGlobalOrdinal, Node >

Definition at line 65 of file Xpetra_EpetraOperator.hpp.

Member Typedef Documentation

template<class EpetraGlobalOrdinal , class Node >
typedef double Xpetra::EpetraOperator< EpetraGlobalOrdinal, Node >::Scalar
private

Definition at line 67 of file Xpetra_EpetraOperator.hpp.

template<class EpetraGlobalOrdinal , class Node >
typedef int Xpetra::EpetraOperator< EpetraGlobalOrdinal, Node >::LocalOrdinal
private

Definition at line 68 of file Xpetra_EpetraOperator.hpp.

template<class EpetraGlobalOrdinal , class Node >
typedef EpetraGlobalOrdinal Xpetra::EpetraOperator< EpetraGlobalOrdinal, Node >::GlobalOrdinal
private

Definition at line 69 of file Xpetra_EpetraOperator.hpp.

Constructor & Destructor Documentation

template<class EpetraGlobalOrdinal , class Node >
Xpetra::EpetraOperator< EpetraGlobalOrdinal, Node >::EpetraOperator ( const Teuchos::RCP< Epetra_Operator > &  op)
inline

EpetraOperator constructor to wrap a Epetra_Operator object.

Definition at line 148 of file Xpetra_EpetraOperator.hpp.

Member Function Documentation

template<class EpetraGlobalOrdinal , class Node >
virtual Teuchos::RCP<const Map<LocalOrdinal,GlobalOrdinal,Node> > Xpetra::EpetraOperator< EpetraGlobalOrdinal, Node >::getDomainMap ( ) const
inlinevirtual

The Map associated with the domain of this operator, which must be compatible with X.getMap().

Implements Xpetra::Operator< double, int, EpetraGlobalOrdinal, Node >.

Definition at line 75 of file Xpetra_EpetraOperator.hpp.

template<class EpetraGlobalOrdinal , class Node >
virtual Teuchos::RCP<const Map<LocalOrdinal,GlobalOrdinal,Node> > Xpetra::EpetraOperator< EpetraGlobalOrdinal, Node >::getRangeMap ( ) const
inlinevirtual

The Map associated with the range of this operator, which must be compatible with Y.getMap().

Implements Xpetra::Operator< double, int, EpetraGlobalOrdinal, Node >.

Definition at line 81 of file Xpetra_EpetraOperator.hpp.

template<class EpetraGlobalOrdinal , class Node >
virtual void Xpetra::EpetraOperator< EpetraGlobalOrdinal, Node >::apply ( const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &  X,
MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &  Y,
Teuchos::ETransp  mode = Teuchos::NO_TRANS,
Scalar  alpha = Teuchos::ScalarTraits<Scalar>::one(),
Scalar  beta = Teuchos::ScalarTraits<Scalar>::zero()
) const
inlinevirtual

Computes the operator-multivector application.

Loosely, performs $Y = \alpha \cdot A^{\textrm{mode}} \cdot X + \beta \cdot Y$. However, the details of operation vary according to the values of alpha and beta. Specifically

  • if beta == 0, apply() must overwrite Y, so that any values in Y (including NaNs) are ignored.
  • if alpha == 0, apply() may short-circuit the operator, so that any values in X (including NaNs) are ignored.

Implements Xpetra::Operator< double, int, EpetraGlobalOrdinal, Node >.

Definition at line 93 of file Xpetra_EpetraOperator.hpp.

template<class EpetraGlobalOrdinal , class Node >
virtual bool Xpetra::EpetraOperator< EpetraGlobalOrdinal, Node >::hasTransposeApply ( ) const
inlinevirtual

Whether this operator supports applying the transpose or conjugate transpose.

Reimplemented from Xpetra::Operator< double, int, EpetraGlobalOrdinal, Node >.

Definition at line 121 of file Xpetra_EpetraOperator.hpp.

template<class EpetraGlobalOrdinal , class Node >
std::string Xpetra::EpetraOperator< EpetraGlobalOrdinal, Node >::description ( ) const
inlinevirtual

A simple one-line description of this object.

Reimplemented from Teuchos::Describable.

Definition at line 134 of file Xpetra_EpetraOperator.hpp.

template<class EpetraGlobalOrdinal , class Node >
void Xpetra::EpetraOperator< EpetraGlobalOrdinal, Node >::describe ( Teuchos::FancyOStream out,
const Teuchos::EVerbosityLevel  verbLevel = Teuchos::Describable::verbLevel_default
) const
inlinevirtual

Print the object with the given verbosity level to a FancyOStream.

Reimplemented from Teuchos::Describable.

Definition at line 137 of file Xpetra_EpetraOperator.hpp.

Member Data Documentation

template<class EpetraGlobalOrdinal , class Node >
RCP< Epetra_Operator> Xpetra::EpetraOperator< EpetraGlobalOrdinal, Node >::op_
private

The Tpetra::Operator which this class wraps.

Definition at line 154 of file Xpetra_EpetraOperator.hpp.


The documentation for this class was generated from the following file:
