A class for wrapping an Operator apply in a Operator. More...

#include <Tpetra_ApplyOp.hpp>

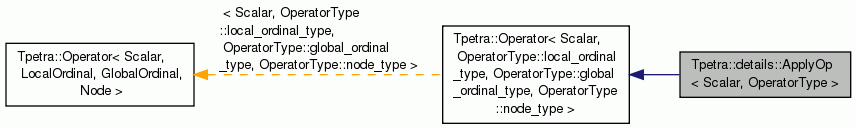

Inheritance diagram for Tpetra::details::ApplyOp< Scalar, OperatorType >:

Public Types

typedef OperatorType::scalar_type	scalar_type
	The type of the entries of the input OperatorType. More...

typedef OperatorType::local_ordinal_type	local_ordinal_type
	The type of local indices in the input OperatorType. More...

typedef OperatorType::global_ordinal_type	global_ordinal_type
	The type of global indices in the input OperatorType. More...

typedef OperatorType::node_type	node_type
	The type of the Kokkos Node used by the input OperatorType. More...

Public Member Functions
Constructor and destructor
	ApplyOp (const Teuchos::RCP< const OperatorType > &op)
	Constructor. More...

virtual	~ApplyOp ()
	Destructor. More...

Methods implementing Operator
void	apply (const Tpetra::MultiVector< Scalar, local_ordinal_type, global_ordinal_type, node_type > &X, Tpetra::MultiVector< Scalar, local_ordinal_type, global_ordinal_type, node_type > &Y, Teuchos::ETransp mode=Teuchos::NO_TRANS, Scalar alpha=Teuchos::ScalarTraits< Scalar >::one(), Scalar beta=Teuchos::ScalarTraits< Scalar >::zero()) const
	Compute `Y = betaY + alphaOp(A)*X`, where `Op(A)` is either A, , or . More...

bool	hasTransposeApply () const
	Whether this Operator's apply() method can apply the transpose or conjugate transpose. More...

Teuchos::RCP< const Tpetra::Map < local_ordinal_type, global_ordinal_type, node_type > >	getDomainMap () const
	The domain Map of this Operator. More...

Teuchos::RCP< const Tpetra::Map < local_ordinal_type, global_ordinal_type, node_type > >	getRangeMap () const
	The range Map of this Operator. More...

Protected Attributes
Teuchos::RCP< const OperatorType >	operator_
	The underlying Operator object. More...

Detailed Description

template<class Scalar, class OperatorType>
class Tpetra::details::ApplyOp< Scalar, OperatorType >

A class for wrapping an Operator apply in a Operator.

Note: Most Tpetra users do not need to use this class. It will be useful to Tpetra users who want to do mixed-precision operator apply, where the operator's data has a different precision than that of the input and output vectors. If your operator and vectors have the same type of entries, then you don't need to use this class.

This class makes a Operator<OpScalar, ...> "look like" an Operator<Scalar, ...>, where OpScalar and Scalar may be different types. It does so by working around a limitation of C++, namely that template methods of a class can't be virtual.

Template Parameters

Scalar	The type of the entries of the input and output MultiVector of the apply() method. Same as the first template parameter of Operator.
OperatorType	The type of the underlying Operator, whose first template parameter OperatorType::scalar_type may differ from this Operator's Scalar type.

Definition at line 78 of file Tpetra_ApplyOp.hpp.

Member Typedef Documentation

template<class Scalar , class OperatorType >

typedef OperatorType::scalar_type Tpetra::details::ApplyOp< Scalar, OperatorType >::scalar_type

The type of the entries of the input OperatorType.

Definition at line 88 of file Tpetra_ApplyOp.hpp.

template<class Scalar , class OperatorType >

typedef OperatorType::local_ordinal_type Tpetra::details::ApplyOp< Scalar, OperatorType >::local_ordinal_type

The type of local indices in the input OperatorType.

Definition at line 91 of file Tpetra_ApplyOp.hpp.

template<class Scalar , class OperatorType >

typedef OperatorType::global_ordinal_type Tpetra::details::ApplyOp< Scalar, OperatorType >::global_ordinal_type

The type of global indices in the input OperatorType.

Definition at line 94 of file Tpetra_ApplyOp.hpp.

template<class Scalar , class OperatorType >

typedef OperatorType::node_type Tpetra::details::ApplyOp< Scalar, OperatorType >::node_type

The type of the Kokkos Node used by the input OperatorType.

Definition at line 97 of file Tpetra_ApplyOp.hpp.

Constructor & Destructor Documentation

template<class Scalar , class OperatorType >

Tpetra::details::ApplyOp< Scalar, OperatorType >::ApplyOp ( const Teuchos::RCP< const OperatorType > & op )

inline

Constructor.

Parameters

A	[in] The Operator to wrap with a different Scalar type.

Definition at line 106 of file Tpetra_ApplyOp.hpp.

template<class Scalar , class OperatorType >

virtual Tpetra::details::ApplyOp< Scalar, OperatorType >::~ApplyOp ( )

inlinevirtual

Destructor.

Definition at line 110 of file Tpetra_ApplyOp.hpp.

Member Function Documentation

template<class Scalar , class OperatorType >

void Tpetra::details::ApplyOp< Scalar, OperatorType >::apply	(	const Tpetra::MultiVector< Scalar, local_ordinal_type, global_ordinal_type, node_type > &	X,
		Tpetra::MultiVector< Scalar, local_ordinal_type, global_ordinal_type, node_type > &	Y,
		Teuchos::ETransp	mode = `Teuchos::NO_TRANS`,
		Scalar	alpha = `Teuchos::ScalarTraits<Scalar>::one()`,
		Scalar	beta = `Teuchos::ScalarTraits<Scalar>::zero()`
	)		const

inlinevirtual

Compute Y = beta*Y + alpha*Op(A)*X, where Op(A) is either A, $A^T$ , or $A^H$ .

This method calls the underlying Operator object's applyTempl<Scalar,Scalar>() method.

Implements Tpetra::Operator< Scalar, OperatorType::local_ordinal_type, OperatorType::global_ordinal_type, OperatorType::node_type >.

Definition at line 122 of file Tpetra_ApplyOp.hpp.

template<class Scalar , class OperatorType >

bool Tpetra::details::ApplyOp< Scalar, OperatorType >::hasTransposeApply ( ) const

inlinevirtual

Whether this Operator's apply() method can apply the transpose or conjugate transpose.

This depends on whether it is true for the Operator that this object wraps.

Reimplemented from Tpetra::Operator< Scalar, OperatorType::local_ordinal_type, OperatorType::global_ordinal_type, OperatorType::node_type >.

Definition at line 137 of file Tpetra_ApplyOp.hpp.

template<class Scalar , class OperatorType >

Teuchos::RCP<const Tpetra::Map<local_ordinal_type,global_ordinal_type,node_type> > Tpetra::details::ApplyOp< Scalar, OperatorType >::getDomainMap ( ) const

inlinevirtual

The domain Map of this Operator.

Implements Tpetra::Operator< Scalar, OperatorType::local_ordinal_type, OperatorType::global_ordinal_type, OperatorType::node_type >.

Definition at line 143 of file Tpetra_ApplyOp.hpp.

template<class Scalar , class OperatorType >

Teuchos::RCP<const Tpetra::Map<local_ordinal_type,global_ordinal_type,node_type> > Tpetra::details::ApplyOp< Scalar, OperatorType >::getRangeMap ( ) const

inlinevirtual

The range Map of this Operator.

Implements Tpetra::Operator< Scalar, OperatorType::local_ordinal_type, OperatorType::global_ordinal_type, OperatorType::node_type >.

Definition at line 149 of file Tpetra_ApplyOp.hpp.

Member Data Documentation

template<class Scalar , class OperatorType >

Teuchos::RCP<const OperatorType> Tpetra::details::ApplyOp< Scalar, OperatorType >::operator_

protected

The underlying Operator object.

Definition at line 156 of file Tpetra_ApplyOp.hpp.

The documentation for this class was generated from the following file:

Tpetra_ApplyOp.hpp
