Operator wrapping a Kokkos (Classic) kernel using RTI. More...

#include <Tpetra_RTIOp.hpp>

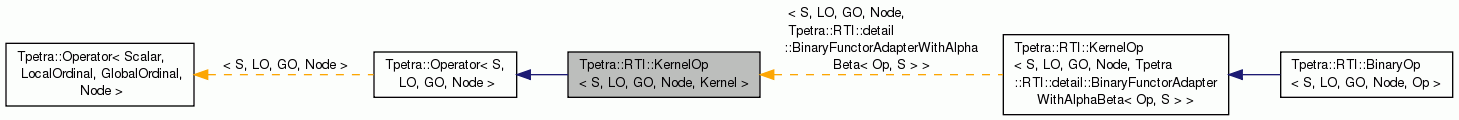

Inheritance diagram for Tpetra::RTI::KernelOp< S, LO, GO, Node, Kernel >:

Public Types
Typedefs that give access to the template parameters.
typedef S	scalar_type
	The type of the entries of the input and output multivectors. More...

typedef LO	local_ordinal_type
	The local index type. More...

typedef GO	global_ordinal_type
	The global index type. More...

typedef Node	node_type
	The Kokkos Node type. More...

Public Member Functions
	KernelOp (Kernel kernel, const RCP< const Map< LO, GO, Node > > &domainMap, const RCP< const Map< LO, GO, Node > > &rangeMap, const RCP< const Import< LO, GO, Node > > &importer, const RCP< const Export< LO, GO, Node > > &exporter)
	Constructor. More...

RCP< const Map< LO, GO, Node > >	getDomainMap () const
	The Map associated with the domain of this operator, which must be compatible with X.getMap(). More...

RCP< const Map< LO, GO, Node > >	getRangeMap () const
	The Map associated with the range of this operator, which must be compatible with Y.getMap(). More...

void	apply (const MultiVector< S, LO, GO, Node > &X, MultiVector< S, LO, GO, Node > &Y, Teuchos::ETransp mode=Teuchos::NO_TRANS, S alpha=Teuchos::ScalarTraits< S >::one(), S beta=Teuchos::ScalarTraits< S >::zero()) const
	Computes the operator-multivector application. More...

Pure virtual functions to be overridden by subclasses.
virtual bool	hasTransposeApply () const
	Whether this operator supports applying the transpose or conjugate transpose. More...

Detailed Description

template<class S, class LO, class GO, class Node, class Kernel>
class Tpetra::RTI::KernelOp< S, LO, GO, Node, Kernel >

Operator wrapping a Kokkos (Classic) kernel using RTI.

This Tpetra::Operator subclass wraps a Kokkos (Classic) kernel using the Tpetra Reduction/Transformation Interface (RTI). The first four template parameters are the same (and in the same order) as those of Tpetra::Operator. The fifth template parameter is the type of the Kokkos (Classic) kernel.

Definition at line 61 of file Tpetra_RTIOp.hpp.

Member Typedef Documentation

typedef S Tpetra::Operator< S , LO , GO , Node >::scalar_type

inherited

The type of the entries of the input and output multivectors.

Definition at line 92 of file Tpetra_Operator.hpp.

typedef LO Tpetra::Operator< S , LO , GO , Node >::local_ordinal_type

inherited

The local index type.

Definition at line 95 of file Tpetra_Operator.hpp.

typedef GO Tpetra::Operator< S , LO , GO , Node >::global_ordinal_type

inherited

The global index type.

Definition at line 98 of file Tpetra_Operator.hpp.

typedef Node Tpetra::Operator< S , LO , GO , Node >::node_type

inherited

The Kokkos Node type.

Definition at line 101 of file Tpetra_Operator.hpp.

Constructor & Destructor Documentation

template<class S, class LO, class GO, class Node, class Kernel>

Tpetra::RTI::KernelOp< S, LO, GO, Node, Kernel >::KernelOp	(	Kernel	kernel,
		const RCP< const Map< LO, GO, Node > > &	domainMap,
		const RCP< const Map< LO, GO, Node > > &	rangeMap,
		const RCP< const Import< LO, GO, Node > > &	importer,
		const RCP< const Export< LO, GO, Node > > &	exporter
	)

inline

Constructor.

Definition at line 71 of file Tpetra_RTIOp.hpp.

Member Function Documentation

template<class S, class LO, class GO, class Node, class Kernel>

RCP<const Map<LO,GO,Node> > Tpetra::RTI::KernelOp< S, LO, GO, Node, Kernel >::getDomainMap ( ) const

inlinevirtual

The Map associated with the domain of this operator, which must be compatible with X.getMap().

Implements Tpetra::Operator< S, LO, GO, Node >.

Definition at line 103 of file Tpetra_RTIOp.hpp.

template<class S, class LO, class GO, class Node, class Kernel>

RCP<const Map<LO,GO,Node> > Tpetra::RTI::KernelOp< S, LO, GO, Node, Kernel >::getRangeMap ( ) const

inlinevirtual

The Map associated with the range of this operator, which must be compatible with Y.getMap().

Implements Tpetra::Operator< S, LO, GO, Node >.

Definition at line 104 of file Tpetra_RTIOp.hpp.

template<class S, class LO, class GO, class Node, class Kernel>

void Tpetra::RTI::KernelOp< S, LO, GO, Node, Kernel >::apply	(	const MultiVector< S, LO, GO, Node > &	X,
		MultiVector< S, LO, GO, Node > &	Y,
		Teuchos::ETransp	mode = `Teuchos::NO_TRANS`,
		S	alpha = `Teuchos::ScalarTraits<S>::one ()`,
		S	beta = `Teuchos::ScalarTraits<S>::zero ()`
	)		const

inlinevirtual

Computes the operator-multivector application.

Loosely, performs $Y = \alpha \cdot A^{\textrm{mode}} \cdot X + \beta \cdot Y$ . However, the details of operation vary according to the values of alpha and beta. Specifically

if beta == 0, apply() must overwrite Y, so that any values in Y (including NaNs) are ignored.
if alpha == 0, apply() may short-circuit the operator, so that any values in X (including NaNs) are ignored.

Implements Tpetra::Operator< S, LO, GO, Node >.

Definition at line 107 of file Tpetra_RTIOp.hpp.

virtual bool Tpetra::Operator< S , LO , GO , Node >::hasTransposeApply ( ) const

virtualinherited

Whether this operator supports applying the transpose or conjugate transpose.

By default, this returns false. Subclasses must override this method if they can support apply() with mode=Teuchos::TRANS or mode=Teuchos::CONJ_TRANS.

The documentation for this class was generated from the following file:

Tpetra_RTIOp.hpp
