This class creates and provides basic support for symmetric, positive-definite dense matrices of templated type. More...

#include <Teuchos_SerialSymDenseMatrix.hpp>

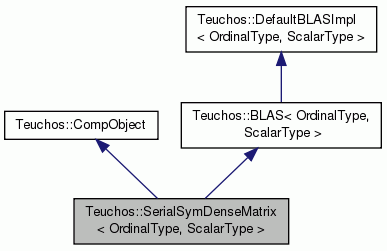

Inheritance diagram for Teuchos::SerialSymDenseMatrix< OrdinalType, ScalarType >:

[legend]

Public Types
typedef OrdinalType	ordinalType
	Typedef for ordinal type. More...

typedef ScalarType	scalarType
	Typedef for scalar type. More...

Public Types inherited from Teuchos::DefaultBLASImpl< OrdinalType, ScalarType >
typedef details::GivensRotator < ScalarType >::c_type	rotg_c_type
	The type used for c in ROTG. More...

Protected Member Functions
void	scale (const ScalarType alpha)

void	copyMat (bool inputUpper, ScalarType inputMatrix, OrdinalType inputStride, OrdinalType numRowCols, bool outputUpper, ScalarType outputMatrix, OrdinalType outputStride, OrdinalType startRowCol, ScalarType alpha=ScalarTraits< ScalarType >::zero())

void	copyUPLOMat (bool inputUpper, ScalarType *inputMatrix, OrdinalType inputStride, OrdinalType inputRows)

void	deleteArrays ()

void	checkIndex (OrdinalType rowIndex, OrdinalType colIndex=0) const

Protected Attributes
OrdinalType	numRowCols_

OrdinalType	stride_

bool	valuesCopied_

ScalarType *	values_

bool	upper_

char	UPLO_

Protected Attributes inherited from Teuchos::CompObject
Flops *	flopCounter_

Related Functions
(Note that these are not member functions.)
template<typename OrdinalType , typename ScalarType >
void	symMatTripleProduct (ETransp transw, const ScalarType alpha, const SerialSymDenseMatrix< OrdinalType, ScalarType > &A, const SerialDenseMatrix< OrdinalType, ScalarType > &W, SerialSymDenseMatrix< OrdinalType, ScalarType > &B)
	A templated, non-member, helper function for computing the matrix triple-product: B = alphaW^TAW or B = alphaWAW^T. More...

Constructor/Destructor Methods
	SerialSymDenseMatrix ()
	Default constructor; defines a zero size object. More...

	SerialSymDenseMatrix (OrdinalType numRowsCols, bool zeroOut=true)
	Basic constructor; defines a matrix of `numRowsCols` size and (optionally) initializes it. More...

	SerialSymDenseMatrix (DataAccess CV, bool upper, ScalarType *values, OrdinalType stride, OrdinalType numRowsCols)
	Set object values from two-dimensional array. More...

	SerialSymDenseMatrix (const SerialSymDenseMatrix< OrdinalType, ScalarType > &Source)
	Teuchos::SerialSymDenseMatrix copy constructor. More...

	SerialSymDenseMatrix (DataAccess CV, const SerialSymDenseMatrix< OrdinalType, ScalarType > &Source, OrdinalType numRowCols, OrdinalType startRowCol=0)
	Submatrix Copy Constructor. More...

virtual	~SerialSymDenseMatrix ()
	Teuchos::SerialSymDenseMatrix destructor. More...

Shaping Methods
int	shape (OrdinalType numRowsCols)
	Set dimensions of a Teuchos::SerialSymDenseMatrix object; init values to zero. More...

int	shapeUninitialized (OrdinalType numRowsCols)
	Set dimensions of a Teuchos::SerialSymDenseMatrix object; don't initialize values. More...

int	reshape (OrdinalType numRowsCols)
	Reshape a Teuchos::SerialSymDenseMatrix object. More...

void	setLower ()
	Specify that the lower triangle of the this matrix should be used. More...

void	setUpper ()
	Specify that the upper triangle of the this matrix should be used. More...

Set methods.
SerialSymDenseMatrix < OrdinalType, ScalarType > &	operator= (const SerialSymDenseMatrix< OrdinalType, ScalarType > &Source)
	Copies values from one matrix to another. More...

SerialSymDenseMatrix < OrdinalType, ScalarType > &	assign (const SerialSymDenseMatrix< OrdinalType, ScalarType > &Source)
	Copies values from one matrix to another. More...

SerialSymDenseMatrix < OrdinalType, ScalarType > &	operator= (const ScalarType value)
	Set all values in the matrix to a constant value. More...

int	putScalar (const ScalarType value=Teuchos::ScalarTraits< ScalarType >::zero(), bool fullMatrix=false)
	Set all values in the matrix to a constant value. More...

void	swap (SerialSymDenseMatrix< OrdinalType, ScalarType > &B)
	Swap values between this matrix and incoming matrix. More...

int	random (const ScalarType bias=0.1 *Teuchos::ScalarTraits< ScalarType >::one())
	Set all values in the active area (upper/lower triangle) of this matrix to be random numbers. More...

Accessor methods.
ScalarType &	operator() (OrdinalType rowIndex, OrdinalType colIndex)
	Element access method (non-const). More...

const ScalarType &	operator() (OrdinalType rowIndex, OrdinalType colIndex) const
	Element access method (const). More...

ScalarType *	values () const
	Returns the pointer to the ScalarType data array contained in the object. More...

Query methods
bool	upper () const
	Returns true if upper triangular part of this matrix has and will be used. More...

char	UPLO () const
	Returns character value of UPLO used by LAPACK routines. More...

Mathematical Methods
SerialSymDenseMatrix < OrdinalType, ScalarType > &	operator*= (const ScalarType alpha)
	Inplace scalar-matrix product A = `alpha*A`. More...

SerialSymDenseMatrix < OrdinalType, ScalarType > &	operator+= (const SerialSymDenseMatrix< OrdinalType, ScalarType > &Source)
	Add another matrix to this matrix. More...

SerialSymDenseMatrix < OrdinalType, ScalarType > &	operator-= (const SerialSymDenseMatrix< OrdinalType, ScalarType > &Source)
	Subtract another matrix from this matrix. More...

Comparison methods.
bool	operator== (const SerialSymDenseMatrix< OrdinalType, ScalarType > &Operand) const
	Equality of two matrices. More...

bool	operator!= (const SerialSymDenseMatrix< OrdinalType, ScalarType > &Operand) const
	Inequality of two matrices. More...

Attribute methods.
OrdinalType	numRows () const
	Returns the row dimension of this matrix. More...

OrdinalType	numCols () const
	Returns the column dimension of this matrix. More...

OrdinalType	stride () const
	Returns the stride between the columns of this matrix in memory. More...

bool	empty () const
	Returns whether this matrix is empty. More...

Norm methods.
ScalarTraits< ScalarType > ::magnitudeType	normOne () const
	Returns the 1-norm of the matrix. More...

ScalarTraits< ScalarType > ::magnitudeType	normInf () const
	Returns the Infinity-norm of the matrix. More...

ScalarTraits< ScalarType > ::magnitudeType	normFrobenius () const
	Returns the Frobenius-norm of the matrix. More...

I/O methods.
virtual void	print (std::ostream &os) const
	Print method. Defines the behavior of the std::ostream << operator. More...

Detailed Description

template<typename OrdinalType, typename ScalarType>
class Teuchos::SerialSymDenseMatrix< OrdinalType, ScalarType >

This class creates and provides basic support for symmetric, positive-definite dense matrices of templated type.

The Teuchos_SerialSymDenseMatrix class enables the construction and use of
symmetric, positive-definite, dense matrices of templated type.

The Teuchos::SerialSymDenseMatrix class is intended to provide full-featured support for solving
linear and eigen system problems for symmetric positive-definite (SPD) matrices.  It is written on
top of BLAS and LAPACK and thus has excellent performance and numerical capabilities.  Using this
class, one can either perform simple factorizations and solves or apply all the tricks available in
LAPACK to get the best possible solution for very ill-conditioned problems.

<b>Teuchos::SerialSymDenseMatrix vs. Teuchos::LAPACK</b>

The Teuchos::LAPACK class provides access to most of the same functionality as Teuchos::SerialSymDenseMatrix.
The primary difference is that Teuchos::LAPACK is a "thin" layer on top of LAPACK and
Teuchos::SerialSymDenseMatrix attempts to provide easy access to the more sophisticated aspects of
solving dense linear and eigensystems.

When you should use Teuchos::LAPACK: If you are simply looking for a convenient wrapper around the Fortran LAPACK routines and you have a well-conditioned problem, you should probably use Teuchos::LAPACK directly.
When you should use Teuchos::SerialSymDenseMatrix: If you want to (or potentially want to) solve ill-conditioned problems or want to work with a more object-oriented interface, you should probably use Teuchos::SerialSymDenseMatrix.

Constructing Teuchos::SerialSymDenseMatrix Objects

There are three Teuchos::SerialSymDenseMatrix constructors. The first constructs a zero-sized object which should be made to appropriate length using the Shape() or Reshape() functions and then filled with the [] or () operators. The second is a constructor that accepts user data as a 2D array, the third is a copy constructor. The second constructor has two data access modes (specified by the Teuchos::DataAccess argument):

Copy mode - Allocates memory and makes a copy of the user-provided data. In this case, the user data is not needed after construction.
View mode - Creates a "view" of the user data. In this case, the user data is required to remain intact for the life of the object.

Warning: View mode is extremely dangerous from a data hiding perspective. Therefore, we strongly encourage users to develop code using Copy mode first and only use the View mode in a secondary optimization phase.

Extracting Data from Teuchos::SerialSymDenseMatrix Objects

Once a Teuchos::SerialSymDenseMatrix is constructed, it is possible to view the data via access functions.

Warning: Use of these access functions cam be extremely dangerous from a data hiding perspective.

Vector and Utility Functions

Once a Teuchos::SerialSymDenseMatrix is constructed, several mathematical functions can be applied to the object. Specifically:

Multiplication.
Norms.

Definition at line 123 of file Teuchos_SerialSymDenseMatrix.hpp.

Member Typedef Documentation

template<typename OrdinalType, typename ScalarType>

typedef OrdinalType Teuchos::SerialSymDenseMatrix< OrdinalType, ScalarType >::ordinalType

Typedef for ordinal type.

Definition at line 128 of file Teuchos_SerialSymDenseMatrix.hpp.

template<typename OrdinalType, typename ScalarType>

typedef ScalarType Teuchos::SerialSymDenseMatrix< OrdinalType, ScalarType >::scalarType

Typedef for scalar type.

Definition at line 130 of file Teuchos_SerialSymDenseMatrix.hpp.

Constructor & Destructor Documentation

template<typename OrdinalType , typename ScalarType >

Teuchos::SerialSymDenseMatrix< OrdinalType, ScalarType >::SerialSymDenseMatrix ( )

Default constructor; defines a zero size object.

Teuchos::SerialSymDenseMatrix objects defined by the default constructor should be sized with the Shape() or Reshape() functions. Values should be defined by using the [] or ()operators.

Note: By default the active part of the matrix is assumed to be the lower triangular part. To set the upper part as active, call SetUpper(). See Detailed Description section for further discussion.

Definition at line 441 of file Teuchos_SerialSymDenseMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

Teuchos::SerialSymDenseMatrix< OrdinalType, ScalarType >::SerialSymDenseMatrix	(	OrdinalType	numRowsCols,
		bool	zeroOut = `true`
	)

Basic constructor; defines a matrix of numRowsCols size and (optionally) initializes it.

Parameters

numRowsCols	- Number of rows and columns in the matrix.
zeroOut	- Initializes values to 0 if true (default)

Creates a shaped matrix with numRowsCols rows and cols. All values are initialized to 0 when zeroOut is true. Values of this matrix should be set using the [] or the () operators.

Note: By default the active part of the matrix is assumed to be the lower triangular part. To set the upper part as active, call SetUpper(). See Detailed Description section for further discussion.

Definition at line 447 of file Teuchos_SerialSymDenseMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

Teuchos::SerialSymDenseMatrix< OrdinalType, ScalarType >::SerialSymDenseMatrix	(	DataAccess	CV,
		bool	upper,
		ScalarType *	values,
		OrdinalType	stride,
		OrdinalType	numRowsCols
	)

Set object values from two-dimensional array.

Parameters

CV	- Enumerated type set to Teuchos::Copy or Teuchos::View.
values	- Pointer to an array of ScalarType. The first column starts at `values`, the second at `values+stride`, etc.
stride	- The stride between the columns of the matrix in memory.
numRowsCols	- Number of rows and columns in the matrix.

Note: By default the active part of the matrix is assumed to be the lower triangular part. To set the upper part as active, call SetUpper(). See Detailed Description section for further discussion.

Definition at line 458 of file Teuchos_SerialSymDenseMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

Teuchos::SerialSymDenseMatrix< OrdinalType, ScalarType >::SerialSymDenseMatrix ( const SerialSymDenseMatrix< OrdinalType, ScalarType > & Source )

Teuchos::SerialSymDenseMatrix copy constructor.

Definition at line 480 of file Teuchos_SerialSymDenseMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

Teuchos::SerialSymDenseMatrix< OrdinalType, ScalarType >::SerialSymDenseMatrix	(	DataAccess	CV,
		const SerialSymDenseMatrix< OrdinalType, ScalarType > &	Source,
		OrdinalType	numRowCols,
		OrdinalType	startRowCol = `0`
	)

Submatrix Copy Constructor.

Parameters

CV	- Enumerated type set to Teuchos::Copy or Teuchos::View.
Source	- Reference to another dense matrix from which values are to be copied.
numRowCols	- The number of rows and columns in this matrix.
startRowCol	- The row and column of `Source` from which the submatrix copy should start.

Creates a shaped matrix with numRowCols rows and columns, which is a submatrix of Source. If startRowCol are not given, then the submatrix is the leading submatrix of Source.

Definition at line 507 of file Teuchos_SerialSymDenseMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

Teuchos::SerialSymDenseMatrix< OrdinalType, ScalarType >::~SerialSymDenseMatrix ( )

virtual

Teuchos::SerialSymDenseMatrix destructor.

Definition at line 527 of file Teuchos_SerialSymDenseMatrix.hpp.

Member Function Documentation

template<typename OrdinalType , typename ScalarType >

int Teuchos::SerialSymDenseMatrix< OrdinalType, ScalarType >::shape ( OrdinalType numRowsCols )

Set dimensions of a Teuchos::SerialSymDenseMatrix object; init values to zero.

Parameters

numRowsCols - Number of rows and columns in object.

Allows user to define the dimensions of a Teuchos::SerialSymDenseMatrix at any point. This function can be called at any point after construction. Any values that were previously in this object are destroyed and the resized matrix starts off with all zero values.

Returns: Integer error code, set to 0 if successful.

Definition at line 537 of file Teuchos_SerialSymDenseMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

int Teuchos::SerialSymDenseMatrix< OrdinalType, ScalarType >::shapeUninitialized ( OrdinalType numRowsCols )

Set dimensions of a Teuchos::SerialSymDenseMatrix object; don't initialize values.

Parameters

numRowsCols - Number of rows and columns in object.

Allows user to define the dimensions of a Teuchos::SerialSymDenseMatrix at any point. This function can be called at any point after construction. Any values that were previously in this object are destroyed. The resized matrix has uninitialized values.

Returns: Integer error code, set to 0 if successful.

Definition at line 549 of file Teuchos_SerialSymDenseMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

int Teuchos::SerialSymDenseMatrix< OrdinalType, ScalarType >::reshape ( OrdinalType numRowsCols )

Reshape a Teuchos::SerialSymDenseMatrix object.

Parameters

numRowsCols - Number of rows and columns in object.

Allows user to define the dimensions of a Teuchos::SerialSymDenseMatrix at any point. This function can be called at any point after construction. Any values that were previously in this object are copied into the new shape. If the new shape is smaller than the original, the upper left portion of the original matrix (the principal submatrix) is copied to the new matrix.

Returns: Integer error code, set to 0 if successful.

Definition at line 560 of file Teuchos_SerialSymDenseMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

void Teuchos::SerialSymDenseMatrix< OrdinalType, ScalarType >::setLower ( )

Specify that the lower triangle of the this matrix should be used.

Warning: This may necessitate the matrix values be copied from the upper to lower portion of the matrix.

Definition at line 587 of file Teuchos_SerialSymDenseMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

void Teuchos::SerialSymDenseMatrix< OrdinalType, ScalarType >::setUpper ( )

Specify that the upper triangle of the this matrix should be used.

Warning: This may necessitate the matrix values be copied from the lower to upper portion of the matrix.

Definition at line 598 of file Teuchos_SerialSymDenseMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

SerialSymDenseMatrix< OrdinalType, ScalarType > & Teuchos::SerialSymDenseMatrix< OrdinalType, ScalarType >::operator= ( const SerialSymDenseMatrix< OrdinalType, ScalarType > & Source )

Copies values from one matrix to another.

The operator= copies the values from one existing SerialSymDenseMatrix to another. If Source is a view (i.e. CV = Teuchos::View), then this method will return a view. Otherwise, it will return a copy of Source. this object will be resized if it is not large enough to copy Source into.

Definition at line 688 of file Teuchos_SerialSymDenseMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

SerialSymDenseMatrix< OrdinalType, ScalarType > & Teuchos::SerialSymDenseMatrix< OrdinalType, ScalarType >::assign ( const SerialSymDenseMatrix< OrdinalType, ScalarType > & Source )

Copies values from one matrix to another.

Copies the values from one existing SerialSymDenseMatrix to another if the dimension of both matrices are the same. If not, this matrix will be returned unchanged.

Definition at line 782 of file Teuchos_SerialSymDenseMatrix.hpp.

template<typename OrdinalType, typename ScalarType>

SerialSymDenseMatrix<OrdinalType, ScalarType>& Teuchos::SerialSymDenseMatrix< OrdinalType, ScalarType >::operator= ( const ScalarType value )

inline

Set all values in the matrix to a constant value.

Parameters

value - Value to use;

Definition at line 266 of file Teuchos_SerialSymDenseMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

int Teuchos::SerialSymDenseMatrix< OrdinalType, ScalarType >::putScalar	(	const ScalarType	value = `Teuchos::ScalarTraits<ScalarType>::zero()`,
		bool	fullMatrix = `false`
	)

Set all values in the matrix to a constant value.

Parameters

value	- Value to use; zero if none specified.
fullMatrix	- set full matrix entries to `value`, not just active portion of symmetric matrix.

Returns: Integer error code, set to 0 if successful.

Definition at line 609 of file Teuchos_SerialSymDenseMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

void Teuchos::SerialSymDenseMatrix< OrdinalType, ScalarType >::swap ( SerialSymDenseMatrix< OrdinalType, ScalarType > & B )

Swap values between this matrix and incoming matrix.

Swaps pointers and associated state without copying the matrix data.

Definition at line 642 of file Teuchos_SerialSymDenseMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

int Teuchos::SerialSymDenseMatrix< OrdinalType, ScalarType >::random ( const ScalarType bias = 0.1*Teuchos::ScalarTraits<ScalarType>::one() )

Set all values in the active area (upper/lower triangle) of this matrix to be random numbers.

Note: The diagonal will be the sum of the off diagonal elements, plus a bias, so the matrix is SPD.

Definition at line 654 of file Teuchos_SerialSymDenseMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

ScalarType & Teuchos::SerialSymDenseMatrix< OrdinalType, ScalarType >::operator()	(	OrdinalType	rowIndex,
		OrdinalType	colIndex
	)

inline

Element access method (non-const).

Returns the element in the ith row and jth column if A(i,j) is specified.

Returns: Element from the specified rowIndex row and colIndex column.

Note: If the requested element lies in the inactive part of the matrix, then A(j,i) will be returned.

Warning: The validity of rowIndex and colIndex will only be checked if Teuchos is configured with –enable-teuchos-abc.

Definition at line 804 of file Teuchos_SerialSymDenseMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

const ScalarType & Teuchos::SerialSymDenseMatrix< OrdinalType, ScalarType >::operator()	(	OrdinalType	rowIndex,
		OrdinalType	colIndex
	)		const

inline

Element access method (const).

Returns the element in the ith row and jth column if A(i,j) is specified.

Returns: Element from the specified rowIndex row and colIndex column.

Note: If the requested element lies in the inactive part of the matrix, then A(j,i) will be returned.

Warning: The validity of rowIndex and colIndex will only be checked if Teuchos is configured with –enable-teuchos-abc.

Definition at line 826 of file Teuchos_SerialSymDenseMatrix.hpp.

template<typename OrdinalType, typename ScalarType>

ScalarType* Teuchos::SerialSymDenseMatrix< OrdinalType, ScalarType >::values ( ) const

inline

Returns the pointer to the ScalarType data array contained in the object.

Note: The matrix values are only guaranteed to be stored in the active area of the matrix (upper/lower).

Definition at line 315 of file Teuchos_SerialSymDenseMatrix.hpp.

template<typename OrdinalType, typename ScalarType>

bool Teuchos::SerialSymDenseMatrix< OrdinalType, ScalarType >::upper ( ) const

inline

Returns true if upper triangular part of this matrix has and will be used.

Definition at line 323 of file Teuchos_SerialSymDenseMatrix.hpp.

template<typename OrdinalType, typename ScalarType>

char Teuchos::SerialSymDenseMatrix< OrdinalType, ScalarType >::UPLO ( ) const

inline

Returns character value of UPLO used by LAPACK routines.

Definition at line 326 of file Teuchos_SerialSymDenseMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

SerialSymDenseMatrix< OrdinalType, ScalarType > & Teuchos::SerialSymDenseMatrix< OrdinalType, ScalarType >::operator*= ( const ScalarType alpha )

Inplace scalar-matrix product A = alpha*A.

Scale a matrix, entry-by-entry using the value alpha. This method is sensitive to the UPLO() parameter.

Parameters

alpha - Scalar to multiply with A.

Definition at line 751 of file Teuchos_SerialSymDenseMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

SerialSymDenseMatrix< OrdinalType, ScalarType > & Teuchos::SerialSymDenseMatrix< OrdinalType, ScalarType >::operator+= ( const SerialSymDenseMatrix< OrdinalType, ScalarType > & Source )

Add another matrix to this matrix.

Add Source to this if the dimension of both matrices are the same. If not, this matrix will be returned unchanged.

Definition at line 758 of file Teuchos_SerialSymDenseMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

SerialSymDenseMatrix< OrdinalType, ScalarType > & Teuchos::SerialSymDenseMatrix< OrdinalType, ScalarType >::operator-= ( const SerialSymDenseMatrix< OrdinalType, ScalarType > & Source )

Subtract another matrix from this matrix.

Subtract Source from this if the dimension of both matrices are the same. If not, this matrix will be returned unchanged.

Definition at line 770 of file Teuchos_SerialSymDenseMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

bool Teuchos::SerialSymDenseMatrix< OrdinalType, ScalarType >::operator== ( const SerialSymDenseMatrix< OrdinalType, ScalarType > & Operand ) const

Equality of two matrices.

Returns: True if this matrix and Operand are of the same shape (rows / columns) and have the same entries in the active (upper / lower triangular) area of the matrix, else False will be returned.

Definition at line 934 of file Teuchos_SerialSymDenseMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

bool Teuchos::SerialSymDenseMatrix< OrdinalType, ScalarType >::operator!= ( const SerialSymDenseMatrix< OrdinalType, ScalarType > & Operand ) const

Inequality of two matrices.

Returns: True if this matrix and Operand of not of the same shape (rows / columns) or don't have the same entries in the active (upper / lower triangular), else False will be returned.

Definition at line 954 of file Teuchos_SerialSymDenseMatrix.hpp.

template<typename OrdinalType, typename ScalarType>

OrdinalType Teuchos::SerialSymDenseMatrix< OrdinalType, ScalarType >::numRows ( ) const

inline

Returns the row dimension of this matrix.

Definition at line 376 of file Teuchos_SerialSymDenseMatrix.hpp.

template<typename OrdinalType, typename ScalarType>

OrdinalType Teuchos::SerialSymDenseMatrix< OrdinalType, ScalarType >::numCols ( ) const

inline

Returns the column dimension of this matrix.

Definition at line 379 of file Teuchos_SerialSymDenseMatrix.hpp.

template<typename OrdinalType, typename ScalarType>

OrdinalType Teuchos::SerialSymDenseMatrix< OrdinalType, ScalarType >::stride ( ) const

inline

Returns the stride between the columns of this matrix in memory.

Definition at line 382 of file Teuchos_SerialSymDenseMatrix.hpp.

template<typename OrdinalType, typename ScalarType>

bool Teuchos::SerialSymDenseMatrix< OrdinalType, ScalarType >::empty ( ) const

inline

Returns whether this matrix is empty.

Definition at line 385 of file Teuchos_SerialSymDenseMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

ScalarTraits< ScalarType >::magnitudeType Teuchos::SerialSymDenseMatrix< OrdinalType, ScalarType >::normOne ( ) const

Returns the 1-norm of the matrix.

Definition at line 852 of file Teuchos_SerialSymDenseMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

ScalarTraits< ScalarType >::magnitudeType Teuchos::SerialSymDenseMatrix< OrdinalType, ScalarType >::normInf ( ) const

Returns the Infinity-norm of the matrix.

Definition at line 858 of file Teuchos_SerialSymDenseMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

ScalarTraits< ScalarType >::magnitudeType Teuchos::SerialSymDenseMatrix< OrdinalType, ScalarType >::normFrobenius ( ) const

Returns the Frobenius-norm of the matrix.

Definition at line 901 of file Teuchos_SerialSymDenseMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

void Teuchos::SerialSymDenseMatrix< OrdinalType, ScalarType >::print ( std::ostream & os ) const

virtual

Print method. Defines the behavior of the std::ostream << operator.

Definition at line 1013 of file Teuchos_SerialSymDenseMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

void Teuchos::SerialSymDenseMatrix< OrdinalType, ScalarType >::scale ( const ScalarType alpha )

protected

Definition at line 964 of file Teuchos_SerialSymDenseMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

void Teuchos::SerialSymDenseMatrix< OrdinalType, ScalarType >::copyMat	(	bool	inputUpper,
		ScalarType *	inputMatrix,
		OrdinalType	inputStride,
		OrdinalType	numRowCols,
		bool	outputUpper,
		ScalarType *	outputMatrix,
		OrdinalType	outputStride,
		OrdinalType	startRowCol,
		ScalarType	alpha = `ScalarTraits<ScalarType>::zero()`
	)

protected

Definition at line 1064 of file Teuchos_SerialSymDenseMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

void Teuchos::SerialSymDenseMatrix< OrdinalType, ScalarType >::copyUPLOMat	(	bool	inputUpper,
		ScalarType *	inputMatrix,
		OrdinalType	inputStride,
		OrdinalType	inputRows
	)

protected

Definition at line 1147 of file Teuchos_SerialSymDenseMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

void Teuchos::SerialSymDenseMatrix< OrdinalType, ScalarType >::deleteArrays ( void )

protected

Definition at line 1053 of file Teuchos_SerialSymDenseMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

void Teuchos::SerialSymDenseMatrix< OrdinalType, ScalarType >::checkIndex	(	OrdinalType	rowIndex,
		OrdinalType	colIndex = `0`
	)		const

inlineprotected

Definition at line 1043 of file Teuchos_SerialSymDenseMatrix.hpp.

Friends And Related Function Documentation

template<typename OrdinalType , typename ScalarType >

void symMatTripleProduct	(	ETransp	transw,
		const ScalarType	alpha,
		const SerialSymDenseMatrix< OrdinalType, ScalarType > &	A,
		const SerialDenseMatrix< OrdinalType, ScalarType > &	W,
		SerialSymDenseMatrix< OrdinalType, ScalarType > &	B
	)

Parameters

transw	- [in] Compute B = alphaW^TAW if transw = Teuchos::TRANS, else compute B = alphaWAW^T if transw = Teuchos::NO_TRANS.
alpha	- [in] The scaling factor.
A	- [in] SerialSymDenseMatrix
W	- [in] SerialDenseMatrix
B	- [out] SerialSymDenseMatrix
