Class to generate the directed acyclic graph (DAG) for evaluation. Determined which Evaluators should be called and the order in which to call them such that all dependencies are met with consistency. More...

#include <Phalanx_DAG_Manager.hpp>

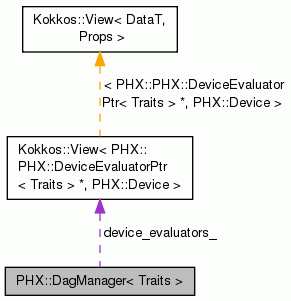

Collaboration diagram for PHX::DagManager< Traits >:

[legend]

Public Member Functions
	DagManager (const std::string &evaluator_type_name="???")

void	requireField (const PHX::FieldTag &v)
	Require a variable to be evaluated.

void	registerEvaluator (const Teuchos::RCP< PHX::Evaluator< Traits > > &p)
	Registers an evaluator with the manager.

void	setDefaultGraphvizFilenameForErrors (const std::string &file_name)
	Sets the default filename for graphiz file generation for DAG construction errors.

void	setWriteGraphvizFileOnError (bool write_file)
	If set to true, a graphviz file will be written during for DAG construction errors.

void	sortAndOrderEvaluators ()

void	postRegistrationSetup (typename Traits::SetupData d, PHX::FieldManager< Traits > &vm, const bool &buildDeviceDAG)

void	evaluateFields (typename Traits::EvalData d)
	Evaluate the required fields using data parallel evaluation on topological sort of tasks. Calls parallel_for for each node in DAG.

void	evaluateFieldsDeviceDag (const int &work_size, const int &team_size, const int &vector_size, typename Traits::EvalData d)
	Evaluate the required fields using data parallel evaluation on topological sort of tasks. Uses Device DAG support, calling a single parallel_for for the entire DAG. This could be faster than the call to evaluateFields, but all nodes in the DAG are restricted to the same work_size. This is intended for CUDA builds where kernel launch overhead can be significant. More...

void	preEvaluate (typename Traits::PreEvalData d)
	This routine is called before each residual/Jacobian fill. More...

void	postEvaluate (typename Traits::PostEvalData d)
	This routine is called after each residual/Jacobian fill. More...

void	setEvaluationTypeName (const std::string &evaluation_type_name)

const std::vector < Teuchos::RCP< PHX::FieldTag > > &	getFieldTags ()

bool	sortingCalled () const

void	writeGraphvizFile (const std::string filename, bool writeEvaluatedFields, bool writeDependentFields, bool debugRegisteredEvaluators) const

void	writeGraphvizFileNew (const std::string filename, bool writeEvaluatedFields, bool writeDependentFields) const

void	print (std::ostream &os) const
	Printing.

const std::vector< int > &	getEvaluatorInternalOrdering () const
	Returns the Topological sort ordering. Used for unit testing.

const std::vector < PHX::DagNode< Traits > > &	getDagNodes () const
	Returns the internally registered nodes. Used for unit testing.

void	analyzeGraph (double &speedup, double &parallelizability) const
	Returns the speedup and parallelizability of the graph. More...

std::vector< Teuchos::RCP < PHX::Evaluator< Traits > > > &	getEvaluatorsBindingField (const PHX::FieldTag &ft)
	Returns all evaluators that either evaluate or require the given field. This is used to bind memory for unmanaged views. More...

void	printEvaluatorStartStopMessage (const Teuchos::RCP< std::ostream > &ostr)
	Print to user specified ostream when each evaluator starts and stops. Useful for debugging. Enabled only in debug builds. More...

Protected Member Functions
void	dfsVisit (PHX::DagNode< Traits > &node, int &time)
	Depth-first search algorithm.

void	writeGraphvizDfsVisit (PHX::DagNode< Traits > &node, std::vector< PHX::DagNode< Traits >> &nodes_copy, std::ostream &os, const bool writeEvaluatedFields, const bool writeDependentFields) const
	Depth-first search algorithm specialized for writing graphviz output.

void	printEvaluator (const PHX::Evaluator< Traits > &e, std::ostream &os) const
	Helper function.

void	createEvaluatorBindingFieldMap ()

Protected Attributes
std::vector< Teuchos::RCP < PHX::FieldTag > >	required_fields_
	Fields required by the user.

std::vector< PHX::DagNode < Traits > >	nodes_
	Vector of all registered evaluators. More...

std::unordered_map < std::string, int >	field_to_node_index_
	Hash map of field key to evaluator index.

std::unordered_map < std::string, std::unordered_set< int > >	contributed_field_to_node_index_
	Hash map of contributed field key to evaluator index.

std::vector< Teuchos::RCP < PHX::FieldTag > >	fields_
	All fields that are needed for the evaluation.

std::vector< Teuchos::RCP < Teuchos::Time > >	evalTimers

Evaluation Order Objects
Stores results from a topological sort on the evaluator DAG: the order to call evaluators to evaluate fields correctly.
std::vector< int >	topoSortEvalIndex

std::string	graphviz_filename_for_errors_
	Use this name for graphviz file output for DAG construction errors.

bool	write_graphviz_file_on_error_
	If set to true, will write graphviz file for DAG construction errors.

std::string	evaluation_type_name_

bool	sorting_called_
	Flag to tell the setup has been called.

bool	allow_multiple_evaluators_for_same_field_
	Backwards compatibility option: set to true to disable a check that throws if multiple registered evaluators can evaluate the same field. Original DFS algortihm allowed this. Refactor checks and throws.

std::unordered_map < std::string, std::vector < Teuchos::RCP< PHX::Evaluator < Traits > > > >	field_to_evaluators_binding_
	A map that returns all evaluators that bind the memory of a particular field. Key is unique field identifier.

bool	build_device_dag_
	If set to true, allocated DeviceEvaluators for Device DAG for evaluation.

Kokkos::View < PHX::DeviceEvaluatorPtr < Traits > *, PHX::Device >	device_evaluators_
	Contians pointers to DeviceEvaluators for Device DAG support.

Teuchos::RCP< std::ostream >	start_stop_debug_ostream_
	If non-null, in debug builds, the DAG manager will print when an evaluator starts and stops.

Detailed Description

template<typename Traits>
class PHX::DagManager< Traits >

Class to generate the directed acyclic graph (DAG) for evaluation. Determined which Evaluators should be called and the order in which to call them such that all dependencies are met with consistency.

Member Function Documentation

template<typename Traits >

void PHX::DagManager< Traits >::analyzeGraph	(	double &	speedup,
		double &	parallelizability
	)		const

Returns the speedup and parallelizability of the graph.

Estimates are based on execution times. This will return garbage if the evaluateFields() call has not been made to log execution times.

template<typename Traits >

void PHX::DagManager< Traits >::evaluateFieldsDeviceDag	(	const int &	work_size,
		const int &	team_size,
		const int &	vector_size,
		typename Traits::EvalData	d
	)

Evaluate the required fields using data parallel evaluation on topological sort of tasks. Uses Device DAG support, calling a single parallel_for for the entire DAG. This could be faster than the call to evaluateFields, but all nodes in the DAG are restricted to the same work_size. This is intended for CUDA builds where kernel launch overhead can be significant.

The parallel_for kernel launch below will not compile on CUDA unless relocatable device code (RDC) is enabled for the nvcc compiler. We also want to build and run phalanx without Device DAG support on CUDA (i.e. RDC off), so this ifdef will hide the RDC required code.

template<typename Traits >

std::vector< Teuchos::RCP< PHX::Evaluator< Traits > > > & PHX::DagManager< Traits >::getEvaluatorsBindingField ( const PHX::FieldTag & ft )

Returns all evaluators that either evaluate or require the given field. This is used to bind memory for unmanaged views.

CAUTION: The returned vector is non-const to rebind memory for fields in evaluators. Be careful not to corrupt the actual vector.

References PHX::FieldTag::identifier().

template<typename Traits >

const std::vector< Teuchos::RCP< PHX::FieldTag > > & PHX::DagManager< Traits >::getFieldTags ( )

Returns the FieldTags for all fields involved in the evaluation. Will return an empty vector unless the user has built the DAG using one of the following calls: postRegistrationSetup(), postRegistrationSetupForType() or buildDagForType().

WARNING: This is a dangerous power user feature. It returns non-const field tags so that the fields can be sized after the DAG has been created.

template<typename Traits >

void PHX::DagManager< Traits >::postEvaluate ( typename Traits::PostEvalData d )

This routine is called after each residual/Jacobian fill.

This routine is called ONCE on the evaluator after the fill loop over elements is completed. This allows us to evaluate any post fill data. An example is to print out some statistics such as the maximum grid peclet number in a cell.

template<typename Traits >

void PHX::DagManager< Traits >::postRegistrationSetup	(	typename Traits::SetupData	d,
		PHX::FieldManager< Traits > &	vm,
		const bool &	buildDeviceDAG
	)

Calls post registration setup on all evaluators.

template<typename Traits >

void PHX::DagManager< Traits >::preEvaluate ( typename Traits::PreEvalData d )

This routine is called before each residual/Jacobian fill.

This routine is called ONCE on the evaluator before the fill loop over elements is started. This allows us to reset global objects between each fill. An example is to reset an evaluator that monitors the maximum grid peclet number in a cell. This call would zero out the maximum for a new fill.

template<typename Traits >

void PHX::DagManager< Traits >::printEvaluatorStartStopMessage ( const Teuchos::RCP< std::ostream > & ostr )

Print to user specified ostream when each evaluator starts and stops. Useful for debugging. Enabled only in debug builds.

Parameters

[in] ostr RCP to output stream. If set to null, this disables printing.

template<typename Traits >

void PHX::DagManager< Traits >::sortAndOrderEvaluators ( )

Builds the evaluation DAG. This should only be called after all required fields and evaluators are registered. Must be called prior to making calls to postRegistrationSetup(), evaluateFields(), preEvaluate(), and postEvaluate(). This can be called multiple times to build a new DAG if requirements have changed or more evaluators have been added.

Member Data Documentation

template<typename Traits>

std::vector<PHX::DagNode<Traits> > PHX::DagManager< Traits >::nodes_

protected

Vector of all registered evaluators.

This list may include more nodes than what is needed for the DAG evaluation of required fields.

The documentation for this class was generated from the following files:

Phalanx_DAG_Manager.hpp
Phalanx_DAG_Manager_Def.hpp
