panzer_stk::ScatterVectorFields< EvalT, Traits > Class Template Reference

#include <Panzer_STK_ScatterVectorFields_decl.hpp>

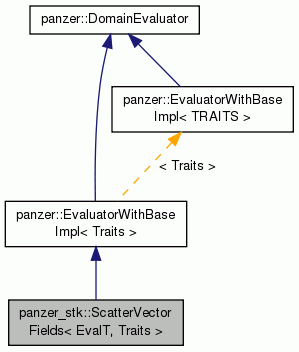

Inheritance diagram for panzer_stk::ScatterVectorFields< EvalT, Traits >:

Public Member Functions
	ScatterVectorFields (const Teuchos::ParameterList &p)
void	evaluateFields (typename Traits::EvalData d)
	ScatterVectorFields (const std::string &scatterName, const Teuchos::RCP< STK_Interface > mesh, const Teuchos::RCP< const panzer::PointRule > &pointRule, const std::vector< std::string > &names, const std::vector< double > &scaling=std::vector< double >())
template<>
void	evaluateFields (panzer::Traits::EvalData workset)
Public Member Functions inherited from panzer::EvaluatorWithBaseImpl< Traits >
void	setDetailsIndex (const int di)
	An evaluator builder sets the details index. More...
Public Member Functions inherited from panzer::DomainEvaluator
	DomainEvaluator (DomainType domain=ALL)
	Constructor. More...
virtual	~DomainEvaluator ()=default
	Default destructor. More...
void	setDomain (const DomainType domain)
	Set the domain for the evaluator. More...
DomainType	getDomain ()
	Get the domain for the evaluator. More...
virtual int	cellStartIndex (const panzer::Workset &workset) const
	Returns the starting cell for the specified domain for a given workset. More...
virtual int	cellEndIndex (const panzer::Workset &workset) const
	Returns the non-inclusive end cell for the specified domain for a given workset. More...

Private Types
using	ScalarT = typename EvalT::ScalarT
typedef panzer_stk::STK_Interface::SolutionFieldType	VariableField

Private Attributes
std::vector< std::string >	names_
std::vector< PHX::MDField < const ScalarT, panzer::Cell, panzer::IP, panzer::Dim > >	scatterFields_
PHX::MDField< const ScalarT, panzer::Cell, panzer::IP, panzer::Dim >	pointField_
Teuchos::RCP< STK_Interface >	mesh_
std::vector< double >	scaling_
int	spatialDimension_

Additional Inherited Members
Public Types inherited from panzer::DomainEvaluator
enum	DomainType : int {   OWNED =0, GHOST =1, REAL =2, VIRTUAL =3,   ALL =4 }
	Domain types supported by worksets. More...
Protected Attributes inherited from panzer::EvaluatorWithBaseImpl< Traits >
WorksetDetailsAccessor	wda

Detailed Description

template<typename EvalT, typename Traits>
class panzer_stk::ScatterVectorFields< EvalT, Traits >

This class is a scatter operation to the mesh. It takes a set of field names and basis objects and then writes them to the mesh object.

The constructor takes a STK_Interface RCP and parameter list that is required to contain the following two fields "Field Names" of type Teuchos::RCP<std::vector<std::string> >, "Basis" of type Teuchos::RCP<panzer::BasisIRLayout> and "Mesh" of type Teuchos::RCP<const panzer_stk::STK_Interface>.

Definition at line 72 of file Panzer_STK_ScatterVectorFields_decl.hpp.

Member Typedef Documentation

template<typename EvalT , typename Traits >

using panzer_stk::ScatterVectorFields< EvalT, Traits >::ScalarT = typename EvalT::ScalarT

private

Definition at line 88 of file Panzer_STK_ScatterVectorFields_decl.hpp.

template<typename EvalT , typename Traits >

typedef panzer_stk::STK_Interface::SolutionFieldType panzer_stk::ScatterVectorFields< EvalT, Traits >::VariableField

private

Definition at line 89 of file Panzer_STK_ScatterVectorFields_decl.hpp.

Constructor & Destructor Documentation

template<typename EvalT , typename Traits >

panzer_stk::ScatterVectorFields< EvalT, Traits >::ScatterVectorFields

(

const Teuchos::ParameterList &

p

)

Definition at line 63 of file Panzer_STK_ScatterVectorFields_impl.hpp.

template<typename EvalT , typename TraitsT >

panzer_stk::ScatterVectorFields< EvalT, TraitsT >::ScatterVectorFields	(	const std::string &	scatterName,
		const Teuchos::RCP< STK_Interface >	mesh,
		const Teuchos::RCP< const panzer::PointRule > &	pointRule,
		const std::vector< std::string > &	names,
		const std::vector< double > &	scaling = std::vector<double>()
	)

Definition at line 72 of file Panzer_STK_ScatterVectorFields_impl.hpp.

Member Function Documentation

template<typename EvalT , typename Traits >

void panzer_stk::ScatterVectorFields< EvalT, Traits >::evaluateFields

(

typename Traits::EvalData

d

)

Definition at line 108 of file Panzer_STK_ScatterVectorFields_impl.hpp.

template<>

void panzer_stk::ScatterVectorFields< panzer::Traits::Residual, panzer::Traits >::evaluateFields

(

panzer::Traits::EvalData

workset

)

Definition at line 116 of file Panzer_STK_ScatterVectorFields_impl.hpp.

Member Data Documentation

template<typename EvalT , typename Traits >

std::vector<std::string> panzer_stk::ScatterVectorFields< EvalT, Traits >::names_

private

Definition at line 91 of file Panzer_STK_ScatterVectorFields_decl.hpp.

template<typename EvalT , typename Traits >

std::vector< PHX::MDField<const ScalarT,panzer::Cell,panzer::IP,panzer::Dim> > panzer_stk::ScatterVectorFields< EvalT, Traits >::scatterFields_

private

Definition at line 92 of file Panzer_STK_ScatterVectorFields_decl.hpp.

template<typename EvalT , typename Traits >

PHX::MDField<const ScalarT,panzer::Cell,panzer::IP,panzer::Dim> panzer_stk::ScatterVectorFields< EvalT, Traits >::pointField_

private

Definition at line 93 of file Panzer_STK_ScatterVectorFields_decl.hpp.

template<typename EvalT , typename Traits >

Teuchos::RCP<STK_Interface> panzer_stk::ScatterVectorFields< EvalT, Traits >::mesh_

private

Definition at line 94 of file Panzer_STK_ScatterVectorFields_decl.hpp.

template<typename EvalT , typename Traits >

std::vector<double> panzer_stk::ScatterVectorFields< EvalT, Traits >::scaling_

private

Definition at line 95 of file Panzer_STK_ScatterVectorFields_decl.hpp.

template<typename EvalT , typename Traits >

int panzer_stk::ScatterVectorFields< EvalT, Traits >::spatialDimension_

private

Definition at line 97 of file Panzer_STK_ScatterVectorFields_decl.hpp.

---

The documentation for this class was generated from the following files:

• Panzer_STK_ScatterVectorFields_decl.hpp
• Panzer_STK_ScatterVectorFields_impl.hpp
