#include <Panzer_STK_ScatterCellAvgVector_decl.hpp>

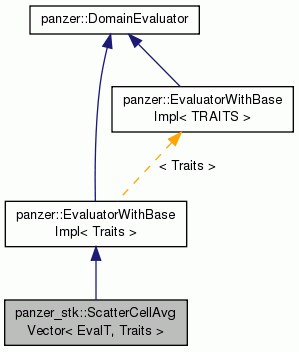

Inheritance diagram for panzer_stk::ScatterCellAvgVector< EvalT, Traits >:

Public Member Functions
	ScatterCellAvgVector (const Teuchos::ParameterList &p)

void	postRegistrationSetup (typename Traits::SetupData d, PHX::FieldManager< Traits > &fm)

void	evaluateFields (typename Traits::EvalData d)

Public Member Functions inherited from panzer::EvaluatorWithBaseImpl< Traits >
void	setDetailsIndex (const int di)
	An evaluator builder sets the details index. More...

Public Member Functions inherited from panzer::DomainEvaluator
	DomainEvaluator (DomainType domain=ALL)
	Constructor. More...

virtual	~DomainEvaluator ()=default
	Default destructor. More...

void	setDomain (const DomainType domain)
	Set the domain for the evaluator. More...

DomainType	getDomain ()
	Get the domain for the evaluator. More...

virtual int	cellStartIndex (const panzer::Workset &workset) const
	Returns the starting cell for the specified domain for a given workset. More...

virtual int	cellEndIndex (const panzer::Workset &workset) const
	Returns the non-inclusive end cell for the specified domain for a given workset. More...

Private Types
using	ScalarT = typename EvalT::ScalarT

typedef panzer_stk::STK_Interface::VectorFieldType	VariableField

Private Attributes
std::size_t	numValues_

std::vector< PHX::MDField < const ScalarT, panzer::Cell, panzer::Point, panzer::Dim > >	scatterFields_

Teuchos::RCP< STK_Interface >	mesh_

std::vector< VariableField * >	stkFields_

Additional Inherited Members
Public Types inherited from panzer::DomainEvaluator
enum	DomainType : int { OWNED =0, GHOST =1, REAL =2, VIRTUAL =3, ALL =4 }
	Domain types supported by worksets. More...

Protected Attributes inherited from panzer::EvaluatorWithBaseImpl< Traits >
WorksetDetailsAccessor	wda

Detailed Description

template<typename EvalT, typename Traits>
class panzer_stk::ScatterCellAvgVector< EvalT, Traits >

This class is a scatter operation to the mesh. It takes a set of field names and an integration rule. Those quantities are components of vector fields. They are averaged over the cell and written to the mesh.

The constructor takes a STK_Interface RCP and parameter list that is required to contain the following fields: "Scatter Name" string specifying the name of this evaulator "Field Names" of type this is a comma seperated list of strings, "IR" of type Teuchos::RCP<panzer::IntegrationRule> and "Mesh" of type Teuchos::RCP<const panzer_stk::STK_Interface>.

Definition at line 74 of file Panzer_STK_ScatterCellAvgVector_decl.hpp.
