panzer_stk::GatherFields< EvalT, Traits > Class Template Reference

#include <Panzer_STK_GatherFields_decl.hpp>

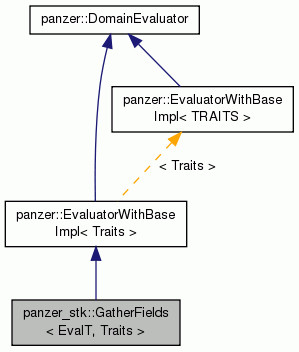

Inheritance diagram for panzer_stk::GatherFields< EvalT, Traits >:
Inheritance graph
[legend]

Public Member Functions

 GatherFields (const Teuchos::RCP< const panzer_stk::STK_Interface > &mesh, const Teuchos::ParameterList &p)

void postRegistrationSetup (typename Traits::SetupData d, PHX::FieldManager< Traits > &vm)

void evaluateFields (typename Traits::EvalData d)

- Public Member Functions inherited from panzer::EvaluatorWithBaseImpl< Traits >
void setDetailsIndex (const int di)
 An evaluator builder sets the details index. More...

- Public Member Functions inherited from panzer::DomainEvaluator
 DomainEvaluator (DomainType domain=ALL)
 Constructor. More...

virtual ~DomainEvaluator ()=default
 Default destructor. More...

void setDomain (const DomainType domain)
 Set the domain for the evaluator. More...

DomainType getDomain ()
 Get the domain for the evaluator. More...

virtual int cellStartIndex (const panzer::Workset &workset) const
 Returns the starting cell for the specified domain for a given workset. More...

virtual int cellEndIndex (const panzer::Workset &workset) const
 Returns the non-inclusive end cell for the specified domain for a given workset. More...


Private Types

typedef EvalT::ScalarT ScalarT

typedef
panzer_stk::STK_Interface::SolutionFieldType
VariableField


Private Member Functions

 GatherFields ()


Private Attributes

std::vector< PHX::MDField
< ScalarT, panzer::Cell,
panzer::NODE > >
gatherFields_

std::vector< VariableField * > stkFields_

Teuchos::RCP< const STK_Interfacemesh_

bool isConstant_


Additional Inherited Members

- Public Types inherited from panzer::DomainEvaluator
enum  DomainType : int {
  OWNED =0, GHOST =1, REAL =2, VIRTUAL =3,
  ALL =4
}
 Domain types supported by worksets. More...

- Protected Attributes inherited from panzer::EvaluatorWithBaseImpl< Traits >
WorksetDetailsAccessor wda


Detailed Description

template<typename EvalT, typename Traits>
class panzer_stk::GatherFields< EvalT, Traits >

This class is a gather operation from the mesh. It takes a set of field names and basis objects and then reads them in from the mesh object.

The constructor takes a STK_Interface RCP and parameter list that is required to contain the following two fields "Field Names" of type Teuchos::RCP<std::vector<std::string> > and "Basis" of type Teuchos::RCP<panzer::Basis>.

Definition at line 70 of file Panzer_STK_GatherFields_decl.hpp.

Member Typedef Documentation

template<typename EvalT , typename Traits >
typedef EvalT::ScalarT panzer_stk::GatherFields< EvalT, Traits >::ScalarT
private

Definition at line 83 of file Panzer_STK_GatherFields_decl.hpp.

template<typename EvalT , typename Traits >
typedef panzer_stk::STK_Interface::SolutionFieldType panzer_stk::GatherFields< EvalT, Traits >::VariableField
private

Definition at line 84 of file Panzer_STK_GatherFields_decl.hpp.

Constructor & Destructor Documentation

template<typename EvalT , typename Traits >
panzer_stk::GatherFields< EvalT, Traits >::GatherFields ( const Teuchos::RCP< const panzer_stk::STK_Interface > &  mesh,
const Teuchos::ParameterList p
)

Definition at line 59 of file Panzer_STK_GatherFields_impl.hpp.

template<typename EvalT , typename Traits >
panzer_stk::GatherFields< EvalT, Traits >::GatherFields ( )
private

Member Function Documentation

template<typename EvalT , typename Traits >
void panzer_stk::GatherFields< EvalT, Traits >::postRegistrationSetup ( typename Traits::SetupData  d,
PHX::FieldManager< Traits > &  vm
)

Definition at line 87 of file Panzer_STK_GatherFields_impl.hpp.

template<typename EvalT , typename Traits >
void panzer_stk::GatherFields< EvalT, Traits >::evaluateFields ( typename Traits::EvalData  d)

Definition at line 108 of file Panzer_STK_GatherFields_impl.hpp.

Member Data Documentation

template<typename EvalT , typename Traits >
std::vector< PHX::MDField<ScalarT,panzer::Cell,panzer::NODE> > panzer_stk::GatherFields< EvalT, Traits >::gatherFields_
private

Definition at line 86 of file Panzer_STK_GatherFields_decl.hpp.

template<typename EvalT , typename Traits >
std::vector<VariableField*> panzer_stk::GatherFields< EvalT, Traits >::stkFields_
private

Definition at line 87 of file Panzer_STK_GatherFields_decl.hpp.

template<typename EvalT , typename Traits >
Teuchos::RCP<const STK_Interface> panzer_stk::GatherFields< EvalT, Traits >::mesh_
private

Definition at line 89 of file Panzer_STK_GatherFields_decl.hpp.

template<typename EvalT , typename Traits >
bool panzer_stk::GatherFields< EvalT, Traits >::isConstant_
private

Definition at line 91 of file Panzer_STK_GatherFields_decl.hpp.


The documentation for this class was generated from the following files:
