panzer::WeakDirichletResidual< EvalT, Traits > Class Template Reference

Evaluates a Weak Dirichlet BC residual contribution. More...

#include <Panzer_WeakDirichlet_Residual_decl.hpp>

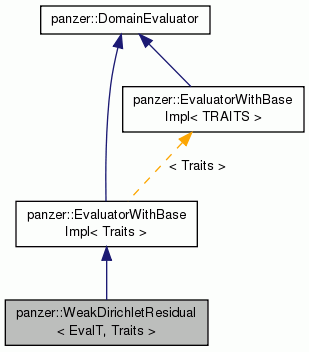

Inheritance diagram for panzer::WeakDirichletResidual< EvalT, Traits >:

Public Member Functions
	WeakDirichletResidual (const Teuchos::ParameterList &p)
void	postRegistrationSetup (typename Traits::SetupData d, PHX::FieldManager< Traits > &fm)
void	evaluateFields (typename Traits::EvalData d)
Public Member Functions inherited from panzer::EvaluatorWithBaseImpl< Traits >
void	setDetailsIndex (const int di)
	An evaluator builder sets the details index. More...
Public Member Functions inherited from panzer::DomainEvaluator
	DomainEvaluator (DomainType domain=ALL)
	Constructor. More...
virtual	~DomainEvaluator ()=default
	Default destructor. More...
void	setDomain (const DomainType domain)
	Set the domain for the evaluator. More...
DomainType	getDomain ()
	Get the domain for the evaluator. More...
virtual int	cellStartIndex (const panzer::Workset &workset) const
	Returns the starting cell for the specified domain for a given workset. More...
virtual int	cellEndIndex (const panzer::Workset &workset) const
	Returns the non-inclusive end cell for the specified domain for a given workset. More...

Private Types
using	ScalarT = typename EvalT::ScalarT

Private Attributes
PHX::MDField< ScalarT >	residual
PHX::MDField< ScalarT >	normal_dot_flux_plus_pen
PHX::MDField< const ScalarT >	flux
PHX::MDField< const ScalarT >	normal
PHX::MDField< const ScalarT >	sigma
PHX::MDField< const ScalarT >	dof
PHX::MDField< const ScalarT >	value
std::string	basis_name
std::size_t	basis_index
std::size_t	num_ip
std::size_t	num_dim

Additional Inherited Members
Public Types inherited from panzer::DomainEvaluator
enum	DomainType : int {   OWNED =0, GHOST =1, REAL =2, VIRTUAL =3,   ALL =4 }
	Domain types supported by worksets. More...
Protected Attributes inherited from panzer::EvaluatorWithBaseImpl< Traits >
WorksetDetailsAccessor	wda

Detailed Description

template<typename EvalT, typename Traits>
class panzer::WeakDirichletResidual< EvalT, Traits >

Evaluates a Weak Dirichlet BC residual contribution.

computes the surface integral term resulting from integration by parts for a particular dof:

int(n flux * phi) + int( (u-g) * phi)

Definition at line 62 of file Panzer_WeakDirichlet_Residual_decl.hpp.

Member Typedef Documentation

template<typename EvalT , typename Traits >

using panzer::WeakDirichletResidual< EvalT, Traits >::ScalarT = typename EvalT::ScalarT

private

Definition at line 83 of file Panzer_WeakDirichlet_Residual_decl.hpp.

Constructor & Destructor Documentation

template<typename EvalT , typename Traits >

panzer::WeakDirichletResidual< EvalT, Traits >::WeakDirichletResidual

(

const Teuchos::ParameterList &

p

)

Definition at line 59 of file Panzer_WeakDirichlet_Residual_impl.hpp.

Member Function Documentation

template<typename EvalT , typename Traits >

void panzer::WeakDirichletResidual< EvalT, Traits >::postRegistrationSetup	(	typename Traits::SetupData	d,
		PHX::FieldManager< Traits > &	fm
	)

Definition at line 103 of file Panzer_WeakDirichlet_Residual_impl.hpp.

template<typename EvalT , typename Traits >

void panzer::WeakDirichletResidual< EvalT, Traits >::evaluateFields

(

typename Traits::EvalData

d

)

Definition at line 120 of file Panzer_WeakDirichlet_Residual_impl.hpp.

Member Data Documentation

template<typename EvalT , typename Traits >

PHX::MDField<ScalarT> panzer::WeakDirichletResidual< EvalT, Traits >::residual

private

Definition at line 85 of file Panzer_WeakDirichlet_Residual_decl.hpp.

template<typename EvalT , typename Traits >

PHX::MDField<ScalarT> panzer::WeakDirichletResidual< EvalT, Traits >::normal_dot_flux_plus_pen

private

Definition at line 86 of file Panzer_WeakDirichlet_Residual_decl.hpp.

template<typename EvalT , typename Traits >

PHX::MDField<const ScalarT> panzer::WeakDirichletResidual< EvalT, Traits >::flux

private

Definition at line 87 of file Panzer_WeakDirichlet_Residual_decl.hpp.

template<typename EvalT , typename Traits >

PHX::MDField<const ScalarT> panzer::WeakDirichletResidual< EvalT, Traits >::normal

private

Definition at line 88 of file Panzer_WeakDirichlet_Residual_decl.hpp.

template<typename EvalT , typename Traits >

PHX::MDField<const ScalarT> panzer::WeakDirichletResidual< EvalT, Traits >::sigma

private

Definition at line 89 of file Panzer_WeakDirichlet_Residual_decl.hpp.

template<typename EvalT , typename Traits >

PHX::MDField<const ScalarT> panzer::WeakDirichletResidual< EvalT, Traits >::dof

private

Definition at line 90 of file Panzer_WeakDirichlet_Residual_decl.hpp.

template<typename EvalT , typename Traits >

PHX::MDField<const ScalarT> panzer::WeakDirichletResidual< EvalT, Traits >::value

private

Definition at line 91 of file Panzer_WeakDirichlet_Residual_decl.hpp.

template<typename EvalT , typename Traits >

std::string panzer::WeakDirichletResidual< EvalT, Traits >::basis_name

private

Definition at line 93 of file Panzer_WeakDirichlet_Residual_decl.hpp.

template<typename EvalT , typename Traits >

std::size_t panzer::WeakDirichletResidual< EvalT, Traits >::basis_index

private

Definition at line 94 of file Panzer_WeakDirichlet_Residual_decl.hpp.

template<typename EvalT , typename Traits >

std::size_t panzer::WeakDirichletResidual< EvalT, Traits >::num_ip

private

Definition at line 95 of file Panzer_WeakDirichlet_Residual_decl.hpp.

template<typename EvalT , typename Traits >

std::size_t panzer::WeakDirichletResidual< EvalT, Traits >::num_dim

private

Definition at line 96 of file Panzer_WeakDirichlet_Residual_decl.hpp.

---

The documentation for this class was generated from the following files:

• Panzer_WeakDirichlet_Residual_decl.hpp
• Panzer_WeakDirichlet_Residual_impl.hpp
