panzer::Sum< EvalT, Traits > Class Template Reference

#include <Panzer_Sum.hpp>

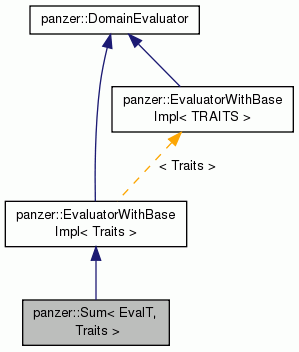

Inheritance diagram for panzer::Sum< EvalT, Traits >:

Classes
struct	PanzerSumTag

Public Member Functions
	Sum (const Teuchos::ParameterList &p)
void	postRegistrationSetup (typename Traits::SetupData d, PHX::FieldManager< Traits > &fm)
void	evaluateFields (typename Traits::EvalData d)
template<unsigned int RANK>
KOKKOS_INLINE_FUNCTION void	operator() (PanzerSumTag< RANK >, const int &i) const
Public Member Functions inherited from panzer::EvaluatorWithBaseImpl< Traits >
void	setDetailsIndex (const int di)
	An evaluator builder sets the details index. More...
Public Member Functions inherited from panzer::DomainEvaluator
	DomainEvaluator (DomainType domain=ALL)
	Constructor. More...
virtual	~DomainEvaluator ()=default
	Default destructor. More...
void	setDomain (const DomainType domain)
	Set the domain for the evaluator. More...
DomainType	getDomain ()
	Get the domain for the evaluator. More...
virtual int	cellStartIndex (const panzer::Workset &workset) const
	Returns the starting cell for the specified domain for a given workset. More...
virtual int	cellEndIndex (const panzer::Workset &workset) const
	Returns the non-inclusive end cell for the specified domain for a given workset. More...

Private Types
using	ScalarT = typename EvalT::ScalarT

Private Attributes
PHX::MDField< ScalarT >	sum
PHX::MDField< const ScalarT >	values [MAX_VALUES]
Kokkos::View< const double *, typename PHX::DevLayout < double >::type, PHX::Device >	scalars
std::size_t	cell_data_size

Static Private Attributes
static const int	MAX_VALUES =20

Additional Inherited Members
Public Types inherited from panzer::DomainEvaluator
enum	DomainType : int {   OWNED =0, GHOST =1, REAL =2, VIRTUAL =3,   ALL =4 }
	Domain types supported by worksets. More...
Protected Attributes inherited from panzer::EvaluatorWithBaseImpl< Traits >
WorksetDetailsAccessor	wda

Detailed Description

template<typename EvalT, typename Traits>
class panzer::Sum< EvalT, Traits >

Sums entries on a single data layout

<ParameterList>
  <ParameterList name="Sum Name" type="string" value="<destination field name>"/>
  <ParameterList name="Values Names" type="Teuchos::RCP<std::vector<std::string> >" value="<Source field names>"/>
  <ParameterList name="Scalars" type="Teuchos::RCP<const std::vector<double> >" value="<scalar values>"/>
  <ParameterList name="Data Layout" type="Teuchos::RCP<PHX::DataLayout>" value="<data layout of all associated fields>"/>
</ParameterList>

Definition at line 67 of file Panzer_Sum.hpp.

Member Typedef Documentation

template<typename EvalT , typename Traits >

using panzer::Sum< EvalT, Traits >::ScalarT = typename EvalT::ScalarT

private

Definition at line 88 of file Panzer_Sum.hpp.

Constructor & Destructor Documentation

template<typename EvalT , typename Traits >

panzer::Sum< EvalT, Traits >::Sum

(

const Teuchos::ParameterList &

p

)

Definition at line 60 of file Panzer_Sum_impl.hpp.

Member Function Documentation

template<typename EvalT , typename Traits >

void panzer::Sum< EvalT, Traits >::postRegistrationSetup	(	typename Traits::SetupData	d,
		PHX::FieldManager< Traits > &	fm
	)

Definition at line 113 of file Panzer_Sum_impl.hpp.

template<typename EvalT , typename Traits >

void panzer::Sum< EvalT, Traits >::evaluateFields

(

typename Traits::EvalData

d

)

Definition at line 185 of file Panzer_Sum_impl.hpp.

template<typename EvalT , typename TRAITS >

template<unsigned int RANK>

KOKKOS_INLINE_FUNCTION void panzer::Sum< EvalT, TRAITS >::operator()	(	PanzerSumTag< RANK >	,
		const int &	i
	)		const

Definition at line 125 of file Panzer_Sum_impl.hpp.

Member Data Documentation

template<typename EvalT , typename Traits >

const int panzer::Sum< EvalT, Traits >::MAX_VALUES =20

staticprivate

Definition at line 89 of file Panzer_Sum.hpp.

template<typename EvalT , typename Traits >

PHX::MDField<ScalarT> panzer::Sum< EvalT, Traits >::sum

private

Definition at line 91 of file Panzer_Sum.hpp.

template<typename EvalT , typename Traits >

PHX::MDField<const ScalarT> panzer::Sum< EvalT, Traits >::values[MAX_VALUES]

private

Definition at line 94 of file Panzer_Sum.hpp.

template<typename EvalT , typename Traits >

Kokkos::View<const double *,typename PHX::DevLayout<double>::type,PHX::Device> panzer::Sum< EvalT, Traits >::scalars

private

Definition at line 95 of file Panzer_Sum.hpp.

template<typename EvalT , typename Traits >

std::size_t panzer::Sum< EvalT, Traits >::cell_data_size

private

Definition at line 97 of file Panzer_Sum.hpp.

---

The documentation for this class was generated from the following files:

• Panzer_Sum.hpp
• Panzer_Sum_impl.hpp
