panzer::SubcellSum< EvalT, Traits > Class Template Reference

#include <Panzer_SubcellSum_decl.hpp>

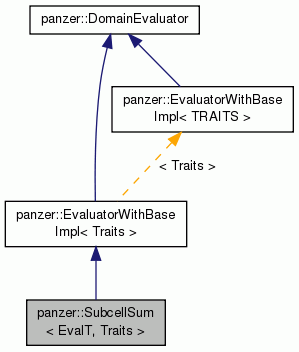

Inheritance diagram for panzer::SubcellSum< EvalT, Traits >:

Public Member Functions
	SubcellSum (const Teuchos::ParameterList &p)
void	evaluateFields (typename Traits::EvalData d)
const PHX::FieldTag &	getFieldTag () const
Public Member Functions inherited from panzer::EvaluatorWithBaseImpl< Traits >
void	setDetailsIndex (const int di)
	An evaluator builder sets the details index. More...
Public Member Functions inherited from panzer::DomainEvaluator
	DomainEvaluator (DomainType domain=ALL)
	Constructor. More...
virtual	~DomainEvaluator ()=default
	Default destructor. More...
void	setDomain (const DomainType domain)
	Set the domain for the evaluator. More...
DomainType	getDomain ()
	Get the domain for the evaluator. More...
virtual int	cellStartIndex (const panzer::Workset &workset) const
	Returns the starting cell for the specified domain for a given workset. More...
virtual int	cellEndIndex (const panzer::Workset &workset) const
	Returns the non-inclusive end cell for the specified domain for a given workset. More...

Private Types
using	ScalarT = typename EvalT::ScalarT

Private Member Functions
Teuchos::RCP < Teuchos::ParameterList >	getValidParameters () const

Private Attributes
PHX::MDField< ScalarT, Cell >	outField
PHX::MDField< const ScalarT, Cell, BASIS >	inField
double	multiplier
Teuchos::RCP< const panzer::FieldPattern >	fieldPattern_
bool	evaluateOnClosure_

Additional Inherited Members
Public Types inherited from panzer::DomainEvaluator
enum	DomainType : int {   OWNED =0, GHOST =1, REAL =2, VIRTUAL =3,   ALL =4 }
	Domain types supported by worksets. More...
Protected Attributes inherited from panzer::EvaluatorWithBaseImpl< Traits >
WorksetDetailsAccessor	wda

Detailed Description

template<typename EvalT, typename Traits>
class panzer::SubcellSum< EvalT, Traits >

This performs a sum over all the fields limited to the subcell specified in the workset. It is useful for computing high-order surface integrals as responses.

The field specified with "Sum Name" will be dimensioned as the number of cells in the workset. The "Field Name" object is dimension as the number of cells by the number of basis functions specified by the "Basis" object. The "Evaluate On Closure" indicates if the subcells are to use the closure index (i.e. all subcells of lesser dimension contained within a subcell) or simply sum on those fields on the subcell proper.

  <ParameterList>
    <Parameter name="Sum Name" type="string" value="<Name to give to the summed field>"/>
    <Parameter name="Field Name" type="string" value="<Name of field to sum>"/>
    <Parameter name="Basis" type="RCP<const PureBasis>" value="<user specified PureBasis object>"/>
    <Parameter name="Multiplier" type="double" value="<Scaling factor, default=1>"/>
    <Parameter name="Evaluate On Closure" type="bool" value="false"/>
  </ParameterList>

Definition at line 81 of file Panzer_SubcellSum_decl.hpp.

Member Typedef Documentation

template<typename EvalT , typename Traits >

using panzer::SubcellSum< EvalT, Traits >::ScalarT = typename EvalT::ScalarT

private

Definition at line 97 of file Panzer_SubcellSum_decl.hpp.

Constructor & Destructor Documentation

template<typename EvalT , typename Traits >

panzer::SubcellSum< EvalT, Traits >::SubcellSum

(

const Teuchos::ParameterList &

p

)

Definition at line 57 of file Panzer_SubcellSum_impl.hpp.

Member Function Documentation

template<typename EvalT , typename Traits >

void panzer::SubcellSum< EvalT, Traits >::evaluateFields

(

typename Traits::EvalData

d

)

Definition at line 88 of file Panzer_SubcellSum_impl.hpp.

template<typename EvalT , typename Traits >

const PHX::FieldTag& panzer::SubcellSum< EvalT, Traits >::getFieldTag ( ) const

inline

Definition at line 107 of file Panzer_SubcellSum_decl.hpp.

template<typename EvalT , typename TRAITS >

Teuchos::RCP< Teuchos::ParameterList > panzer::SubcellSum< EvalT, TRAITS >::getValidParameters ( ) const

private

Definition at line 116 of file Panzer_SubcellSum_impl.hpp.

Member Data Documentation

template<typename EvalT , typename Traits >

PHX::MDField<ScalarT,Cell> panzer::SubcellSum< EvalT, Traits >::outField

private

Definition at line 99 of file Panzer_SubcellSum_decl.hpp.

template<typename EvalT , typename Traits >

PHX::MDField<const ScalarT,Cell,BASIS> panzer::SubcellSum< EvalT, Traits >::inField

private

Definition at line 101 of file Panzer_SubcellSum_decl.hpp.

template<typename EvalT , typename Traits >

double panzer::SubcellSum< EvalT, Traits >::multiplier

private

Definition at line 103 of file Panzer_SubcellSum_decl.hpp.

template<typename EvalT , typename Traits >

Teuchos::RCP<const panzer::FieldPattern> panzer::SubcellSum< EvalT, Traits >::fieldPattern_

private

Definition at line 114 of file Panzer_SubcellSum_decl.hpp.

template<typename EvalT , typename Traits >

bool panzer::SubcellSum< EvalT, Traits >::evaluateOnClosure_

private

Definition at line 117 of file Panzer_SubcellSum_decl.hpp.

---

The documentation for this class was generated from the following files:

• Panzer_SubcellSum_decl.hpp
• Panzer_SubcellSum_impl.hpp
