panzer::ScalarToVector< EvalT, Traits > Class Template Reference

Interpolates basis DOF values to IP DOF values. More...

#include <Panzer_ScalarToVector_decl.hpp>

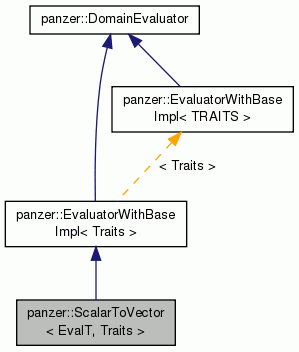

Inheritance diagram for panzer::ScalarToVector< EvalT, Traits >:
Inheritance graph
[legend]

Public Member Functions

 ScalarToVector (const Teuchos::ParameterList &p)

void postRegistrationSetup (typename Traits::SetupData d, PHX::FieldManager< Traits > &fm)

void evaluateFields (typename Traits::EvalData d)

void operator() (const size_t &cell) const

 ScalarToVector (const std::vector< PHX::Tag< ScalarT >> &input, const PHX::FieldTag &output)
 Tag only constructor for this class. More...

- Public Member Functions inherited from panzer::EvaluatorWithBaseImpl< Traits >
void setDetailsIndex (const int di)
 An evaluator builder sets the details index. More...

- Public Member Functions inherited from panzer::DomainEvaluator
 DomainEvaluator (DomainType domain=ALL)
 Constructor. More...

virtual ~DomainEvaluator ()=default
 Default destructor. More...

void setDomain (const DomainType domain)
 Set the domain for the evaluator. More...

DomainType getDomain ()
 Get the domain for the evaluator. More...

virtual int cellStartIndex (const panzer::Workset &workset) const
 Returns the starting cell for the specified domain for a given workset. More...

virtual int cellEndIndex (const panzer::Workset &workset) const
 Returns the non-inclusive end cell for the specified domain for a given workset. More...


Protected Types

typedef Kokkos::View< const
ScalarT **, typename
PHX::DevLayout< ScalarT >
::type, PHX::Device >
KokkosScalarFields_t


Protected Attributes

Kokkos::View
< KokkosScalarFields_t * >
internal_scalar_fields

- Protected Attributes inherited from panzer::EvaluatorWithBaseImpl< Traits >
WorksetDetailsAccessor wda


Private Types

using ScalarT = typename EvalT::ScalarT


Private Attributes

std::vector< PHX::MDField
< const ScalarT, Cell, Point > >
scalar_fields

PHX::MDField< ScalarT, Cell,
Point, Dim >
vector_field


Additional Inherited Members

- Public Types inherited from panzer::DomainEvaluator
enum  DomainType : int {
  OWNED =0, GHOST =1, REAL =2, VIRTUAL =3,
  ALL =4
}
 Domain types supported by worksets. More...


Detailed Description

template<typename EvalT, typename Traits>
class panzer::ScalarToVector< EvalT, Traits >

Interpolates basis DOF values to IP DOF values.

Definition at line 55 of file Panzer_ScalarToVector_decl.hpp.

Member Typedef Documentation

template<typename EvalT , typename Traits >
using panzer::ScalarToVector< EvalT, Traits >::ScalarT = typename EvalT::ScalarT
private

Definition at line 76 of file Panzer_ScalarToVector_decl.hpp.

template<typename EvalT , typename Traits >
typedef Kokkos::View<const ScalarT**,typename PHX::DevLayout<ScalarT>::type,PHX::Device> panzer::ScalarToVector< EvalT, Traits >::KokkosScalarFields_t
protected

Definition at line 81 of file Panzer_ScalarToVector_decl.hpp.

Constructor & Destructor Documentation

template<typename EvalT , typename Traits >
panzer::ScalarToVector< EvalT, Traits >::ScalarToVector ( const Teuchos::ParameterList p)

Definition at line 53 of file Panzer_ScalarToVector_impl.hpp.

template<typename EvalT , typename Traits >
panzer::ScalarToVector< EvalT, Traits >::ScalarToVector ( const std::vector< PHX::Tag< ScalarT >> &  input,
const PHX::FieldTag &  output
)

Tag only constructor for this class.

Definition at line 87 of file Panzer_ScalarToVector_impl.hpp.

Member Function Documentation

template<typename EvalT , typename Traits >
void panzer::ScalarToVector< EvalT, Traits >::postRegistrationSetup ( typename Traits::SetupData  d,
PHX::FieldManager< Traits > &  fm
)

Definition at line 112 of file Panzer_ScalarToVector_impl.hpp.

template<typename EvalT , typename Traits >
void panzer::ScalarToVector< EvalT, Traits >::evaluateFields ( typename Traits::EvalData  d)

Definition at line 145 of file Panzer_ScalarToVector_impl.hpp.

template<typename EvalT , typename TRAITS >
KOKKOS_INLINE_FUNCTION void panzer::ScalarToVector< EvalT, TRAITS >::operator() ( const size_t &  cell) const

Definition at line 129 of file Panzer_ScalarToVector_impl.hpp.

Member Data Documentation

template<typename EvalT , typename Traits >
std::vector< PHX::MDField<const ScalarT,Cell,Point> > panzer::ScalarToVector< EvalT, Traits >::scalar_fields
private

Definition at line 77 of file Panzer_ScalarToVector_decl.hpp.

template<typename EvalT , typename Traits >
PHX::MDField<ScalarT,Cell,Point,Dim> panzer::ScalarToVector< EvalT, Traits >::vector_field
private

Definition at line 78 of file Panzer_ScalarToVector_decl.hpp.

template<typename EvalT , typename Traits >
Kokkos::View<KokkosScalarFields_t*> panzer::ScalarToVector< EvalT, Traits >::internal_scalar_fields
protected

Definition at line 82 of file Panzer_ScalarToVector_decl.hpp.


The documentation for this class was generated from the following files:
