panzer::ResponseScatterEvaluator_IPCoordinates< EvalT, Traits > Class Template Reference

#include <Panzer_ResponseScatterEvaluator_IPCoordinates.hpp>

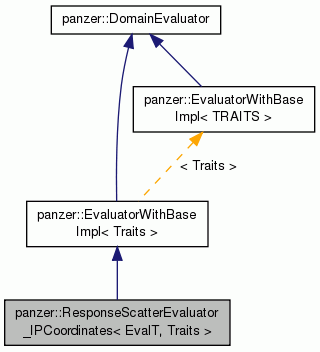

Inheritance diagram for panzer::ResponseScatterEvaluator_IPCoordinates< EvalT, Traits >:

Public Member Functions
	ResponseScatterEvaluator_IPCoordinates (const std::string &name, int ir_order)
	A constructor with concrete arguments instead of a parameter list. More...
void	postRegistrationSetup (typename Traits::SetupData d, PHX::FieldManager< Traits > &fm)
void	evaluateFields (typename Traits::EvalData d)
void	preEvaluate (typename Traits::PreEvalData d)
void	postEvaluate (typename Traits::PostEvalData d)
Public Member Functions inherited from panzer::EvaluatorWithBaseImpl< Traits >
void	setDetailsIndex (const int di)
	An evaluator builder sets the details index. More...
Public Member Functions inherited from panzer::DomainEvaluator
	DomainEvaluator (DomainType domain=ALL)
	Constructor. More...
virtual	~DomainEvaluator ()=default
	Default destructor. More...
void	setDomain (const DomainType domain)
	Set the domain for the evaluator. More...
DomainType	getDomain ()
	Get the domain for the evaluator. More...
virtual int	cellStartIndex (const panzer::Workset &workset) const
	Returns the starting cell for the specified domain for a given workset. More...
virtual int	cellEndIndex (const panzer::Workset &workset) const
	Returns the non-inclusive end cell for the specified domain for a given workset. More...

Private Types
typedef EvalT::ScalarT	ScalarT

Private Attributes
std::string	responseName_
int	ir_order_
int	ir_index_
Teuchos::RCP < Response_IPCoordinates < EvalT > >	responseObj_
std::vector< std::vector < ScalarT > >	tmpCoords_
Teuchos::RCP< PHX::FieldTag >	scatterHolder_

Additional Inherited Members
Public Types inherited from panzer::DomainEvaluator
enum	DomainType : int {   OWNED =0, GHOST =1, REAL =2, VIRTUAL =3,   ALL =4 }
	Domain types supported by worksets. More...
Protected Attributes inherited from panzer::EvaluatorWithBaseImpl< Traits >
WorksetDetailsAccessor	wda

Detailed Description

template<typename EvalT, typename Traits>
class panzer::ResponseScatterEvaluator_IPCoordinates< EvalT, Traits >

This class handles responses with values aggregated on each finite element cell.

Definition at line 65 of file Panzer_ResponseScatterEvaluator_IPCoordinates.hpp.

Member Typedef Documentation

template<typename EvalT , typename Traits >

typedef EvalT::ScalarT panzer::ResponseScatterEvaluator_IPCoordinates< EvalT, Traits >::ScalarT

private

Definition at line 81 of file Panzer_ResponseScatterEvaluator_IPCoordinates.hpp.

Constructor & Destructor Documentation

template<typename EvalT , typename Traits >

panzer::ResponseScatterEvaluator_IPCoordinates< EvalT, Traits >::ResponseScatterEvaluator_IPCoordinates	(	const std::string &	name,
		int	ir_order
	)

A constructor with concrete arguments instead of a parameter list.

This class handles responses with values aggregated on each finite element cell.

Definition at line 67 of file Panzer_ResponseScatterEvaluator_IPCoordinates_impl.hpp.

Member Function Documentation

template<typename EvalT , typename Traits >

void panzer::ResponseScatterEvaluator_IPCoordinates< EvalT, Traits >::postRegistrationSetup	(	typename Traits::SetupData	d,
		PHX::FieldManager< Traits > &	fm
	)

Definition at line 97 of file Panzer_ResponseScatterEvaluator_IPCoordinates_impl.hpp.

template<typename EvalT , typename Traits >

void panzer::ResponseScatterEvaluator_IPCoordinates< EvalT, Traits >::evaluateFields

(

typename Traits::EvalData

d

)

Definition at line 105 of file Panzer_ResponseScatterEvaluator_IPCoordinates_impl.hpp.

template<typename EvalT , typename Traits >

void panzer::ResponseScatterEvaluator_IPCoordinates< EvalT, Traits >::preEvaluate

(

typename Traits::PreEvalData

d

)

Definition at line 87 of file Panzer_ResponseScatterEvaluator_IPCoordinates_impl.hpp.

template<typename EvalT , typename Traits >

void panzer::ResponseScatterEvaluator_IPCoordinates< EvalT, Traits >::postEvaluate

(

typename Traits::PostEvalData

d

)

Definition at line 128 of file Panzer_ResponseScatterEvaluator_IPCoordinates_impl.hpp.

Member Data Documentation

template<typename EvalT , typename Traits >

std::string panzer::ResponseScatterEvaluator_IPCoordinates< EvalT, Traits >::responseName_

private

Definition at line 83 of file Panzer_ResponseScatterEvaluator_IPCoordinates.hpp.

template<typename EvalT , typename Traits >

int panzer::ResponseScatterEvaluator_IPCoordinates< EvalT, Traits >::ir_order_

private

Definition at line 84 of file Panzer_ResponseScatterEvaluator_IPCoordinates.hpp.

template<typename EvalT , typename Traits >

int panzer::ResponseScatterEvaluator_IPCoordinates< EvalT, Traits >::ir_index_

private

Definition at line 85 of file Panzer_ResponseScatterEvaluator_IPCoordinates.hpp.

template<typename EvalT , typename Traits >

Teuchos::RCP<Response_IPCoordinates<EvalT> > panzer::ResponseScatterEvaluator_IPCoordinates< EvalT, Traits >::responseObj_

private

Definition at line 87 of file Panzer_ResponseScatterEvaluator_IPCoordinates.hpp.

template<typename EvalT , typename Traits >

std::vector<std::vector<ScalarT> > panzer::ResponseScatterEvaluator_IPCoordinates< EvalT, Traits >::tmpCoords_

private

Definition at line 88 of file Panzer_ResponseScatterEvaluator_IPCoordinates.hpp.

template<typename EvalT , typename Traits >

Teuchos::RCP<PHX::FieldTag> panzer::ResponseScatterEvaluator_IPCoordinates< EvalT, Traits >::scatterHolder_

private

Definition at line 90 of file Panzer_ResponseScatterEvaluator_IPCoordinates.hpp.

---

The documentation for this class was generated from the following files:

• Panzer_ResponseScatterEvaluator_IPCoordinates.hpp
• Panzer_ResponseScatterEvaluator_IPCoordinates_impl.hpp
