panzer::ResponseScatterEvaluator_ExtremeValue< EvalT, Traits > Class Template Reference

#include <Panzer_ResponseScatterEvaluator_ExtremeValue.hpp>

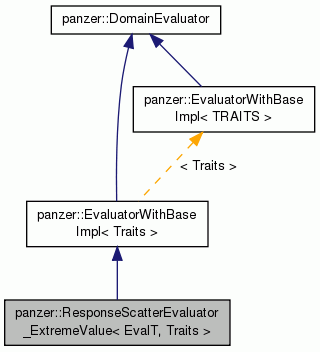

Inheritance diagram for panzer::ResponseScatterEvaluator_ExtremeValue< EvalT, Traits >:

Public Member Functions
	ResponseScatterEvaluator_ExtremeValue (const std::string &name, const CellData &cd, bool useMax, const Teuchos::RCP< ExtremeValueScatterBase > &functionalScatter)
	A constructor with concrete arguments instead of a parameter list. More...
	ResponseScatterEvaluator_ExtremeValue (const std::string &extremeName, const std::string &responseName, const CellData &cd, bool useMax, const Teuchos::RCP< ExtremeValueScatterBase > &functionalScatter)
void	evaluateFields (typename Traits::EvalData d)
void	preEvaluate (typename Traits::PreEvalData d)
template<>
void	evaluateFields (panzer::Traits::EvalData d)
Public Member Functions inherited from panzer::EvaluatorWithBaseImpl< Traits >
void	setDetailsIndex (const int di)
	An evaluator builder sets the details index. More...
Public Member Functions inherited from panzer::DomainEvaluator
	DomainEvaluator (DomainType domain=ALL)
	Constructor. More...
virtual	~DomainEvaluator ()=default
	Default destructor. More...
void	setDomain (const DomainType domain)
	Set the domain for the evaluator. More...
DomainType	getDomain ()
	Get the domain for the evaluator. More...
virtual int	cellStartIndex (const panzer::Workset &workset) const
	Returns the starting cell for the specified domain for a given workset. More...
virtual int	cellEndIndex (const panzer::Workset &workset) const
	Returns the non-inclusive end cell for the specified domain for a given workset. More...

Private Types
typedef EvalT::ScalarT	ScalarT

Private Attributes
std::string	responseName_
Teuchos::RCP < Response_ExtremeValue< EvalT > >	responseObj_
Teuchos::RCP< PHX::FieldTag >	scatterHolder_
PHX::MDField< const ScalarT, panzer::Cell >	cellExtremeValue_
Teuchos::RCP < ExtremeValueScatterBase >	scatterObj_
bool	useMax_

Additional Inherited Members
Public Types inherited from panzer::DomainEvaluator
enum	DomainType : int {   OWNED =0, GHOST =1, REAL =2, VIRTUAL =3,   ALL =4 }
	Domain types supported by worksets. More...
Protected Attributes inherited from panzer::EvaluatorWithBaseImpl< Traits >
WorksetDetailsAccessor	wda

Detailed Description

template<typename EvalT, typename Traits>
class panzer::ResponseScatterEvaluator_ExtremeValue< EvalT, Traits >

This class handles responses with values aggregated on each finite element cell.

Definition at line 91 of file Panzer_ResponseScatterEvaluator_ExtremeValue.hpp.

Member Typedef Documentation

template<typename EvalT , typename Traits >

typedef EvalT::ScalarT panzer::ResponseScatterEvaluator_ExtremeValue< EvalT, Traits >::ScalarT

private

Definition at line 108 of file Panzer_ResponseScatterEvaluator_ExtremeValue.hpp.

Constructor & Destructor Documentation

template<typename EvalT , typename Traits >

panzer::ResponseScatterEvaluator_ExtremeValue< EvalT, Traits >::ResponseScatterEvaluator_ExtremeValue	(	const std::string &	name,
		const CellData &	cd,
		bool	useMax,
		const Teuchos::RCP< ExtremeValueScatterBase > &	extremeValueScatter
	)

A constructor with concrete arguments instead of a parameter list.

This class handles responses with values aggregated on each finite element cell.

Definition at line 69 of file Panzer_ResponseScatterEvaluator_ExtremeValue_impl.hpp.

template<typename EvalT , typename Traits >

panzer::ResponseScatterEvaluator_ExtremeValue< EvalT, Traits >::ResponseScatterEvaluator_ExtremeValue	(	const std::string &	extremeName,
		const std::string &	responseName,
		const CellData &	cd,
		bool	useMax,
		const Teuchos::RCP< ExtremeValueScatterBase > &	functionalScatter
	)

Definition at line 98 of file Panzer_ResponseScatterEvaluator_ExtremeValue_impl.hpp.

Member Function Documentation

template<typename EvalT , typename Traits >

void panzer::ResponseScatterEvaluator_ExtremeValue< EvalT, Traits >::evaluateFields

(

typename Traits::EvalData

d

)

Definition at line 138 of file Panzer_ResponseScatterEvaluator_ExtremeValue_impl.hpp.

template<typename EvalT , typename Traits >

void panzer::ResponseScatterEvaluator_ExtremeValue< EvalT, Traits >::preEvaluate

(

typename Traits::PreEvalData

d

)

Definition at line 128 of file Panzer_ResponseScatterEvaluator_ExtremeValue_impl.hpp.

template<>

void panzer::ResponseScatterEvaluator_ExtremeValue< panzer::Traits::Jacobian, panzer::Traits >::evaluateFields

(

panzer::Traits::EvalData

d

)

Definition at line 150 of file Panzer_ResponseScatterEvaluator_ExtremeValue_impl.hpp.

Member Data Documentation

template<typename EvalT , typename Traits >

std::string panzer::ResponseScatterEvaluator_ExtremeValue< EvalT, Traits >::responseName_

private

Definition at line 110 of file Panzer_ResponseScatterEvaluator_ExtremeValue.hpp.

template<typename EvalT , typename Traits >

Teuchos::RCP<Response_ExtremeValue<EvalT> > panzer::ResponseScatterEvaluator_ExtremeValue< EvalT, Traits >::responseObj_

private

Definition at line 111 of file Panzer_ResponseScatterEvaluator_ExtremeValue.hpp.

template<typename EvalT , typename Traits >

Teuchos::RCP<PHX::FieldTag> panzer::ResponseScatterEvaluator_ExtremeValue< EvalT, Traits >::scatterHolder_

private

Definition at line 113 of file Panzer_ResponseScatterEvaluator_ExtremeValue.hpp.

template<typename EvalT , typename Traits >

PHX::MDField<const ScalarT,panzer::Cell> panzer::ResponseScatterEvaluator_ExtremeValue< EvalT, Traits >::cellExtremeValue_

private

Definition at line 114 of file Panzer_ResponseScatterEvaluator_ExtremeValue.hpp.

template<typename EvalT , typename Traits >

Teuchos::RCP<ExtremeValueScatterBase> panzer::ResponseScatterEvaluator_ExtremeValue< EvalT, Traits >::scatterObj_

private

Definition at line 115 of file Panzer_ResponseScatterEvaluator_ExtremeValue.hpp.

template<typename EvalT , typename Traits >

bool panzer::ResponseScatterEvaluator_ExtremeValue< EvalT, Traits >::useMax_

private

Definition at line 116 of file Panzer_ResponseScatterEvaluator_ExtremeValue.hpp.

---

The documentation for this class was generated from the following files:

• Panzer_ResponseScatterEvaluator_ExtremeValue.hpp
• Panzer_ResponseScatterEvaluator_ExtremeValue_impl.hpp
