panzer::Product< EvalT, Traits > Class Template Reference

#include <Panzer_Product_decl.hpp>

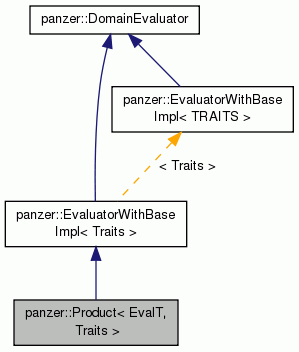

Inheritance diagram for panzer::Product< EvalT, Traits >:
Inheritance graph
[legend]

Public Member Functions

 Product (const Teuchos::ParameterList &p)

void evaluateFields (typename Traits::EvalData d)

- Public Member Functions inherited from panzer::EvaluatorWithBaseImpl< Traits >
void setDetailsIndex (const int di)
 An evaluator builder sets the details index. More...

- Public Member Functions inherited from panzer::DomainEvaluator
 DomainEvaluator (DomainType domain=ALL)
 Constructor. More...

virtual ~DomainEvaluator ()=default
 Default destructor. More...

void setDomain (const DomainType domain)
 Set the domain for the evaluator. More...

DomainType getDomain ()
 Get the domain for the evaluator. More...

virtual int cellStartIndex (const panzer::Workset &workset) const
 Returns the starting cell for the specified domain for a given workset. More...

virtual int cellEndIndex (const panzer::Workset &workset) const
 Returns the non-inclusive end cell for the specified domain for a given workset. More...


Private Types

using ScalarT = typename EvalT::ScalarT


Private Attributes

double scaling

PHX::MDField< ScalarTproduct

std::vector< PHX::MDField
< const ScalarT > >
values


Additional Inherited Members

- Public Types inherited from panzer::DomainEvaluator
enum  DomainType : int {
  OWNED =0, GHOST =1, REAL =2, VIRTUAL =3,
  ALL =4
}
 Domain types supported by worksets. More...

- Protected Attributes inherited from panzer::EvaluatorWithBaseImpl< Traits >
WorksetDetailsAccessor wda


Detailed Description

template<typename EvalT, typename Traits>
class panzer::Product< EvalT, Traits >

Product of entries on a single data layout

<ParameterList>
  <ParameterList name="Product Name" type="string" value="<destination field name>"/>
  <ParameterList name="Values Names" type="Teuchos::RCP<std::vector<std::string> >" value="<Source field names>"/>
  <ParameterList name="Data Layout" type="Teuchos::RCP<PHX::DataLayout>" value="<data layout of all associated fields>"/>
  <ParameterList name="Scaling" type="double" value="<data of the scaling>/> <!-- Optional -->
</ParameterList>

Definition at line 65 of file Panzer_Product_decl.hpp.

Member Typedef Documentation

template<typename EvalT , typename Traits >
using panzer::Product< EvalT, Traits >::ScalarT = typename EvalT::ScalarT
private

Definition at line 81 of file Panzer_Product_decl.hpp.

Constructor & Destructor Documentation

template<typename EvalT , typename Traits >
panzer::Product< EvalT, Traits >::Product ( const Teuchos::ParameterList p)

Definition at line 55 of file Panzer_Product_impl.hpp.

Member Function Documentation

template<typename EvalT , typename Traits >
void panzer::Product< EvalT, Traits >::evaluateFields ( typename Traits::EvalData  d)

Definition at line 86 of file Panzer_Product_impl.hpp.

Member Data Documentation

template<typename EvalT , typename Traits >
double panzer::Product< EvalT, Traits >::scaling
private

Definition at line 83 of file Panzer_Product_decl.hpp.

template<typename EvalT , typename Traits >
PHX::MDField<ScalarT> panzer::Product< EvalT, Traits >::product
private

Definition at line 84 of file Panzer_Product_decl.hpp.

template<typename EvalT , typename Traits >
std::vector< PHX::MDField<const ScalarT> > panzer::Product< EvalT, Traits >::values
private

Definition at line 85 of file Panzer_Product_decl.hpp.


The documentation for this class was generated from the following files:
