panzer::PointValues_Evaluator< EvalT, Traits > Class Template Reference

Interpolates basis DOF values to IP DOF values. More...

#include <Panzer_PointValues_Evaluator_decl.hpp>

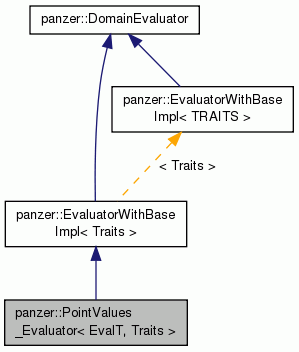

Inheritance diagram for panzer::PointValues_Evaluator< EvalT, Traits >:
Inheritance graph
[legend]

Public Member Functions

 PointValues_Evaluator (const Teuchos::ParameterList &p)

void postRegistrationSetup (typename Traits::SetupData d, PHX::FieldManager< Traits > &fm)

void evaluateFields (typename Traits::EvalData d)

 PointValues_Evaluator (const Teuchos::RCP< const panzer::PointRule > &pointRule, const Kokkos::DynRankView< double, PHX::Device > &userArray)

 PointValues_Evaluator (const Teuchos::RCP< const panzer::PointRule > &pointRule, const PHX::MDField< double, panzer::IP, panzer::Dim > &userArray)

 PointValues_Evaluator (const Teuchos::RCP< const panzer::PointRule > &pointRule, const Teuchos::RCP< const panzer::PureBasis > &pureBasis)
 This builds a point rule from the basis function reference points in the workset. More...

- Public Member Functions inherited from panzer::EvaluatorWithBaseImpl< Traits >
void setDetailsIndex (const int di)
 An evaluator builder sets the details index. More...

- Public Member Functions inherited from panzer::DomainEvaluator
 DomainEvaluator (DomainType domain=ALL)
 Constructor. More...

virtual ~DomainEvaluator ()=default
 Default destructor. More...

void setDomain (const DomainType domain)
 Set the domain for the evaluator. More...

DomainType getDomain ()
 Get the domain for the evaluator. More...

virtual int cellStartIndex (const panzer::Workset &workset) const
 Returns the starting cell for the specified domain for a given workset. More...

virtual int cellEndIndex (const panzer::Workset &workset) const
 Returns the non-inclusive end cell for the specified domain for a given workset. More...


Private Types

using ScalarT = typename EvalT::ScalarT


Private Member Functions

template<typename ArrayT >
void initialize (const Teuchos::RCP< const panzer::PointRule > &pointRule, const Teuchos::Ptr< const ArrayT > &userArray, const Teuchos::RCP< const panzer::PureBasis > &pureBasis)
 Initialization method to unify the constructors. More...


Private Attributes

PointValues2< double > pointValues

PHX::MDField< double, NODE, Dim > refPointArray

bool useBasisValuesRefArray

Teuchos::RCP< const
panzer::PureBasis
basis

std::size_t basis_index


Additional Inherited Members

- Public Types inherited from panzer::DomainEvaluator
enum  DomainType : int {
  OWNED =0, GHOST =1, REAL =2, VIRTUAL =3,
  ALL =4
}
 Domain types supported by worksets. More...

- Protected Attributes inherited from panzer::EvaluatorWithBaseImpl< Traits >
WorksetDetailsAccessor wda


Detailed Description

template<typename EvalT, typename Traits>
class panzer::PointValues_Evaluator< EvalT, Traits >

Interpolates basis DOF values to IP DOF values.

Definition at line 56 of file Panzer_PointValues_Evaluator_decl.hpp.

Member Typedef Documentation

template<typename EvalT , typename Traits >
using panzer::PointValues_Evaluator< EvalT, Traits >::ScalarT = typename EvalT::ScalarT
private

Definition at line 77 of file Panzer_PointValues_Evaluator_decl.hpp.

Constructor & Destructor Documentation

template<typename EvalT , typename Traits >
panzer::PointValues_Evaluator< EvalT, Traits >::PointValues_Evaluator ( const Teuchos::ParameterList p)

Definition at line 56 of file Panzer_PointValues_Evaluator_impl.hpp.

template<typename EvalT , typename TRAITST >
panzer::PointValues_Evaluator< EvalT, TRAITST >::PointValues_Evaluator ( const Teuchos::RCP< const panzer::PointRule > &  pointRule,
const Kokkos::DynRankView< double, PHX::Device > &  userArray
)

Definition at line 71 of file Panzer_PointValues_Evaluator_impl.hpp.

template<typename EvalT , typename TRAITST >
panzer::PointValues_Evaluator< EvalT, TRAITST >::PointValues_Evaluator ( const Teuchos::RCP< const panzer::PointRule > &  pointRule,
const PHX::MDField< double, panzer::IP, panzer::Dim > &  userArray
)

Definition at line 81 of file Panzer_PointValues_Evaluator_impl.hpp.

template<typename EvalT , typename TRAITST >
panzer::PointValues_Evaluator< EvalT, TRAITST >::PointValues_Evaluator ( const Teuchos::RCP< const panzer::PointRule > &  pointRule,
const Teuchos::RCP< const panzer::PureBasis > &  pureBasis
)

This builds a point rule from the basis function reference points in the workset.

Definition at line 91 of file Panzer_PointValues_Evaluator_impl.hpp.

Member Function Documentation

template<typename EvalT , typename Traits >
void panzer::PointValues_Evaluator< EvalT, Traits >::postRegistrationSetup ( typename Traits::SetupData  d,
PHX::FieldManager< Traits > &  fm
)

Definition at line 150 of file Panzer_PointValues_Evaluator_impl.hpp.

template<typename EvalT , typename Traits >
void panzer::PointValues_Evaluator< EvalT, Traits >::evaluateFields ( typename Traits::EvalData  d)

Definition at line 175 of file Panzer_PointValues_Evaluator_impl.hpp.

template<typename EvalT , typename TRAITST >
template<typename ArrayT >
void panzer::PointValues_Evaluator< EvalT, TRAITST >::initialize ( const Teuchos::RCP< const panzer::PointRule > &  pointRule,
const Teuchos::Ptr< const ArrayT > &  userArray,
const Teuchos::RCP< const panzer::PureBasis > &  pureBasis
)
private

Initialization method to unify the constructors.

Definition at line 103 of file Panzer_PointValues_Evaluator_impl.hpp.

Member Data Documentation

template<typename EvalT , typename Traits >
PointValues2<double> panzer::PointValues_Evaluator< EvalT, Traits >::pointValues
private

Definition at line 80 of file Panzer_PointValues_Evaluator_decl.hpp.

template<typename EvalT , typename Traits >
PHX::MDField<double,NODE,Dim> panzer::PointValues_Evaluator< EvalT, Traits >::refPointArray
private

Definition at line 82 of file Panzer_PointValues_Evaluator_decl.hpp.

template<typename EvalT , typename Traits >
bool panzer::PointValues_Evaluator< EvalT, Traits >::useBasisValuesRefArray
private

Definition at line 84 of file Panzer_PointValues_Evaluator_decl.hpp.

template<typename EvalT , typename Traits >
Teuchos::RCP<const panzer::PureBasis> panzer::PointValues_Evaluator< EvalT, Traits >::basis
private

Definition at line 85 of file Panzer_PointValues_Evaluator_decl.hpp.

template<typename EvalT , typename Traits >
std::size_t panzer::PointValues_Evaluator< EvalT, Traits >::basis_index
private

Definition at line 86 of file Panzer_PointValues_Evaluator_decl.hpp.


The documentation for this class was generated from the following files:
