Computes $Ma(x)b(x)\cdots\int\nabla\times\vec{\phi}\cdot\vec{v}\, dx$ . More...

#include <Panzer_Integrator_CurlBasisDotVector.hpp>

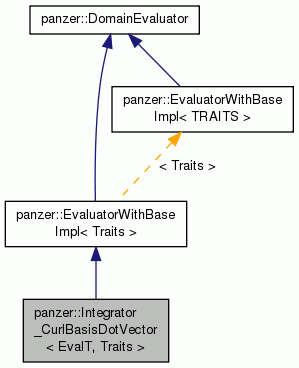

Inheritance diagram for panzer::Integrator_CurlBasisDotVector< EvalT, Traits >:

Public Member Functions
	Integrator_CurlBasisDotVector (const panzer::EvaluatorStyle &evalStyle, const std::string &resName, const std::string &valName, const panzer::BasisIRLayout &basis, const panzer::IntegrationRule &ir, const double &multiplier=1, const std::vector< std::string > &fmNames=std::vector< std::string >())
	Main Constructor. More...

	Integrator_CurlBasisDotVector (const Teuchos::ParameterList &p)
	`ParameterList` Constructor. More...

	Integrator_CurlBasisDotVector (const panzer::EvaluatorStyle &evalStyle, const PHX::FieldTag &resTag, const PHX::FieldTag &valTag, const panzer::BasisDescriptor &bd, const panzer::IntegrationDescriptor &id, const int &spaceDim=3, const double &multiplier=1, const std::vector< PHX::FieldTag > &multipliers=std::vector< PHX::FieldTag >())
	`FieldTag` Constructor. More...

void	postRegistrationSetup (typename Traits::SetupData sd, PHX::FieldManager< Traits > &fm)
	Post-Registration Setup. More...

void	evaluateFields (typename Traits::EvalData d)
	Evaluate Fields. More...

Public Member Functions inherited from panzer::EvaluatorWithBaseImpl< Traits >
void	setDetailsIndex (const int di)
	An evaluator builder sets the details index. More...

Public Member Functions inherited from panzer::DomainEvaluator
	DomainEvaluator (DomainType domain=ALL)
	Constructor. More...

virtual	~DomainEvaluator ()=default
	Default destructor. More...

void	setDomain (const DomainType domain)
	Set the domain for the evaluator. More...

DomainType	getDomain ()
	Get the domain for the evaluator. More...

virtual int	cellStartIndex (const panzer::Workset &workset) const
	Returns the starting cell for the specified domain for a given workset. More...

virtual int	cellEndIndex (const panzer::Workset &workset) const
	Returns the non-inclusive end cell for the specified domain for a given workset. More...

Private Types
using	ScalarT = typename EvalT::ScalarT
	The scalar type. More...

Private Member Functions
Teuchos::RCP < Teuchos::ParameterList >	getValidParameters () const
	Get Valid Parameters. More...

Private Attributes
const panzer::EvaluatorStyle	evalStyle_
	An `enum` determining the behavior of this `Evaluator`. More...

bool	useDescriptors_
	A flag indicating whether or not to use the descriptor interface. More...

panzer::BasisDescriptor	bd_
	The `BasisDescriptor` for the basis to use. More...

panzer::IntegrationDescriptor	id_
	The `IntegrationDescriptor` for the quadrature to use. More...

PHX::MDField< ScalarT, panzer::Cell, panzer::BASIS >	field_
	A field to which we'll contribute, or in which we'll store, the result of computing this integral. More...

PHX::MDField< const ScalarT, panzer::Cell, panzer::IP >	vector2D_
	A field representing the vector-valued function we're integrating ( $\vec{s}$ ) in a two-dimensional problem. More...

PHX::MDField< const ScalarT, panzer::Cell, panzer::IP, panzer::Dim >	vector3D_
	A field representing the vector-valued function we're integrating ( $\vec{s}$ ) in a three-dimensional problem. More...

double	multiplier_
	The scalar multiplier out in front of the integral ( ). More...

std::vector< PHX::MDField < const ScalarT, panzer::Cell, panzer::IP > >	fieldMults_
	The (possibly empty) list of fields that are multipliers out in front of the integral ( , , etc.). More...

Kokkos::View< Kokkos::View < const ScalarT *, typename PHX::DevLayout< ScalarT > ::type, PHX::Device > >	kokkosFieldMults_
	The `Kokkos::View` representation of the (possibly empty) list of fields that are multipliers out in front of the integral ( , , etc.). More...

std::string	basisName_
	The name of the basis we're using. More...

std::size_t	basisIndex_
	The index in the `Workset` bases for our particular `BasisIRLayout` name. More...

int	spaceDim_
	The spatial dimension of the vector-valued function we're integrating, either 2 or 3. More...

PHX::MDField< ScalarT, panzer::Cell, panzer::IP >	result2D_
	A field used to build up the result of this integral when working on a two-dimensional vector field. More...

PHX::MDField< ScalarT, panzer::Cell, panzer::IP, panzer::Dim >	result3D_
	A field used to build up the result of this integral when working on a three-dimensional vector field. More...

Additional Inherited Members
Public Types inherited from panzer::DomainEvaluator
enum	DomainType : int { OWNED =0, GHOST =1, REAL =2, VIRTUAL =3, ALL =4 }
	Domain types supported by worksets. More...

Protected Attributes inherited from panzer::EvaluatorWithBaseImpl< Traits >
WorksetDetailsAccessor	wda

Detailed Description

template<typename EvalT, typename Traits>
class panzer::Integrator_CurlBasisDotVector< EvalT, Traits >

Computes $Ma(x)b(x)\cdots\int\nabla\times\vec{\phi}\cdot\vec{v}\, dx$ .

Evaluates the integral

$Ma(x)b(x)\cdots\int\nabla\times\vec{\phi}\cdot\vec{v}\, dx,$

where $ M $ is some constant, $ a(x) $ , $ b(x) $ , etc., are some fields that depend on position, $\vec{v}$ is some vector-valued function, and $\vec{\phi}$ is some vector basis.

Note: The name can be misleading. In contrast to 3-D, the curl of a vector in 2-D is simply a scalar. This Evaluator handles both cases.

Definition at line 85 of file Panzer_Integrator_CurlBasisDotVector.hpp.

Member Typedef Documentation

template<typename EvalT , typename Traits >

using panzer::Integrator_CurlBasisDotVector< EvalT, Traits >::ScalarT = typename EvalT::ScalarT

private

The scalar type.

Definition at line 279 of file Panzer_Integrator_CurlBasisDotVector.hpp.

Constructor & Destructor Documentation

template<typename EvalT , typename Traits >

panzer::Integrator_CurlBasisDotVector< EvalT, Traits >::Integrator_CurlBasisDotVector	(	const panzer::EvaluatorStyle &	evalStyle,
		const std::string &	resName,
		const std::string &	valName,
		const panzer::BasisIRLayout &	basis,
		const panzer::IntegrationRule &	ir,
		const double &	multiplier = `1`,
		const std::vector< std::string > &	fmNames = `std::vector<std::string>()`
	)

Main Constructor.

Creates an Evaluator to evaluate the integral

$Ma(x)b(x)\cdots\int\nabla\times\vec{\phi}\cdot\vec{v}\, dx,$

where $ M $ is some constant, $ a(x) $ , $ b(x) $ , etc., are some fields that depend on position, $\vec{v}$ is some vector-valued function, and $\vec{\phi}$ is some vector basis.

Parameters

[in]	evalStyle	An `enum` declaring the behavior of this `Evaluator`, which is to either: compute and contribute (`CONTRIBUTES`), or compute and store (`EVALUATES`).
[in]	resName	The name of either the contributed or evaluated field, depending on `evalStyle`.
[in]	valName	The name of the vector value being integrated ( $\vec{s}$ ).
[in]	basis	The vector basis that you'd like to use ( $\vec{\phi}$ ).
[in]	ir	The integration rule that you'd like to use.
[in]	multiplier	The scalar multiplier out in front of the integral you're computing ( ). If not specified, this defaults to 1.
[in]	fmNames	A list of names of fields that are multipliers out in front of the integral you're computing ( , , etc.). If not specified, this defaults to an empty `vector`.

Exceptions

std::invalid_argument	If any of the inputs are invalid.
std::logic_error	If the `basis` supplied is not a vector basis, or if it doesn't require orientations.

Definition at line 73 of file Panzer_Integrator_CurlBasisDotVector_impl.hpp.

template<typename EvalT , typename Traits >

panzer::Integrator_CurlBasisDotVector< EvalT, Traits >::Integrator_CurlBasisDotVector ( const Teuchos::ParameterList & p )

ParameterList Constructor.

Creates an Evaluator to evaluate the integral

$Ma(x)b(x)\cdots\int\nabla\times\vec{\phi}\cdot\vec{v}\, dx,$

where $ M $ is some constant, $ a(x) $ , $ b(x) $ , etc., are some fields that depend on position, $\vec{s}$ is some vector-valued function, and $\vec{\phi}$ is some vector basis.

Note: This constructor exists to preserve the older way of creating an Evaluator with a ParameterList; however, it is strongly advised that you not use this ParameterList Constructor, but rather that you favor the Main Constructor with its compile-time argument checking instead.

Parameters

[in]

p

A ParameterList of the form

<ParameterList>
  <Parameter name = "Residual Name"     type = "std::string"                         value = (required)    />
  <Parameter name = "Value Name"        type = "std::string"                         value = (required)    />
  <Parameter name = "Basis"             type = "RCP<panzer::BasisIRLayout>"          value = (required)    />
  <Parameter name = "IR"                type = "RCP<panzer::IntegrationRule>"        value = (required)    />
  <Parameter name = "Multiplier"        type = "double"                              value = (required)    />
  <Parameter name = "Field Multipliers" type = "RCP<const std::vector<std::string>>" value = null (default)/>
</ParameterList>

where

"Residual Name" is the name for the term this Evaluator is evaluating,
"Value Name" is the name of the vector value being integrated ( $\vec{s}$ ),
"Basis" is the vector basis that you'd like to use ( $\vec{\phi}$ ),
"IR" is the integration rule that you'd like to use,
"Multiplier" is the scalar multiplier out in front of the integral you're computing ( ), and
"Field Multipliers" is an optional list of names of fields that are multipliers out in front of the integral you're computing ( , , etc.).

Definition at line 174 of file Panzer_Integrator_CurlBasisDotVector_impl.hpp.

template<typename EvalT , typename TRAITS >

panzer::Integrator_CurlBasisDotVector< EvalT, TRAITS >::Integrator_CurlBasisDotVector	(	const panzer::EvaluatorStyle &	evalStyle,
		const PHX::FieldTag &	resTag,
		const PHX::FieldTag &	valTag,
		const panzer::BasisDescriptor &	bd,
		const panzer::IntegrationDescriptor &	id,
		const int &	spaceDim = `3`,
		const double &	multiplier = `1`,
		const std::vector< PHX::FieldTag > &	multipliers = `std::vector<PHX::FieldTag>()`
	)

FieldTag Constructor.

Creates an Evaluator to evaluate the integral

$Ma(x)b(x)\cdots\int\nabla\times\vec{\phi}\cdot\vec{v}\, dx,$

where $ M $ is some constant, $ a(x) $ , $ b(x) $ , etc., are some fields that depend on position, $\vec{s}$ is some vector-valued function, and $\vec{\phi}$ is some vector basis.

Parameters

[in]	evalStyle	An `enum` declaring the behavior of this `Evaluator`, which is to either: compute and contribute (`CONTRIBUTES`), or compute and store (`EVALUATES`).
[in]	resTag	The tag of either the contributed or evaluated field, depending on `evalStyle`.
[in]	valTag	The tag of the vector value being integrated ( $\vec{s}$ ).
[in]	bd	The vector basis descriptor that you'd like to use ( $\vec{\phi}$ ).
[in]	id	The integration descriptor that you'd like to use.
[in]	spaceDim	The spatial dimensionality of the problem. If not specified, this defaults to 3.
[in]	multiplier	The scalar multiplier out in front of the integral you're computing ( ). If not specified, this defaults to 1.
[in]	multipliers	A list of tags of fields that are multipliers out in front of the integral you're computing ( , , etc.). If not specified, this defaults to an empty `vector`.

Exceptions

std::invalid_argument	If any of the inputs are invalid.
std::logic_error	If the `basis` supplied is not a vector basis, or if it doesn't require orientations.

Definition at line 204 of file Panzer_Integrator_CurlBasisDotVector_impl.hpp.

Member Function Documentation

template<typename EvalT , typename Traits >

void panzer::Integrator_CurlBasisDotVector< EvalT, Traits >::postRegistrationSetup	(	typename Traits::SetupData	sd,
		PHX::FieldManager< Traits > &	fm
	)

Post-Registration Setup.

Sets the Kokkos::Views for all of the field multipliers, sets the basis index, and sets up the field that will be used to build up the result of the integration.

Parameters

[in]	sd	Essentially a list of `Workset`s, which are collections of cells (elements) that all live on a single process.
[in]	fm	The `FieldManager` used to create the field to build up the result.

Definition at line 285 of file Panzer_Integrator_CurlBasisDotVector_impl.hpp.

template<typename EvalT , typename Traits >

void panzer::Integrator_CurlBasisDotVector< EvalT, Traits >::evaluateFields ( typename Traits::EvalData d )

Evaluate Fields.

This actually performs the integration using a handful of functors in Kokkos::parallel_fors, looping over the cells in the Workset.

Parameters

[in] workset The Workset on which you're going to do the integration.

Definition at line 688 of file Panzer_Integrator_CurlBasisDotVector_impl.hpp.

template<typename EvalT , typename TRAITS >

Teuchos::RCP< Teuchos::ParameterList > panzer::Integrator_CurlBasisDotVector< EvalT, TRAITS >::getValidParameters ( ) const

private

Get Valid Parameters.

Get all the parameters that we support such that the ParameterList Constructor can do some validation of the input ParameterList.

Returns: A ParameterList with all the valid parameters (keys) in it. The values tied to those keys are meaningless default values.

Definition at line 782 of file Panzer_Integrator_CurlBasisDotVector_impl.hpp.

Member Data Documentation

template<typename EvalT , typename Traits >

const panzer::EvaluatorStyle panzer::Integrator_CurlBasisDotVector< EvalT, Traits >::evalStyle_

private

An enum determining the behavior of this Evaluator.

This Evaluator will compute the result of its integration and then:

CONTRIBUTES: contribute it to a specified residual, not saving anything; or
EVALUATES: save it under a specified name for future use.

Definition at line 289 of file Panzer_Integrator_CurlBasisDotVector.hpp.

template<typename EvalT , typename Traits >

bool panzer::Integrator_CurlBasisDotVector< EvalT, Traits >::useDescriptors_

private

A flag indicating whether or not to use the descriptor interface.

Definition at line 295 of file Panzer_Integrator_CurlBasisDotVector.hpp.

template<typename EvalT , typename Traits >

panzer::BasisDescriptor panzer::Integrator_CurlBasisDotVector< EvalT, Traits >::bd_

private

The BasisDescriptor for the basis to use.

Definition at line 300 of file Panzer_Integrator_CurlBasisDotVector.hpp.

template<typename EvalT , typename Traits >

panzer::IntegrationDescriptor panzer::Integrator_CurlBasisDotVector< EvalT, Traits >::id_

private

The IntegrationDescriptor for the quadrature to use.

Definition at line 305 of file Panzer_Integrator_CurlBasisDotVector.hpp.

template<typename EvalT , typename Traits >

PHX::MDField<ScalarT, panzer::Cell, panzer::BASIS> panzer::Integrator_CurlBasisDotVector< EvalT, Traits >::field_

private

A field to which we'll contribute, or in which we'll store, the result of computing this integral.

Definition at line 311 of file Panzer_Integrator_CurlBasisDotVector.hpp.

template<typename EvalT , typename Traits >

PHX::MDField<const ScalarT, panzer::Cell, panzer::IP> panzer::Integrator_CurlBasisDotVector< EvalT, Traits >::vector2D_

private

A field representing the vector-valued function we're integrating ( $\vec{s}$ ) in a two-dimensional problem.

Definition at line 317 of file Panzer_Integrator_CurlBasisDotVector.hpp.

template<typename EvalT , typename Traits >

PHX::MDField<const ScalarT, panzer::Cell, panzer::IP, panzer::Dim> panzer::Integrator_CurlBasisDotVector< EvalT, Traits >::vector3D_

private

A field representing the vector-valued function we're integrating ( $\vec{s}$ ) in a three-dimensional problem.

Definition at line 324 of file Panzer_Integrator_CurlBasisDotVector.hpp.

template<typename EvalT , typename Traits >

double panzer::Integrator_CurlBasisDotVector< EvalT, Traits >::multiplier_

private

The scalar multiplier out in front of the integral ( $ M $ ).

Definition at line 330 of file Panzer_Integrator_CurlBasisDotVector.hpp.

template<typename EvalT , typename Traits >

std::vector<PHX::MDField<const ScalarT, panzer::Cell, panzer::IP> > panzer::Integrator_CurlBasisDotVector< EvalT, Traits >::fieldMults_

private

The (possibly empty) list of fields that are multipliers out in front of the integral ( $ a(x) $ , $ b(x) $ , etc.).

Definition at line 337 of file Panzer_Integrator_CurlBasisDotVector.hpp.

template<typename EvalT , typename Traits >

Kokkos::View<Kokkos::View<const ScalarT**,typename PHX::DevLayout<ScalarT>::type,PHX::Device>*> panzer::Integrator_CurlBasisDotVector< EvalT, Traits >::kokkosFieldMults_

private

The Kokkos::View representation of the (possibly empty) list of fields that are multipliers out in front of the integral ( $ a(x) $ , $ b(x) $ , etc.).

Definition at line 344 of file Panzer_Integrator_CurlBasisDotVector.hpp.

template<typename EvalT , typename Traits >

std::string panzer::Integrator_CurlBasisDotVector< EvalT, Traits >::basisName_

private

The name of the basis we're using.

Definition at line 349 of file Panzer_Integrator_CurlBasisDotVector.hpp.

template<typename EvalT , typename Traits >

std::size_t panzer::Integrator_CurlBasisDotVector< EvalT, Traits >::basisIndex_

private

The index in the Workset bases for our particular BasisIRLayout name.

Definition at line 355 of file Panzer_Integrator_CurlBasisDotVector.hpp.

template<typename EvalT , typename Traits >

int panzer::Integrator_CurlBasisDotVector< EvalT, Traits >::spaceDim_

private

The spatial dimension of the vector-valued function we're integrating, either 2 or 3.

Definition at line 361 of file Panzer_Integrator_CurlBasisDotVector.hpp.

template<typename EvalT , typename Traits >

PHX::MDField<ScalarT, panzer::Cell, panzer::IP> panzer::Integrator_CurlBasisDotVector< EvalT, Traits >::result2D_

private

A field used to build up the result of this integral when working on a two-dimensional vector field.

Definition at line 367 of file Panzer_Integrator_CurlBasisDotVector.hpp.

template<typename EvalT , typename Traits >

PHX::MDField<ScalarT, panzer::Cell, panzer::IP, panzer::Dim> panzer::Integrator_CurlBasisDotVector< EvalT, Traits >::result3D_

private

A field used to build up the result of this integral when working on a three-dimensional vector field.

Definition at line 373 of file Panzer_Integrator_CurlBasisDotVector.hpp.

The documentation for this class was generated from the following files:

Public Member Functions

Private Types

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

template<typename EvalT, typename Traits> class panzer::Integrator_CurlBasisDotVector< EvalT, Traits >

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

template<typename EvalT, typename Traits>
class panzer::Integrator_CurlBasisDotVector< EvalT, Traits >
