Computes $Ma(x)b(x)\cdots\int s(x)\phi(x)\,dx$ . More...

#include <Panzer_Integrator_BasisTimesScalar.hpp>

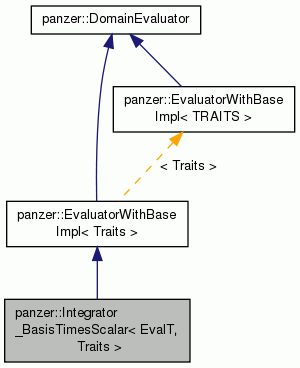

Inheritance diagram for panzer::Integrator_BasisTimesScalar< EvalT, Traits >:

Classes
struct	FieldMultTag
	This empty struct allows us to optimize `operator()()` depending on the number of field multipliers. More...

Public Member Functions
	Integrator_BasisTimesScalar (const panzer::EvaluatorStyle &evalStyle, const std::string &resName, const std::string &valName, const panzer::BasisIRLayout &basis, const panzer::IntegrationRule &ir, const double &multiplier=1, const std::vector< std::string > &fmNames=std::vector< std::string >())
	Main Constructor. More...

	Integrator_BasisTimesScalar (const Teuchos::ParameterList &p)
	`ParameterList` Constructor. More...

void	postRegistrationSetup (typename Traits::SetupData sd, PHX::FieldManager< Traits > &fm)
	Post-Registration Setup. More...

void	evaluateFields (typename Traits::EvalData workset)
	Evaluate Fields. More...

template<int NUM_FIELD_MULT>
void	operator() (const FieldMultTag< NUM_FIELD_MULT > &tag, const std::size_t &cell) const
	Perform the integration. More...

template<int NUM_FIELD_MULT>
KOKKOS_INLINE_FUNCTION void	operator() (const FieldMultTag< NUM_FIELD_MULT > &, const size_t &cell) const

Public Member Functions inherited from panzer::EvaluatorWithBaseImpl< Traits >
void	setDetailsIndex (const int di)
	An evaluator builder sets the details index. More...

Public Member Functions inherited from panzer::DomainEvaluator
	DomainEvaluator (DomainType domain=ALL)
	Constructor. More...

virtual	~DomainEvaluator ()=default
	Default destructor. More...

void	setDomain (const DomainType domain)
	Set the domain for the evaluator. More...

DomainType	getDomain ()
	Get the domain for the evaluator. More...

virtual int	cellStartIndex (const panzer::Workset &workset) const
	Returns the starting cell for the specified domain for a given workset. More...

virtual int	cellEndIndex (const panzer::Workset &workset) const
	Returns the non-inclusive end cell for the specified domain for a given workset. More...

Private Types
using	ScalarT = typename EvalT::ScalarT
	The scalar type. More...

Private Member Functions
Teuchos::RCP < Teuchos::ParameterList >	getValidParameters () const
	Get Valid Parameters. More...

Private Attributes
const panzer::EvaluatorStyle	evalStyle_
	An `enum` determining the behavior of this `Evaluator`. More...

PHX::MDField< ScalarT, panzer::Cell, panzer::BASIS >	field_
	A field to which we'll contribute, or in which we'll store, the result of computing this integral. More...

PHX::MDField< const ScalarT, panzer::Cell, panzer::IP >	scalar_
	A field representing the scalar function we're integrating ( ). More...

double	multiplier_
	The scalar multiplier out in front of the integral ( ). More...

std::vector< PHX::MDField < const ScalarT, panzer::Cell, panzer::IP > >	fieldMults_
	The (possibly empty) list of fields that are multipliers out in front of the integral ( , , etc.). More...

Kokkos::View< Kokkos::View < const ScalarT *, typename PHX::DevLayout< ScalarT > ::type, PHX::Device > >	kokkosFieldMults_
	The `Kokkos::View` representation of the (possibly empty) list of fields that are multipliers out in front of the integral ( , , etc.). More...

int	numQP_
	The number of quadrature points for each cell. More...

std::string	basisName_
	The name of the basis we're using. More...

std::size_t	basisIndex_
	The index in the `Workset` bases for our particular `BasisIRLayout` name. More...

PHX::MDField< double, panzer::Cell, panzer::BASIS, panzer::IP >	basis_
	The scalar basis information necessary for integration. More...

Additional Inherited Members
Public Types inherited from panzer::DomainEvaluator
enum	DomainType : int { OWNED =0, GHOST =1, REAL =2, VIRTUAL =3, ALL =4 }
	Domain types supported by worksets. More...

Protected Attributes inherited from panzer::EvaluatorWithBaseImpl< Traits >
WorksetDetailsAccessor	wda

Detailed Description

template<typename EvalT, typename Traits>
class panzer::Integrator_BasisTimesScalar< EvalT, Traits >

Computes $Ma(x)b(x)\cdots\int s(x)\phi(x)\,dx$ .

Evaluates the integral

$Ma(x)b(x)\cdots\int s(x)\phi(x)\,dx,$

where $ M $ is some constant, $ a(x) $ , $ b(x) $ , etc., are some fields that depend on position, $ s $ is some scalar function, and $\phi$ is some scalar basis.

Definition at line 80 of file Panzer_Integrator_BasisTimesScalar.hpp.

Member Typedef Documentation

template<typename EvalT , typename Traits >

using panzer::Integrator_BasisTimesScalar< EvalT, Traits >::ScalarT = typename EvalT::ScalarT

private

The scalar type.

Definition at line 253 of file Panzer_Integrator_BasisTimesScalar.hpp.

Constructor & Destructor Documentation

template<typename EvalT , typename Traits >

panzer::Integrator_BasisTimesScalar< EvalT, Traits >::Integrator_BasisTimesScalar	(	const panzer::EvaluatorStyle &	evalStyle,
		const std::string &	resName,
		const std::string &	valName,
		const panzer::BasisIRLayout &	basis,
		const panzer::IntegrationRule &	ir,
		const double &	multiplier = `1`,
		const std::vector< std::string > &	fmNames = `std::vector<std::string>()`
	)

Main Constructor.

Creates an Evaluator to evaluate the integral

$Ma(x)b(x)\cdots\int s(x)\phi(x)\,dx,$

where $ M $ is some constant, $ a(x) $ , $ b(x) $ , etc., are some fields that depend on position, $ s $ is some scalar function, and $\phi$ is some scalar basis.

Parameters

[in]	evalStyle	An `enum` declaring the behavior of this `Evaluator`, which is to either: compute and contribute (`CONTRIBUTES`), or compute and store (`EVALUATES`).
[in]	resName	The name of either the contributed or evaluated field, depending on `evalStyle`.
[in]	valName	The name of the scalar value being integrated ( ).
[in]	basis	The scalar basis that you'd like to use ( $\phi$ ).
[in]	ir	The integration rule that you'd like to use.
[in]	multiplier	The scalar multiplier out in front of the integral you're computing ( ). If not specified, this defaults to 1.
[in]	fmNames	A list of names of fields that are multipliers out in front of the integral you're computing ( , , etc.). If not specified, this defaults to an empty `vector`.

Exceptions

std::invalid_argument	If any of the inputs are invalid.
std::logic_error	If the `basis` supplied is not a scalar basis.

Definition at line 66 of file Panzer_Integrator_BasisTimesScalar_impl.hpp.

template<typename EvalT , typename Traits >

panzer::Integrator_BasisTimesScalar< EvalT, Traits >::Integrator_BasisTimesScalar ( const Teuchos::ParameterList & p )

ParameterList Constructor.

Creates an Evaluator to evaluate the integral

$Ma(x)b(x)\cdots\int s(x)\phi(x)\,dx,$

where $ M $ is some constant, $ a(x) $ , $ b(x) $ , etc., are some fields that depend on position, $ s $ is some scalar function, and $\phi$ is some scalar basis.

Note: This constructor exists to preserve the older way of creating an Evaluator with a ParameterList; however, it is strongly advised that you not use this ParameterList Constructor, but rather that you favor the Main Constructor with its compile-time argument checking instead.

Parameters

[in]

p

A ParameterList of the form

<ParameterList>
  <Parameter name = "Residual Name"     type = "std::string"                         value = (required)    />
  <Parameter name = "Value Name"        type = "std::string"                         value = (required)    />
  <Parameter name = "Basis"             type = "RCP<panzer::BasisIRLayout>"          value = (required)    />
  <Parameter name = "IR"                type = "RCP<panzer::IntegrationRule>"        value = (required)    />
  <Parameter name = "Multiplier"        type = "double"                              value = (required)    />
  <Parameter name = "Field Multipliers" type = "RCP<const std::vector<std::string>>" value = null (default)/>
</ParameterList>

where

"Residual Name" is the name for the term this Evaluator is evaluating,
"Value Name" is the name of the scalar value being integrated ( ),
"Basis" is the scalar basis that you'd like to use ( $\phi$ ),
"IR" is the integration rule that you'd like to use,
"Multiplier" is the scalar multiplier out in front of the integral you're computing ( ), and
"Field Multipliers" is an optional list of names of fields that are multipliers out in front of the integral you're computing ( , , etc.).

Definition at line 143 of file Panzer_Integrator_BasisTimesScalar_impl.hpp.

Member Function Documentation

template<typename EvalT , typename Traits >

void panzer::Integrator_BasisTimesScalar< EvalT, Traits >::postRegistrationSetup	(	typename Traits::SetupData	sd,
		PHX::FieldManager< Traits > &	fm
	)

Post-Registration Setup.

Get the Kokkos::Views of the field multipliers, and determine the index in the Workset bases for our particular basis name.

Parameters

[in]	sd	Essentially a list of `Workset`s, which are collections of cells (elements) that all live on a single process.
[in]	fm	This is unused, though part of the interface.

Definition at line 174 of file Panzer_Integrator_BasisTimesScalar_impl.hpp.

template<typename EvalT , typename Traits >

void panzer::Integrator_BasisTimesScalar< EvalT, Traits >::evaluateFields ( typename Traits::EvalData workset )

Evaluate Fields.

This actually performs the integration by calling operator()() in a Kokkos::parallel_for over the cells in the Workset.

Parameters

[in] workset The Workset on which you're going to do the integration.

Definition at line 265 of file Panzer_Integrator_BasisTimesScalar_impl.hpp.

template<typename EvalT , typename Traits >

template<int NUM_FIELD_MULT>

void panzer::Integrator_BasisTimesScalar< EvalT, Traits >::operator()	(	const FieldMultTag< NUM_FIELD_MULT > &	tag,
		const std::size_t &	cell
	)		const

Perform the integration.

Generally speaking, for a given cell in the Workset, this routine loops over quadrature points and bases to perform the integration, scaling the vector field to be integrated by the multiplier ( $ M $ ) and any field multipliers ( $ a(x) $ , $ b(x) $ , etc.).

Note: Optimizations are made for the cases in which we have no field multipliers or only a single one.

Parameters

[in]	tag	An indication of the number of field multipliers we have; either 0, 1, or something else.
[in]	cell	The cell in the `Workset` over which to integrate.

template<typename EvalT , typename TRAITS >

Teuchos::RCP< Teuchos::ParameterList > panzer::Integrator_BasisTimesScalar< EvalT, TRAITS >::getValidParameters ( ) const

private

Get Valid Parameters.

Get all the parameters that we support such that the ParameterList Constructor can do some validation of the input ParameterList.

Returns: A ParameterList with all the valid parameters (keys) in it. The values tied to those keys are meaningless default values.

Definition at line 293 of file Panzer_Integrator_BasisTimesScalar_impl.hpp.

template<typename EvalT , typename Traits >

template<int NUM_FIELD_MULT>

KOKKOS_INLINE_FUNCTION void panzer::Integrator_BasisTimesScalar< EvalT, Traits >::operator()	(	const FieldMultTag< NUM_FIELD_MULT > &	,
		const size_t &	cell
	)		const

Definition at line 199 of file Panzer_Integrator_BasisTimesScalar_impl.hpp.

Member Data Documentation

template<typename EvalT , typename Traits >

const panzer::EvaluatorStyle panzer::Integrator_BasisTimesScalar< EvalT, Traits >::evalStyle_

private

An enum determining the behavior of this Evaluator.

This Evaluator will compute the result of its integration and then:

CONTRIBUTES: contribute it to a specified residual, not saving anything; or
EVALUATES: save it under a specified name for future use.

Definition at line 263 of file Panzer_Integrator_BasisTimesScalar.hpp.

template<typename EvalT , typename Traits >

PHX::MDField<ScalarT, panzer::Cell, panzer::BASIS> panzer::Integrator_BasisTimesScalar< EvalT, Traits >::field_

private

A field to which we'll contribute, or in which we'll store, the result of computing this integral.

Definition at line 269 of file Panzer_Integrator_BasisTimesScalar.hpp.

template<typename EvalT , typename Traits >

PHX::MDField<const ScalarT, panzer::Cell, panzer::IP> panzer::Integrator_BasisTimesScalar< EvalT, Traits >::scalar_

private

A field representing the scalar function we're integrating ( $ s $ ).

Definition at line 275 of file Panzer_Integrator_BasisTimesScalar.hpp.

template<typename EvalT , typename Traits >

double panzer::Integrator_BasisTimesScalar< EvalT, Traits >::multiplier_

private

The scalar multiplier out in front of the integral ( $ M $ ).

Definition at line 281 of file Panzer_Integrator_BasisTimesScalar.hpp.

template<typename EvalT , typename Traits >

std::vector<PHX::MDField<const ScalarT, panzer::Cell, panzer::IP> > panzer::Integrator_BasisTimesScalar< EvalT, Traits >::fieldMults_

private

The (possibly empty) list of fields that are multipliers out in front of the integral ( $ a(x) $ , $ b(x) $ , etc.).

Definition at line 288 of file Panzer_Integrator_BasisTimesScalar.hpp.

template<typename EvalT , typename Traits >

Kokkos::View<Kokkos::View<const ScalarT**, typename PHX::DevLayout<ScalarT>::type, PHX::Device>*> panzer::Integrator_BasisTimesScalar< EvalT, Traits >::kokkosFieldMults_

private

The Kokkos::View representation of the (possibly empty) list of fields that are multipliers out in front of the integral ( $ a(x) $ , $ b(x) $ , etc.).

Definition at line 296 of file Panzer_Integrator_BasisTimesScalar.hpp.

template<typename EvalT , typename Traits >

int panzer::Integrator_BasisTimesScalar< EvalT, Traits >::numQP_

private

The number of quadrature points for each cell.

Definition at line 301 of file Panzer_Integrator_BasisTimesScalar.hpp.

template<typename EvalT , typename Traits >

std::string panzer::Integrator_BasisTimesScalar< EvalT, Traits >::basisName_

private

The name of the basis we're using.

Definition at line 306 of file Panzer_Integrator_BasisTimesScalar.hpp.

template<typename EvalT , typename Traits >
