Gathers tangent vectors dx/dp for computing df/dx*dx/dp + df/dp into the nodal fields of the field manager. More...

#include <Panzer_GatherTangent_Tpetra_decl.hpp>

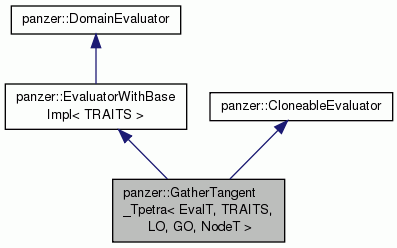

Inheritance diagram for panzer::GatherTangent_Tpetra< EvalT, TRAITS, LO, GO, NodeT >:

Public Member Functions
	GatherTangent_Tpetra (const Teuchos::RCP< const panzer::UniqueGlobalIndexer< LO, GO > > &indexer)

	GatherTangent_Tpetra (const Teuchos::RCP< const panzer::UniqueGlobalIndexer< LO, GO > > &indexer, const Teuchos::ParameterList &p)

void	postRegistrationSetup (typename TRAITS::SetupData d, PHX::FieldManager< TRAITS > &vm)

void	preEvaluate (typename TRAITS::PreEvalData d)

void	evaluateFields (typename TRAITS::EvalData d)

virtual Teuchos::RCP < CloneableEvaluator >	clone (const Teuchos::ParameterList &pl) const

const PHX::FieldTag &	getFieldTag (int i) const

Public Member Functions inherited from panzer::EvaluatorWithBaseImpl< TRAITS >
void	setDetailsIndex (const int di)
	An evaluator builder sets the details index. More...

Public Member Functions inherited from panzer::DomainEvaluator
	DomainEvaluator (DomainType domain=ALL)
	Constructor. More...

virtual	~DomainEvaluator ()=default
	Default destructor. More...

void	setDomain (const DomainType domain)
	Set the domain for the evaluator. More...

DomainType	getDomain ()
	Get the domain for the evaluator. More...

virtual int	cellStartIndex (const panzer::Workset &workset) const
	Returns the starting cell for the specified domain for a given workset. More...

virtual int	cellEndIndex (const panzer::Workset &workset) const
	Returns the non-inclusive end cell for the specified domain for a given workset. More...

Public Member Functions inherited from panzer::CloneableEvaluator
	CloneableEvaluator ()

virtual	~CloneableEvaluator ()

Private Types
typedef panzer::Traits::RealType	ScalarT

Private Member Functions
	GatherTangent_Tpetra ()

Private Attributes
Teuchos::RCP< const panzer::UniqueGlobalIndexer < LO, GO > >	globalIndexer_

std::vector< int >	fieldIds_

std::vector< PHX::MDField < ScalarT, Cell, NODE > >	gatherFields_

Teuchos::RCP< std::vector < std::string > >	indexerNames_

bool	useTimeDerivativeSolutionVector_

std::string	globalDataKey_

Teuchos::RCP< const TpetraLinearObjContainer < double, LO, GO, NodeT > >	tpetraContainer_

Additional Inherited Members
Public Types inherited from panzer::DomainEvaluator
enum	DomainType : int { OWNED =0, GHOST =1, REAL =2, VIRTUAL =3, ALL =4 }
	Domain types supported by worksets. More...

Protected Attributes inherited from panzer::EvaluatorWithBaseImpl< TRAITS >
WorksetDetailsAccessor	wda

Detailed Description

template<typename EvalT, typename TRAITS, typename LO, typename GO, typename NodeT = panzer::TpetraNodeType>
class panzer::GatherTangent_Tpetra< EvalT, TRAITS, LO, GO, NodeT >

Gathers tangent vectors dx/dp for computing df/dx*dx/dp + df/dp into the nodal fields of the field manager.

This evaluator is very similar to GatherSolution, however it always gathers into fields of type double, and it is a no-op if the global evaluation data container does not exist (which is an error for GatherSolution).

Currently makes an assumption that the stride is constant for dofs and that the nmber of dofs is equal to the size of the solution names vector.

Definition at line 79 of file Panzer_GatherTangent_Tpetra_decl.hpp.

Member Typedef Documentation

template<typename EvalT , typename TRAITS , typename LO , typename GO , typename NodeT = panzer::TpetraNodeType>

typedef panzer::Traits::RealType panzer::GatherTangent_Tpetra< EvalT, TRAITS, LO, GO, NodeT >::ScalarT

private

Definition at line 108 of file Panzer_GatherTangent_Tpetra_decl.hpp.

Constructor & Destructor Documentation

template<typename EvalT , typename TRAITS , typename LO , typename GO , typename NodeT = panzer::TpetraNodeType>

panzer::GatherTangent_Tpetra< EvalT, TRAITS, LO, GO, NodeT >::GatherTangent_Tpetra ( const Teuchos::RCP< const panzer::UniqueGlobalIndexer< LO, GO > > & indexer )

inline

Definition at line 85 of file Panzer_GatherTangent_Tpetra_decl.hpp.

template<typename EvalT , typename TRAITS , typename LO , typename GO , typename NodeT >

panzer::GatherTangent_Tpetra< EvalT, TRAITS, LO, GO, NodeT >::GatherTangent_Tpetra	(	const Teuchos::RCP< const panzer::UniqueGlobalIndexer< LO, GO > > &	indexer,
		const Teuchos::ParameterList &	p
	)

Definition at line 62 of file Panzer_GatherTangent_Tpetra_impl.hpp.

template<typename EvalT , typename TRAITS , typename LO , typename GO , typename NodeT = panzer::TpetraNodeType>

panzer::GatherTangent_Tpetra< EvalT, TRAITS, LO, GO, NodeT >::GatherTangent_Tpetra ( )

private

Member Function Documentation

template<typename EvalT , typename TRAITS , typename LO , typename GO , typename NodeT >

void panzer::GatherTangent_Tpetra< EvalT, TRAITS, LO, GO, NodeT >::postRegistrationSetup	(	typename TRAITS::SetupData	d,
		PHX::FieldManager< TRAITS > &	vm
	)

Definition at line 100 of file Panzer_GatherTangent_Tpetra_impl.hpp.

template<typename EvalT , typename TRAITS , typename LO , typename GO , typename NodeT >

void panzer::GatherTangent_Tpetra< EvalT, TRAITS, LO, GO, NodeT >::preEvaluate ( typename TRAITS::PreEvalData d )

Definition at line 118 of file Panzer_GatherTangent_Tpetra_impl.hpp.

template<typename EvalT , typename TRAITS , typename LO , typename GO , typename NodeT >

void panzer::GatherTangent_Tpetra< EvalT, TRAITS, LO, GO, NodeT >::evaluateFields ( typename TRAITS::EvalData d )

Definition at line 145 of file Panzer_GatherTangent_Tpetra_impl.hpp.

template<typename EvalT , typename TRAITS , typename LO , typename GO , typename NodeT = panzer::TpetraNodeType>

virtual Teuchos::RCP<CloneableEvaluator> panzer::GatherTangent_Tpetra< EvalT, TRAITS, LO, GO, NodeT >::clone ( const Teuchos::ParameterList & pl ) const

inlinevirtual

Implements panzer::CloneableEvaluator.

Definition at line 98 of file Panzer_GatherTangent_Tpetra_decl.hpp.

template<typename EvalT , typename TRAITS , typename LO , typename GO , typename NodeT = panzer::TpetraNodeType>

const PHX::FieldTag& panzer::GatherTangent_Tpetra< EvalT, TRAITS, LO, GO, NodeT >::getFieldTag ( int i ) const

inline

Definition at line 102 of file Panzer_GatherTangent_Tpetra_decl.hpp.

Member Data Documentation

template<typename EvalT , typename TRAITS , typename LO , typename GO , typename NodeT = panzer::TpetraNodeType>

Teuchos::RCP<const panzer::UniqueGlobalIndexer<LO,GO> > panzer::GatherTangent_Tpetra< EvalT, TRAITS, LO, GO, NodeT >::globalIndexer_

private

Definition at line 113 of file Panzer_GatherTangent_Tpetra_decl.hpp.

template<typename EvalT , typename TRAITS , typename LO , typename GO , typename NodeT = panzer::TpetraNodeType>

std::vector<int> panzer::GatherTangent_Tpetra< EvalT, TRAITS, LO, GO, NodeT >::fieldIds_

private

Definition at line 114 of file Panzer_GatherTangent_Tpetra_decl.hpp.

template<typename EvalT , typename TRAITS , typename LO , typename GO , typename NodeT = panzer::TpetraNodeType>

std::vector< PHX::MDField<ScalarT,Cell,NODE> > panzer::GatherTangent_Tpetra< EvalT, TRAITS, LO, GO, NodeT >::gatherFields_

private

Definition at line 116 of file Panzer_GatherTangent_Tpetra_decl.hpp.

template<typename EvalT , typename TRAITS , typename LO , typename GO , typename NodeT = panzer::TpetraNodeType>

Teuchos::RCP<std::vector<std::string> > panzer::GatherTangent_Tpetra< EvalT, TRAITS, LO, GO, NodeT >::indexerNames_

private

Definition at line 118 of file Panzer_GatherTangent_Tpetra_decl.hpp.

template<typename EvalT , typename TRAITS , typename LO , typename GO , typename NodeT = panzer::TpetraNodeType>

bool panzer::GatherTangent_Tpetra< EvalT, TRAITS, LO, GO, NodeT >::useTimeDerivativeSolutionVector_

private

Definition at line 119 of file Panzer_GatherTangent_Tpetra_decl.hpp.

template<typename EvalT , typename TRAITS , typename LO , typename GO , typename NodeT = panzer::TpetraNodeType>

std::string panzer::GatherTangent_Tpetra< EvalT, TRAITS, LO, GO, NodeT >::globalDataKey_

private

Definition at line 120 of file Panzer_GatherTangent_Tpetra_decl.hpp.

template<typename EvalT , typename TRAITS , typename LO , typename GO , typename NodeT = panzer::TpetraNodeType>

Teuchos::RCP<const TpetraLinearObjContainer<double,LO,GO,NodeT> > panzer::GatherTangent_Tpetra< EvalT, TRAITS, LO, GO, NodeT >::tpetraContainer_

private

Definition at line 122 of file Panzer_GatherTangent_Tpetra_decl.hpp.

The documentation for this class was generated from the following files:
