#include <Panzer_STK_ModelEvaluatorFactory.hpp>

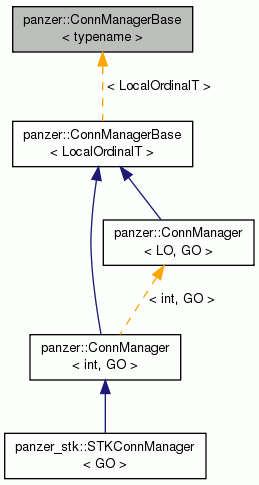

Inheritance diagram for panzer::ConnManagerBase< typename >:

Public Types
typedef LocalOrdinalT	LocalOrdinal

Public Member Functions
virtual	~ConnManagerBase ()

virtual void	buildConnectivity (const FieldPattern &fp)=0

virtual Teuchos::RCP < ConnManagerBase < LocalOrdinalT > >	noConnectivityClone () const =0

virtual LocalOrdinal	getConnectivitySize (LocalOrdinal localElmtId) const =0

virtual std::string	getBlockId (LocalOrdinal localElmtId) const =0

virtual std::size_t	numElementBlocks () const =0

virtual void	getElementBlockIds (std::vector< std::string > &elementBlockIds) const =0

virtual void	getElementBlockTopologies (std::vector< shards::CellTopology > &elementBlockTopologies) const =0

virtual const std::vector < LocalOrdinal > &	getElementBlock (const std::string &blockID) const =0

virtual const std::vector < LocalOrdinal > &	getNeighborElementBlock (const std::string &blockID) const =0

virtual const std::vector < LocalOrdinal > &	getAssociatedNeighbors (const LocalOrdinal &el) const =0

virtual bool	hasAssociatedNeighbors () const =0

Detailed Description

template<typename>
class panzer::ConnManagerBase< typename >

Pure abstract base class templated on the local ordinal types. This is used as a convenient abstraction over the different global ordinal types.

Definition at line 93 of file Panzer_STK_ModelEvaluatorFactory.hpp.

Member Typedef Documentation

template<typename >

typedef LocalOrdinalT panzer::ConnManagerBase< typename >::LocalOrdinal

Definition at line 62 of file Panzer_ConnManager.hpp.

Constructor & Destructor Documentation

template<typename >

virtual panzer::ConnManagerBase< typename >::~ConnManagerBase ( )

inlinevirtual

Definition at line 64 of file Panzer_ConnManager.hpp.

Member Function Documentation

template<typename >

virtual void panzer::ConnManagerBase< typename >::buildConnectivity ( const FieldPattern & fp )

pure virtual

Tell the connection manager to build the connectivity assuming a particular field pattern.

Parameters

[in] fp Field pattern to build connectivity for

Implemented in panzer::ConnManager< LO, GO >, panzer::ConnManager< int, GO >, and panzer_stk::STKConnManager< GO >.

template<typename >

virtual Teuchos::RCP<ConnManagerBase<LocalOrdinalT> > panzer::ConnManagerBase< typename >::noConnectivityClone ( ) const

pure virtual

Build a clone of this connection manager, without any assumptions about the required connectivity (i.e. buildConnectivity has never been called).

Implemented in panzer::ConnManager< LO, GO >, panzer::ConnManager< int, GO >, and panzer_stk::STKConnManager< GO >.

template<typename >

virtual LocalOrdinal panzer::ConnManagerBase< typename >::getConnectivitySize ( LocalOrdinal localElmtId ) const

pure virtual

How many mesh IDs are associated with this element?

Parameters

[in] localElmtId Local element ID

Returns: Number of mesh IDs that are associated with this element.

Implemented in panzer::ConnManager< LO, GO >, panzer::ConnManager< int, GO >, and panzer_stk::STKConnManager< GO >.

template<typename >

virtual std::string panzer::ConnManagerBase< typename >::getBlockId ( LocalOrdinal localElmtId ) const

pure virtual

Get the block ID for a particular element.

Parameters

[in] localElmtId Local element ID

Implemented in panzer::ConnManager< LO, GO >, panzer::ConnManager< int, GO >, and panzer_stk::STKConnManager< GO >.

template<typename >

virtual std::size_t panzer::ConnManagerBase< typename >::numElementBlocks ( ) const

pure virtual

How many element blocks in this mesh?

Implemented in panzer::ConnManager< LO, GO >, panzer::ConnManager< int, GO >, and panzer_stk::STKConnManager< GO >.

template<typename >

virtual void panzer::ConnManagerBase< typename >::getElementBlockIds ( std::vector< std::string > & elementBlockIds ) const

pure virtual

What are the blockIds included in this connection manager?

Implemented in panzer::ConnManager< LO, GO >, panzer::ConnManager< int, GO >, and panzer_stk::STKConnManager< GO >.

template<typename >

virtual void panzer::ConnManagerBase< typename >::getElementBlockTopologies ( std::vector< shards::CellTopology > & elementBlockTopologies ) const

pure virtual

What are the cellTopologies linked to element blocks in this connection manager?

Implemented in panzer_stk::STKConnManager< GO >.

template<typename >

virtual const std::vector<LocalOrdinal>& panzer::ConnManagerBase< typename >::getElementBlock ( const std::string & blockID ) const

pure virtual

Get the local element IDs for a paricular element block.

Parameters

[in] blockID Block ID

Returns: Vector of local element IDs.

Implemented in panzer::ConnManager< LO, GO >, panzer::ConnManager< int, GO >, and panzer_stk::STKConnManager< GO >.

template<typename >

virtual const std::vector<LocalOrdinal>& panzer::ConnManagerBase< typename >::getNeighborElementBlock ( const std::string & blockID ) const

pure virtual

Get the local element IDs for all "neighbor" elements that reside in a paricular element block (An element is a neighbor if it is in the one ring of owned elements).

Parameters

[in] blockID Block ID
