#include <Panzer_BlockedEpetraLinearObjFactory.hpp>

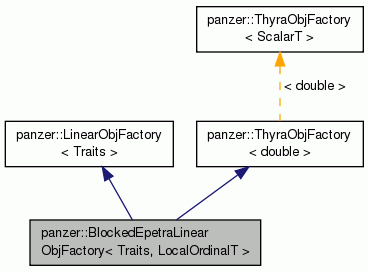

Inheritance diagram for panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >:

Classes
class	DOFManagerContainer

Public Member Functions
	BlockedEpetraLinearObjFactory (const Teuchos::RCP< const Teuchos::MpiComm< int > > &comm, const Teuchos::RCP< const UniqueGlobalIndexerBase > &gidProvider, bool useDiscreteAdjoint=false)

	BlockedEpetraLinearObjFactory (const Teuchos::RCP< const Teuchos::MpiComm< int > > &comm, const Teuchos::RCP< const UniqueGlobalIndexerBase > &gidProvider, const Teuchos::RCP< const UniqueGlobalIndexerBase > &colGidProvider, bool useDiscreteAdjoint=false)

virtual	~BlockedEpetraLinearObjFactory ()

virtual void	readVector (const std::string &identifier, LinearObjContainer &loc, int id) const

virtual void	writeVector (const std::string &identifier, const LinearObjContainer &loc, int id) const

virtual Teuchos::RCP < LinearObjContainer >	buildLinearObjContainer () const

virtual Teuchos::RCP < LinearObjContainer >	buildPrimitiveLinearObjContainer () const

virtual Teuchos::RCP < LinearObjContainer >	buildGhostedLinearObjContainer () const

virtual Teuchos::RCP < LinearObjContainer >	buildPrimitiveGhostedLinearObjContainer () const

virtual void	globalToGhostContainer (const LinearObjContainer &container, LinearObjContainer &ghostContainer, int) const

virtual void	ghostToGlobalContainer (const LinearObjContainer &ghostContainer, LinearObjContainer &container, int) const

virtual void	adjustForDirichletConditions (const LinearObjContainer &localBCRows, const LinearObjContainer &globalBCRows, LinearObjContainer &ghostedObjs, bool zeroVectorRows=false, bool adjustX=false) const

virtual void	applyDirichletBCs (const LinearObjContainer &counter, LinearObjContainer &result) const

virtual Teuchos::RCP < ReadOnlyVector_GlobalEvaluationData >	buildReadOnlyDomainContainer () const

virtual Teuchos::RCP < WriteVector_GlobalEvaluationData >	buildWriteDomainContainer () const

virtual Teuchos::MpiComm< int >	getComm () const

template<typename EvalT >
Teuchos::RCP < panzer::CloneableEvaluator >	buildScatter () const
	Use preconstructed scatter evaluators. More...

template<typename EvalT >
Teuchos::RCP < panzer::CloneableEvaluator >	buildGather () const
	Use preconstructed gather evaluators. More...

template<typename EvalT >
Teuchos::RCP < panzer::CloneableEvaluator >	buildGatherTangent () const
	Use preconstructed gather evaluators. More...

template<typename EvalT >
Teuchos::RCP < panzer::CloneableEvaluator >	buildGatherDomain () const
	Use preconstructed gather evaluators. More...

template<typename EvalT >
Teuchos::RCP < panzer::CloneableEvaluator >	buildGatherOrientation () const
	Use preconstructed gather evaluators. More...

template<typename EvalT >
Teuchos::RCP < panzer::CloneableEvaluator >	buildScatterDirichlet () const
	Use preconstructed dirichlet scatter evaluators. More...

void	initializeContainer (int, LinearObjContainer &loc) const

void	initializeGhostedContainer (int, LinearObjContainer &loc) const

Teuchos::RCP< const Thyra::VectorSpaceBase< double > >	getThyraDomainSpace () const
	Get the domain vector space (x and dxdt) More...

Teuchos::RCP< const Thyra::VectorSpaceBase< double > >	getThyraRangeSpace () const
	Get the range vector space (f) More...

Teuchos::RCP < Thyra::VectorBase< double > >	getThyraDomainVector () const
	Get a domain vector. More...

Teuchos::RCP < Thyra::VectorBase< double > >	getThyraRangeVector () const
	Get a range vector. More...

Teuchos::RCP < Thyra::LinearOpBase< double > >	getThyraMatrix () const
	Get a Thyra operator. More...

Teuchos::RCP< const Thyra::VectorSpaceBase< double > >	getGhostedThyraDomainSpace () const
	Get the domain vector space (x and dxdt) More...

Teuchos::RCP< const Thyra::VectorSpaceBase< double > >	getGhostedThyraDomainSpace2 () const
	Get or create the ghosted `Thyra` domain space. More...

Teuchos::RCP< const Thyra::VectorSpaceBase< double > >	getGhostedThyraRangeSpace () const
	Get the range vector space (f) More...

Teuchos::RCP < Thyra::VectorBase< double > >	getGhostedThyraDomainVector () const
	Get a domain vector. More...

Teuchos::RCP < Thyra::VectorBase< double > >	getGhostedThyraRangeVector () const
	Get a range vector. More...

Teuchos::RCP < Thyra::LinearOpBase< double > >	getGhostedThyraMatrix () const
	Get a Thyra operator. More...

virtual const Teuchos::RCP < Epetra_Map >	getMap (int i) const
	get the map from the matrix More...

virtual const Teuchos::RCP < Epetra_Map >	getColMap (int i) const
	get the map from the matrix More...

virtual const Teuchos::RCP < Epetra_Map >	getGhostedMap (int i) const
	get the ghosted map from the matrix More...

virtual const Teuchos::RCP < Epetra_Map >	getGhostedMap2 (int i) const
	Get or create the `i`-th ghosted map. More...

virtual const Teuchos::RCP < Epetra_Map >	getGhostedColMap (int i) const
	get the ghosted map from the matrix More...

virtual const Teuchos::RCP < Epetra_Map >	getGhostedColMap2 (int i) const
	Get or create the `i`-th ghosted column map. More...

virtual const Teuchos::RCP < Epetra_CrsGraph >	getGraph (int i, int j) const
	get the graph of the crs matrix More...

virtual const Teuchos::RCP < Epetra_CrsGraph >	getGhostedGraph (int i, int j) const
	get the ghosted graph of the crs matrix More...

virtual const Teuchos::RCP < Epetra_Import >	getGhostedImport (int i) const
	get importer for converting an overalapped object to a "normal" object More...

virtual const Teuchos::RCP < Epetra_Import >	getGhostedImport2 (int i) const
	Get or create the `i`-th ghosted importer corresponding to the `i`-th ghosted map. More...

virtual const Teuchos::RCP < Epetra_Import >	getGhostedColImport (int i) const
	get importer for converting an overalapped object to a "normal" object More...

virtual const Teuchos::RCP < Epetra_Import >	getGhostedColImport2 (int i) const
	Get or create the `i`-th ghosted column importer corresponding to the `i`-th ghosted column map. More...

virtual const Teuchos::RCP < Epetra_Export >	getGhostedExport (int j) const
	get exporter for converting an overalapped object to a "normal" object More...

virtual const Teuchos::RCP < Epetra_Export >	getGhostedExport2 (int i) const
	Get or create the `i`-th ghosted exporter corresponding to the `i`-th ghosted map. More...

virtual const Teuchos::RCP < Epetra_Export >	getGhostedColExport (int j) const
	get exporter for converting an overalapped object to a "normal" object More...

virtual const Teuchos::RCP < Epetra_Export >	getGhostedColExport2 (int i) const
	Get or create the `i`-th ghosted column exporter corresponding to the `i`-th ghosted column map. More...

virtual const Teuchos::RCP < const Epetra_Comm >	getEpetraComm () const
	get exporter for converting an overalapped object to a "normal" object More...

Teuchos::RCP< Epetra_CrsMatrix >	getEpetraMatrix (int i, int j) const

Teuchos::RCP< Epetra_CrsMatrix >	getGhostedEpetraMatrix (int i, int j) const

int	getBlockRowCount () const
	how many block rows More...

int	getBlockColCount () const
	how many block columns More...

Teuchos::RCP< const panzer::BlockedDOFManager< int, int > >	getGlobalIndexer () const

Teuchos::RCP< const panzer::UniqueGlobalIndexerBase >	getRangeGlobalIndexer () const
	Get the range global indexer object associated with this factory. More...

Teuchos::RCP< const panzer::UniqueGlobalIndexerBase >	getDomainGlobalIndexer () const
	Get the domain global indexer object associated with this factory. More...

const std::vector < Teuchos::RCP< const UniqueGlobalIndexer < LocalOrdinalT, int > > > &	getRangeGlobalIndexers () const
	Get global indexers associated with the blocks. More...

const std::vector < Teuchos::RCP< const UniqueGlobalIndexer < LocalOrdinalT, int > > > &	getDomainGlobalIndexers () const
	Get global indexers associated with the blocks. More...

void	addExcludedPair (int rowBlock, int colBlock)
	exclude a block pair from the matrix More...

void	addExcludedPairs (const std::vector< std::pair< int, int > > &exPairs)
	exclude a vector of pairs from the matrix More...

Public Member Functions inherited from panzer::LinearObjFactory< Traits >
virtual	~LinearObjFactory ()

template<typename BuilderT >
void	buildGatherScatterEvaluators (const BuilderT &builder)

template<typename EvalT >
Teuchos::RCP< PHX::Evaluator < Traits > >	buildScatter (const Teuchos::ParameterList &pl) const
	Use preconstructed scatter evaluators. More...

template<typename EvalT >
Teuchos::RCP< PHX::Evaluator < Traits > >	buildGather (const Teuchos::ParameterList &pl) const
	Use preconstructed gather evaluators. More...

template<typename EvalT >
Teuchos::RCP< PHX::Evaluator < Traits > >	buildGatherTangent (const Teuchos::ParameterList &pl) const
	Use preconstructed gather evaluators. More...

template<typename EvalT >
Teuchos::RCP< PHX::Evaluator < Traits > >	buildGatherDomain (const Teuchos::ParameterList &pl) const
	Use preconstructed gather evaluators. More...

template<typename EvalT >
Teuchos::RCP< PHX::Evaluator < Traits > >	buildGatherOrientation (const Teuchos::ParameterList &pl) const
	Use preconstructed gather evaluators. More...

template<typename EvalT >
Teuchos::RCP< PHX::Evaluator < Traits > >	buildScatterDirichlet (const Teuchos::ParameterList &pl) const
	Use preconstructed dirichlet scatter evaluators. More...

PANZER_DEPRECATED Teuchos::RCP < const panzer::UniqueGlobalIndexerBase >	getUniqueGlobalIndexerBase () const
	Get the range global indexer object associated with this factory. More...

virtual void	beginFill (LinearObjContainer &) const

virtual void	endFill (LinearObjContainer &) const

Public Member Functions inherited from panzer::ThyraObjFactory< double >
virtual	~ThyraObjFactory ()

Protected Member Functions
void	initializeContainer_internal (int mem, ThyraObjContainer< double > &loc) const

void	initializeGhostedContainer_internal (int mem, ThyraObjContainer< double > &loc) const

Teuchos::RCP< const UniqueGlobalIndexer < LocalOrdinalT, int > >	getGlobalIndexer (int i) const

Teuchos::RCP< const UniqueGlobalIndexer < LocalOrdinalT, int > >	getColGlobalIndexer (int i) const

void	makeRoomForBlocks (std::size_t blockCnt, std::size_t colBlockCnt=0)
	Allocate the space in the std::vector objects so we can fill with appropriate Epetra data. More...

void	ghostToGlobalThyraVector (const Teuchos::RCP< const Thyra::VectorBase< double > > &in, const Teuchos::RCP< Thyra::VectorBase< double > > &out, bool col) const

void	ghostToGlobalThyraMatrix (const Thyra::LinearOpBase< double > &in, Thyra::LinearOpBase< double > &out) const

void	globalToGhostThyraVector (const Teuchos::RCP< const Thyra::VectorBase< double > > &in, const Teuchos::RCP< Thyra::VectorBase< double > > &out, bool col) const

void	adjustForDirichletConditions (const Epetra_Vector &local_bcs, const Epetra_Vector &global_bcs, const Teuchos::Ptr< Epetra_Vector > &f, const Teuchos::Ptr< Epetra_CrsMatrix > &A, bool zeroVectorRows) const

void	ghostToGlobalEpetraVector (int i, const Epetra_Vector &in, Epetra_Vector &out, bool col) const

void	globalToGhostEpetraVector (int i, const Epetra_Vector &in, Epetra_Vector &out, bool col) const

void	ghostToGlobalEpetraMatrix (int blockRow, const Epetra_CrsMatrix &in, Epetra_CrsMatrix &out) const

virtual const Teuchos::RCP < Epetra_Map >	buildMap (int i) const
	Build the `i`-th owned map from the owned indices of the `i`-th global indexer. More...

virtual const Teuchos::RCP < Epetra_Map >	buildGhostedMap (int i) const
	Build the `i`-th ghosted map from the owned and ghosted indices of the `i`-th global indexer. More...

virtual const Teuchos::RCP < Epetra_Map >	buildGhostedMap2 (int i) const
	Build the `i`-th ghosted map from the ghosted indices of the `i`-th global indexer. More...

virtual const Teuchos::RCP < Epetra_Map >	buildColMap (int i) const
	Build the `i`-th owned column map from the owned indices of the `i`-th (column) global indexer. More...

virtual const Teuchos::RCP < Epetra_Map >	buildColGhostedMap (int i) const
	Build the `i`-th ghosted column map from the owned and ghosted indices of the `i`-th (column) global indexer. More...

virtual const Teuchos::RCP < Epetra_Map >	buildColGhostedMap2 (int i) const
	Build the `i`-th ghosted column map from the ghosted indices of the `i`-th (column) global indexer. More...

virtual const Teuchos::RCP < Epetra_CrsGraph >	buildGraph (int i, int j) const

virtual const Teuchos::RCP < Epetra_CrsGraph >	buildGhostedGraph (int i, int j, bool optimizeStorage) const

virtual const Teuchos::RCP < Epetra_CrsGraph >	buildFilteredGhostedGraph (int i, int j) const

Protected Attributes
Teuchos::RCP< const DOFManagerContainer >	rowDOFManagerContainer_

Teuchos::RCP< const DOFManagerContainer >	colDOFManagerContainer_

bool	useColGidProviders_

std::unordered_set< std::pair < int, int > , panzer::pair_hash >	excludedPairs_

Teuchos::RCP< const Thyra::VectorSpaceBase< double > >	rangeSpace_

Teuchos::RCP< const Thyra::VectorSpaceBase< double > >	domainSpace_

Teuchos::RCP< const Thyra::VectorSpaceBase< double > >	ghostedRangeSpace_

Teuchos::RCP< const Thyra::VectorSpaceBase< double > >	ghostedDomainSpace_

Teuchos::RCP< const Epetra_Comm >	eComm_

Teuchos::RCP< const Teuchos::OpaqueWrapper < MPI_Comm > >	rawMpiComm_

Teuchos::RCP< Teuchos::MpiComm < int > >	tComm_

std::vector< Teuchos::RCP < Epetra_Map > >	maps_
	The list of owned maps corresponding to the owned indices of the global indexers. More...

std::vector< Teuchos::RCP < Epetra_Map > >	ghostedMaps_
	The list of ghosted maps corresponding to the owned and ghosted indices of the global indexers. More...

std::vector< Teuchos::RCP < Epetra_Map > >	ghostedMaps2_
	The list of ghosted maps corresponding to the ghosted indices of the global indexers. More...

std::vector< Teuchos::RCP < Epetra_Import > >	importers_
	The list of ghosted importers corresponding to `ghostedMaps_`. More...

std::vector< Teuchos::RCP < Epetra_Import > >	importers2_
	The list of ghosted importers corresponding to `ghostedMaps2_`. More...

std::vector< Teuchos::RCP < Epetra_Export > >	exporters_

std::vector< Teuchos::RCP < Epetra_Map > >	colMaps_
	The list of owned column maps corresponding to the owned indices of the (column) global indexers. More...

std::vector< Teuchos::RCP < Epetra_Map > >	colGhostedMaps_
	The list of ghosted column maps corresponding to the owned and ghosted indices of the (column) global indexers. More...

std::vector< Teuchos::RCP < Epetra_Map > >	colGhostedMaps2_
	The list of ghosted column maps corresponding to the ghosted indices of the (column) global indexers. More...

std::vector< Teuchos::RCP < Epetra_Import > >	colImporters_
	The list of ghosted importers corresponding to `colGhostedMaps_`. More...

std::vector< Teuchos::RCP < Epetra_Import > >	colImporters2_
	The list of ghosted importers corresponding to `colGhostedMaps2_`. More...

std::vector< Teuchos::RCP < Epetra_Export > >	colExporters_

std::unordered_map< std::pair < int, int >, Teuchos::RCP < Epetra_CrsGraph > , panzer::pair_hash >	graphs_

std::unordered_map< std::pair < int, int >, Teuchos::RCP < Epetra_CrsGraph > , panzer::pair_hash >	ghostedGraphs_

bool	useDiscreteAdjoint_

Detailed Description

template<typename Traits, typename LocalOrdinalT>
class panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >

Definition at line 86 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

Constructor & Destructor Documentation

template<typename Traits , typename LocalOrdinalT >

panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::BlockedEpetraLinearObjFactory	(	const Teuchos::RCP< const Teuchos::MpiComm< int > > &	comm,
		const Teuchos::RCP< const UniqueGlobalIndexerBase > &	gidProvider,
		bool	useDiscreteAdjoint = `false`
	)

Definition at line 86 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::BlockedEpetraLinearObjFactory	(	const Teuchos::RCP< const Teuchos::MpiComm< int > > &	comm,
		const Teuchos::RCP< const UniqueGlobalIndexerBase > &	gidProvider,
		const Teuchos::RCP< const UniqueGlobalIndexerBase > &	colGidProvider,
		bool	useDiscreteAdjoint = `false`
	)

Definition at line 109 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::~BlockedEpetraLinearObjFactory ( )

virtual

Definition at line 134 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

Member Function Documentation

template<typename Traits , typename LocalOrdinalT >

void panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::readVector	(	const std::string &	identifier,
		LinearObjContainer &	loc,
		int	id
	)		const

virtual

Read in a vector from a file. Fill a particular vector in the linear object container.

Parameters

[in]	identifier	Key for specifying which file(s) to read
[in]	loc	Linear object container to fill with the vector
[in]	id	Id for the field to be filled

Implements panzer::LinearObjFactory< Traits >.

Definition at line 143 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

void panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::writeVector	(	const std::string &	identifier,
		const LinearObjContainer &	loc,
		int	id
	)		const

virtual

Write in a vector from a file. Fill a particular vector in the linear object container.

Parameters

[in]	identifier	Key for specifying which file(s) to read
[in]	loc	Linear object container to fill with the vector
[in]	id	Id for the field to be filled

Implements panzer::LinearObjFactory< Traits >.

Definition at line 193 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

Teuchos::RCP< LinearObjContainer > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::buildLinearObjContainer ( ) const

virtual

Build a container with all the neccessary linear algebra objects. This is the non-ghosted version.

Implements panzer::LinearObjFactory< Traits >.

Definition at line 237 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits, typename LocalOrdinalT>

virtual Teuchos::RCP<LinearObjContainer> panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::buildPrimitiveLinearObjContainer ( ) const

inlinevirtual

Build a container with all the neccessary linear algebra objects, purely on the single physics. This gives linear algebra objects that are relevant for a single physics solve. In many cases this is simply a call to buildLinearObjContainer however, in a few important cases (for instance in stochastic galerkin methods) this will return a container for a single instantiation of the physics. This is the non-ghosted version.

Implements panzer::LinearObjFactory< Traits >.

Definition at line 109 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

template<typename Traits , typename LocalOrdinalT >

Teuchos::RCP< LinearObjContainer > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::buildGhostedLinearObjContainer ( ) const

virtual

Build a container with all the neccessary linear algebra objects. This is the ghosted version.

Implements panzer::LinearObjFactory< Traits >.

Definition at line 258 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits, typename LocalOrdinalT>

virtual Teuchos::RCP<LinearObjContainer> panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::buildPrimitiveGhostedLinearObjContainer ( ) const

inlinevirtual

Build a container with all the neccessary linear algebra objects, purely on the single physics. This gives linear algebra objects that are relevant for a single physics solve. In many cases this is simply a call to buildGhostedLinearObjContainer however, in a few important cases (for instance in stochastic galerkin methods) this will return a container for a single instantiation of the physics. This is the ghosted version.

Implements panzer::LinearObjFactory< Traits >.

Definition at line 114 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

template<typename Traits , typename LocalOrdinalT >

void panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::globalToGhostContainer	(	const LinearObjContainer &	container,
		LinearObjContainer &	ghostContainer,
		int	mem
	)		const

virtual

Implements panzer::LinearObjFactory< Traits >.

Definition at line 279 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

void panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::ghostToGlobalContainer	(	const LinearObjContainer &	ghostContainer,
		LinearObjContainer &	container,
		int	mem
	)		const

virtual

Implements panzer::LinearObjFactory< Traits >.

Definition at line 321 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

void panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::adjustForDirichletConditions	(	const LinearObjContainer &	localBCRows,
		const LinearObjContainer &	globalBCRows,
		LinearObjContainer &	ghostedObjs,
		bool	zeroVectorRows = `false`,
		bool	adjustX = `false`
	)		const

virtual

Adjust the residual vector and Jacobian matrix (if they exist) for applied dirichlet conditions. The adjustment considers if a boundary condition was set globally and locally and based on that result adjust the ghosted matrix and residual vector so that when they are summed across processors they resulting Dirichlet condition is correct.

Implements panzer::LinearObjFactory< Traits >.

Definition at line 364 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

void panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::applyDirichletBCs	(	const LinearObjContainer &	counter,
		LinearObjContainer &	result
	)		const

virtual

Adjust a vector by replacing selected rows with the value of the evaluated dirichlet conditions. This is handled through the standard container mechanism.

Implements panzer::LinearObjFactory< Traits >.

Definition at line 501 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

Teuchos::RCP< ReadOnlyVector_GlobalEvaluationData > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::buildReadOnlyDomainContainer ( ) const

virtual

Build a GlobalEvaluationDataContainer that handles all domain communication. This is used primarily for gather operations and hides the allocation and usage of the ghosted vector from the user.

Implements panzer::LinearObjFactory< Traits >.

Definition at line 545 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

Teuchos::RCP< WriteVector_GlobalEvaluationData > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::buildWriteDomainContainer ( ) const

virtual

Build a GlobalEvaluationDataContainer that handles all domain communication. This is used primarily for gather operations and hides the allocation and usage of the ghosted vector from the user.

Implements panzer::LinearObjFactory< Traits >.

Definition at line 587 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

Teuchos::MpiComm< int > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getComm ( ) const

virtual

Acess to the MPI Comm used in constructing this LOF.

Implements panzer::LinearObjFactory< Traits >.

Definition at line 623 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits, typename LocalOrdinalT>

template<typename EvalT >

Teuchos::RCP<panzer::CloneableEvaluator> panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::buildScatter ( ) const

inline

Use preconstructed scatter evaluators.

Definition at line 155 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

template<typename Traits, typename LocalOrdinalT>

template<typename EvalT >

Teuchos::RCP<panzer::CloneableEvaluator > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::buildGather ( ) const

inline

Use preconstructed gather evaluators.

Definition at line 170 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

template<typename Traits, typename LocalOrdinalT>

template<typename EvalT >

Teuchos::RCP<panzer::CloneableEvaluator > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::buildGatherTangent ( ) const

inline

Use preconstructed gather evaluators.

Definition at line 180 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

template<typename Traits, typename LocalOrdinalT>

template<typename EvalT >

Teuchos::RCP<panzer::CloneableEvaluator > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::buildGatherDomain ( ) const

inline

Use preconstructed gather evaluators.

Definition at line 190 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

template<typename Traits, typename LocalOrdinalT>

template<typename EvalT >

Teuchos::RCP<panzer::CloneableEvaluator > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::buildGatherOrientation ( ) const

inline

Use preconstructed gather evaluators.

Definition at line 199 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

template<typename Traits, typename LocalOrdinalT>

template<typename EvalT >

Teuchos::RCP<panzer::CloneableEvaluator> panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::buildScatterDirichlet ( ) const

inline

Use preconstructed dirichlet scatter evaluators.

Definition at line 204 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

template<typename Traits , typename LocalOrdinalT >

void panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::initializeContainer	(	int	mem,
		LinearObjContainer &	loc
	)		const

virtual

Initialize container with a specific set of member values.

Note: This will overwrite everything in the container and zero out values not requested.

Implements panzer::LinearObjFactory< Traits >.

Definition at line 630 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

void panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::initializeGhostedContainer	(	int	mem,
		LinearObjContainer &	loc
	)		const

virtual

Initialize container with a specific set of member values.

Note: This will overwrite everything in the container and zero out values not requested.

Implements panzer::LinearObjFactory< Traits >.

Definition at line 640 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

Teuchos::RCP< const Thyra::VectorSpaceBase< double > > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getThyraDomainSpace ( ) const

virtual

Get the domain vector space (x and dxdt)

Implements panzer::ThyraObjFactory< double >.

Definition at line 778 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

Teuchos::RCP< const Thyra::VectorSpaceBase< double > > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getThyraRangeSpace ( ) const

virtual

Get the range vector space (f)

Implements panzer::ThyraObjFactory< double >.

Definition at line 801 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

Teuchos::RCP< Thyra::VectorBase< double > > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getThyraDomainVector ( ) const

Get a domain vector.

Definition at line 824 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

Teuchos::RCP< Thyra::VectorBase< double > > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getThyraRangeVector ( ) const

Get a range vector.

Definition at line 835 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

Teuchos::RCP< Thyra::LinearOpBase< double > > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getThyraMatrix ( ) const

virtual

Get a Thyra operator.

Implements panzer::ThyraObjFactory< double >.

Definition at line 846 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

Teuchos::RCP< const Thyra::VectorSpaceBase< double > > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getGhostedThyraDomainSpace ( ) const

Get the domain vector space (x and dxdt)

Definition at line 888 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

Teuchos::RCP< const Thyra::VectorSpaceBase< double > > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getGhostedThyraDomainSpace2 ( ) const

Get or create the ghosted Thyra domain space.

Get the vector space corresponding to the ghosted domain. If it does not yet exist, create it from the ghosted column map(s).

Note: This "version 2" routine works with non-overlapping owned and ghosted maps.

Returns: The vector space corresponding to the ghosted domain.

Definition at line 923 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

Teuchos::RCP< const Thyra::VectorSpaceBase< double > > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getGhostedThyraRangeSpace ( ) const

Get the range vector space (f)

Definition at line 952 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

Teuchos::RCP< Thyra::VectorBase< double > > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getGhostedThyraDomainVector ( ) const

Get a domain vector.

Definition at line 975 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

Teuchos::RCP< Thyra::VectorBase< double > > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getGhostedThyraRangeVector ( ) const

Get a range vector.

Definition at line 986 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

Teuchos::RCP< Thyra::LinearOpBase< double > > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getGhostedThyraMatrix ( ) const

Get a Thyra operator.

Definition at line 997 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< Epetra_Map > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getMap ( int i ) const

virtual

get the map from the matrix

Definition at line 1197 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< Epetra_Map > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getColMap ( int i ) const

virtual

get the map from the matrix

Definition at line 1208 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< Epetra_Map > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getGhostedMap ( int i ) const

virtual

get the ghosted map from the matrix

Definition at line 1227 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< Epetra_Map > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getGhostedMap2 ( int i ) const

virtual

Get or create the i-th ghosted map.

Note: This "version 2" routine works with non-overlapping owned and ghosted maps.

Parameters

[in] i The index into the list of ghosted maps.

Returns: The i-th ghosted map.

Definition at line 1243 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< Epetra_Map > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getGhostedColMap ( int i ) const

virtual

get the ghosted map from the matrix

Definition at line 1259 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< Epetra_Map > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getGhostedColMap2 ( int i ) const

virtual

Get or create the i-th ghosted column map.

Note: This "version 2" routine works with non-overlapping owned and ghosted maps.

Parameters

[in] i The index into the list of ghosted column maps.

Returns: The i-th ghosted column map.

Definition at line 1277 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< Epetra_CrsGraph > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getGraph	(	int	i,
		int	j
	)		const

virtual

get the graph of the crs matrix

Definition at line 1290 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< Epetra_CrsGraph > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getGhostedGraph	(	int	i,
		int	j
	)		const

virtual

get the ghosted graph of the crs matrix

Definition at line 1309 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< Epetra_Import > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getGhostedImport ( int i ) const

virtual

get importer for converting an overalapped object to a "normal" object

Definition at line 1334 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< Epetra_Import > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getGhostedImport2 ( int i ) const

virtual

Get or create the i-th ghosted importer corresponding to the i-th ghosted map.

Note: This "version 2" routine works with non-overlapping owned and ghosted maps.

Parameters

[in] i The index into the list of ghosted importers.

Returns: The i-th ghosted importer.

Definition at line 1351 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< Epetra_Import > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getGhostedColImport ( int i ) const

virtual

get importer for converting an overalapped object to a "normal" object

Definition at line 1368 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< Epetra_Import > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getGhostedColImport2 ( int i ) const

virtual

Get or create the i-th ghosted column importer corresponding to the i-th ghosted column map.

Note: This "version 2" routine works with non-overlapping owned and ghosted maps.

Parameters

[in] i The index into the list of ghosted column importers.

Returns: The i-th ghosted column importer.

Definition at line 1388 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< Epetra_Export > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getGhostedExport ( int j ) const

virtual

get exporter for converting an overalapped object to a "normal" object

Definition at line 1408 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< Epetra_Export > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getGhostedExport2 ( int i ) const

virtual

Get or create the i-th ghosted exporter corresponding to the i-th ghosted map.

Note: This "version 2" routine works with non-overlapping owned and ghosted maps.

Parameters

[in] i The index into the list of ghosted exporters.

Returns: The i-th ghosted exporter.

Definition at line 1425 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< Epetra_Export > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getGhostedColExport ( int j ) const

virtual

get exporter for converting an overalapped object to a "normal" object

Definition at line 1442 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< Epetra_Export > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getGhostedColExport2 ( int i ) const

virtual

Get or create the i-th ghosted column exporter corresponding to the i-th ghosted column map.

Note: This "version 2" routine works with non-overlapping owned and ghosted maps.

Parameters

[in] i The index into the list of ghosted column exporters.

Returns: The i-th ghosted column exporter.

Definition at line 1462 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< const Epetra_Comm > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getEpetraComm ( ) const

virtual

get exporter for converting an overalapped object to a "normal" object

Definition at line 1743 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

Teuchos::RCP< Epetra_CrsMatrix > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getEpetraMatrix	(	int	i,
		int	j
	)		const

Definition at line 1723 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

Teuchos::RCP< Epetra_CrsMatrix > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getGhostedEpetraMatrix	(	int	i,
		int	j
	)		const

Definition at line 1733 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

int panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getBlockRowCount ( ) const

how many block rows

Definition at line 1750 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

int panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getBlockColCount ( ) const

how many block columns

Definition at line 1757 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits, typename LocalOrdinalT>

Teuchos::RCP<const panzer::BlockedDOFManager<int,int> > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getGlobalIndexer ( ) const

inline

Definition at line 410 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

template<typename Traits, typename LocalOrdinalT>

Teuchos::RCP<const panzer::UniqueGlobalIndexerBase> panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getRangeGlobalIndexer ( ) const

inlinevirtual

Get the range global indexer object associated with this factory.

Implements panzer::LinearObjFactory< Traits >.

Definition at line 413 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

template<typename Traits, typename LocalOrdinalT>

Teuchos::RCP<const panzer::UniqueGlobalIndexerBase> panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getDomainGlobalIndexer ( ) const

inlinevirtual

Get the domain global indexer object associated with this factory.

Implements panzer::LinearObjFactory< Traits >.

Definition at line 416 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

template<typename Traits, typename LocalOrdinalT>

const std::vector<Teuchos::RCP<const UniqueGlobalIndexer<LocalOrdinalT,int> > >& panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getRangeGlobalIndexers ( ) const

inline

Get global indexers associated with the blocks.

Definition at line 420 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

template<typename Traits, typename LocalOrdinalT>

const std::vector<Teuchos::RCP<const UniqueGlobalIndexer<LocalOrdinalT,int> > >& panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getDomainGlobalIndexers ( ) const

inline

Get global indexers associated with the blocks.

Definition at line 424 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

template<typename Traits , typename LocalOrdinalT >

void panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::addExcludedPair	(	int	rowBlock,
		int	colBlock
	)

exclude a block pair from the matrix

Definition at line 717 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

void panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::addExcludedPairs ( const std::vector< std::pair< int, int > > & exPairs )

exclude a vector of pairs from the matrix

Definition at line 724 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

void panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::initializeContainer_internal	(	int	mem,
		ThyraObjContainer< double > &	loc
	)		const

protected

Initialize container with a specific set of member values.

Note: This will overwrite everything in the container and zero out values not requested.

Definition at line 675 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

void panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::initializeGhostedContainer_internal	(	int	mem,
		ThyraObjContainer< double > &	loc
	)		const

protected

Initialize container with a specific set of member values.

Note: This will overwrite everything in the container and zero out values not requested.

Definition at line 696 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

Teuchos::RCP< const UniqueGlobalIndexer< LocalOrdinalT, int > > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getGlobalIndexer ( int i ) const

protected

Definition at line 732 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

Teuchos::RCP< const UniqueGlobalIndexer< LocalOrdinalT, int > > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::getColGlobalIndexer ( int i ) const

protected

Definition at line 739 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

void panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::makeRoomForBlocks	(	std::size_t	blockCnt,
		std::size_t	colBlockCnt = `0`
	)

protected

Allocate the space in the std::vector objects so we can fill with appropriate Epetra data.

Definition at line 752 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

void panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::ghostToGlobalThyraVector	(	const Teuchos::RCP< const Thyra::VectorBase< double > > &	in,
		const Teuchos::RCP< Thyra::VectorBase< double > > &	out,
		bool	col
	)		const

protected

Definition at line 1033 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

void panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::ghostToGlobalThyraMatrix	(	const Thyra::LinearOpBase< double > &	in,
		Thyra::LinearOpBase< double > &	out
	)		const

protected

Definition at line 1070 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

void panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::globalToGhostThyraVector	(	const Teuchos::RCP< const Thyra::VectorBase< double > > &	in,
		const Teuchos::RCP< Thyra::VectorBase< double > > &	out,
		bool	col
	)		const

protected

Definition at line 1116 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

void panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::adjustForDirichletConditions	(	const Epetra_Vector &	local_bcs,
		const Epetra_Vector &	global_bcs,
		const Teuchos::Ptr< Epetra_Vector > &	f,
		const Teuchos::Ptr< Epetra_CrsMatrix > &	A,
		bool	zeroVectorRows
	)		const

protected

Definition at line 452 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

void panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::ghostToGlobalEpetraVector	(	int	i,
		const Epetra_Vector &	in,
		Epetra_Vector &	out,
		bool	col
	)		const

protected

Definition at line 1157 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

void panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::globalToGhostEpetraVector	(	int	i,
		const Epetra_Vector &	in,
		Epetra_Vector &	out,
		bool	col
	)		const

protected

Definition at line 1183 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

void panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::ghostToGlobalEpetraMatrix	(	int	blockRow,
		const Epetra_CrsMatrix &	in,
		Epetra_CrsMatrix &	out
	)		const

protected

Definition at line 1170 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< Epetra_Map > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::buildMap ( int i ) const

protectedvirtual

Build the i-th owned map from the owned indices of the i-th global indexer.

Parameters

[in] i The index into the list of global indexers.

Returns: The i-th owned map.

Definition at line 1476 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< Epetra_Map > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::buildGhostedMap ( int i ) const

protectedvirtual

Build the i-th ghosted map from the owned and ghosted indices of the i-th global indexer.

Parameters

[in] i The index into the list of global indexers.

Returns: The i-th owned and ghosted map.

Definition at line 1509 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< Epetra_Map > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::buildGhostedMap2 ( int i ) const

protectedvirtual

Build the i-th ghosted map from the ghosted indices of the i-th global indexer.

Parameters

[in] i The index into the list of global indexers.

Returns: The i-th ghosted map.

Definition at line 1527 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< Epetra_Map > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::buildColMap ( int i ) const

protectedvirtual

Build the i-th owned column map from the owned indices of the i-th (column) global indexer.

Parameters

[in] i The index into the list of (column) global indexers.

Returns: The i-th owned column map.

Definition at line 1488 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< Epetra_Map > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::buildColGhostedMap ( int i ) const

protectedvirtual

Build the i-th ghosted column map from the owned and ghosted indices of the i-th (column) global indexer.

Parameters

[in] i The index into the list of (column) global indexers.

Returns: The i-th owned and ghosted column map.

Definition at line 1545 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< Epetra_Map > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::buildColGhostedMap2 ( int i ) const

protectedvirtual

Build the i-th ghosted column map from the ghosted indices of the i-th (column) global indexer.

Parameters

[in] i The index into the list of (column) global indexers.

Returns: The i-th ghosted column map.

Definition at line 1565 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< Epetra_CrsGraph > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::buildGraph	(	int	i,
		int	j
	)		const

protectedvirtual

Definition at line 1580 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< Epetra_CrsGraph > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::buildGhostedGraph	(	int	i,
		int	j,
		bool	optimizeStorage
	)		const

protectedvirtual

Definition at line 1610 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

template<typename Traits , typename LocalOrdinalT >

const Teuchos::RCP< Epetra_CrsGraph > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::buildFilteredGhostedGraph	(	int	i,
		int	j
	)		const

protectedvirtual

Definition at line 1674 of file Panzer_BlockedEpetraLinearObjFactory_impl.hpp.

Member Data Documentation

template<typename Traits, typename LocalOrdinalT>

Teuchos::RCP<const DOFManagerContainer> panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::rowDOFManagerContainer_

protected

Definition at line 536 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

template<typename Traits, typename LocalOrdinalT>

Teuchos::RCP<const DOFManagerContainer> panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::colDOFManagerContainer_

protected

Definition at line 537 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

template<typename Traits, typename LocalOrdinalT>

bool panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::useColGidProviders_

protected

Definition at line 539 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

template<typename Traits, typename LocalOrdinalT>

std::unordered_set<std::pair<int,int>,panzer::pair_hash> panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::excludedPairs_

protected

Definition at line 542 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

template<typename Traits, typename LocalOrdinalT>

Teuchos::RCP<const Thyra::VectorSpaceBase<double> > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::rangeSpace_

mutableprotected

Definition at line 552 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

template<typename Traits, typename LocalOrdinalT>

Teuchos::RCP<const Thyra::VectorSpaceBase<double> > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::domainSpace_

mutableprotected

Definition at line 553 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

template<typename Traits, typename LocalOrdinalT>

Teuchos::RCP<const Thyra::VectorSpaceBase<double> > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::ghostedRangeSpace_

mutableprotected

Definition at line 555 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

template<typename Traits, typename LocalOrdinalT>

Teuchos::RCP<const Thyra::VectorSpaceBase<double> > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::ghostedDomainSpace_

mutableprotected

Definition at line 556 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

template<typename Traits, typename LocalOrdinalT>

Teuchos::RCP<const Epetra_Comm> panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::eComm_

protected

Definition at line 652 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

template<typename Traits, typename LocalOrdinalT>

Teuchos::RCP<const Teuchos::OpaqueWrapper<MPI_Comm> > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::rawMpiComm_

protected

Definition at line 653 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

template<typename Traits, typename LocalOrdinalT>

Teuchos::RCP<Teuchos::MpiComm<int> > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::tComm_

protected

Definition at line 654 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

template<typename Traits, typename LocalOrdinalT>

std::vector<Teuchos::RCP<Epetra_Map> > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::maps_

mutableprotected

The list of owned maps corresponding to the owned indices of the global indexers.

Definition at line 660 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

template<typename Traits, typename LocalOrdinalT>

std::vector<Teuchos::RCP<Epetra_Map> > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::ghostedMaps_

mutableprotected

The list of ghosted maps corresponding to the owned and ghosted indices of the global indexers.

Definition at line 666 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

template<typename Traits, typename LocalOrdinalT>

std::vector<Teuchos::RCP<Epetra_Map> > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::ghostedMaps2_

mutableprotected

The list of ghosted maps corresponding to the ghosted indices of the global indexers.

Definition at line 672 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

template<typename Traits, typename LocalOrdinalT>

std::vector<Teuchos::RCP<Epetra_Import> > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::importers_

mutableprotected

The list of ghosted importers corresponding to ghostedMaps_.

Definition at line 677 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

template<typename Traits, typename LocalOrdinalT>

std::vector<Teuchos::RCP<Epetra_Import> > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::importers2_

mutableprotected

The list of ghosted importers corresponding to ghostedMaps2_.

Definition at line 682 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

template<typename Traits, typename LocalOrdinalT>

std::vector<Teuchos::RCP<Epetra_Export> > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::exporters_

mutableprotected

Definition at line 684 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

template<typename Traits, typename LocalOrdinalT>

std::vector<Teuchos::RCP<Epetra_Map> > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::colMaps_

mutableprotected

The list of owned column maps corresponding to the owned indices of the (column) global indexers.

Definition at line 690 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

template<typename Traits, typename LocalOrdinalT>

std::vector<Teuchos::RCP<Epetra_Map> > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::colGhostedMaps_

mutableprotected

The list of ghosted column maps corresponding to the owned and ghosted indices of the (column) global indexers.

Definition at line 696 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

template<typename Traits, typename LocalOrdinalT>

std::vector<Teuchos::RCP<Epetra_Map> > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::colGhostedMaps2_

mutableprotected

The list of ghosted column maps corresponding to the ghosted indices of the (column) global indexers.

Definition at line 702 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

template<typename Traits, typename LocalOrdinalT>

std::vector<Teuchos::RCP<Epetra_Import> > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::colImporters_

mutableprotected

The list of ghosted importers corresponding to colGhostedMaps_.

Definition at line 707 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

template<typename Traits, typename LocalOrdinalT>

std::vector<Teuchos::RCP<Epetra_Import> > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::colImporters2_

mutableprotected

The list of ghosted importers corresponding to colGhostedMaps2_.

Definition at line 713 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

template<typename Traits, typename LocalOrdinalT>

std::vector<Teuchos::RCP<Epetra_Export> > panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::colExporters_

mutableprotected

Definition at line 715 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

template<typename Traits, typename LocalOrdinalT>

std::unordered_map<std::pair<int,int>,Teuchos::RCP<Epetra_CrsGraph>,panzer::pair_hash> panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::graphs_

mutableprotected

Definition at line 717 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

template<typename Traits, typename LocalOrdinalT>

std::unordered_map<std::pair<int,int>,Teuchos::RCP<Epetra_CrsGraph>,panzer::pair_hash> panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::ghostedGraphs_

mutableprotected

Definition at line 718 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

template<typename Traits, typename LocalOrdinalT>

bool panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >::useDiscreteAdjoint_

protected

Definition at line 720 of file Panzer_BlockedEpetraLinearObjFactory.hpp.

The documentation for this class was generated from the following files:

Classes

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

template<typename Traits, typename LocalOrdinalT> class panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

template<typename Traits, typename LocalOrdinalT>
class panzer::BlockedEpetraLinearObjFactory< Traits, LocalOrdinalT >
