NOX::Solver::InexactTrustRegionBased Class Reference

Newton-like solver using a trust region. More...

#include <NOX_Solver_InexactTrustRegionBased.H>

Inheritance diagram for NOX::Solver::InexactTrustRegionBased:
Inheritance graph
[legend]

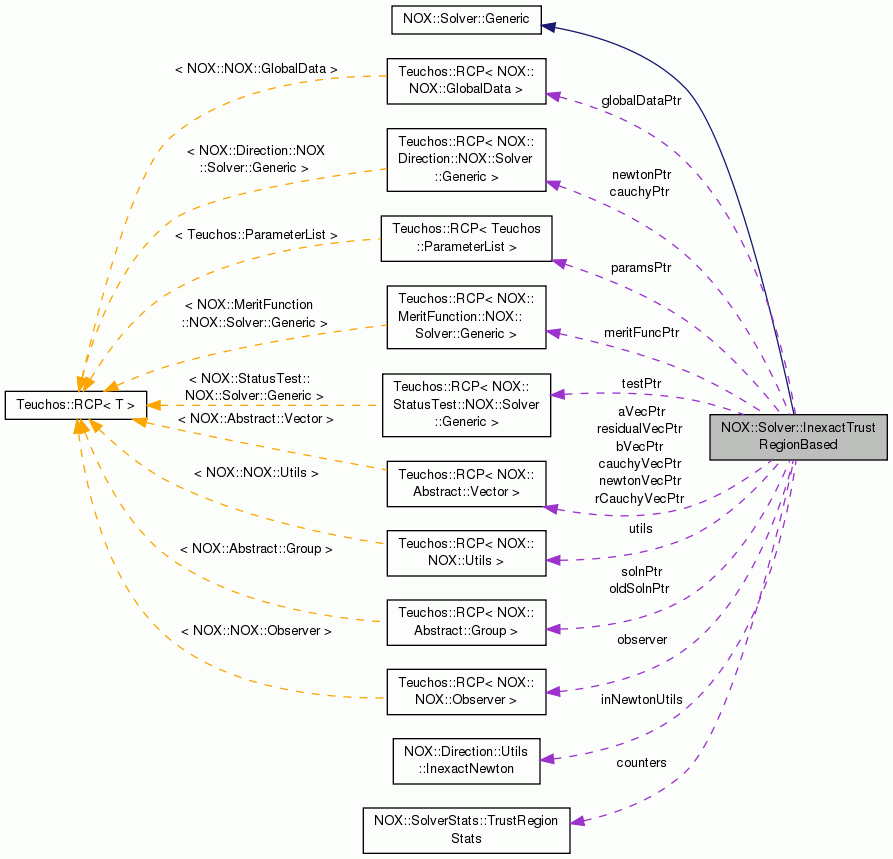

Collaboration diagram for NOX::Solver::InexactTrustRegionBased:
Collaboration graph
[legend]

Public Member Functions

 InexactTrustRegionBased (const Teuchos::RCP< NOX::Abstract::Group > &grp, const Teuchos::RCP< NOX::StatusTest::Generic > &tests, const Teuchos::RCP< Teuchos::ParameterList > &params)
 Constructor. More...

virtual ~InexactTrustRegionBased ()
 Destructor.

virtual void reset (const NOX::Abstract::Vector &initialGuess, const Teuchos::RCP< NOX::StatusTest::Generic > &tests)
 Resets the solver, sets a new status test, and sets a new initial guess.

virtual void reset (const NOX::Abstract::Vector &initialGuess)
 Resets the solver and sets a new initial guess.

virtual void reset ()
 Resets the solver for another solve. This resets the counters and status only. Uses the final solution from the last solve as the initial guess for the next solve. More...

virtual NOX::StatusTest::StatusType step ()
 Do one nonlinear step in the iteration sequence and return status.

virtual NOX::StatusTest::StatusType solve ()
 Solve the nonlinear problem and return final status. More...

virtual const
NOX::Abstract::Group
getSolutionGroup () const
 Return a reference to the current solution group.

virtual const
NOX::Abstract::Group
getPreviousSolutionGroup () const
 Return a reference to the previous solution group.

virtual NOX::StatusTest::StatusType getStatus () const
 Returns the current status of the solver.

virtual int getNumIterations () const
 Get number of iterations.

virtual const
Teuchos::ParameterList
getList () const
 Return a reference to the solver parameters.

virtual Teuchos::RCP< const
NOX::Abstract::Group
getSolutionGroupPtr () const
 Return a RCP to the solution group.

virtual Teuchos::RCP< const
NOX::Abstract::Group
getPreviousSolutionGroupPtr () const
 Return a RCP to the previous solution group.

virtual Teuchos::RCP< const
Teuchos::ParameterList
getListPtr () const
 Return a RCP to the solver parameters.

virtual Teuchos::RCP< const
NOX::SolverStats
getSolverStatistics () const
 Return a RCP to the solver statistics.

- Public Member Functions inherited from NOX::Solver::Generic
 Generic ()
 Constructor (does nothing)

virtual ~Generic ()
 Destructor (does nothing)


Protected Types

enum  TrustRegionType { Standard, Inexact }
 Type of Trust Region algorithm to use. More...

enum  InnerIterationReturnType { Converged, Unconverged, Failed }
 Return types for inner iteration status test. More...

enum  StepType { Newton, Cauchy, Dogleg }
 Enumerated list for each direction that may be required in the Trust region computation. More...


Protected Member Functions

virtual NOX::StatusTest::StatusType iterateStandard ()
 "Standard" trust region implementation

virtual NOX::StatusTest::StatusType iterateInexact ()
 "Inexact Trust Region"

virtual void init ()
 Print out initialization information and calcuation the RHS.

virtual void printUpdate ()
 Prints the current iteration information.

virtual void invalid (const std::string &param, double value) const
 Print an error message and throw an error during parameter reads.

virtual void throwError (const std::string &method, const std::string &mesage) const
 Print an error message and throw an error.

NOX::StatusTest::StatusType checkStep (const NOX::Abstract::Vector &step, double &radius)
 Check to see if the current step is acceptable. If not, it reduces the trust region radius accordingly.

virtual double computeNorm (const NOX::Abstract::Vector &v)
 Computes the norm of a given vector. More...


Protected Attributes

TrustRegionType method
 Type of trust region algorithm to use.

Teuchos::RCP< NOX::GlobalDataglobalDataPtr
 Pointer to the global data object.

Teuchos::RCP< NOX::Utilsutils
 Utils.

InnerIterationReturnType innerIterationStatus
 Current status of the trust region inner iteration.

Teuchos::RCP
< NOX::Abstract::Group
solnPtr
 Current solution.

Teuchos::RCP
< NOX::Abstract::Group
oldSolnPtr
 Previous solution pointer.

Teuchos::RCP
< NOX::Abstract::Vector
newtonVecPtr
 Current newton direction pointer.

Teuchos::RCP
< NOX::Abstract::Vector
cauchyVecPtr
 Current cauchy direction pointer.

Teuchos::RCP
< NOX::Abstract::Vector
rCauchyVecPtr
 Extra vector used in computations.

Teuchos::RCP
< NOX::Abstract::Vector
residualVecPtr
 Extra vector used in computations.

Teuchos::RCP
< NOX::Abstract::Vector
aVecPtr
 Extra vector used in computations.

Teuchos::RCP
< NOX::Abstract::Vector
bVecPtr
 Extra vector used in computations.

Teuchos::RCP
< NOX::StatusTest::Generic
testPtr
 Stopping test.

Teuchos::RCP
< Teuchos::ParameterList
paramsPtr
 Input parameters.

NOX::Direction::Utils::InexactNewton inNewtonUtils
 Inexact Newton utitilities.

Teuchos::RCP
< NOX::Direction::Generic
newtonPtr
 Newton Search Direction.

Teuchos::RCP
< NOX::Direction::Generic
cauchyPtr
 Cauchy Search Direction.

double radius
 Radius of the trust region.

double minRatio
 Minimum improvement ratio to accept step.

double minRadius
 Minimum trust region radius.

double maxRadius
 Maximum trust region radius.

double contractTriggerRatio
 ratio < alpha triggers contraction

double expandTriggerRatio
 ratio > beta triggers expansion

double expandFactor
 Expansion factor.

double contractFactor
 Constraction factor.

double recoveryStep

double newF
 Value of $ f $ at current solution.

double oldF
 Value of $ f $ at previous solution.

double dx
 norm(xnew - xold)

int nIter
 Number of nonlinear iterations.

double eta
 Current linear solve tolerance (inexact only).

double eta_last
 Linear solve tolerance used in last iteration (inexact only).

NOX::StatusTest::StatusType status
 Status of nonlinear solver.

NOX::StatusTest::CheckType checkType
 Type of check to use for status tests. See NOX::StatusTest for more details.

StepType stepType
 Type of step to be taken.

Teuchos::RCP
< NOX::MeritFunction::Generic
meritFuncPtr
 Stores merit function supplied by global data.

bool useCauchyInNewtonDirection
 If set to true, the initial guess for the Newton direction computation will use the Cauchy direction as the initial guess.

bool writeOutputParamsToList
 If set to true, statistics/counters will be output to the output list.

bool useCounters
 If set to true, counters will be stored by the solver.

NOX::SolverStats::TrustRegionStatscounters
 Counters for the algorithm.

bool useAredPredRatio
 If set to true, the minimum improvement ratio condition uses an Ared/Pred approach.

bool useDoglegMinimization
 If set to true, the $ \tau $ parameter is minimized over the dogleg line segments instead of being computed at the trust regioin radius.

Teuchos::RCP< NOX::Observerobserver
 Pointer to a user defined NOX::Observer object.


Detailed Description

Newton-like solver using a trust region.

Our goal is to solve: $ F(x) = 0, $ where $ F:\Re^n \rightarrow \Re^n $. Alternatively, we might say that we wish to solve

   $ \min f(x) \equiv \frac{1}{2} \|F(x)\|^2_2. $

The trust region subproblem (TRSP) at iteration $k$ is given by

   $ \min \; m_k(s) \equiv f_k + g_k^T d + \frac{1}{2} d^T B_k d, \mbox{ s.t. } \|d\| \leq \Delta_k \quad \mbox{(TRSP)} $

where

The "improvement ratio" for a given step $ s $ is defined as

   $ \rho = \displaystyle\frac{ f(x_k) - f(x_k + d) } { m_k(0) - m_k(d) } $

An iteration consists of the following steps.

Member Enumeration Documentation

Return types for inner iteration status test.

Enumerator
Converged

Converged.

Unconverged

Unconverged.

Failed

Failed by hitting minimum radius bound.

Enumerated list for each direction that may be required in the Trust region computation.

Enumerator
Newton

Use the Newton direction.

Cauchy

Use the Cauchy direction.

Dogleg

Use the doglog direction.

Type of Trust Region algorithm to use.

Enumerator
Standard

Basic trust region method for nonlinear systems (Nocedal and Wright?).

Inexact

Inexact Trust region WITHOUT minimization of the local linear model over the line segments.

Constructor & Destructor Documentation

NOX::Solver::InexactTrustRegionBased::InexactTrustRegionBased ( const Teuchos::RCP< NOX::Abstract::Group > &  grp,
const Teuchos::RCP< NOX::StatusTest::Generic > &  tests,
const Teuchos::RCP< Teuchos::ParameterList > &  params
)

Member Function Documentation

double NOX::Solver::InexactTrustRegionBased::computeNorm ( const NOX::Abstract::Vector v)
protectedvirtual

Computes the norm of a given vector.

Defaults to the L-2 norm but could use a user defined norm also.

References NOX::Abstract::Vector::norm().

void NOX::Solver::InexactTrustRegionBased::reset ( )
virtual

Resets the solver for another solve. This resets the counters and status only. Uses the final solution from the last solve as the initial guess for the next solve.

NOTE: All NOX solvers will call reset() automatically at teh beginning of the solve() method. We add the reset() method to the solver interface for the application to call in case the application needs to reset counters and status manually before the next call to solve() is made.

Implements NOX::Solver::Generic.

References NOX::Utils::fill(), NOX::Utils::Parameters, and NOX::StatusTest::Unconverged.

NOX::StatusTest::StatusType NOX::Solver::InexactTrustRegionBased::solve ( )
virtual

Solve the nonlinear problem and return final status.

By "solve", we call iterate() until the NOX::StatusTest value is either NOX::StatusTest::Converged or NOX::StatusTest::Failed.

Implements NOX::Solver::Generic.

References Teuchos::ParameterList::set(), Teuchos::ParameterList::sublist(), and NOX::StatusTest::Unconverged.

Member Data Documentation

double NOX::Solver::InexactTrustRegionBased::recoveryStep
protected

Take a step of this length in the Newton direction if the trust-region search fails
