NOX::LAPACK::Group Class Reference

A simple example of a group structure, based on BLAS/LAPACK. More...

#include <NOX_LAPACK_Group.H>

Inheritance diagram for NOX::LAPACK::Group:
Inheritance graph
[legend]

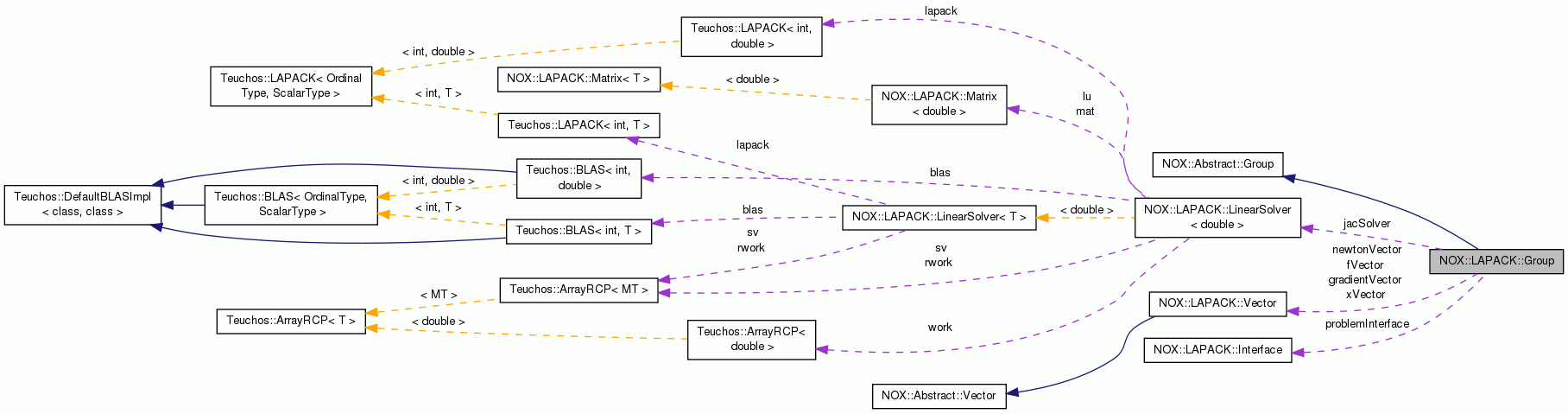

Collaboration diagram for NOX::LAPACK::Group:
Collaboration graph
[legend]

Public Member Functions

 Group (Interface &i)
 Constructor.

 Group (const NOX::LAPACK::Group &source, NOX::CopyType type=DeepCopy)
 Copy constructor.

 ~Group ()
 Destructor.

NOX::Abstract::Groupoperator= (const NOX::Abstract::Group &source)
 Copies the source group into this group. More...

NOX::Abstract::Groupoperator= (const NOX::LAPACK::Group &source)
 See above.

virtual Teuchos::RCP
< NOX::Abstract::Group
clone (NOX::CopyType type=NOX::DeepCopy) const
 Create a new Group of the same derived type as this one by cloning this one, and return a ref count pointer to the new group. More...

void print () const
 Print out the group.

"Compute" functions.
void setX (const NOX::Abstract::Vector &y)
 Set the solution vector x to y. More...

void setX (const NOX::LAPACK::Vector &y)
 See above.

void computeX (const NOX::Abstract::Group &grp, const NOX::Abstract::Vector &d, double step)
 Compute x = grp.x + step * d. More...

void computeX (const NOX::LAPACK::Group &grp, const NOX::LAPACK::Vector &d, double step)
 See above.

NOX::Abstract::Group::ReturnType computeF ()
 Compute and store F(x). More...

NOX::Abstract::Group::ReturnType computeJacobian ()
 Compute and store Jacobian. More...

NOX::Abstract::Group::ReturnType computeGradient ()
 Compute and store gradient. More...

NOX::Abstract::Group::ReturnType computeNewton (Teuchos::ParameterList &params)
 Compute the Newton direction, using parameters for the linear solve. More...

Jacobian operations.

Operations using the Jacobian matrix. These may not be defined in matrix-free scenarios.

NOX::Abstract::Group::ReturnType applyJacobian (const NOX::LAPACK::Vector &input, NOX::LAPACK::Vector &result) const

NOX::Abstract::Group::ReturnType applyJacobian (const NOX::Abstract::Vector &input, NOX::Abstract::Vector &result) const
 See above.

NOX::Abstract::Group::ReturnType applyJacobianTranspose (const NOX::LAPACK::Vector &input, NOX::LAPACK::Vector &result) const

NOX::Abstract::Group::ReturnType applyJacobianTranspose (const NOX::Abstract::Vector &input, NOX::Abstract::Vector &result) const
 See above.

NOX::Abstract::Group::ReturnType applyJacobianInverse (Teuchos::ParameterList &params, const NOX::LAPACK::Vector &input, Vector &result) const

NOX::Abstract::Group::ReturnType applyJacobianInverse (Teuchos::ParameterList &params, const NOX::Abstract::Vector &input, NOX::Abstract::Vector &result) const
 Applies the inverse of the Jacobian matrix to the given input vector and puts the answer in result. More...

virtual
NOX::Abstract::Group::ReturnType
applyJacobianInverseMultiVector (Teuchos::ParameterList &params, const NOX::Abstract::MultiVector &input, NOX::Abstract::MultiVector &result) const
 applyJacobianInverse for multiple right-hand sides

"Is" functions

Checks to see if various objects have been computed. Returns true if the corresponding "compute" function has been called since the last update to the solution vector (via instantiation or computeX).

bool isF () const
 Return true if F is valid.

bool isJacobian () const
 Return true if the Jacobian is valid. More...

bool isGradient () const
 Return true if the gradient is valid. More...

bool isNewton () const
 Return true if the Newton direction is valid. More...

"Get" functions

Note that these function do not check whether or not the vectors are valid. Must use the "Is" functions for that purpose.

const NOX::Abstract::VectorgetX () const
 Return solution vector.

const NOX::Abstract::VectorgetF () const
 Return F(x)

double getNormF () const
 Return 2-norm of F(x). More...

const NOX::Abstract::VectorgetGradient () const
 Return gradient.

const NOX::Abstract::VectorgetNewton () const
 Return Newton direction.

Teuchos::RCP< const
NOX::Abstract::Vector
getXPtr () const
 Return RCP to solution vector.

Teuchos::RCP< const
NOX::Abstract::Vector
getFPtr () const
 Return RCP to F(x)

Teuchos::RCP< const
NOX::Abstract::Vector
getGradientPtr () const
 Return RCP to gradient.

Teuchos::RCP< const
NOX::Abstract::Vector
getNewtonPtr () const
 Return RCP to Newton direction.

- Public Member Functions inherited from NOX::Abstract::Group
 Group ()
 Constructor. More...

virtual
NOX::Abstract::Group::ReturnType
applyRightPreconditioning (bool useTranspose, Teuchos::ParameterList &params, const NOX::Abstract::Vector &input, NOX::Abstract::Vector &result) const
 Apply right preconditiong to the given input vector. More...

virtual
NOX::Abstract::Group::ReturnType
applyJacobianMultiVector (const NOX::Abstract::MultiVector &input, NOX::Abstract::MultiVector &result) const
 applyJacobian for multiple right-hand sides More...

virtual
NOX::Abstract::Group::ReturnType
applyJacobianTransposeMultiVector (const NOX::Abstract::MultiVector &input, NOX::Abstract::MultiVector &result) const
 applyJacobianTranspose for multiple right-hand sides More...

virtual
NOX::Abstract::Group::ReturnType
applyRightPreconditioningMultiVector (bool useTranspose, Teuchos::ParameterList &params, const NOX::Abstract::MultiVector &input, NOX::Abstract::MultiVector &result) const
 applyRightPreconditioning for multiple right-hand sides More...

virtual const
NOX::Abstract::Vector
getScaledX () const

virtual void logLastLinearSolveStats (NOX::SolverStats &stats) const
 Adds statistics from last linear solve to the SovlerStats object.

virtual
NOX::Abstract::Group::ReturnType
getNormLastLinearSolveResidual (double &residual) const
 Return the norm of the last linear solve residual as the result of either a call to computeNewton() or applyJacobianInverse(). More...


Protected Member Functions

void resetIsValid ()
 resets the isValid flags to false


Protected Attributes

NOX::LAPACK::LinearSolver< double > jacSolver
 Jacobian Matrix & LAPACK solver.

NOX::LAPACK::InterfaceproblemInterface
 Problem interface.

Vectors
NOX::LAPACK::Vector xVector
 Solution vector.

NOX::LAPACK::Vector fVector
 Right-hand-side vector (function evaluation).

NOX::LAPACK::Vector newtonVector
 Newton direction vector.

NOX::LAPACK::Vector gradientVector
 Gradient vector (steepest descent vector).

IsValid flags

True if the current solution is up-to-date with respect to the currect xVector.

bool isValidF

bool isValidJacobian

bool isValidGradient

bool isValidNewton


Additional Inherited Members

- Public Types inherited from NOX::Abstract::Group
enum  ReturnType {
  Ok, NotDefined, BadDependency, NotConverged,
  Failed
}
 The computation of, say, the Newton direction in computeNewton() may fail in many different ways, so we have included a variety of return codes to describe the failures. Of course, we also have a code for success. More...


Detailed Description

A simple example of a group structure, based on BLAS/LAPACK.

Member Function Documentation

NOX::Abstract::Group::ReturnType NOX::LAPACK::Group::applyJacobianInverse ( Teuchos::ParameterList params,
const NOX::Abstract::Vector input,
NOX::Abstract::Vector result
) const
virtual

Applies the inverse of the Jacobian matrix to the given input vector and puts the answer in result.

Computes

\[ v = J^{-1} u, \]

where $J$ is the Jacobian, $u$ is the input vector, and $v$ is the result vector.

The "Tolerance" parameter specifies that the solution should be such that

\[ \frac{\| J v - u \|_2}{\max \{ 1, \|u\|_2\} } < \mbox{Tolerance} \]

Returns

The parameter "Tolerance" may be added/modified in the list of parameters - this is the ideal solution tolerance for an iterative linear solve.

Reimplemented from NOX::Abstract::Group.

Teuchos::RCP< NOX::Abstract::Group > NOX::LAPACK::Group::clone ( NOX::CopyType  type = NOX::DeepCopy) const
virtual

Create a new Group of the same derived type as this one by cloning this one, and return a ref count pointer to the new group.

If type is NOX::DeepCopy, then we need to create an exact replica of "this". Otherwise, if type is NOX::ShapeCopy, we need only replicate the shape of "this" (only the memory is allocated, the values are not copied into the vectors and Jacobian). Returns NULL if clone is not supported.

Note
Any shared data should have its ownership transfered to this group from the source for a NOX::DeepCopy.

Implements NOX::Abstract::Group.

Reimplemented in LOCA::LAPACK::Group.

References Teuchos::rcp().

NOX::Abstract::Group::ReturnType NOX::LAPACK::Group::computeF ( )
virtual

Compute and store F(x).

Note
It's generally useful to also compute and store the 2-norm of F(x) at this point for later access by the getNormF() function.
Returns

Implements NOX::Abstract::Group.

References NOX::Abstract::Group::Failed, and NOX::Abstract::Group::Ok.

Referenced by LOCA::LAPACK::Group::computeF().

NOX::Abstract::Group::ReturnType NOX::LAPACK::Group::computeGradient ( )
virtual

Compute and store gradient.

We can pose the nonlinear equation problem $F(x) = 0$ as an optimization problem as follows:

\[ \min f(x) \equiv \frac{1}{2} \|F(x)\|_2^2. \]

In that case, the gradient (of $f$) is defined as

\[ g \equiv J^T F. \]

Returns

Reimplemented from NOX::Abstract::Group.

References NOX::Abstract::Group::BadDependency, and NOX::Abstract::Group::Ok.

NOX::Abstract::Group::ReturnType NOX::LAPACK::Group::computeJacobian ( )
virtual

Compute and store Jacobian.

Recall that

\[ F(x) = \left[ \begin{array}{c} F_1(x) \\ F_2(x) \\ \vdots \\ F_n(x) \\ \end{array} \right]. \]

The Jacobian is denoted by $J$ and defined by

\[ J_{ij} = \frac{\partial F_i}{\partial x_j} (x). \]

Note
If this is a shared object, this group should take ownership of the Jacobian before it computes it.
Returns

Reimplemented from NOX::Abstract::Group.

References NOX::Abstract::Group::Failed, and NOX::Abstract::Group::Ok.

Referenced by LOCA::LAPACK::Group::computeJacobian().

NOX::Abstract::Group::ReturnType NOX::LAPACK::Group::computeNewton ( Teuchos::ParameterList params)
virtual

Compute the Newton direction, using parameters for the linear solve.

The Newton direction is the solution, s, of

\[ J s = -F. \]

The parameters are from the "Linear %Solver" sublist of the "Direction" sublist that is passed to solver during construction.

The "Tolerance" parameter may be added/modified in the sublist of "Linear Solver" parameters that is passed into this function. The solution should be such that

\[ \frac{\| J s - (-F) \|_2}{\max \{ 1, \|F\|_2\} } < \mbox{Tolerance} \]

Returns

Reimplemented from NOX::Abstract::Group.

References NOX::Abstract::Group::Ok.

void NOX::LAPACK::Group::computeX ( const NOX::Abstract::Group grp,
const NOX::Abstract::Vector d,
double  step
)
virtual

Compute x = grp.x + step * d.

Let $x$ denote this group's solution vector. Let $\hat x$ denote the result of grp.getX(). Then set

\[ x = \hat x + \mbox{step} \; d. \]

Note
This should invalidate the function value, Jacobian, gradient, and Newton direction.
Throw an error if the copy fails.
Returns
Reference to this object

Implements NOX::Abstract::Group.

double NOX::LAPACK::Group::getNormF ( ) const
virtual

Return 2-norm of F(x).

In other words,

\[ \sqrt{\sum_{i=1}^n F_i^2} \]

Implements NOX::Abstract::Group.

bool NOX::LAPACK::Group::isGradient ( ) const
virtual

Return true if the gradient is valid.

Note
Default implementation in NOX::Abstract::Group returns false.

Reimplemented from NOX::Abstract::Group.

bool NOX::LAPACK::Group::isJacobian ( ) const
virtual

Return true if the Jacobian is valid.

Note
Default implementation in NOX::Abstract::Group returns false.

Reimplemented from NOX::Abstract::Group.

bool NOX::LAPACK::Group::isNewton ( ) const
virtual

Return true if the Newton direction is valid.

Note
Default implementation in NOX::Abstract::Group returns false.

Reimplemented from NOX::Abstract::Group.

NOX::Abstract::Group & NOX::LAPACK::Group::operator= ( const NOX::Abstract::Group source)
virtual

Copies the source group into this group.

Note
Any shared data owned by the source should have its ownership transfered to this group. This may result in a secret modification to the source object.

Implements NOX::Abstract::Group.

Referenced by LOCA::LAPACK::Group::operator=().

void NOX::LAPACK::Group::setX ( const NOX::Abstract::Vector y)
virtual

Set the solution vector x to y.

Note
This should invalidate the function value, Jacobian, gradient, and Newton direction.
Throw an error if the copy fails.
Returns
Reference to this object

Implements NOX::Abstract::Group.


The documentation for this class was generated from the following files:
