LOCA::BorderedSystem::AbstractGroup Class Referenceabstract

An interface for groups that are bordered systems. More...

#include <LOCA_BorderedSystem_AbstractGroup.H>

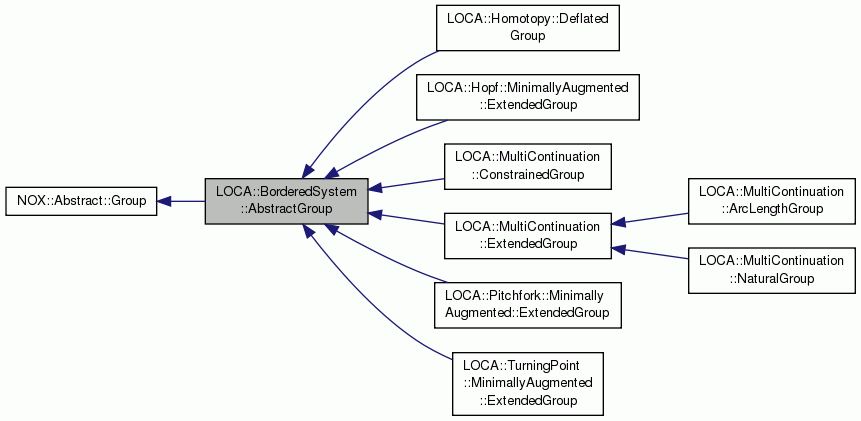

Inheritance diagram for LOCA::BorderedSystem::AbstractGroup:
Inheritance graph
[legend]
Collaboration diagram for LOCA::BorderedSystem::AbstractGroup:
Collaboration graph
[legend]

Public Member Functions

 AbstractGroup ()
 Constructor.

virtual ~AbstractGroup ()
 Destructor.

Pure virtual methods

These methods must be defined by any concrete implementation

virtual int getBorderedWidth () const =0
 Return the total width of the bordered rows/columns.

virtual Teuchos::RCP< const
NOX::Abstract::Group
getUnborderedGroup () const =0
 Get bottom-level unbordered group.

virtual bool isCombinedAZero () const =0
 Indicates whether combined A block is zero.

virtual bool isCombinedBZero () const =0
 Indicates whether combined B block is zero.

virtual bool isCombinedCZero () const =0
 Indicates whether combined C block is zero.

virtual void extractSolutionComponent (const NOX::Abstract::MultiVector &v, NOX::Abstract::MultiVector &v_x) const =0

virtual void extractParameterComponent (bool use_transpose, const NOX::Abstract::MultiVector &v, NOX::Abstract::MultiVector::DenseMatrix &v_p) const =0

virtual void loadNestedComponents (const NOX::Abstract::MultiVector &v_x, const NOX::Abstract::MultiVector::DenseMatrix &v_p, NOX::Abstract::MultiVector &v) const =0

virtual void fillA (NOX::Abstract::MultiVector &A) const =0
 Fill the combined A block as described above.

virtual void fillB (NOX::Abstract::MultiVector &B) const =0
 Fill the combined B block as described above.

virtual void fillC (NOX::Abstract::MultiVector::DenseMatrix &C) const =0
 Fill the combined C block as described above.

- Public Member Functions inherited from NOX::Abstract::Group
 Group ()
 Constructor. More...

virtual ~Group ()
 Destructor.

virtual NOX::Abstract::Groupoperator= (const NOX::Abstract::Group &source)=0
 Copies the source group into this group. More...

virtual void setX (const NOX::Abstract::Vector &y)=0
 Set the solution vector x to y. More...

virtual void computeX (const NOX::Abstract::Group &grp, const NOX::Abstract::Vector &d, double step)=0
 Compute x = grp.x + step * d. More...

virtual
NOX::Abstract::Group::ReturnType
computeF ()=0
 Compute and store F(x). More...

virtual
NOX::Abstract::Group::ReturnType
computeJacobian ()
 Compute and store Jacobian. More...

virtual
NOX::Abstract::Group::ReturnType
computeGradient ()
 Compute and store gradient. More...

virtual
NOX::Abstract::Group::ReturnType
computeNewton (Teuchos::ParameterList &params)
 Compute the Newton direction, using parameters for the linear solve. More...

virtual
NOX::Abstract::Group::ReturnType
applyJacobian (const NOX::Abstract::Vector &input, NOX::Abstract::Vector &result) const
 Applies Jacobian to the given input vector and puts the answer in the result. More...

virtual
NOX::Abstract::Group::ReturnType
applyJacobianTranspose (const NOX::Abstract::Vector &input, NOX::Abstract::Vector &result) const
 Applies Jacobian-Transpose to the given input vector and puts the answer in the result. More...

virtual
NOX::Abstract::Group::ReturnType
applyJacobianInverse (Teuchos::ParameterList &params, const NOX::Abstract::Vector &input, NOX::Abstract::Vector &result) const
 Applies the inverse of the Jacobian matrix to the given input vector and puts the answer in result. More...

virtual
NOX::Abstract::Group::ReturnType
applyRightPreconditioning (bool useTranspose, Teuchos::ParameterList &params, const NOX::Abstract::Vector &input, NOX::Abstract::Vector &result) const
 Apply right preconditiong to the given input vector. More...

virtual
NOX::Abstract::Group::ReturnType
applyJacobianMultiVector (const NOX::Abstract::MultiVector &input, NOX::Abstract::MultiVector &result) const
 applyJacobian for multiple right-hand sides More...

virtual
NOX::Abstract::Group::ReturnType
applyJacobianTransposeMultiVector (const NOX::Abstract::MultiVector &input, NOX::Abstract::MultiVector &result) const
 applyJacobianTranspose for multiple right-hand sides More...

virtual
NOX::Abstract::Group::ReturnType
applyJacobianInverseMultiVector (Teuchos::ParameterList &params, const NOX::Abstract::MultiVector &input, NOX::Abstract::MultiVector &result) const
 applyJacobianInverse for multiple right-hand sides More...

virtual
NOX::Abstract::Group::ReturnType
applyRightPreconditioningMultiVector (bool useTranspose, Teuchos::ParameterList &params, const NOX::Abstract::MultiVector &input, NOX::Abstract::MultiVector &result) const
 applyRightPreconditioning for multiple right-hand sides More...

virtual bool isF () const =0
 Return true if F is valid.

virtual bool isJacobian () const
 Return true if the Jacobian is valid. More...

virtual bool isGradient () const
 Return true if the gradient is valid. More...

virtual bool isNewton () const
 Return true if the Newton direction is valid. More...

virtual const
NOX::Abstract::Vector
getX () const =0
 Return solution vector.

virtual const
NOX::Abstract::Vector
getScaledX () const

virtual const
NOX::Abstract::Vector
getF () const =0
 Return F(x)

virtual double getNormF () const =0
 Return 2-norm of F(x). More...

virtual const
NOX::Abstract::Vector
getGradient () const =0
 Return gradient.

virtual const
NOX::Abstract::Vector
getNewton () const =0
 Return Newton direction.

virtual Teuchos::RCP< const
NOX::Abstract::Vector
getXPtr () const =0
 Return RCP to solution vector.

virtual Teuchos::RCP< const
NOX::Abstract::Vector
getFPtr () const =0
 Return RCP to F(x)

virtual Teuchos::RCP< const
NOX::Abstract::Vector
getGradientPtr () const =0
 Return RCP to gradient.

virtual Teuchos::RCP< const
NOX::Abstract::Vector
getNewtonPtr () const =0
 Return RCP to Newton direction.

virtual void logLastLinearSolveStats (NOX::SolverStats &stats) const
 Adds statistics from last linear solve to the SovlerStats object.

virtual
NOX::Abstract::Group::ReturnType
getNormLastLinearSolveResidual (double &residual) const
 Return the norm of the last linear solve residual as the result of either a call to computeNewton() or applyJacobianInverse(). More...

virtual Teuchos::RCP
< NOX::Abstract::Group
clone (NOX::CopyType type=NOX::DeepCopy) const =0
 Create a new Group of the same derived type as this one by cloning this one, and return a ref count pointer to the new group. More...


Additional Inherited Members

- Public Types inherited from NOX::Abstract::Group
enum  ReturnType {
  Ok, NotDefined, BadDependency, NotConverged,
  Failed
}
 The computation of, say, the Newton direction in computeNewton() may fail in many different ways, so we have included a variety of return codes to describe the failures. Of course, we also have a code for success. More...


Detailed Description

An interface for groups that are bordered systems.

This class provides an interface for groups whose Jacobian is of the form

\[ \begin{bmatrix} J & A \\ B^T & C \end{bmatrix} \]

where $A$ and $B$ are multivectors and $C$ is a dense matrix. It provides methods for determining the width of the bordered rows/columns and for extracting these components. It is intended to be a recusive interface, in that if the group representing $J$ also has this form, the extracted rows/columns should be the combined rows/columns of this group and the underlying group (and so on).

Member Function Documentation

virtual void LOCA::BorderedSystem::AbstractGroup::extractParameterComponent ( bool  use_transpose,
const NOX::Abstract::MultiVector v,
NOX::Abstract::MultiVector::DenseMatrix v_p
) const
pure virtual

Given the vector v, extract the parameter components of all of the nested subvectors in v down to the solution component for the unbordered group.

Implemented in LOCA::TurningPoint::MinimallyAugmented::ExtendedGroup, LOCA::Hopf::MinimallyAugmented::ExtendedGroup, LOCA::Pitchfork::MinimallyAugmented::ExtendedGroup, LOCA::Homotopy::DeflatedGroup, LOCA::MultiContinuation::ConstrainedGroup, and LOCA::MultiContinuation::ExtendedGroup.

virtual void LOCA::BorderedSystem::AbstractGroup::extractSolutionComponent ( const NOX::Abstract::MultiVector v,
NOX::Abstract::MultiVector v_x
) const
pure virtual
virtual void LOCA::BorderedSystem::AbstractGroup::loadNestedComponents ( const NOX::Abstract::MultiVector v_x,
const NOX::Abstract::MultiVector::DenseMatrix v_p,
NOX::Abstract::MultiVector v
) const
pure virtual

The documentation for this class was generated from the following file:
