MueLu::XpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node > Class Template Reference

Wraps an existing MueLu::Hierarchy as a Xpetra::Operator. More...

#include <MueLu_XpetraOperator_decl.hpp>

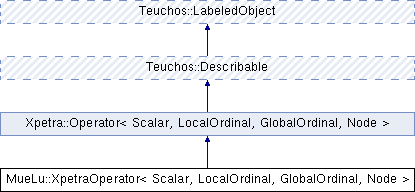

Inheritance diagram for MueLu::XpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >:
Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node > Teuchos::Describable Teuchos::LabeledObject

Public Member Functions

Teuchos::RCP< const
Xpetra::Map< LocalOrdinal,
GlobalOrdinal, Node > > 		getDomainMap () const
 Returns the Tpetra::Map object associated with the domain of this operator. More...

Teuchos::RCP< const
Xpetra::Map< LocalOrdinal,
GlobalOrdinal, Node > > 		getRangeMap () const
 Returns the Tpetra::Map object associated with the range of this operator. More...

void apply (const Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &X, Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &Y, Teuchos::ETransp=Teuchos::NO_TRANS, Scalar=Teuchos::ScalarTraits< Scalar >::one(), Scalar=Teuchos::ScalarTraits< Scalar >::one()) const
 Returns in Y the result of a Xpetra::Operator applied to a Xpetra::MultiVector X. More...

bool hasTransposeApply () const
 Indicates whether this operator supports applying the adjoint operator. More...

- Public Member Functions inherited from Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >
virtual void removeEmptyProcessesInPlace (const RCP< const Map > &)

- Public Member Functions inherited from Teuchos::Describable
virtual std::string description () const

virtual void describe (FancyOStream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

void describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

virtual ~Describable ()

 LabeledObject ()

virtual ~LabeledObject ()

virtual void setObjectLabel (const std::string &objectLabel)

virtual std::string getObjectLabel () const

DescribableStreamManipulatorState describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream & operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)


Protected Member Functions

 XpetraOperator ()


Private Attributes

RCP< MueLu::Hierarchy< Scalar,
LocalOrdinal, GlobalOrdinal,
Node > > 		Hierarchy_


Constructor/Destructor

 XpetraOperator (const RCP< MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node > > &H)
 Constructor. More...

virtual ~XpetraOperator ()
 Destructor. More...


MueLu specific

RCP< MueLu::Hierarchy< Scalar,
LocalOrdinal, GlobalOrdinal,
Node > > 		GetHierarchy () const
 Direct access to the underlying MueLu::Hierarchy. More...


Additional Inherited Members

- Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel verbLevel_default


Detailed Description

template<class Scalar = Xpetra::Operator<>::scalar_type, class LocalOrdinal = typename Xpetra::Operator<Scalar>::local_ordinal_type, class GlobalOrdinal = typename Xpetra::Operator<Scalar, LocalOrdinal>::global_ordinal_type, class Node = typename Xpetra::Operator<Scalar, LocalOrdinal, GlobalOrdinal>::node_type>
class MueLu::XpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >

Wraps an existing MueLu::Hierarchy as a Xpetra::Operator.

Definition at line 64 of file MueLu_XpetraOperator_decl.hpp.

Constructor & Destructor Documentation

template<class Scalar = Xpetra::Operator<>::scalar_type, class LocalOrdinal = typename Xpetra::Operator<Scalar>::local_ordinal_type, class GlobalOrdinal = typename Xpetra::Operator<Scalar, LocalOrdinal>::global_ordinal_type, class Node = typename Xpetra::Operator<Scalar, LocalOrdinal, GlobalOrdinal>::node_type>
MueLu::XpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::XpetraOperator ( )
inlineprotected

Definition at line 66 of file MueLu_XpetraOperator_decl.hpp.

template<class Scalar = Xpetra::Operator<>::scalar_type, class LocalOrdinal = typename Xpetra::Operator<Scalar>::local_ordinal_type, class GlobalOrdinal = typename Xpetra::Operator<Scalar, LocalOrdinal>::global_ordinal_type, class Node = typename Xpetra::Operator<Scalar, LocalOrdinal, GlobalOrdinal>::node_type>
MueLu::XpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::XpetraOperator ( const RCP< MueLu::Hierarchy< Scalar, LocalOrdinal, GlobalOrdinal, Node > > &  H)
inline

Constructor.

Definition at line 73 of file MueLu_XpetraOperator_decl.hpp.

template<class Scalar = Xpetra::Operator<>::scalar_type, class LocalOrdinal = typename Xpetra::Operator<Scalar>::local_ordinal_type, class GlobalOrdinal = typename Xpetra::Operator<Scalar, LocalOrdinal>::global_ordinal_type, class Node = typename Xpetra::Operator<Scalar, LocalOrdinal, GlobalOrdinal>::node_type>
virtual MueLu::XpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::~XpetraOperator ( )
inlinevirtual

Destructor.

Definition at line 76 of file MueLu_XpetraOperator_decl.hpp.

Member Function Documentation

template<class Scalar = Xpetra::Operator<>::scalar_type, class LocalOrdinal = typename Xpetra::Operator<Scalar>::local_ordinal_type, class GlobalOrdinal = typename Xpetra::Operator<Scalar, LocalOrdinal>::global_ordinal_type, class Node = typename Xpetra::Operator<Scalar, LocalOrdinal, GlobalOrdinal>::node_type>
Teuchos::RCP<const Xpetra::Map<LocalOrdinal,GlobalOrdinal,Node> > MueLu::XpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getDomainMap ( ) const
inlinevirtual

Returns the Tpetra::Map object associated with the domain of this operator.

Implements Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 81 of file MueLu_XpetraOperator_decl.hpp.

template<class Scalar = Xpetra::Operator<>::scalar_type, class LocalOrdinal = typename Xpetra::Operator<Scalar>::local_ordinal_type, class GlobalOrdinal = typename Xpetra::Operator<Scalar, LocalOrdinal>::global_ordinal_type, class Node = typename Xpetra::Operator<Scalar, LocalOrdinal, GlobalOrdinal>::node_type>
Teuchos::RCP<const Xpetra::Map<LocalOrdinal,GlobalOrdinal,Node> > MueLu::XpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getRangeMap ( ) const
inlinevirtual

Returns the Tpetra::Map object associated with the range of this operator.

Implements Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 89 of file MueLu_XpetraOperator_decl.hpp.

template<class Scalar = Xpetra::Operator<>::scalar_type, class LocalOrdinal = typename Xpetra::Operator<Scalar>::local_ordinal_type, class GlobalOrdinal = typename Xpetra::Operator<Scalar, LocalOrdinal>::global_ordinal_type, class Node = typename Xpetra::Operator<Scalar, LocalOrdinal, GlobalOrdinal>::node_type>
void MueLu::XpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::apply ( const Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &  X,
Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &  Y,
Teuchos::ETransp  = Teuchos::NO_TRANS,
Scalar  = Teuchos::ScalarTraits<Scalar>::one(),
Scalar  = Teuchos::ScalarTraits<Scalar>::one()
) const
inlinevirtual

Returns in Y the result of a Xpetra::Operator applied to a Xpetra::MultiVector X.

Parameters
[in]X- Xpetra::MultiVector of dimension NumVectors to multiply with matrix.
[out]Y- Xpetra::MultiVector of dimension NumVectors containing result.

Implements Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 101 of file MueLu_XpetraOperator_decl.hpp.

template<class Scalar = Xpetra::Operator<>::scalar_type, class LocalOrdinal = typename Xpetra::Operator<Scalar>::local_ordinal_type, class GlobalOrdinal = typename Xpetra::Operator<Scalar, LocalOrdinal>::global_ordinal_type, class Node = typename Xpetra::Operator<Scalar, LocalOrdinal, GlobalOrdinal>::node_type>
bool MueLu::XpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::hasTransposeApply ( ) const
inline

Indicates whether this operator supports applying the adjoint operator.

Definition at line 132 of file MueLu_XpetraOperator_decl.hpp.

template<class Scalar = Xpetra::Operator<>::scalar_type, class LocalOrdinal = typename Xpetra::Operator<Scalar>::local_ordinal_type, class GlobalOrdinal = typename Xpetra::Operator<Scalar, LocalOrdinal>::global_ordinal_type, class Node = typename Xpetra::Operator<Scalar, LocalOrdinal, GlobalOrdinal>::node_type>
RCP<MueLu::Hierarchy<Scalar, LocalOrdinal, GlobalOrdinal, Node> > MueLu::XpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::GetHierarchy ( ) const
inline

Direct access to the underlying MueLu::Hierarchy.

Definition at line 147 of file MueLu_XpetraOperator_decl.hpp.

Member Data Documentation

template<class Scalar = Xpetra::Operator<>::scalar_type, class LocalOrdinal = typename Xpetra::Operator<Scalar>::local_ordinal_type, class GlobalOrdinal = typename Xpetra::Operator<Scalar, LocalOrdinal>::global_ordinal_type, class Node = typename Xpetra::Operator<Scalar, LocalOrdinal, GlobalOrdinal>::node_type>
RCP<MueLu::Hierarchy<Scalar, LocalOrdinal, GlobalOrdinal, Node> > MueLu::XpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Hierarchy_
private

Definition at line 152 of file MueLu_XpetraOperator_decl.hpp.

The documentation for this class was generated from the following file:
