MueLu::TogglePFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node > Class Template Reference

Prolongator factory which allows switching between two different prolongator strategies. More...

#include <MueLu_TogglePFactory_decl.hpp>

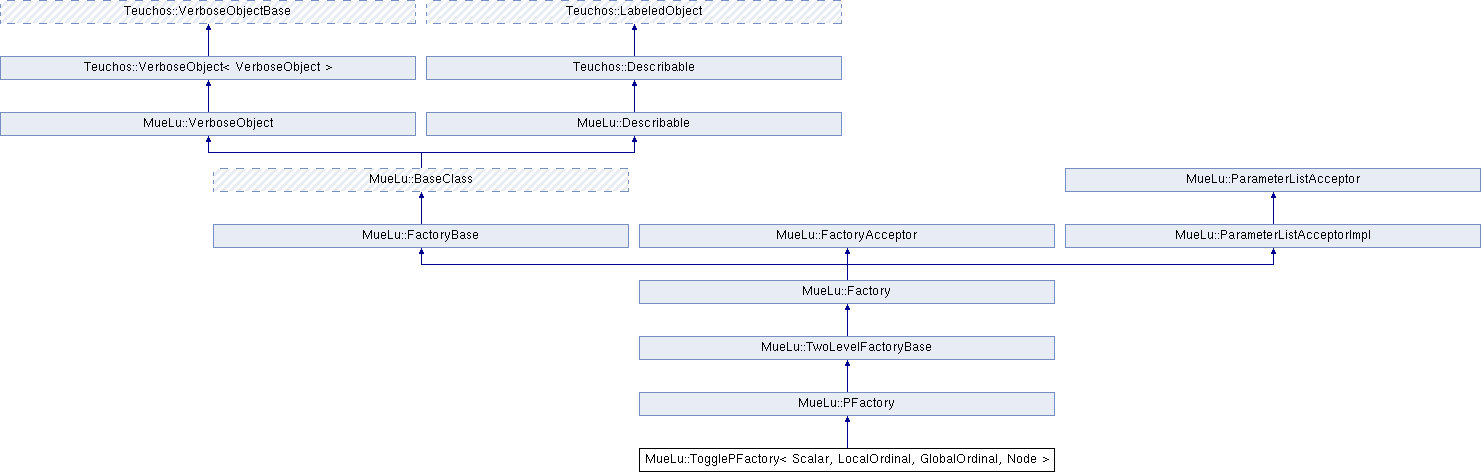

Inheritance diagram for MueLu::TogglePFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >:
MueLu::PFactory MueLu::TwoLevelFactoryBase MueLu::Factory MueLu::FactoryBase MueLu::FactoryAcceptor MueLu::ParameterListAcceptorImpl MueLu::BaseClass MueLu::ParameterListAcceptor MueLu::VerboseObject MueLu::Describable Teuchos::VerboseObject< VerboseObject > Teuchos::Describable Teuchos::VerboseObjectBase Teuchos::LabeledObject

Private Attributes

std::vector< RCP< const
FactoryBase > >
prolongatorFacts_
 list of user-defined prolongation operator factories More...

std::vector< RCP< const
FactoryBase > >
ptentFacts_
 list of user-defined tentative prolongation operator factories More...

std::vector< RCP< const
FactoryBase > >
nspFacts_
 list of user-defined nullspace factories (i.e. the prolongator factories which also generate the coarse level nullspace) More...

bool hasDeclaredInput_


Constructors/Destructors.

 TogglePFactory ()
 Constructor. More...

virtual ~TogglePFactory ()
 Destructor. More...

RCP< const ParameterListGetValidParameterList () const
 Return a const parameter list of valid parameters that setParameterList() will accept. More...

void DeclareInput (Level &fineLevel, Level &coarseLevel) const
 Input. More...


Build methods.

void Build (Level &fineLevel, Level &coarseLevel) const
 Build method. More...

void BuildP (Level &, Level &) const
 Abstract Build method. More...

void AddProlongatorFactory (const RCP< const FactoryBase > &factory)
 Add a prolongator factory in the end of list of prolongator factories. More...

size_t NumProlongatorFactories () const
 Returns number of prolongator factories. More...

void AddPtentFactory (const RCP< const FactoryBase > &factory)
 Add a tentative prolongator factory in the end of list of prolongator factories. More...

size_t NumPtentFactories () const
 Returns number of tentative prolongator factories. More...

void AddCoarseNullspaceFactory (const RCP< const FactoryBase > &factory)
 Add a coarse nullspace factory in the end of list of coarse nullspace factories. More...

size_t NumCoarseNullspaceFactories () const
 Returns number of coarse null space factories. More...


Additional Inherited Members

- Public Member Functions inherited from MueLu::PFactory
 PFactory ()
 Constructor. More...

virtual ~PFactory ()
 Destructor. More...

void setRestrictionMode (bool bRestrictionMode=false)

bool isRestrictionModeSet ()
 returns restrictionMode flag More...

- Public Member Functions inherited from MueLu::TwoLevelFactoryBase
 TwoLevelFactoryBase ()
 Constructor. More...

virtual ~TwoLevelFactoryBase ()
 Destructor. More...

virtual void CallDeclareInput (Level &requestedLevel) const

virtual void CallBuild (Level &requestedLevel) const

- Public Member Functions inherited from MueLu::Factory
void EnableMultipleCallCheck () const
 Constructor. More...

void DisableMultipleCallCheck () const

void ResetDebugData () const

- Public Member Functions inherited from MueLu::FactoryBase
 FactoryBase ()
 Constructor. More...

virtual ~FactoryBase ()
 Destructor. More...

int GetID () const
 return unique factory id More...

- Public Member Functions inherited from MueLu::BaseClass
virtual ~BaseClass ()
 Destructor. More...

- Public Member Functions inherited from MueLu::VerboseObject
VerbLevel GetVerbLevel () const
 Get the verbosity level. More...

void SetVerbLevel (const VerbLevel verbLevel)
 Set the verbosity level of this object. More...

int GetProcRankVerbose () const
 Get proc rank used for printing. Do not use this information for any other purpose. More...

int SetProcRankVerbose (int procRank) const
 Set proc rank used for printing. More...

bool IsPrint (MsgType type, int thisProcRankOnly=-1) const
 Find out whether we need to print out information for a specific message type. More...

Teuchos::FancyOStreamGetOStream (MsgType type, int thisProcRankOnly=0) const
 Get an output stream for outputting the input message type. More...

Teuchos::FancyOStreamGetBlackHole () const

 VerboseObject ()

virtual ~VerboseObject ()
 Destructor. More...

- Public Member Functions inherited from Teuchos::VerboseObject< VerboseObject >
 VerboseObject (const EVerbosityLevel verbLevel=VERB_DEFAULT, const RCP< FancyOStream > &oStream=Teuchos::null)

virtual const VerboseObjectsetVerbLevel (const EVerbosityLevel verbLevel) const

virtual const VerboseObjectsetOverridingVerbLevel (const EVerbosityLevel verbLevel) const

virtual EVerbosityLevel getVerbLevel () const

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT
RCP< const ParameterList
getValidVerboseObjectSublist ()

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT
void
setupVerboseObjectSublist (ParameterList *paramList)

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT
void
readVerboseObjectSublist (ParameterList *paramList, RCP< FancyOStream > *oStream, EVerbosityLevel *verbLevel)

void readVerboseObjectSublist (ParameterList *paramList, VerboseObject< ObjectType > *verboseObject)

- Public Member Functions inherited from Teuchos::VerboseObjectBase
virtual ~VerboseObjectBase ()

 VerboseObjectBase (const RCP< FancyOStream > &oStream=Teuchos::null)

virtual const VerboseObjectBasesetOStream (const RCP< FancyOStream > &oStream) const

virtual const VerboseObjectBasesetOverridingOStream (const RCP< FancyOStream > &oStream) const

virtual VerboseObjectBasesetLinePrefix (const std::string &linePrefix)

virtual RCP< FancyOStreamgetOStream () const

virtual RCP< FancyOStreamgetOverridingOStream () const

virtual std::string getLinePrefix () const

virtual OSTab getOSTab (const int tabs=1, const std::string &linePrefix="") const

- Public Member Functions inherited from MueLu::Describable
virtual ~Describable ()
 Destructor. More...

virtual std::string ShortClassName () const
 Return the class name of the object, without template parameters and without namespace. More...

virtual void describe (Teuchos::FancyOStream &out_arg, const VerbLevel verbLevel=Default) const

virtual std::string description () const
 Return a simple one-line description of this object. More...

void describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const
 Print the object with some verbosity level to an FancyOStream object. More...

- Public Member Functions inherited from Teuchos::Describable
void describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

 LabeledObject ()

virtual ~LabeledObject ()

virtual void setObjectLabel (const std::string &objectLabel)

virtual std::string getObjectLabel () const

DescribableStreamManipulatorState describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream & operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)

- Public Member Functions inherited from MueLu::FactoryAcceptor
virtual ~FactoryAcceptor ()

virtual void SetFactory (const std::string &varName, const RCP< const FactoryBase > &factory)=0
 Configuration. More...

virtual const RCP< const
FactoryBase
GetFactory (const std::string &varName) const =0

- Public Member Functions inherited from MueLu::ParameterListAcceptorImpl
 ParameterListAcceptorImpl ()

virtual ~ParameterListAcceptorImpl ()=default

virtual void SetParameterList (const Teuchos::ParameterList &paramList)
 Set parameters from a parameter list and return with default values. More...

virtual const
Teuchos::ParameterList
GetParameterList () const

void SetParameter (const std::string &name, const ParameterEntry &entry)
 Set a parameter directly as a ParameterEntry. More...

const ParameterEntryGetParameter (const std::string &name) const
 Retrieves a const entry with the name name. More...

virtual void GetDocumentation (std::ostream &os) const

- Public Member Functions inherited from MueLu::ParameterListAcceptor
 ParameterListAcceptor ()

virtual ~ParameterListAcceptor ()=default

- Static Public Member Functions inherited from MueLu::Factory
static void EnableMultipleCheckGlobally ()

static void DisableMultipleCheckGlobally ()

- Static Public Member Functions inherited from MueLu::VerboseObject
static void SetMueLuOStream (const Teuchos::RCP< Teuchos::FancyOStream > &mueluOStream)

static Teuchos::RCP
< Teuchos::FancyOStream
GetMueLuOStream ()

static void SetDefaultVerbLevel (const VerbLevel defaultVerbLevel)
 Set the default (global) verbosity level. More...

static VerbLevel GetDefaultVerbLevel ()
 Get the default (global) verbosity level. More...

- Static Public Member Functions inherited from Teuchos::VerboseObject< VerboseObject >
static void setDefaultVerbLevel (const EVerbosityLevel defaultVerbLevel)

static EVerbosityLevel getDefaultVerbLevel ()

- Static Public Member Functions inherited from Teuchos::VerboseObjectBase
static void setDefaultOStream (const RCP< FancyOStream > &defaultOStream)

static RCP< FancyOStreamgetDefaultOStream ()

- Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel verbLevel_default

- Protected Member Functions inherited from Teuchos::VerboseObject< VerboseObject >
void initializeVerboseObject (const EVerbosityLevel verbLevel=VERB_DEFAULT, const RCP< FancyOStream > &oStream=Teuchos::null)

- Protected Member Functions inherited from Teuchos::VerboseObjectBase
void initializeVerboseObjectBase (const RCP< FancyOStream > &oStream=Teuchos::null)

virtual void informUpdatedVerbosityState () const

- Protected Attributes inherited from MueLu::PFactory
bool restrictionMode_


Detailed Description

template<class Scalar = double, class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>
class MueLu::TogglePFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >

Prolongator factory which allows switching between two different prolongator strategies.

Input/output of TogglePFactory

User parameters of TogglePFactory

Parameter type default master.xml validated requested description
P Factory null * * Generating factories of prolongators. Note that the TogglePFactory needs at least two different prolongator subfactories.
Ptent Factory null * * Generating factories of base prolongators. Note that the TogglePFactory needs at least two different base prolongator subfactories. Usually, the factory for Ptent is the same as for the coarse null space.
Nullspace Factory null * * Generating factories for fine level null space information. Note, that you have to provide a null space information source factory for each prolongator factory.
NumZLayersFactory NoFactory * * Factory which provides information about z layers. Usually it is stored with MueLu::NoFactory as generating factory. The data is generated by the SemiCoarsenPFactory.
semicoarsen: number of levels int ? * * number of levels which are reserved for semi-coarsening. Note that the TogglePFactory stops the semi-coarsening process either when we have more levels than declared in this parameter or as soon as the number of remaining z-levels is 1.

The * in the master.xml column denotes that the parameter is defined in the master.xml file.
The * in the validated column means that the parameter is declared in the list of valid input parameters (see TogglePFactory::GetValidParameters).
The * in the requested column states that the data is requested as input with all dependencies (see TogglePFactory::DeclareInput).

Variables provided by TogglePFactory

After TogglePFactory::Build the following data is available (if requested)

Parameter generated by description
P TogglePFactory Prolongator
Ptent TogglePFactory Base prolongator (e.g. tentative prolongator)
Nullspace TogglePFactory associated coarse null space

Definition at line 92 of file MueLu_TogglePFactory_decl.hpp.

Constructor & Destructor Documentation

template<class Scalar = double, class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>
MueLu::TogglePFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >::TogglePFactory ( )
inline

Constructor.

Definition at line 102 of file MueLu_TogglePFactory_decl.hpp.

template<class Scalar = double, class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>
virtual MueLu::TogglePFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >::~TogglePFactory ( )
inlinevirtual

Destructor.

Definition at line 105 of file MueLu_TogglePFactory_decl.hpp.

Member Function Documentation

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
RCP< const ParameterList > MueLu::TogglePFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >::GetValidParameterList ( ) const
virtual

Return a const parameter list of valid parameters that setParameterList() will accept.

Also define the default values of parameters according to the input parameter list.

Implements MueLu::ParameterListAcceptor.

Definition at line 62 of file MueLu_TogglePFactory_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::TogglePFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >::DeclareInput ( Level fineLevel,
Level coarseLevel
) const
virtual

Input.

Implements MueLu::TwoLevelFactoryBase.

Definition at line 74 of file MueLu_TogglePFactory_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::TogglePFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Build ( Level fineLevel,
Level coarseLevel
) const
virtual

Build method.

Implements MueLu::TwoLevelFactoryBase.

Definition at line 103 of file MueLu_TogglePFactory_def.hpp.

template<class Scalar = double, class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>
void MueLu::TogglePFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >::BuildP ( Level fineLevel,
Level coarseLevel
) const
inlinevirtual

Abstract Build method.

Implements MueLu::PFactory.

Definition at line 124 of file MueLu_TogglePFactory_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::TogglePFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >::AddProlongatorFactory ( const RCP< const FactoryBase > &  factory)

Add a prolongator factory in the end of list of prolongator factories.

Definition at line 162 of file MueLu_TogglePFactory_def.hpp.

template<class Scalar = double, class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>
size_t MueLu::TogglePFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >::NumProlongatorFactories ( ) const
inline

Returns number of prolongator factories.

Definition at line 133 of file MueLu_TogglePFactory_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::TogglePFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >::AddPtentFactory ( const RCP< const FactoryBase > &  factory)

Add a tentative prolongator factory in the end of list of prolongator factories.

Definition at line 172 of file MueLu_TogglePFactory_def.hpp.

template<class Scalar = double, class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>
size_t MueLu::TogglePFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >::NumPtentFactories ( ) const
inline

Returns number of tentative prolongator factories.

Definition at line 139 of file MueLu_TogglePFactory_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::TogglePFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >::AddCoarseNullspaceFactory ( const RCP< const FactoryBase > &  factory)

Add a coarse nullspace factory in the end of list of coarse nullspace factories.

Definition at line 182 of file MueLu_TogglePFactory_def.hpp.

template<class Scalar = double, class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>
size_t MueLu::TogglePFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >::NumCoarseNullspaceFactories ( ) const
inline

Returns number of coarse null space factories.

Definition at line 145 of file MueLu_TogglePFactory_decl.hpp.

Member Data Documentation

template<class Scalar = double, class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>
std::vector<RCP<const FactoryBase> > MueLu::TogglePFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >::prolongatorFacts_
mutableprivate

list of user-defined prolongation operator factories

Definition at line 150 of file MueLu_TogglePFactory_decl.hpp.

template<class Scalar = double, class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>
std::vector<RCP<const FactoryBase> > MueLu::TogglePFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >::ptentFacts_
mutableprivate

list of user-defined tentative prolongation operator factories

Definition at line 153 of file MueLu_TogglePFactory_decl.hpp.

template<class Scalar = double, class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>
std::vector<RCP<const FactoryBase> > MueLu::TogglePFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >::nspFacts_
mutableprivate

list of user-defined nullspace factories (i.e. the prolongator factories which also generate the coarse level nullspace)

Definition at line 156 of file MueLu_TogglePFactory_decl.hpp.

template<class Scalar = double, class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>
bool MueLu::TogglePFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >::hasDeclaredInput_
mutableprivate

Definition at line 158 of file MueLu_TogglePFactory_decl.hpp.


The documentation for this class was generated from the following files:
