Shifted Laplacian Helmholtz solver. More...

#include <MueLu_ShiftedLaplacian_decl.hpp>

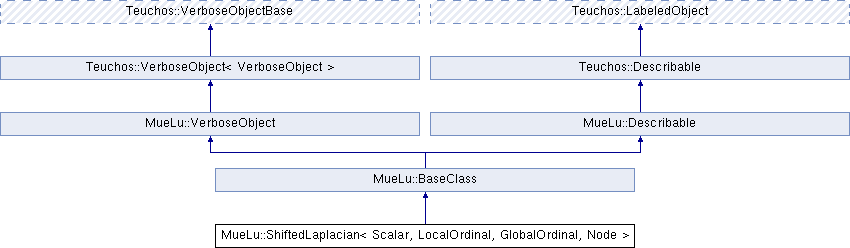

Inheritance diagram for MueLu::ShiftedLaplacian< Scalar, LocalOrdinal, GlobalOrdinal, Node >:

Public Member Functions
	ShiftedLaplacian ()
	Constructors. More...

virtual	~ShiftedLaplacian ()

void	setParameters (Teuchos::RCP< Teuchos::ParameterList > paramList)

void	setProblemMatrix (RCP< Matrix > &A)

void	setProblemMatrix (RCP< Tpetra::CrsMatrix< SC, LO, GO, NO > > &TpetraA)

void	setPreconditioningMatrix (RCP< Matrix > &P)

void	setPreconditioningMatrix (RCP< Tpetra::CrsMatrix< SC, LO, GO, NO > > &TpetraP)

void	setstiff (RCP< Matrix > &K)

void	setstiff (RCP< Tpetra::CrsMatrix< SC, LO, GO, NO > > &TpetraK)

void	setmass (RCP< Matrix > &M)

void	setmass (RCP< Tpetra::CrsMatrix< SC, LO, GO, NO > > &TpetraM)

void	setcoords (RCP< MultiVector > &Coords)

void	setNullSpace (RCP< MultiVector > NullSpace)

void	setLevelShifts (std::vector< Scalar > levelshifts)

void	initialize ()

void	setupFastRAP ()

void	setupSlowRAP ()

void	setupNormalRAP ()

void	setupSolver ()

void	resetLinearProblem ()

int	solve (const RCP< TMV > B, RCP< TMV > &X)

void	multigrid_apply (const RCP< MultiVector > B, RCP< MultiVector > &X)

void	multigrid_apply (const RCP< Tpetra::MultiVector< SC, LO, GO, NO > > B, RCP< Tpetra::MultiVector< SC, LO, GO, NO > > &X)

int	GetIterations ()

Teuchos::ScalarTraits< Scalar > ::magnitudeType	GetResidual ()

Public Member Functions inherited from MueLu::BaseClass
virtual	~BaseClass ()
	Destructor. More...

Public Member Functions inherited from MueLu::VerboseObject
VerbLevel	GetVerbLevel () const
	Get the verbosity level. More...

void	SetVerbLevel (const VerbLevel verbLevel)
	Set the verbosity level of this object. More...

int	GetProcRankVerbose () const
	Get proc rank used for printing. Do not use this information for any other purpose. More...

int	SetProcRankVerbose (int procRank) const
	Set proc rank used for printing. More...

bool	IsPrint (MsgType type, int thisProcRankOnly=-1) const
	Find out whether we need to print out information for a specific message type. More...

Teuchos::FancyOStream &	GetOStream (MsgType type, int thisProcRankOnly=0) const
	Get an output stream for outputting the input message type. More...

Teuchos::FancyOStream &	GetBlackHole () const

	VerboseObject ()

virtual	~VerboseObject ()
	Destructor. More...

Public Member Functions inherited from Teuchos::VerboseObject< VerboseObject >
	VerboseObject (const EVerbosityLevel verbLevel=VERB_DEFAULT, const RCP< FancyOStream > &oStream=Teuchos::null)

virtual const VerboseObject &	setVerbLevel (const EVerbosityLevel verbLevel) const

virtual const VerboseObject &	setOverridingVerbLevel (const EVerbosityLevel verbLevel) const

virtual EVerbosityLevel	getVerbLevel () const

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT RCP< const ParameterList >	getValidVerboseObjectSublist ()

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT void	setupVerboseObjectSublist (ParameterList *paramList)

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT void	readVerboseObjectSublist (ParameterList paramList, RCP< FancyOStream > oStream, EVerbosityLevel *verbLevel)

void	readVerboseObjectSublist (ParameterList paramList, VerboseObject< ObjectType > verboseObject)

Public Member Functions inherited from Teuchos::VerboseObjectBase
virtual	~VerboseObjectBase ()

	VerboseObjectBase (const RCP< FancyOStream > &oStream=Teuchos::null)

virtual const VerboseObjectBase &	setOStream (const RCP< FancyOStream > &oStream) const

virtual const VerboseObjectBase &	setOverridingOStream (const RCP< FancyOStream > &oStream) const

virtual VerboseObjectBase &	setLinePrefix (const std::string &linePrefix)

virtual RCP< FancyOStream >	getOStream () const

virtual RCP< FancyOStream >	getOverridingOStream () const

virtual std::string	getLinePrefix () const

virtual OSTab	getOSTab (const int tabs=1, const std::string &linePrefix="") const

Public Member Functions inherited from MueLu::Describable
virtual	~Describable ()
	Destructor. More...

virtual std::string	ShortClassName () const
	Return the class name of the object, without template parameters and without namespace. More...

virtual void	describe (Teuchos::FancyOStream &out_arg, const VerbLevel verbLevel=Default) const

virtual std::string	description () const
	Return a simple one-line description of this object. More...

void	describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const
	Print the object with some verbosity level to an FancyOStream object. More...

Public Member Functions inherited from Teuchos::Describable
void	describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

	LabeledObject ()

virtual	~LabeledObject ()

virtual void	setObjectLabel (const std::string &objectLabel)

virtual std::string	getObjectLabel () const

DescribableStreamManipulatorState	describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream &	operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)

Public Attributes
RCP< FactoryManager >	Manager_

Private Types
typedef Tpetra::Vector< SC, LO, GO, NO >	TVEC

typedef Tpetra::MultiVector < SC, LO, GO, NO >	TMV

typedef Tpetra::Operator< SC, LO, GO, NO >	OP

Private Attributes
int	numPDEs_

std::string	Smoother_

std::string	Aggregation_

std::string	Nullspace_

int	numLevels_

int	coarseGridSize_

double	omega_

std::vector< SC >	levelshifts_

int	iters_

int	blksize_

double	tol_

int	nsweeps_

int	ncycles_

int	cycles_

int	subiters_

int	option_

int	nproblems_

int	solverType_

int	restart_size_

int	recycle_size_

int	smoother_sweeps_

Scalar	smoother_damping_

int	krylov_type_

int	krylov_iterations_

int	krylov_preconditioner_

double	ilu_leveloffill_

double	ilu_abs_thresh_

double	ilu_rel_thresh_

double	ilu_diagpivotthresh_

double	ilu_drop_tol_

double	ilu_fill_tol_

double	ilu_relax_val_

std::string	ilu_rowperm_

std::string	ilu_colperm_

std::string	ilu_drop_rule_

std::string	ilu_normtype_

std::string	ilu_milutype_

int	schwarz_overlap_

bool	schwarz_usereorder_

Tpetra::CombineMode	schwarz_combinemode_

std::string	schwarz_ordermethod_

bool	GridTransfersExist_

bool	isSymmetric_

RCP< Matrix >	K_

RCP< Matrix >	M_

RCP< Matrix >	A_

RCP< Matrix >	P_

RCP< MultiVector >	Coords_

RCP< MultiVector >	NullSpace_

RCP< Hierarchy >	Hierarchy_

RCP< TentativePFactory >	TentPfact_

RCP< PFactory >	Pfact_

RCP< PgPFactory >	PgPfact_

RCP< TransPFactory >	TransPfact_

RCP< GenericRFactory >	Rfact_

RCP< RAPFactory >	Acfact_

RCP< RAPShiftFactory >	Acshift_

RCP< CoalesceDropFactory >	Dropfact_

RCP< CoupledAggregationFactory >	Aggfact_

RCP< UncoupledAggregationFactory >	UCaggfact_

RCP< CoarseMapFactory >	CoarseMapfact_

RCP< SmootherPrototype >	smooProto_

RCP< SmootherPrototype >	coarsestSmooProto_

RCP< SmootherFactory >	smooFact_

RCP< SmootherFactory >	coarsestSmooFact_

Teuchos::ParameterList	coarsestSmooList_

std::string	precType_

Teuchos::ParameterList	precList_

RCP < MueLu::ShiftedLaplacianOperator < SC, LO, GO, NO > >	MueLuOp_

RCP< Tpetra::CrsMatrix< SC, LO, GO, NO > >	TpetraA_

Additional Inherited Members
Static Public Member Functions inherited from MueLu::VerboseObject
static void	SetMueLuOStream (const Teuchos::RCP< Teuchos::FancyOStream > &mueluOStream)

static Teuchos::RCP < Teuchos::FancyOStream >	GetMueLuOStream ()

static void	SetDefaultVerbLevel (const VerbLevel defaultVerbLevel)
	Set the default (global) verbosity level. More...

static VerbLevel	GetDefaultVerbLevel ()
	Get the default (global) verbosity level. More...

Static Public Member Functions inherited from Teuchos::VerboseObject< VerboseObject >
static void	setDefaultVerbLevel (const EVerbosityLevel defaultVerbLevel)

static EVerbosityLevel	getDefaultVerbLevel ()

Static Public Member Functions inherited from Teuchos::VerboseObjectBase
static void	setDefaultOStream (const RCP< FancyOStream > &defaultOStream)

static RCP< FancyOStream >	getDefaultOStream ()

Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel	verbLevel_default

Protected Member Functions inherited from Teuchos::VerboseObject< VerboseObject >
void	initializeVerboseObject (const EVerbosityLevel verbLevel=VERB_DEFAULT, const RCP< FancyOStream > &oStream=Teuchos::null)

Protected Member Functions inherited from Teuchos::VerboseObjectBase
void	initializeVerboseObjectBase (const RCP< FancyOStream > &oStream=Teuchos::null)

virtual void	informUpdatedVerbosityState () const

Detailed Description

template<class Scalar = Xpetra::Matrix<>::scalar_type, class LocalOrdinal = typename Xpetra::Matrix<Scalar>::local_ordinal_type, class GlobalOrdinal = typename Xpetra::Matrix<Scalar, LocalOrdinal>::global_ordinal_type, class Node = typename Xpetra::Matrix<Scalar, LocalOrdinal, GlobalOrdinal>::node_type>
class MueLu::ShiftedLaplacian< Scalar, LocalOrdinal, GlobalOrdinal, Node >

Shifted Laplacian Helmholtz solver.

This class provides a black box solver for indefinite Helmholtz problems. An AMG-Shifted Laplacian is used as a preconditioner for Krylov iterative solvers in Belos.

Definition at line 107 of file MueLu_ShiftedLaplacian_decl.hpp.

Member Typedef Documentation

template<class Scalar = Xpetra::Matrix<>::scalar_type, class LocalOrdinal = typename Xpetra::Matrix<Scalar>::local_ordinal_type, class GlobalOrdinal = typename Xpetra::Matrix<Scalar, LocalOrdinal>::global_ordinal_type, class Node = typename Xpetra::Matrix<Scalar, LocalOrdinal, GlobalOrdinal>::node_type>

typedef Tpetra::Vector<SC,LO,GO,NO> MueLu::ShiftedLaplacian< Scalar, LocalOrdinal, GlobalOrdinal, Node >::TVEC

private

Definition at line 111 of file MueLu_ShiftedLaplacian_decl.hpp.

template<class Scalar = Xpetra::Matrix<>::scalar_type, class LocalOrdinal = typename Xpetra::Matrix<Scalar>::local_ordinal_type, class GlobalOrdinal = typename Xpetra::Matrix<Scalar, LocalOrdinal>::global_ordinal_type, class Node = typename Xpetra::Matrix<Scalar, LocalOrdinal, GlobalOrdinal>::node_type>

typedef Tpetra::MultiVector<SC,LO,GO,NO> MueLu::ShiftedLaplacian< Scalar, LocalOrdinal, GlobalOrdinal, Node >::TMV

private

Definition at line 112 of file MueLu_ShiftedLaplacian_decl.hpp.

template<class Scalar = Xpetra::Matrix<>::scalar_type, class LocalOrdinal = typename Xpetra::Matrix<Scalar>::local_ordinal_type, class GlobalOrdinal = typename Xpetra::Matrix<Scalar, LocalOrdinal>::global_ordinal_type, class Node = typename Xpetra::Matrix<Scalar, LocalOrdinal, GlobalOrdinal>::node_type>

typedef Tpetra::Operator<SC,LO,GO,NO> MueLu::ShiftedLaplacian< Scalar, LocalOrdinal, GlobalOrdinal, Node >::OP

private

Definition at line 113 of file MueLu_ShiftedLaplacian_decl.hpp.

Constructor & Destructor Documentation

template<class Scalar = Xpetra::Matrix<>::scalar_type, class LocalOrdinal = typename Xpetra::Matrix<Scalar>::local_ordinal_type, class GlobalOrdinal = typename Xpetra::Matrix<Scalar, LocalOrdinal>::global_ordinal_type, class Node = typename Xpetra::Matrix<Scalar, LocalOrdinal, GlobalOrdinal>::node_type>

MueLu::ShiftedLaplacian< Scalar, LocalOrdinal, GlobalOrdinal, Node >::ShiftedLaplacian ( )

inline

Constructors.

Definition at line 128 of file MueLu_ShiftedLaplacian_decl.hpp.
