MueLu  Version of the Day
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Macros Groups Pages
MueLu::SaPFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node > Class Template Reference

Factory for building Smoothed Aggregation prolongators. More...

#include <MueLu_SaPFactory_decl.hpp>

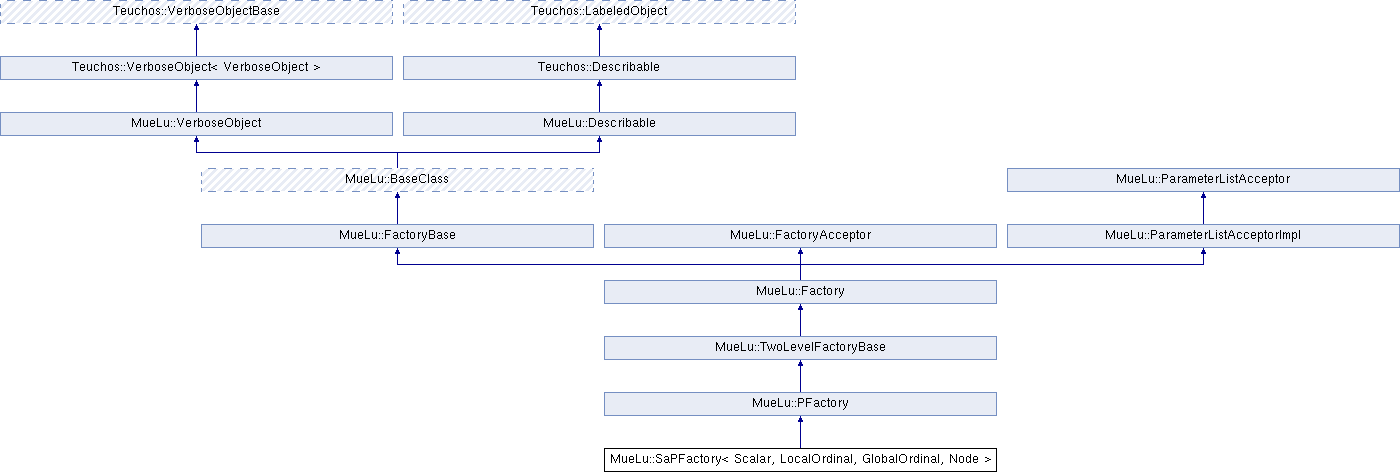

Inheritance diagram for MueLu::SaPFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >:
MueLu::PFactory MueLu::TwoLevelFactoryBase MueLu::Factory MueLu::FactoryBase MueLu::FactoryAcceptor MueLu::ParameterListAcceptorImpl MueLu::BaseClass MueLu::ParameterListAcceptor MueLu::VerboseObject MueLu::Describable Teuchos::VerboseObject< VerboseObject > Teuchos::Describable Teuchos::VerboseObjectBase Teuchos::LabeledObject

Constructors/Destructors.

 SaPFactory ()
 Constructor. User can supply a factory for generating the tentative prolongator. More...

virtual ~SaPFactory ()
 Destructor. More...

RCP< const ParameterListGetValidParameterList () const
 Return a const parameter list of valid parameters that setParameterList() will accept. More...

void DeclareInput (Level &fineLevel, Level &coarseLevel) const
 Input. More...


Build methods.

void Build (Level &fineLevel, Level &coarseLevel) const
 Build method. More...

void BuildP (Level &fineLevel, Level &coarseLevel) const
 Abstract Build method. More...


Additional Inherited Members

- Public Member Functions inherited from MueLu::PFactory
 PFactory ()
 Constructor. More...

virtual ~PFactory ()
 Destructor. More...

void setRestrictionMode (bool bRestrictionMode=false)

bool isRestrictionModeSet ()
 returns restrictionMode flag More...

- Public Member Functions inherited from MueLu::TwoLevelFactoryBase
 TwoLevelFactoryBase ()
 Constructor. More...

virtual ~TwoLevelFactoryBase ()
 Destructor. More...

virtual void CallDeclareInput (Level &requestedLevel) const

virtual void CallBuild (Level &requestedLevel) const

- Public Member Functions inherited from MueLu::Factory
void EnableMultipleCallCheck () const
 Constructor. More...

void DisableMultipleCallCheck () const

void ResetDebugData () const

- Public Member Functions inherited from MueLu::FactoryBase
 FactoryBase ()
 Constructor. More...

virtual ~FactoryBase ()
 Destructor. More...

int GetID () const
 return unique factory id More...

- Public Member Functions inherited from MueLu::BaseClass
virtual ~BaseClass ()
 Destructor. More...

- Public Member Functions inherited from MueLu::VerboseObject
VerbLevel GetVerbLevel () const
 Get the verbosity level. More...

void SetVerbLevel (const VerbLevel verbLevel)
 Set the verbosity level of this object. More...

int GetProcRankVerbose () const
 Get proc rank used for printing. Do not use this information for any other purpose. More...

int SetProcRankVerbose (int procRank) const
 Set proc rank used for printing. More...

bool IsPrint (MsgType type, int thisProcRankOnly=-1) const
 Find out whether we need to print out information for a specific message type. More...

Teuchos::FancyOStreamGetOStream (MsgType type, int thisProcRankOnly=0) const
 Get an output stream for outputting the input message type. More...

Teuchos::FancyOStreamGetBlackHole () const

 VerboseObject ()

virtual ~VerboseObject ()
 Destructor. More...

- Public Member Functions inherited from Teuchos::VerboseObject< VerboseObject >
 VerboseObject (const EVerbosityLevel verbLevel=VERB_DEFAULT, const RCP< FancyOStream > &oStream=Teuchos::null)

virtual const VerboseObjectsetVerbLevel (const EVerbosityLevel verbLevel) const

virtual const VerboseObjectsetOverridingVerbLevel (const EVerbosityLevel verbLevel) const

virtual EVerbosityLevel getVerbLevel () const

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT
RCP< const ParameterList
getValidVerboseObjectSublist ()

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT
void
setupVerboseObjectSublist (ParameterList *paramList)

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT
void
readVerboseObjectSublist (ParameterList *paramList, RCP< FancyOStream > *oStream, EVerbosityLevel *verbLevel)

void readVerboseObjectSublist (ParameterList *paramList, VerboseObject< ObjectType > *verboseObject)

- Public Member Functions inherited from Teuchos::VerboseObjectBase
virtual ~VerboseObjectBase ()

 VerboseObjectBase (const RCP< FancyOStream > &oStream=Teuchos::null)

virtual const VerboseObjectBasesetOStream (const RCP< FancyOStream > &oStream) const

virtual const VerboseObjectBasesetOverridingOStream (const RCP< FancyOStream > &oStream) const

virtual VerboseObjectBasesetLinePrefix (const std::string &linePrefix)

virtual RCP< FancyOStreamgetOStream () const

virtual RCP< FancyOStreamgetOverridingOStream () const

virtual std::string getLinePrefix () const

virtual OSTab getOSTab (const int tabs=1, const std::string &linePrefix="") const

- Public Member Functions inherited from MueLu::Describable
virtual ~Describable ()
 Destructor. More...

virtual std::string ShortClassName () const
 Return the class name of the object, without template parameters and without namespace. More...

virtual void describe (Teuchos::FancyOStream &out_arg, const VerbLevel verbLevel=Default) const

virtual std::string description () const
 Return a simple one-line description of this object. More...

void describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const
 Print the object with some verbosity level to an FancyOStream object. More...

- Public Member Functions inherited from Teuchos::Describable
void describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

 LabeledObject ()

virtual ~LabeledObject ()

virtual void setObjectLabel (const std::string &objectLabel)

virtual std::string getObjectLabel () const

DescribableStreamManipulatorState describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream & operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)

- Public Member Functions inherited from MueLu::FactoryAcceptor
virtual ~FactoryAcceptor ()

virtual void SetFactory (const std::string &varName, const RCP< const FactoryBase > &factory)=0
 Configuration. More...

virtual const RCP< const
FactoryBase
GetFactory (const std::string &varName) const =0

- Public Member Functions inherited from MueLu::ParameterListAcceptorImpl
 ParameterListAcceptorImpl ()

virtual ~ParameterListAcceptorImpl ()=default

virtual void SetParameterList (const Teuchos::ParameterList &paramList)
 Set parameters from a parameter list and return with default values. More...

virtual const
Teuchos::ParameterList
GetParameterList () const

void SetParameter (const std::string &name, const ParameterEntry &entry)
 Set a parameter directly as a ParameterEntry. More...

const ParameterEntryGetParameter (const std::string &name) const
 Retrieves a const entry with the name name. More...

virtual void GetDocumentation (std::ostream &os) const

- Public Member Functions inherited from MueLu::ParameterListAcceptor
 ParameterListAcceptor ()

virtual ~ParameterListAcceptor ()=default

- Static Public Member Functions inherited from MueLu::Factory
static void EnableMultipleCheckGlobally ()

static void DisableMultipleCheckGlobally ()

- Static Public Member Functions inherited from MueLu::VerboseObject
static void SetMueLuOStream (const Teuchos::RCP< Teuchos::FancyOStream > &mueluOStream)

static Teuchos::RCP
< Teuchos::FancyOStream
GetMueLuOStream ()

static void SetDefaultVerbLevel (const VerbLevel defaultVerbLevel)
 Set the default (global) verbosity level. More...

static VerbLevel GetDefaultVerbLevel ()
 Get the default (global) verbosity level. More...

- Static Public Member Functions inherited from Teuchos::VerboseObject< VerboseObject >
static void setDefaultVerbLevel (const EVerbosityLevel defaultVerbLevel)

static EVerbosityLevel getDefaultVerbLevel ()

- Static Public Member Functions inherited from Teuchos::VerboseObjectBase
static void setDefaultOStream (const RCP< FancyOStream > &defaultOStream)

static RCP< FancyOStreamgetDefaultOStream ()

- Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel verbLevel_default

- Protected Member Functions inherited from Teuchos::VerboseObject< VerboseObject >
void initializeVerboseObject (const EVerbosityLevel verbLevel=VERB_DEFAULT, const RCP< FancyOStream > &oStream=Teuchos::null)

- Protected Member Functions inherited from Teuchos::VerboseObjectBase
void initializeVerboseObjectBase (const RCP< FancyOStream > &oStream=Teuchos::null)

virtual void informUpdatedVerbosityState () const

- Protected Attributes inherited from MueLu::PFactory
bool restrictionMode_


Detailed Description

template<class Scalar = double, class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>
class MueLu::SaPFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >

Factory for building Smoothed Aggregation prolongators.

Input/output of SaPFactory

User parameters of SaPFactory

Parameter type default master.xml validated requested description
sa: damping factor double 1.33 * * Damping factor for smoothed aggregation transfer operators
sa: calculate eigenvalue estimate bool false * * Force calculation of eigenvalue estimate during prolongator smoothing
sa: eigenvalue estimate num iterations int 10 * * Number of power iterations to estimate max eigenvalue
A Factory null * * Generating factory of the matrix A used during the prolongator smoothing process
P Factory null * * Tentative prolongator factory (should be a TentativePFactory object). Note that if "P" is not provided the FactoryManager tries the factory which is generating the variable "Ptent" as input for "P". In the standard case using the default settings this is the non-smoothed tentative prolongation operator.

The * in the master.xml column denotes that the parameter is defined in the master.xml file.
The * in the validated column means that the parameter is declared in the list of valid input parameters (see SaPFactory::GetValidParameters).
The * in the requested column states that the data is requested as input with all dependencies (see SaPFactory::DeclareInput).

Variables provided by SaPFactory

After SaPFactory::Build the following data is available (if requested)

Parameter generated by description
P SaPFactory Smoothed prolongator

Definition at line 96 of file MueLu_SaPFactory_decl.hpp.

Constructor & Destructor Documentation

template<class Scalar = double, class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>
MueLu::SaPFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >::SaPFactory ( )
inline

Constructor. User can supply a factory for generating the tentative prolongator.

Definition at line 108 of file MueLu_SaPFactory_decl.hpp.

template<class Scalar = double, class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>
virtual MueLu::SaPFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >::~SaPFactory ( )
inlinevirtual

Destructor.

Definition at line 111 of file MueLu_SaPFactory_decl.hpp.

Member Function Documentation

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
RCP< const ParameterList > MueLu::SaPFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >::GetValidParameterList ( ) const
virtual

Return a const parameter list of valid parameters that setParameterList() will accept.

Also define the default values of parameters according to the input parameter list.

Implements MueLu::ParameterListAcceptor.

Definition at line 67 of file MueLu_SaPFactory_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::SaPFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >::DeclareInput ( Level fineLevel,
Level coarseLevel
) const
virtual

Input.

Implements MueLu::TwoLevelFactoryBase.

Definition at line 89 of file MueLu_SaPFactory_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::SaPFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Build ( Level fineLevel,
Level coarseLevel
) const
virtual

Build method.

  Builds smoothed aggregation prolongator and returns it in <tt>coarseLevel</tt>.

FIXME what does the return code mean (unclear in MueMat)?

Implements MueLu::TwoLevelFactoryBase.

Definition at line 100 of file MueLu_SaPFactory_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::SaPFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >::BuildP ( Level fineLevel,
Level coarseLevel
) const
virtual

Abstract Build method.

Implements MueLu::PFactory.

Definition at line 105 of file MueLu_SaPFactory_def.hpp.


The documentation for this class was generated from the following files:
