MueLu::MLParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node > Class Template Reference

Class that accepts ML-style parameters and builds a MueLu preconditioner. This interpreter uses the same default values as ML. This allows to compare ML/MueLu results. More...

#include <MueLu_MLParameterListInterpreter_decl.hpp>

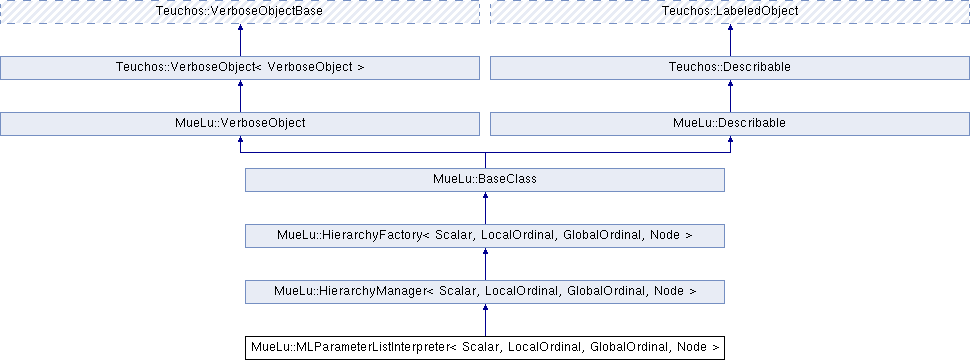

Inheritance diagram for MueLu::MLParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >:
MueLu::HierarchyManager< Scalar, LocalOrdinal, GlobalOrdinal, Node > MueLu::HierarchyFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node > MueLu::BaseClass MueLu::VerboseObject MueLu::Describable Teuchos::VerboseObject< VerboseObject > Teuchos::Describable Teuchos::VerboseObjectBase Teuchos::LabeledObject

Private Attributes

int nullspaceDim_
 nullspace can be embedded in the ML parameter list More...

double * nullspace_

double * xcoord_
 coordinates can be embedded in the ML parameter list More...

double * ycoord_

double * zcoord_

std::vector< RCP< FactoryBase > > TransferFacts_


Constructors/Destructors.

 MLParameterListInterpreter ()
 Constructor. More...

 MLParameterListInterpreter (Teuchos::ParameterList &paramList, Teuchos::RCP< const Teuchos::Comm< int > > comm=Teuchos::null, std::vector< RCP< FactoryBase > > factoryList=std::vector< RCP< FactoryBase > >(0))

 MLParameterListInterpreter (const std::string &xmlFileName, std::vector< RCP< FactoryBase > > factoryList=std::vector< RCP< FactoryBase > >(0))

virtual ~MLParameterListInterpreter ()
 Destructor. More...

void SetParameterList (const Teuchos::ParameterList &paramList)

virtual void SetupHierarchy (Hierarchy &H) const
 Setup Hierarchy object. More...


static helper functions translating parameter list to factories

static helper functions that also can be used from outside for translating ML parameters into MueLu objects

static RCP< SmootherFactoryGetSmootherFactory (const Teuchos::ParameterList &paramList, const RCP< FactoryBase > &AFact=Teuchos::null)
 Read smoother options and build the corresponding smoother factory. More...


Handling of additional user-specific transfer factories

void AddTransferFactory (const RCP< FactoryBase > &factory)
 Add transfer factory in the end of list of transfer factories for RAPFactory. More...

size_t NumTransferFactories () const
 Returns number of transfer factories. More...

int blksize_
 Matrix configuration storage. More...

virtual void SetupOperator (Operator &Op) const
 Setup Operator object. More...


Additional Inherited Members

- Public Types inherited from MueLu::HierarchyManager< Scalar, LocalOrdinal, GlobalOrdinal, Node >
typedef std::map< std::string,
RCP< const FactoryBase > >
FactoryMap

- Public Member Functions inherited from MueLu::HierarchyManager< Scalar, LocalOrdinal, GlobalOrdinal, Node >
 HierarchyManager (int numDesiredLevel=MasterList::getDefault< int >("max levels"))

virtual ~HierarchyManager ()

void AddFactoryManager (int startLevel, int numDesiredLevel, RCP< FactoryManagerBase > manager)

RCP< FactoryManagerBaseGetFactoryManager (int levelID) const

size_t getNumFactoryManagers () const
 returns number of factory managers stored in levelManagers_ vector. More...

void CheckConfig ()

virtual RCP< HierarchyCreateHierarchy () const
 Create an empty Hierarchy object. More...

virtual RCP< HierarchyCreateHierarchy (const std::string &label) const
 Create a labeled empty Hierarchy object. More...

- Public Member Functions inherited from MueLu::HierarchyFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >
virtual ~HierarchyFactory ()
 Destructor. More...

- Public Member Functions inherited from MueLu::BaseClass
virtual ~BaseClass ()
 Destructor. More...

- Public Member Functions inherited from MueLu::VerboseObject
VerbLevel GetVerbLevel () const
 Get the verbosity level. More...

void SetVerbLevel (const VerbLevel verbLevel)
 Set the verbosity level of this object. More...

int GetProcRankVerbose () const
 Get proc rank used for printing. Do not use this information for any other purpose. More...

int SetProcRankVerbose (int procRank) const
 Set proc rank used for printing. More...

bool IsPrint (MsgType type, int thisProcRankOnly=-1) const
 Find out whether we need to print out information for a specific message type. More...

Teuchos::FancyOStreamGetOStream (MsgType type, int thisProcRankOnly=0) const
 Get an output stream for outputting the input message type. More...

Teuchos::FancyOStreamGetBlackHole () const

 VerboseObject ()

virtual ~VerboseObject ()
 Destructor. More...

- Public Member Functions inherited from Teuchos::VerboseObject< VerboseObject >
 VerboseObject (const EVerbosityLevel verbLevel=VERB_DEFAULT, const RCP< FancyOStream > &oStream=Teuchos::null)

virtual const VerboseObjectsetVerbLevel (const EVerbosityLevel verbLevel) const

virtual const VerboseObjectsetOverridingVerbLevel (const EVerbosityLevel verbLevel) const

virtual EVerbosityLevel getVerbLevel () const

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT
RCP< const ParameterList
getValidVerboseObjectSublist ()

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT
void
setupVerboseObjectSublist (ParameterList *paramList)

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT
void
readVerboseObjectSublist (ParameterList *paramList, RCP< FancyOStream > *oStream, EVerbosityLevel *verbLevel)

void readVerboseObjectSublist (ParameterList *paramList, VerboseObject< ObjectType > *verboseObject)

- Public Member Functions inherited from Teuchos::VerboseObjectBase
virtual ~VerboseObjectBase ()

 VerboseObjectBase (const RCP< FancyOStream > &oStream=Teuchos::null)

virtual const VerboseObjectBasesetOStream (const RCP< FancyOStream > &oStream) const

virtual const VerboseObjectBasesetOverridingOStream (const RCP< FancyOStream > &oStream) const

virtual VerboseObjectBasesetLinePrefix (const std::string &linePrefix)

virtual RCP< FancyOStreamgetOStream () const

virtual RCP< FancyOStreamgetOverridingOStream () const

virtual std::string getLinePrefix () const

virtual OSTab getOSTab (const int tabs=1, const std::string &linePrefix="") const

- Public Member Functions inherited from MueLu::Describable
virtual ~Describable ()
 Destructor. More...

virtual std::string ShortClassName () const
 Return the class name of the object, without template parameters and without namespace. More...

virtual void describe (Teuchos::FancyOStream &out_arg, const VerbLevel verbLevel=Default) const

virtual std::string description () const
 Return a simple one-line description of this object. More...

void describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const
 Print the object with some verbosity level to an FancyOStream object. More...

- Public Member Functions inherited from Teuchos::Describable
void describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

 LabeledObject ()

virtual ~LabeledObject ()

virtual void setObjectLabel (const std::string &objectLabel)

virtual std::string getObjectLabel () const

DescribableStreamManipulatorState describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream & operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)

- Static Public Member Functions inherited from MueLu::VerboseObject
static void SetMueLuOStream (const Teuchos::RCP< Teuchos::FancyOStream > &mueluOStream)

static Teuchos::RCP
< Teuchos::FancyOStream
GetMueLuOStream ()

static void SetDefaultVerbLevel (const VerbLevel defaultVerbLevel)
 Set the default (global) verbosity level. More...

static VerbLevel GetDefaultVerbLevel ()
 Get the default (global) verbosity level. More...

- Static Public Member Functions inherited from Teuchos::VerboseObject< VerboseObject >
static void setDefaultVerbLevel (const EVerbosityLevel defaultVerbLevel)

static EVerbosityLevel getDefaultVerbLevel ()

- Static Public Member Functions inherited from Teuchos::VerboseObjectBase
static void setDefaultOStream (const RCP< FancyOStream > &defaultOStream)

static RCP< FancyOStreamgetDefaultOStream ()

- Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel verbLevel_default

- Protected Member Functions inherited from MueLu::HierarchyManager< Scalar, LocalOrdinal, GlobalOrdinal, Node >
virtual void SetupExtra (Hierarchy &) const
 Setup extra data. More...

Teuchos::RCP< FactoryManagerBaseLvlMngr (int levelID, int lastLevelID) const

- Protected Member Functions inherited from Teuchos::VerboseObject< VerboseObject >
void initializeVerboseObject (const EVerbosityLevel verbLevel=VERB_DEFAULT, const RCP< FancyOStream > &oStream=Teuchos::null)

- Protected Member Functions inherited from Teuchos::VerboseObjectBase
void initializeVerboseObjectBase (const RCP< FancyOStream > &oStream=Teuchos::null)

virtual void informUpdatedVerbosityState () const

- Protected Attributes inherited from MueLu::HierarchyManager< Scalar, LocalOrdinal, GlobalOrdinal, Node >
int numDesiredLevel_

Xpetra::global_size_t maxCoarseSize_

MsgType verbosity_

bool doPRrebalance_

bool implicitTranspose_

int graphOutputLevel_

Teuchos::Array< int > matricesToPrint_

Teuchos::Array< int > prolongatorsToPrint_

Teuchos::Array< int > restrictorsToPrint_

Teuchos::Array< int > nullspaceToPrint_

Teuchos::Array< int > coordinatesToPrint_

Teuchos::Array< int > elementToNodeMapsToPrint_

std::map< int, std::vector
< keep_pair > >
keep_


Detailed Description

template<class Scalar = double, class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>
class MueLu::MLParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >

Class that accepts ML-style parameters and builds a MueLu preconditioner. This interpreter uses the same default values as ML. This allows to compare ML/MueLu results.

The parameter list is validated only if the package ML is available and parameter "ML validate parameter list" is true. TODO: A warning is issued if ML is not available

Definition at line 125 of file MueLu_MLParameterListInterpreter_decl.hpp.

Constructor & Destructor Documentation

template<class Scalar = double, class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>
MueLu::MLParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::MLParameterListInterpreter ( )
inline

Constructor.

Definition at line 134 of file MueLu_MLParameterListInterpreter_decl.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
MueLu::MLParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::MLParameterListInterpreter ( Teuchos::ParameterList paramList,
Teuchos::RCP< const Teuchos::Comm< int > >  comm = Teuchos::null,
std::vector< RCP< FactoryBase > >  factoryList = std::vector<RCP<FactoryBase> >(0)
)

Constructor.

Parameters
paramList,:parameter list with ML parameters
[in]comm(RCP<Teuchos::Comm<int> >): Optional RCP of a Teuchos communicator (default: Teuchos::null)
factoryList,:vector with RCP of FactoryBase objects

The factories in factoryList allow the user to add user-specific factories to the MueLu Hierarchy. The idea is to be able to add some factories that write out some debug information etc. which are not handled by the ML Parameter List itself. See information about the RAPFactory::AddTransferFactory method, too!

Definition at line 125 of file MueLu_MLParameterListInterpreter_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
MueLu::MLParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::MLParameterListInterpreter ( const std::string &  xmlFileName,
std::vector< RCP< FactoryBase > >  factoryList = std::vector<RCP<FactoryBase> >(0)
)

Constructor.

Parameters
xmlFileName,:file name for XML file with ML parameters
factoryList,:vector with RCP of FactoryBase objects

The factories in factoryList allow the user to add user-specific factories to the MueLu Hierarchy. The idea is to be able to add some factories that write out some debug information etc. which are not handled by the ML Parameter List itself. See information about the RAPFactory::AddTransferFactory method, too!

Definition at line 144 of file MueLu_MLParameterListInterpreter_def.hpp.

template<class Scalar = double, class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>
virtual MueLu::MLParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::~MLParameterListInterpreter ( )
inlinevirtual

Destructor.

Definition at line 156 of file MueLu_MLParameterListInterpreter_decl.hpp.

Member Function Documentation

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::MLParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::SetParameterList ( const Teuchos::ParameterList paramList)

Definition at line 150 of file MueLu_MLParameterListInterpreter_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::MLParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::SetupHierarchy ( Hierarchy H) const
virtual
template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
RCP< MueLu::SmootherFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node > > MueLu::MLParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::GetSmootherFactory ( const Teuchos::ParameterList paramList,
const RCP< FactoryBase > &  AFact = Teuchos::null
)
static

Read smoother options and build the corresponding smoother factory.

Definition at line 616 of file MueLu_MLParameterListInterpreter_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::MLParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::AddTransferFactory ( const RCP< FactoryBase > &  factory)

Add transfer factory in the end of list of transfer factories for RAPFactory.

This allows the user to add user-specific factories to the MueLu Hierarchy. The idea is to be able to add some factories that write out some debug information etc. which are not handled by the ML Parameter List itself. See information about the RAPFactory::AddTransferFactory method, too!

Definition at line 752 of file MueLu_MLParameterListInterpreter_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
size_t MueLu::MLParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::NumTransferFactories ( ) const

Returns number of transfer factories.

Definition at line 759 of file MueLu_MLParameterListInterpreter_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::MLParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::SetupOperator ( Operator &  Op) const
privatevirtual

Setup Operator object.

Reimplemented from MueLu::HierarchyManager< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 764 of file MueLu_MLParameterListInterpreter_def.hpp.

Member Data Documentation

template<class Scalar = double, class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>
int MueLu::MLParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::nullspaceDim_
private

nullspace can be embedded in the ML parameter list

Definition at line 203 of file MueLu_MLParameterListInterpreter_decl.hpp.

template<class Scalar = double, class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>
double* MueLu::MLParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::nullspace_
private

Definition at line 204 of file MueLu_MLParameterListInterpreter_decl.hpp.

template<class Scalar = double, class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>
double* MueLu::MLParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::xcoord_
private

coordinates can be embedded in the ML parameter list

Definition at line 207 of file MueLu_MLParameterListInterpreter_decl.hpp.

template<class Scalar = double, class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>
double* MueLu::MLParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::ycoord_
private

Definition at line 208 of file MueLu_MLParameterListInterpreter_decl.hpp.

template<class Scalar = double, class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>
double* MueLu::MLParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::zcoord_
private

Definition at line 209 of file MueLu_MLParameterListInterpreter_decl.hpp.

template<class Scalar = double, class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>
std::vector<RCP<FactoryBase> > MueLu::MLParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::TransferFacts_
private

list of user-defined transfer Factories We use this vector to add some special user-given factories to the Hierarchy (RAPFactory) This way the user can extend the standard functionality of the MLParameterListInterpreter beyond the capabibilities of ML.

Definition at line 215 of file MueLu_MLParameterListInterpreter_decl.hpp.

template<class Scalar = double, class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>
int MueLu::MLParameterListInterpreter< Scalar, LocalOrdinal, GlobalOrdinal, Node >::blksize_
private

Matrix configuration storage.

Definition at line 223 of file MueLu_MLParameterListInterpreter_decl.hpp.


The documentation for this class was generated from the following files:
