MueLu::BlockedGaussSeidelSmoother< Scalar, LocalOrdinal, GlobalOrdinal, Node > Class Template Reference

block Gauss-Seidel method for blocked matrices More...

#include <MueLu_BlockedGaussSeidelSmoother_decl.hpp>

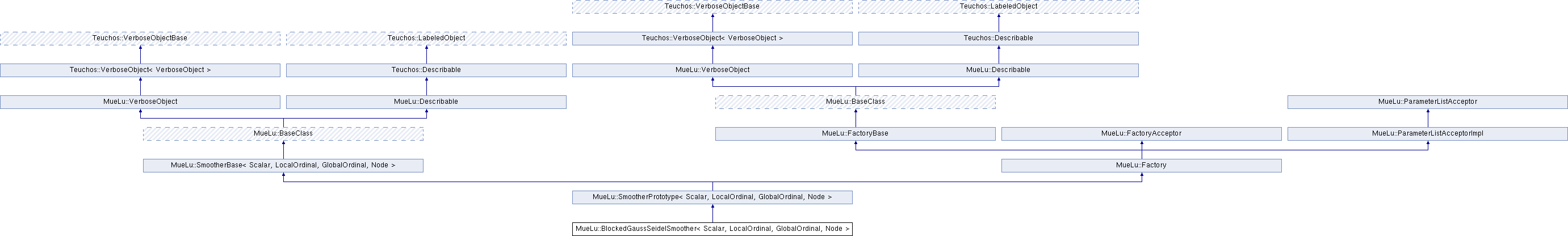

Inheritance diagram for MueLu::BlockedGaussSeidelSmoother< Scalar, LocalOrdinal, GlobalOrdinal, Node >:
MueLu::SmootherPrototype< Scalar, LocalOrdinal, GlobalOrdinal, Node > MueLu::SmootherBase< Scalar, LocalOrdinal, GlobalOrdinal, Node > MueLu::Factory MueLu::BaseClass MueLu::FactoryBase MueLu::FactoryAcceptor MueLu::ParameterListAcceptorImpl MueLu::VerboseObject MueLu::Describable MueLu::BaseClass MueLu::ParameterListAcceptor Teuchos::VerboseObject< VerboseObject > Teuchos::Describable MueLu::VerboseObject MueLu::Describable Teuchos::VerboseObjectBase Teuchos::LabeledObject Teuchos::VerboseObject< VerboseObject > Teuchos::Describable Teuchos::VerboseObjectBase Teuchos::LabeledObject

Public Member Functions

RCP< SmootherPrototypeCopy () const

- Public Member Functions inherited from MueLu::SmootherPrototype< Scalar, LocalOrdinal, GlobalOrdinal, Node >
 SmootherPrototype ()
 /Destructors. More...

virtual ~SmootherPrototype ()

bool IsSetup () const
 Get the state of a smoother prototype. More...

void IsSetup (bool const &ToF)
 Set the state of a smoother prototype. More...

virtual void CallBuild (Level &) const

virtual void CallDeclareInput (Level &requestedLevel) const

- Public Member Functions inherited from MueLu::SmootherBase< Scalar, LocalOrdinal, GlobalOrdinal, Node >
 SmootherBase ()

virtual ~SmootherBase ()

- Public Member Functions inherited from MueLu::BaseClass
virtual ~BaseClass ()
 Destructor. More...

- Public Member Functions inherited from MueLu::VerboseObject
VerbLevel GetVerbLevel () const
 Get the verbosity level. More...

void SetVerbLevel (const VerbLevel verbLevel)
 Set the verbosity level of this object. More...

int GetProcRankVerbose () const
 Get proc rank used for printing. Do not use this information for any other purpose. More...

int SetProcRankVerbose (int procRank) const
 Set proc rank used for printing. More...

bool IsPrint (MsgType type, int thisProcRankOnly=-1) const
 Find out whether we need to print out information for a specific message type. More...

Teuchos::FancyOStreamGetOStream (MsgType type, int thisProcRankOnly=0) const
 Get an output stream for outputting the input message type. More...

Teuchos::FancyOStreamGetBlackHole () const

 VerboseObject ()

virtual ~VerboseObject ()
 Destructor. More...

- Public Member Functions inherited from Teuchos::VerboseObject< VerboseObject >
 VerboseObject (const EVerbosityLevel verbLevel=VERB_DEFAULT, const RCP< FancyOStream > &oStream=Teuchos::null)

virtual const VerboseObjectsetVerbLevel (const EVerbosityLevel verbLevel) const

virtual const VerboseObjectsetOverridingVerbLevel (const EVerbosityLevel verbLevel) const

virtual EVerbosityLevel getVerbLevel () const

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT
RCP< const ParameterList
getValidVerboseObjectSublist ()

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT
void
setupVerboseObjectSublist (ParameterList *paramList)

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT
void
readVerboseObjectSublist (ParameterList *paramList, RCP< FancyOStream > *oStream, EVerbosityLevel *verbLevel)

void readVerboseObjectSublist (ParameterList *paramList, VerboseObject< ObjectType > *verboseObject)

- Public Member Functions inherited from Teuchos::VerboseObjectBase
virtual ~VerboseObjectBase ()

 VerboseObjectBase (const RCP< FancyOStream > &oStream=Teuchos::null)

virtual const VerboseObjectBasesetOStream (const RCP< FancyOStream > &oStream) const

virtual const VerboseObjectBasesetOverridingOStream (const RCP< FancyOStream > &oStream) const

virtual VerboseObjectBasesetLinePrefix (const std::string &linePrefix)

virtual RCP< FancyOStreamgetOStream () const

virtual RCP< FancyOStreamgetOverridingOStream () const

virtual std::string getLinePrefix () const

virtual OSTab getOSTab (const int tabs=1, const std::string &linePrefix="") const

- Public Member Functions inherited from MueLu::Describable
virtual ~Describable ()
 Destructor. More...

virtual std::string ShortClassName () const
 Return the class name of the object, without template parameters and without namespace. More...

virtual void describe (Teuchos::FancyOStream &out_arg, const VerbLevel verbLevel=Default) const

void describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const
 Print the object with some verbosity level to an FancyOStream object. More...

- Public Member Functions inherited from Teuchos::Describable
void describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

 LabeledObject ()

virtual ~LabeledObject ()

virtual void setObjectLabel (const std::string &objectLabel)

virtual std::string getObjectLabel () const

DescribableStreamManipulatorState describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream & operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)

- Public Member Functions inherited from MueLu::Factory
void EnableMultipleCallCheck () const
 Constructor. More...

void DisableMultipleCallCheck () const

void ResetDebugData () const

- Public Member Functions inherited from MueLu::FactoryBase
 FactoryBase ()
 Constructor. More...

virtual ~FactoryBase ()
 Destructor. More...

int GetID () const
 return unique factory id More...

- Public Member Functions inherited from MueLu::FactoryAcceptor
virtual ~FactoryAcceptor ()

virtual void SetFactory (const std::string &varName, const RCP< const FactoryBase > &factory)=0
 Configuration. More...

virtual const RCP< const
FactoryBase
GetFactory (const std::string &varName) const =0

- Public Member Functions inherited from MueLu::ParameterListAcceptorImpl
 ParameterListAcceptorImpl ()

virtual ~ParameterListAcceptorImpl ()=default

virtual void SetParameterList (const Teuchos::ParameterList &paramList)
 Set parameters from a parameter list and return with default values. More...

virtual const
Teuchos::ParameterList
GetParameterList () const

void SetParameter (const std::string &name, const ParameterEntry &entry)
 Set a parameter directly as a ParameterEntry. More...

const ParameterEntryGetParameter (const std::string &name) const
 Retrieves a const entry with the name name. More...

virtual void GetDocumentation (std::ostream &os) const

- Public Member Functions inherited from MueLu::ParameterListAcceptor
 ParameterListAcceptor ()

virtual ~ParameterListAcceptor ()=default


Private Types

typedef Xpetra::MapExtractor
< Scalar, LocalOrdinal,
GlobalOrdinal, Node >
MapExtractorClass


Private Attributes

std::string type_
 smoother type More...

std::vector< Teuchos::RCP
< const FactoryManagerBase > >
FactManager_
 vector of factory managers More...

std::vector< Teuchos::RCP
< const SmootherBase > >
Inverse_
 vector of smoother/solver factories More...

std::vector< bool > bIsBlockedOperator_
 vector storing whether sub-block is a blocked operator (needed for nested blocked smoothers using Thyra GIDs) More...

RCP< FactoryBaseAFact_
 A Factory. More...

RCP< Matrix > A_
 block operator More...

RCP< const MapExtractorClassrangeMapExtractor_
 range map extractor (from A_ generated by AFact) More...

RCP< const MapExtractorClassdomainMapExtractor_
 domain map extractor (from A_ generated by AFact) More...


Constructors / destructors

 BlockedGaussSeidelSmoother ()
 Constructor. More...

virtual ~BlockedGaussSeidelSmoother ()
 Destructor. More...

RCP< const ParameterListGetValidParameterList () const
 Input. More...

void DeclareInput (Level &currentLevel) const
 Input. More...

void AddFactoryManager (RCP< const FactoryManagerBase > FactManager, int pos)
 Add a factory manager. More...


Setup and Apply methods.

void Setup (Level &currentLevel)
 Setup routine In the Setup method the Inverse_ vector is filled with the corresponding SmootherBase objects. Without the Inverse_ vector being filled we cannot call BlockedGaussSeidelSmoother::Apply. More...

void Apply (MultiVector &X, const MultiVector &B, bool InitialGuessIsZero=false) const
 Apply the direct solver. Solves the linear system AX=B using the constructed solver. More...


Overridden from Teuchos::Describable

std::string description () const
 Return a simple one-line description of this object. More...

void print (Teuchos::FancyOStream &out, const VerbLevel verbLevel=Default) const
 Print the object with some verbosity level to an FancyOStream object. More...

size_t getNodeSmootherComplexity () const
 Get a rough estimate of cost per iteration. More...


Additional Inherited Members

- Public Types inherited from MueLu::SmootherPrototype< Scalar, LocalOrdinal, GlobalOrdinal, Node >
typedef Scalar scalar_type

typedef LocalOrdinal local_ordinal_type

typedef GlobalOrdinal global_ordinal_type

typedef Node node_type

- Public Types inherited from MueLu::SmootherBase< Scalar, LocalOrdinal, GlobalOrdinal, Node >
typedef Scalar scalar_type

typedef LocalOrdinal local_ordinal_type

typedef GlobalOrdinal global_ordinal_type

typedef Node node_type

- Static Public Member Functions inherited from MueLu::VerboseObject
static void SetMueLuOStream (const Teuchos::RCP< Teuchos::FancyOStream > &mueluOStream)

static Teuchos::RCP
< Teuchos::FancyOStream
GetMueLuOStream ()

static void SetDefaultVerbLevel (const VerbLevel defaultVerbLevel)
 Set the default (global) verbosity level. More...

static VerbLevel GetDefaultVerbLevel ()
 Get the default (global) verbosity level. More...

- Static Public Member Functions inherited from Teuchos::VerboseObject< VerboseObject >
static void setDefaultVerbLevel (const EVerbosityLevel defaultVerbLevel)

static EVerbosityLevel getDefaultVerbLevel ()

- Static Public Member Functions inherited from Teuchos::VerboseObjectBase
static void setDefaultOStream (const RCP< FancyOStream > &defaultOStream)

static RCP< FancyOStreamgetDefaultOStream ()

- Static Public Member Functions inherited from MueLu::Factory
static void EnableMultipleCheckGlobally ()

static void DisableMultipleCheckGlobally ()

- Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel verbLevel_default

- Protected Member Functions inherited from Teuchos::VerboseObject< VerboseObject >
void initializeVerboseObject (const EVerbosityLevel verbLevel=VERB_DEFAULT, const RCP< FancyOStream > &oStream=Teuchos::null)

- Protected Member Functions inherited from Teuchos::VerboseObjectBase
void initializeVerboseObjectBase (const RCP< FancyOStream > &oStream=Teuchos::null)

virtual void informUpdatedVerbosityState () const


Detailed Description

template<class Scalar = SmootherPrototype<>::scalar_type, class LocalOrdinal = typename SmootherPrototype<Scalar>::local_ordinal_type, class GlobalOrdinal = typename SmootherPrototype<Scalar, LocalOrdinal>::global_ordinal_type, class Node = typename SmootherPrototype<Scalar, LocalOrdinal, GlobalOrdinal>::node_type>
class MueLu::BlockedGaussSeidelSmoother< Scalar, LocalOrdinal, GlobalOrdinal, Node >

block Gauss-Seidel method for blocked matrices

Implementation of a block Gauss-Seidel methods for blocked matrices

Parameters
LocalOrdinalsweeps = 1: number of BGS sweeps
Scalaromega = 1.0: damping parameter
RCP<FactoryBase>AFact = Teuchos::null: factory for blocked "A" operator

Use the AddFactoryManager routine to declare the subsmoothers/subsolvers for the block Gauss-Seidel method for the block rows. The corresponding factory manager has to provide a variable "A" (pointing to the subblock of the blocked A operator) and a smoother object (variable: "PreSmoother").

Example

// prototypes for direct solvers for blocks 1 and 2
RCP<SmootherPrototype> smoProto11 = rcp( new DirectSolver("", Teuchos::ParameterList(), A11Fact) );
RCP<SmootherPrototype> smoProto22 = rcp( new DirectSolver("", Teuchos::ParameterList(), A22Fact) );
RCP<SmootherFactory> Smoo11Fact = rcp( new SmootherFactory(smoProto11) );
RCP<SmootherFactory> Smoo22Fact = rcp( new SmootherFactory(smoProto22) );
// define factory manager objects for sublocks
RCP<FactoryManager> M11 = rcp(new FactoryManager());
M11->SetFactory("A", A11Fact);
M11->SetFactory("Smoother", Smoo11Fact);
RCP<FactoryManager> M22 = rcp(new FactoryManager());
M22->SetFactory("A", A22Fact);
M22->SetFactory("Smoother", Smoo22Fact);
// create blocked Gauss-Seidel smoother for 2x2 blocked matrix
RCP<BlockedGaussSeidelSmoother> smootherPrototype = rcp( new BlockedGaussSeidelSmoother(2,1.0) );
smootherPrototype->AddFactoryManager(M11);
smootherPrototype->AddFactoryManager(M22);
RCP<SmootherFactory> smootherFact = rcp( new SmootherFactory(smootherPrototype) );
// use smootherFact in main-factory manager

Definition at line 121 of file MueLu_BlockedGaussSeidelSmoother_decl.hpp.

Member Typedef Documentation

template<class Scalar = SmootherPrototype<>::scalar_type, class LocalOrdinal = typename SmootherPrototype<Scalar>::local_ordinal_type, class GlobalOrdinal = typename SmootherPrototype<Scalar, LocalOrdinal>::global_ordinal_type, class Node = typename SmootherPrototype<Scalar, LocalOrdinal, GlobalOrdinal>::node_type>
typedef Xpetra::MapExtractor<Scalar, LocalOrdinal, GlobalOrdinal, Node> MueLu::BlockedGaussSeidelSmoother< Scalar, LocalOrdinal, GlobalOrdinal, Node >::MapExtractorClass
private

Definition at line 124 of file MueLu_BlockedGaussSeidelSmoother_decl.hpp.

Constructor & Destructor Documentation

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
MueLu::BlockedGaussSeidelSmoother< Scalar, LocalOrdinal, GlobalOrdinal, Node >::BlockedGaussSeidelSmoother ( )

Constructor.

Definition at line 78 of file MueLu_BlockedGaussSeidelSmoother_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
MueLu::BlockedGaussSeidelSmoother< Scalar, LocalOrdinal, GlobalOrdinal, Node >::~BlockedGaussSeidelSmoother ( )
virtual

Destructor.

Definition at line 85 of file MueLu_BlockedGaussSeidelSmoother_def.hpp.

Member Function Documentation

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
RCP< const ParameterList > MueLu::BlockedGaussSeidelSmoother< Scalar, LocalOrdinal, GlobalOrdinal, Node >::GetValidParameterList ( ) const
virtual

Input.

Implements MueLu::ParameterListAcceptor.

Definition at line 88 of file MueLu_BlockedGaussSeidelSmoother_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::BlockedGaussSeidelSmoother< Scalar, LocalOrdinal, GlobalOrdinal, Node >::DeclareInput ( Level currentLevel) const
virtual
template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::BlockedGaussSeidelSmoother< Scalar, LocalOrdinal, GlobalOrdinal, Node >::AddFactoryManager ( RCP< const FactoryManagerBase FactManager,
int  pos
)

Add a factory manager.

Add a factory manager at a specific position

Definition at line 99 of file MueLu_BlockedGaussSeidelSmoother_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::BlockedGaussSeidelSmoother< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Setup ( Level currentLevel)
virtual

Setup routine In the Setup method the Inverse_ vector is filled with the corresponding SmootherBase objects. Without the Inverse_ vector being filled we cannot call BlockedGaussSeidelSmoother::Apply.

Implements MueLu::SmootherPrototype< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 141 of file MueLu_BlockedGaussSeidelSmoother_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::BlockedGaussSeidelSmoother< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Apply ( MultiVector &  X,
const MultiVector &  B,
bool  InitialGuessIsZero = false
) const
virtual

Apply the direct solver. Solves the linear system AX=B using the constructed solver.

Parameters
Xinitial guess
Bright-hand side
InitialGuessIsZeroThis option has no effect.

Implements MueLu::SmootherBase< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 180 of file MueLu_BlockedGaussSeidelSmoother_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
RCP< MueLu::SmootherPrototype< Scalar, LocalOrdinal, GlobalOrdinal, Node > > MueLu::BlockedGaussSeidelSmoother< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Copy ( ) const
virtual
template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
std::string MueLu::BlockedGaussSeidelSmoother< Scalar, LocalOrdinal, GlobalOrdinal, Node >::description ( ) const
virtual

Return a simple one-line description of this object.

Reimplemented from MueLu::Describable.

Definition at line 348 of file MueLu_BlockedGaussSeidelSmoother_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::BlockedGaussSeidelSmoother< Scalar, LocalOrdinal, GlobalOrdinal, Node >::print ( Teuchos::FancyOStream out,
const VerbLevel  verbLevel = Default
) const

Print the object with some verbosity level to an FancyOStream object.

Definition at line 356 of file MueLu_BlockedGaussSeidelSmoother_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
size_t MueLu::BlockedGaussSeidelSmoother< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getNodeSmootherComplexity ( ) const
virtual

Get a rough estimate of cost per iteration.

Implements MueLu::SmootherBase< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 373 of file MueLu_BlockedGaussSeidelSmoother_def.hpp.

Member Data Documentation

template<class Scalar = SmootherPrototype<>::scalar_type, class LocalOrdinal = typename SmootherPrototype<Scalar>::local_ordinal_type, class GlobalOrdinal = typename SmootherPrototype<Scalar, LocalOrdinal>::global_ordinal_type, class Node = typename SmootherPrototype<Scalar, LocalOrdinal, GlobalOrdinal>::node_type>
std::string MueLu::BlockedGaussSeidelSmoother< Scalar, LocalOrdinal, GlobalOrdinal, Node >::type_
private

smoother type

Definition at line 196 of file MueLu_BlockedGaussSeidelSmoother_decl.hpp.

template<class Scalar = SmootherPrototype<>::scalar_type, class LocalOrdinal = typename SmootherPrototype<Scalar>::local_ordinal_type, class GlobalOrdinal = typename SmootherPrototype<Scalar, LocalOrdinal>::global_ordinal_type, class Node = typename SmootherPrototype<Scalar, LocalOrdinal, GlobalOrdinal>::node_type>
std::vector<Teuchos::RCP<const FactoryManagerBase> > MueLu::BlockedGaussSeidelSmoother< Scalar, LocalOrdinal, GlobalOrdinal, Node >::FactManager_
private

vector of factory managers

Definition at line 199 of file MueLu_BlockedGaussSeidelSmoother_decl.hpp.

template<class Scalar = SmootherPrototype<>::scalar_type, class LocalOrdinal = typename SmootherPrototype<Scalar>::local_ordinal_type, class GlobalOrdinal = typename SmootherPrototype<Scalar, LocalOrdinal>::global_ordinal_type, class Node = typename SmootherPrototype<Scalar, LocalOrdinal, GlobalOrdinal>::node_type>
std::vector<Teuchos::RCP<const SmootherBase> > MueLu::BlockedGaussSeidelSmoother< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Inverse_
private

vector of smoother/solver factories

Definition at line 202 of file MueLu_BlockedGaussSeidelSmoother_decl.hpp.

template<class Scalar = SmootherPrototype<>::scalar_type, class LocalOrdinal = typename SmootherPrototype<Scalar>::local_ordinal_type, class GlobalOrdinal = typename SmootherPrototype<Scalar, LocalOrdinal>::global_ordinal_type, class Node = typename SmootherPrototype<Scalar, LocalOrdinal, GlobalOrdinal>::node_type>
std::vector<bool> MueLu::BlockedGaussSeidelSmoother< Scalar, LocalOrdinal, GlobalOrdinal, Node >::bIsBlockedOperator_
private

vector storing whether sub-block is a blocked operator (needed for nested blocked smoothers using Thyra GIDs)

Definition at line 205 of file MueLu_BlockedGaussSeidelSmoother_decl.hpp.

template<class Scalar = SmootherPrototype<>::scalar_type, class LocalOrdinal = typename SmootherPrototype<Scalar>::local_ordinal_type, class GlobalOrdinal = typename SmootherPrototype<Scalar, LocalOrdinal>::global_ordinal_type, class Node = typename SmootherPrototype<Scalar, LocalOrdinal, GlobalOrdinal>::node_type>
RCP<FactoryBase> MueLu::BlockedGaussSeidelSmoother< Scalar, LocalOrdinal, GlobalOrdinal, Node >::AFact_
private

A Factory.

Definition at line 208 of file MueLu_BlockedGaussSeidelSmoother_decl.hpp.

template<class Scalar = SmootherPrototype<>::scalar_type, class LocalOrdinal = typename SmootherPrototype<Scalar>::local_ordinal_type, class GlobalOrdinal = typename SmootherPrototype<Scalar, LocalOrdinal>::global_ordinal_type, class Node = typename SmootherPrototype<Scalar, LocalOrdinal, GlobalOrdinal>::node_type>
RCP<Matrix> MueLu::BlockedGaussSeidelSmoother< Scalar, LocalOrdinal, GlobalOrdinal, Node >::A_
private

block operator

Definition at line 211 of file MueLu_BlockedGaussSeidelSmoother_decl.hpp.

template<class Scalar = SmootherPrototype<>::scalar_type, class LocalOrdinal = typename SmootherPrototype<Scalar>::local_ordinal_type, class GlobalOrdinal = typename SmootherPrototype<Scalar, LocalOrdinal>::global_ordinal_type, class Node = typename SmootherPrototype<Scalar, LocalOrdinal, GlobalOrdinal>::node_type>
RCP<const MapExtractorClass> MueLu::BlockedGaussSeidelSmoother< Scalar, LocalOrdinal, GlobalOrdinal, Node >::rangeMapExtractor_
private

range map extractor (from A_ generated by AFact)

Definition at line 213 of file MueLu_BlockedGaussSeidelSmoother_decl.hpp.

template<class Scalar = SmootherPrototype<>::scalar_type, class LocalOrdinal = typename SmootherPrototype<Scalar>::local_ordinal_type, class GlobalOrdinal = typename SmootherPrototype<Scalar, LocalOrdinal>::global_ordinal_type, class Node = typename SmootherPrototype<Scalar, LocalOrdinal, GlobalOrdinal>::node_type>
RCP<const MapExtractorClass> MueLu::BlockedGaussSeidelSmoother< Scalar, LocalOrdinal, GlobalOrdinal, Node >::domainMapExtractor_
private

domain map extractor (from A_ generated by AFact)

Definition at line 214 of file MueLu_BlockedGaussSeidelSmoother_decl.hpp.


The documentation for this class was generated from the following files:
